Description
Features:

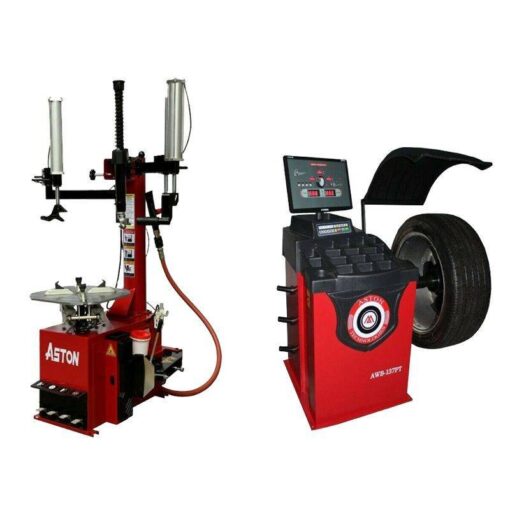

Aston Dual Assist Arm Tire Changer ATC-8823:
2.0 Horse Power Motor
Dual Assist Arm
Inner Rim: 14＂－26＂
Outer Rim: 12＂－24＂
Maximum Tire Diameter: 46＂
w/Bead Blaster
Model#
ATC-8823
Outer Rim
12＂－24＂
Inner Rim
14＂－26＂
Maximum Tire Diameter
46＂/1160mm
Maximum Tire Width
15＂/380mm
Pressing Force (10bar)
5510 lbs. (2500kg)
Operating Air Pressure
8bar－10bar（116－145psi）
Maximum Charge Pressure
3.5bar（50psi）
Power Supply Voltage
110V 1ph
Motor Power
1.5kw (***Motor 2.0HP***)
Shipping Dimension
44＂x 30＂x 34＂(1120×750×860mm)
Net Weight
529 lbs. (240kg)
Shipping Weight
555 lbs. (252kg)
Noise Level
＜70dB（A）
Assist Arm
***Dual Assist Arm***
Aston 2D Fully Automatic Wheel Balancer AWB-3022SL:
2D Fully Automatic data entry
Self-Calibration
Visual Laser Technology pinpoints location of next weight placement
Double clutch motor with brake function
Easy to read LED screen
Complete with wheel guard
Static and Dynamic Balancing
�
Model
AWB-3022SL
Features
2D Fully Automatic/Laser/Double Clutch Motor w/Brake Function/LED
Rim Diameter
10″-32″ (254mm～813mm)
Tire Width
1.5″-20″ (38mm~508mm)
Max Tire Diameter
39″ (980mm)
Power
0.25kw
Voltage
110V 60hz�
Balancing speed
≤180rpm
Air pressure
6 – 8 bar
Balancing time
8S
Balancing accuracy
1g
8 Balancing modes
DYN, ALU1, ALU2, ALU3, ALU4, ALU5, ALUS, ST
Max tire weight
165 lbs. (75kg)
Net weight
320 lbs. (145kg)
Gross weight
377 lbs. (171kg)
Sound pressure level
<70db Temperature 32°F -113°F（0℃-45℃） Packing size 41″x32″x43″(1118x813x1220mm)
