Product Description

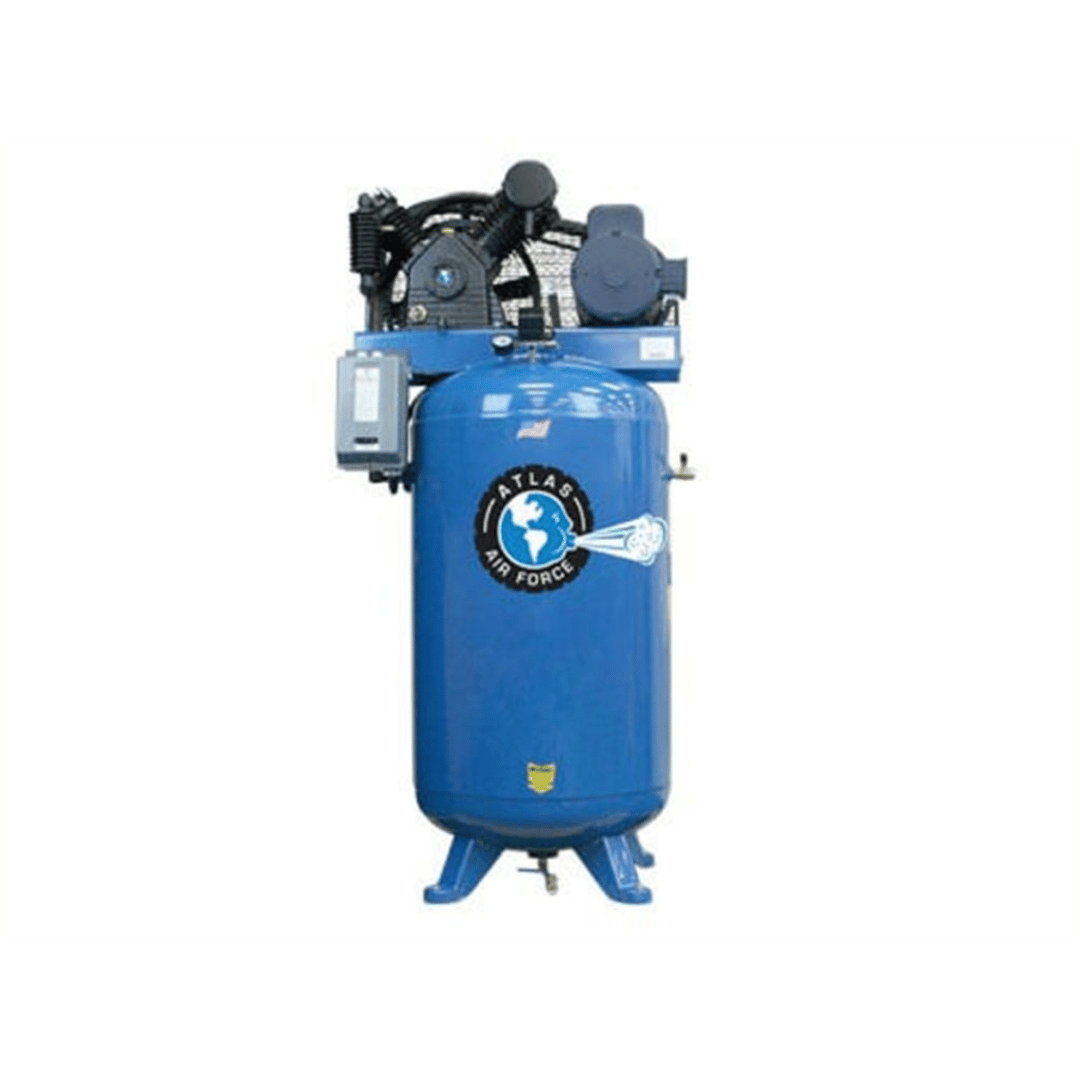

Atlas Air Force AF8 5HP 80 Gallon Two-Stage 5HP Commercial Grade Air Compressor
The Atlas® Air Force AF8 is the perfect compressor for the 3-4 man auto shop…or for the one man shop that wants to be prepared for future growth. The AF8 is what we recommend for a small business that depends on their air compressor to deliver flawlessly every business day.
Atlas® Air Force AF8 operates between 145-175 PSI. The AF8 comes standard with a USA made 80 gallon steel tank and also includes a magnetic starter. The magnetic starter controls the electric input and adds to the longevity of the unit
The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment.
Product Features
- 2-Stage Pump
- 5hp, Low RPM Motor
- 80 Gallon Vertical Tank (Made in the USA)
- Air Output 145-175 PSI
- Extremely Quiet Operation

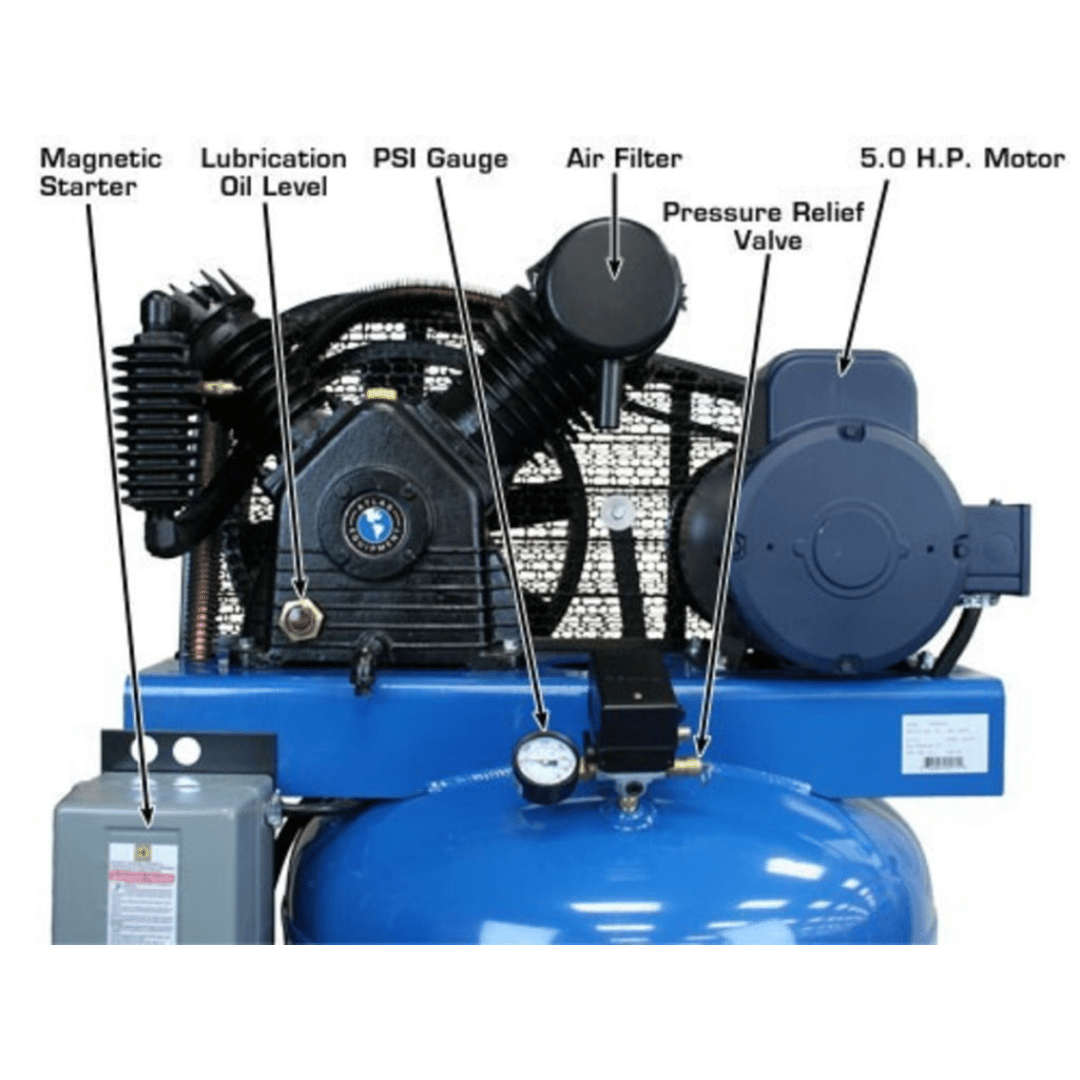

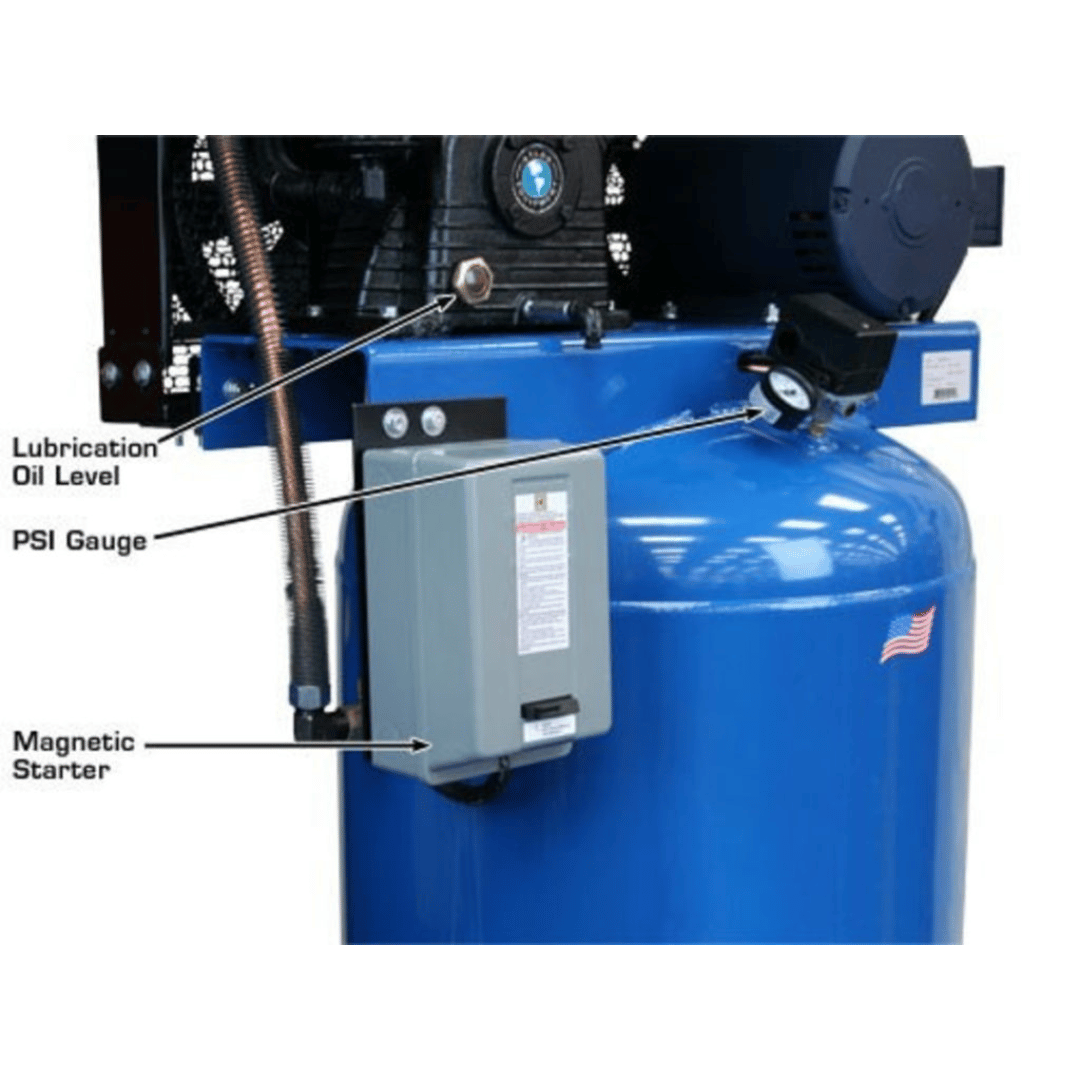

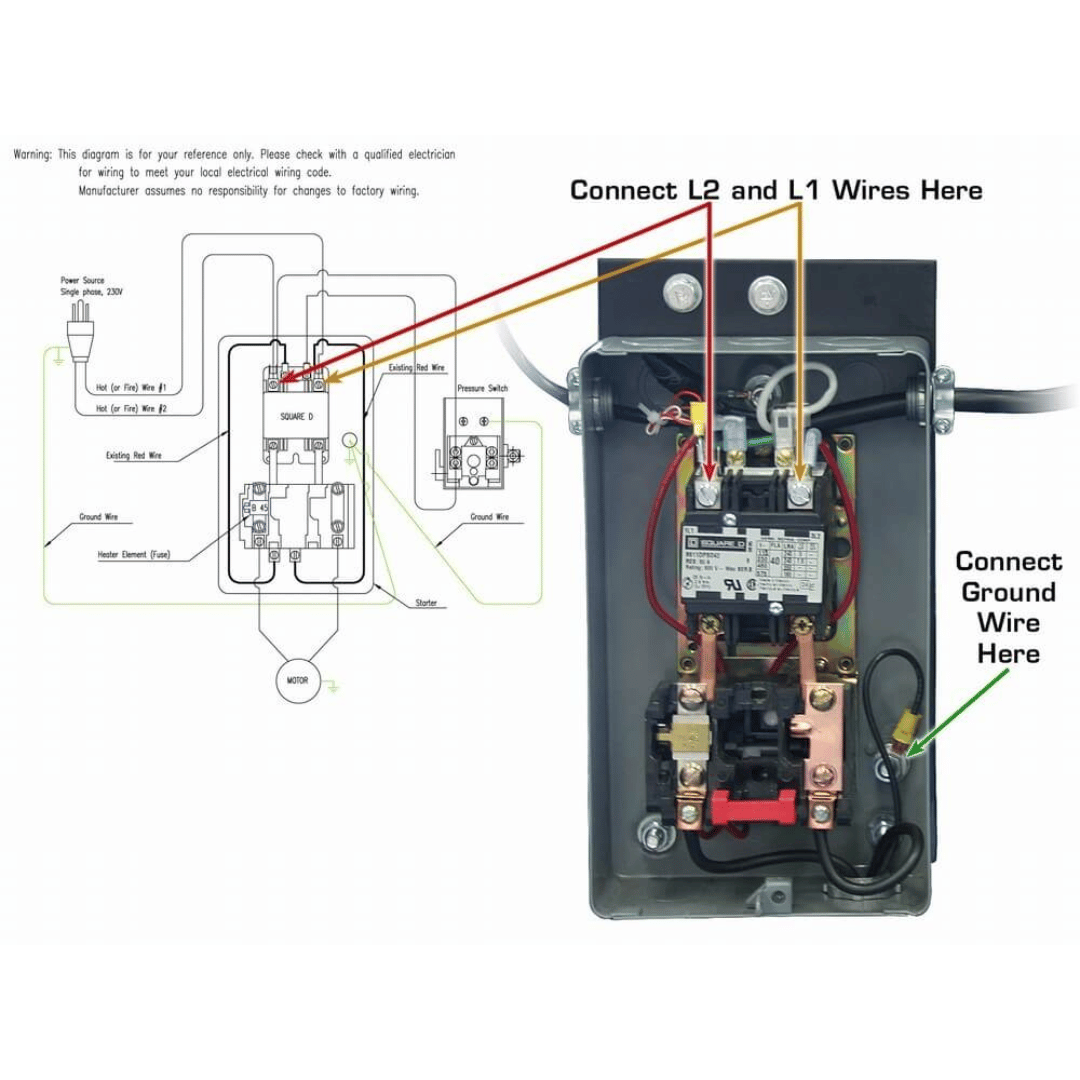

- Magnetic Starter Included

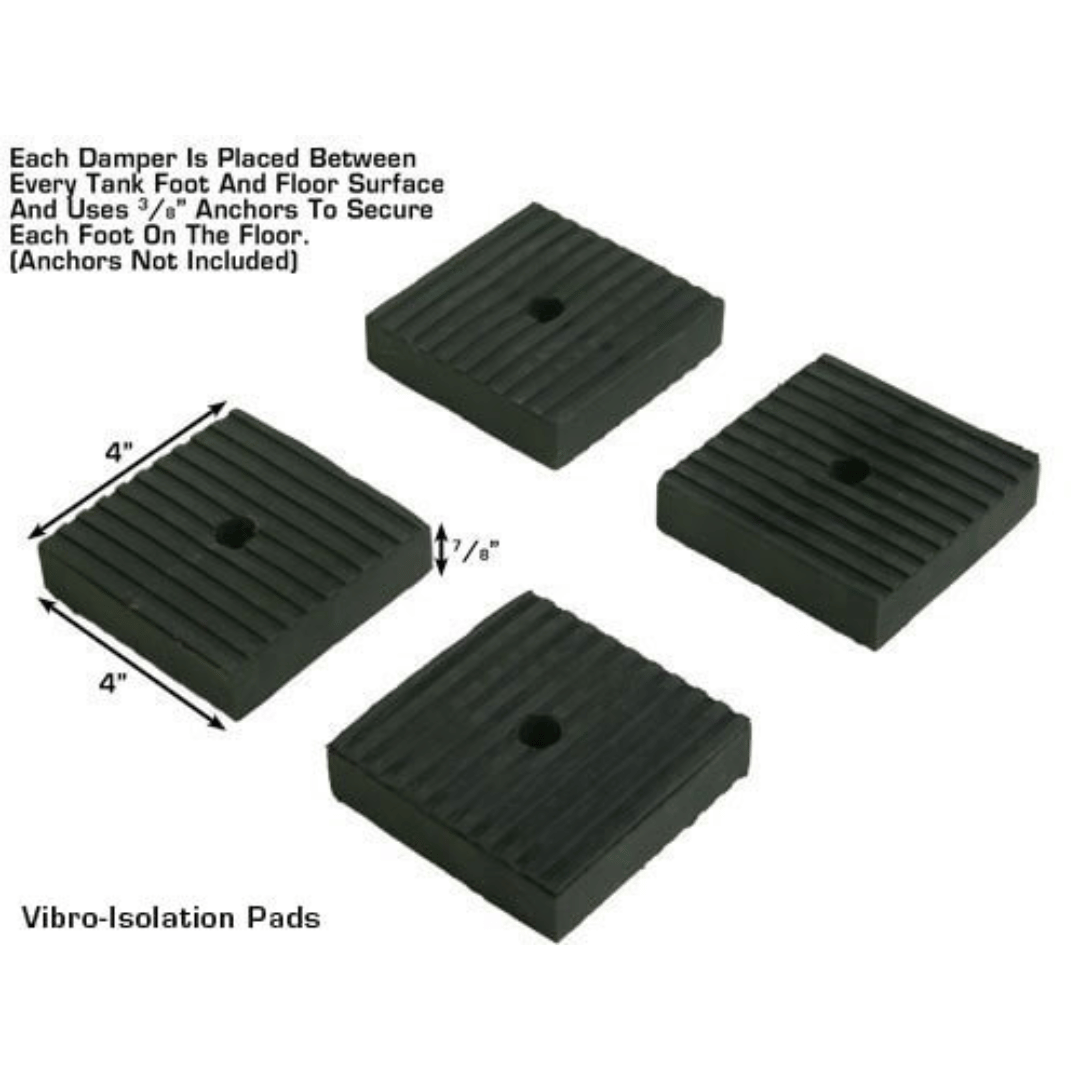

- Set of Vibro-Isolation Pads Included

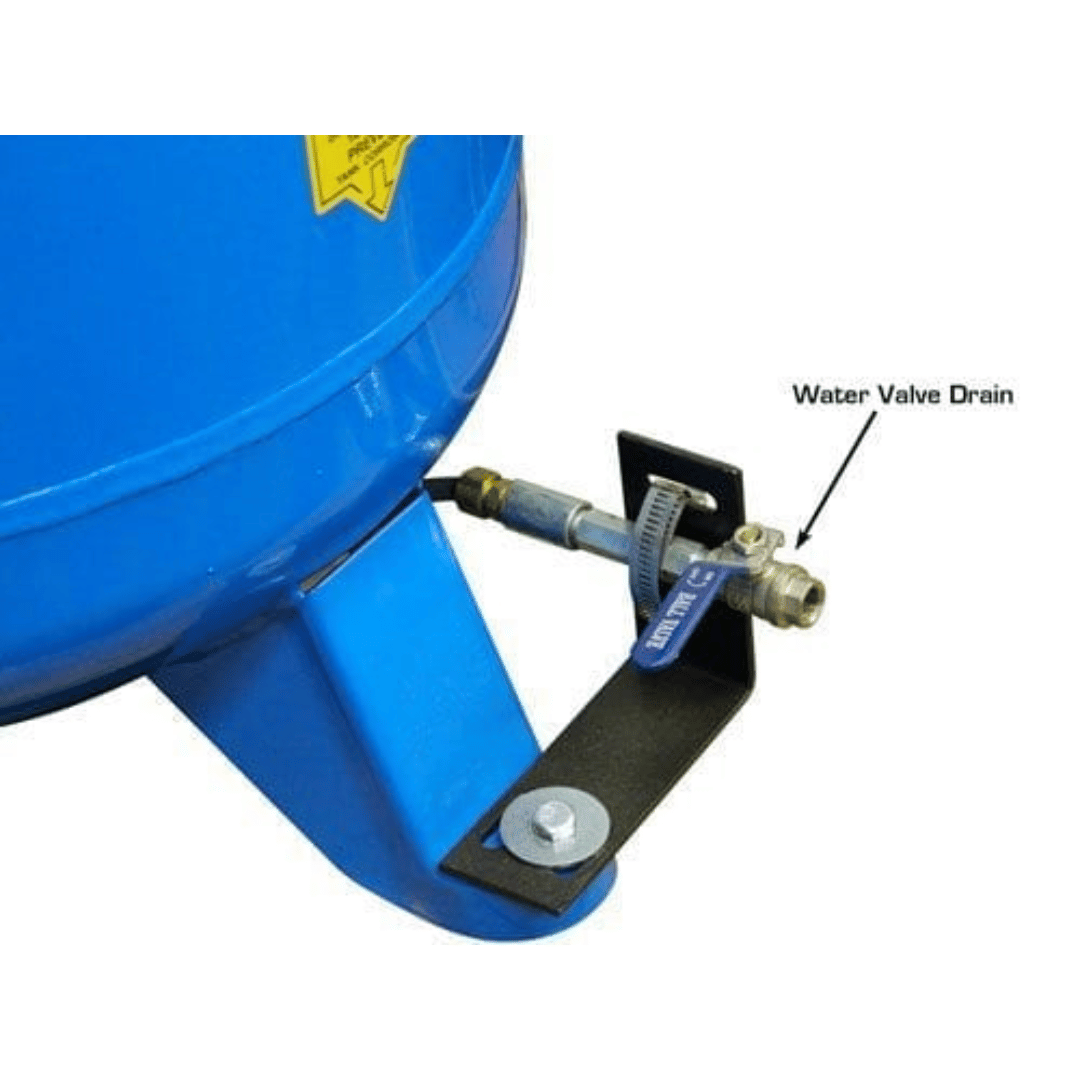

- Hands free tank drain extension
- Compressor oil drain extension tube
- Finned tank inlet tube for reduced tank water accumulation

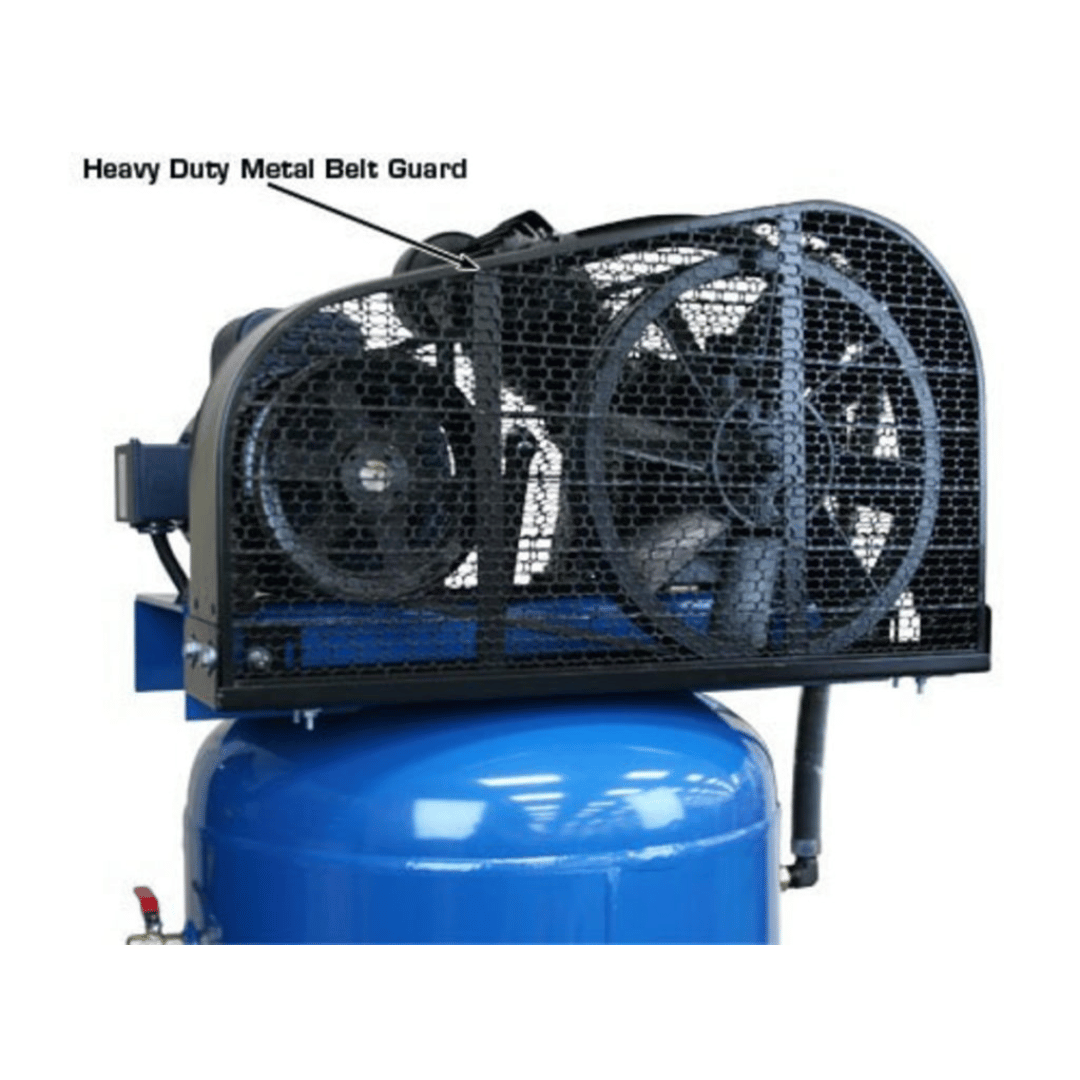

- Heavy Duty Metal Belt Guard
- Electric: 220volt/1phase
- 1 Year Parts Only Warranty

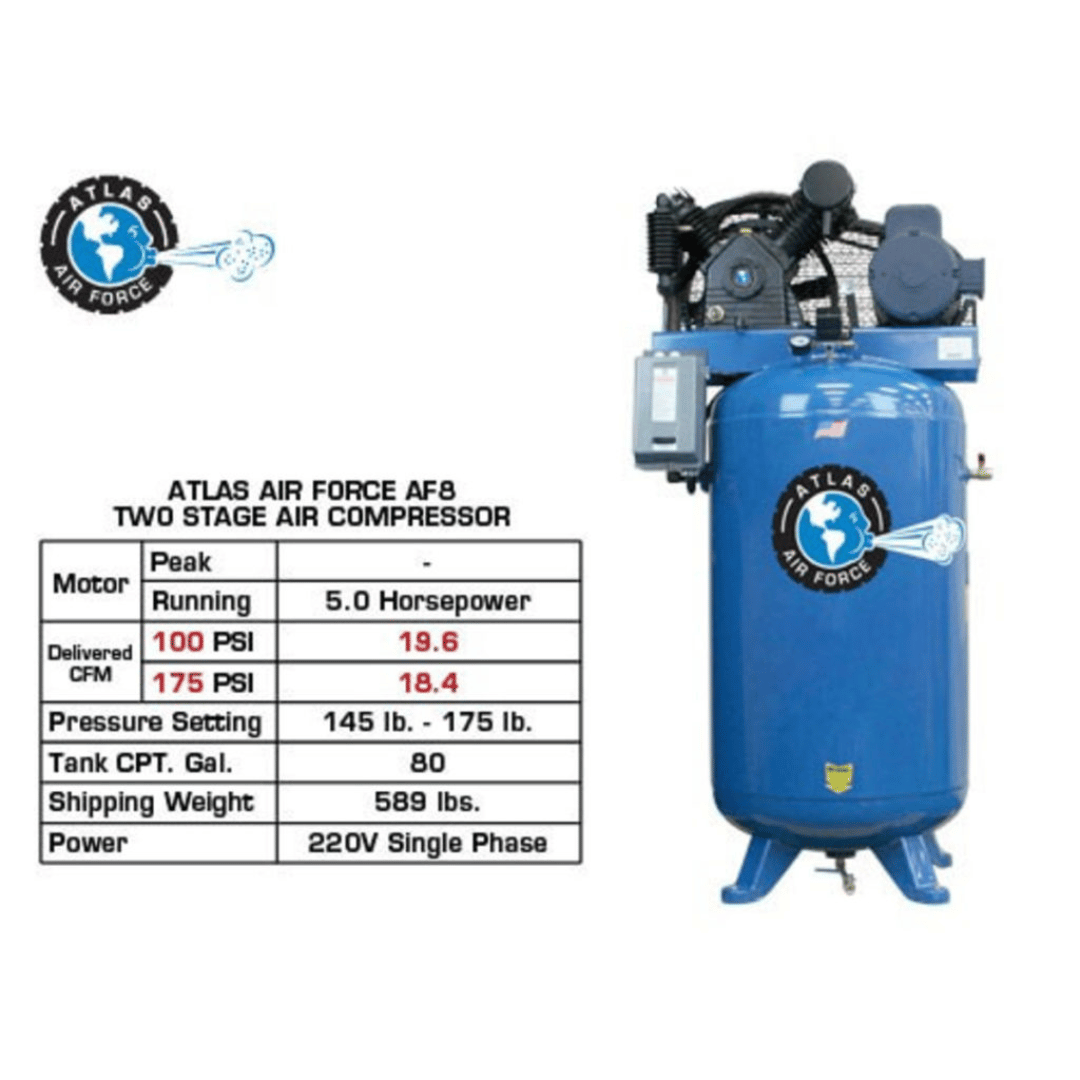

Product Specifications
| Model | Air Force AF8 |
| Motor Running | 5 Horsepower |
| Delivered-CFM 100 PSI | 19.6 |
| Delivered-CFM 175 PSI | 18.4 |
| Pressure Setting | 145-175 PSI |
| Tank Capacity | 80 Gallons |

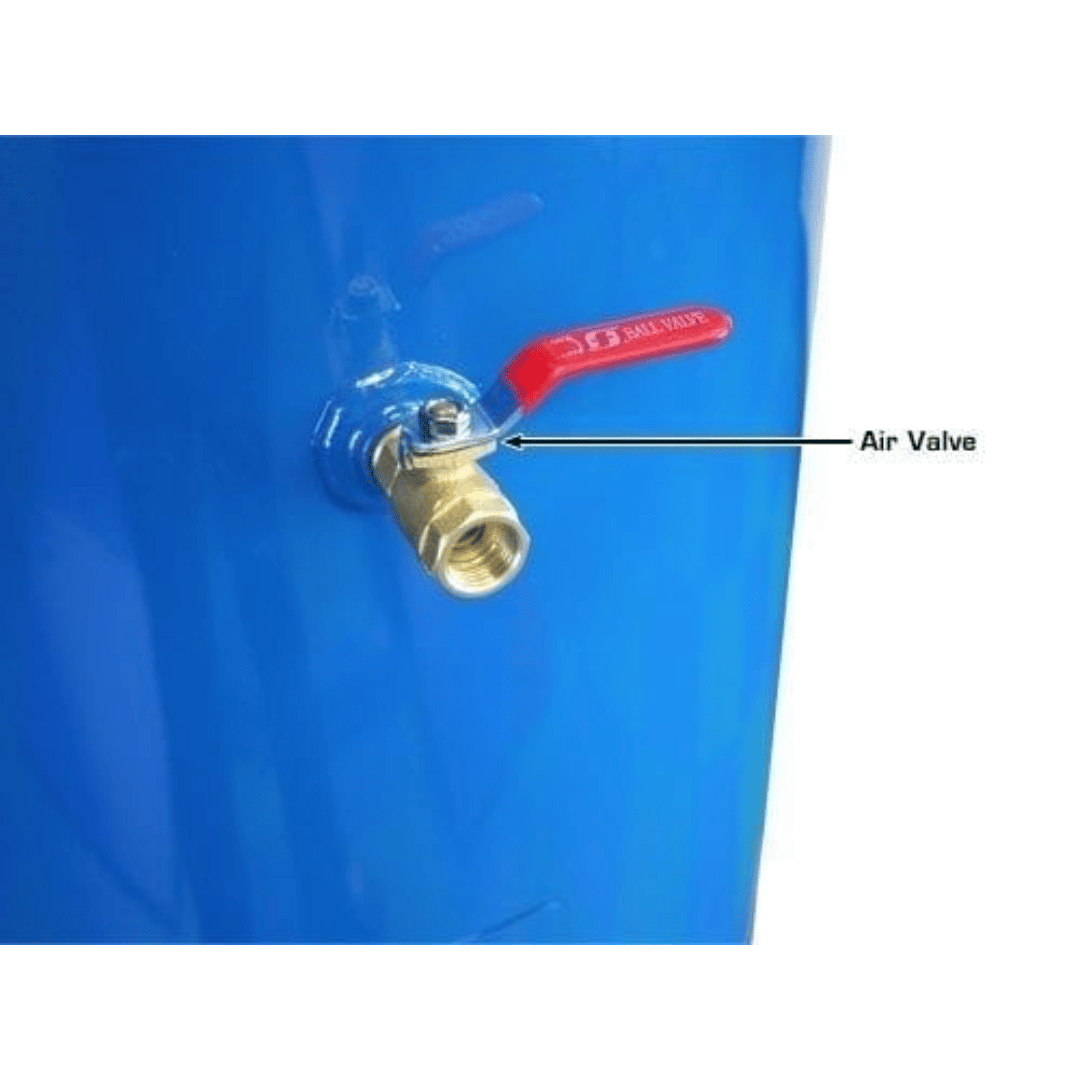

| Air Outlet Size | 1/2″ NPT |

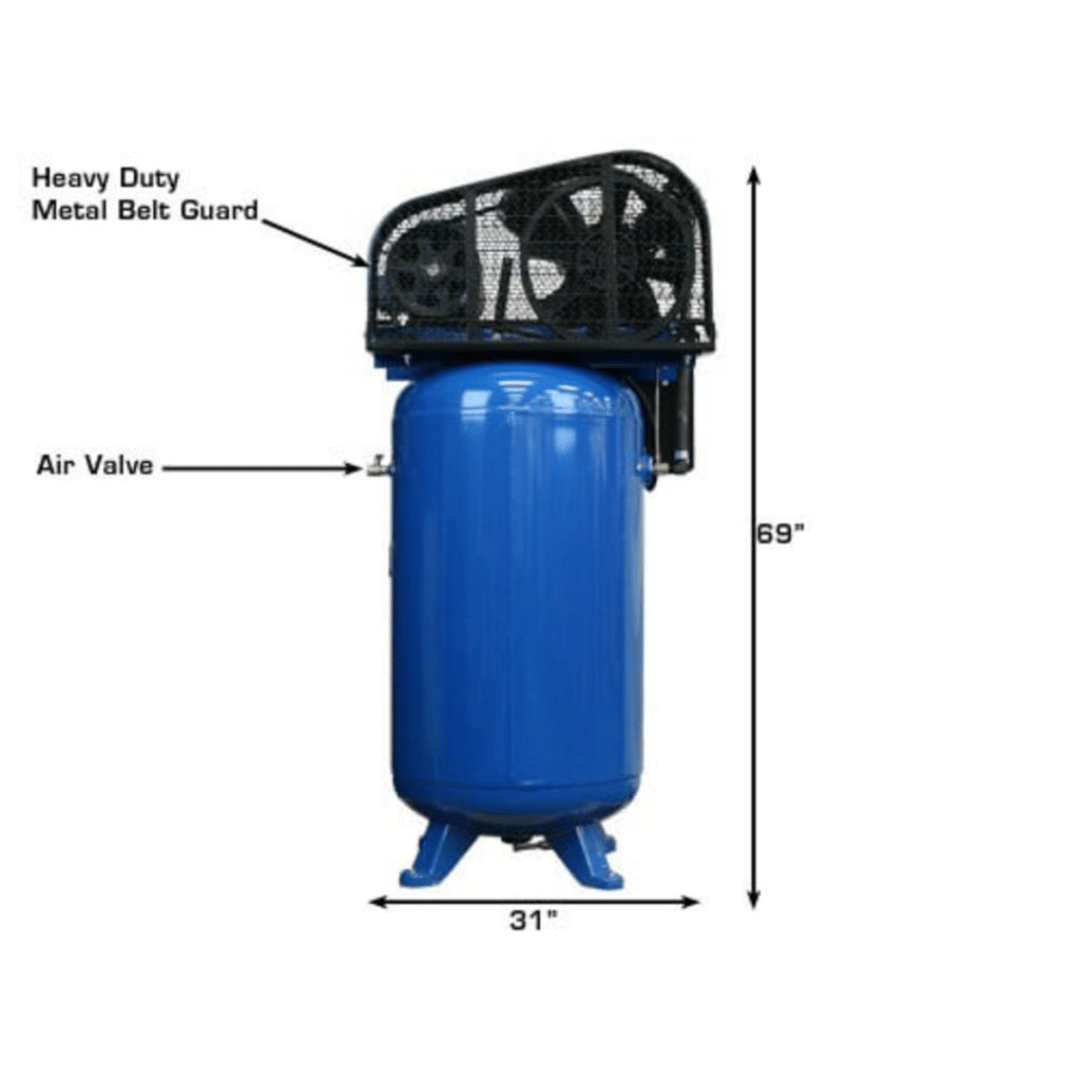

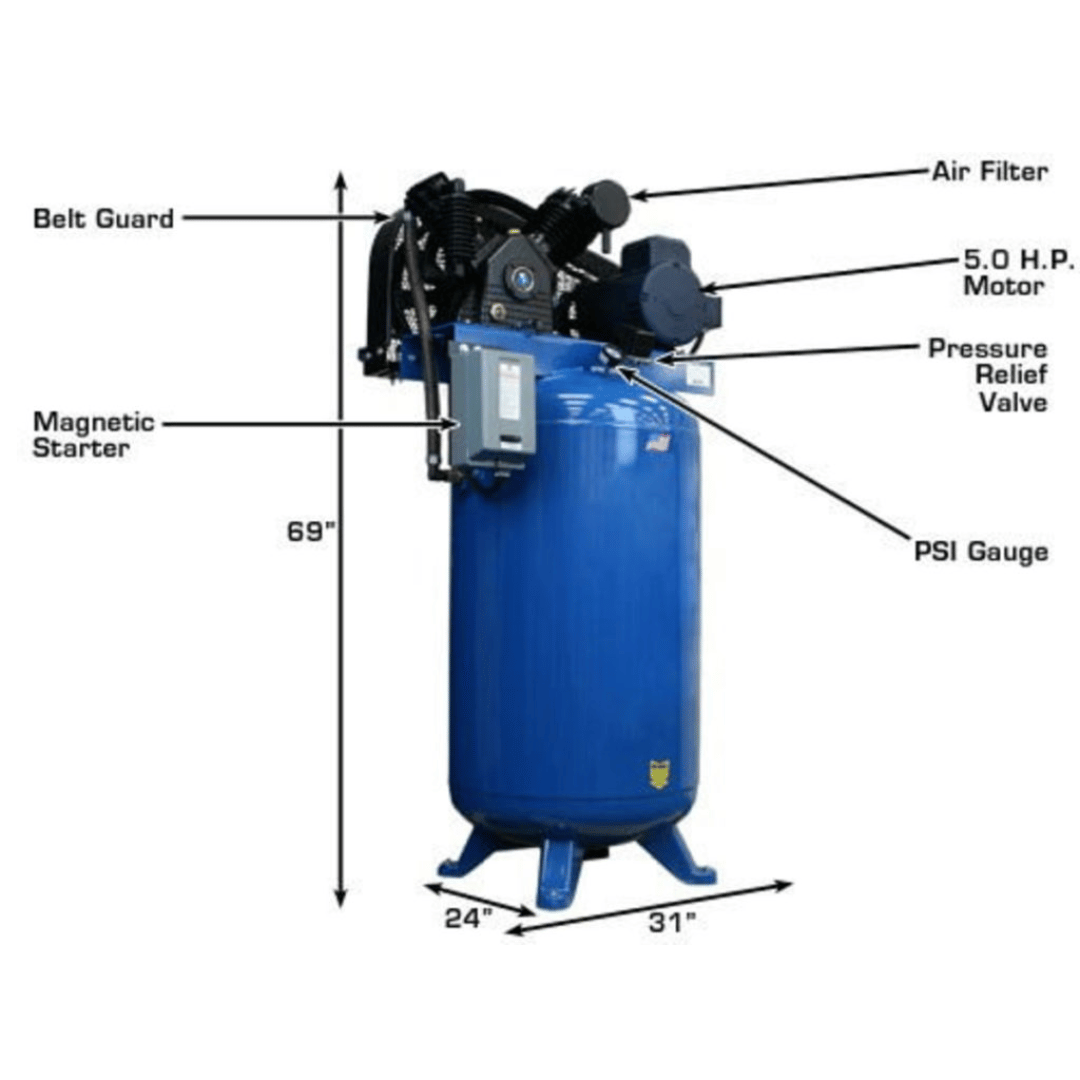

| Overall Dimensions | L 31″ x W 24″ x H 69″ |
| Motor Voltage | 220volt, 1PH, 50 amp breaker required |
| Compressor Pump | CT51 2 Cylinder, 2-Stage |
| Shipping Weight | 589 lbs. |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.
Call, text, or chat with us if you have questions. – 866-774-7743
