Description
Product Description

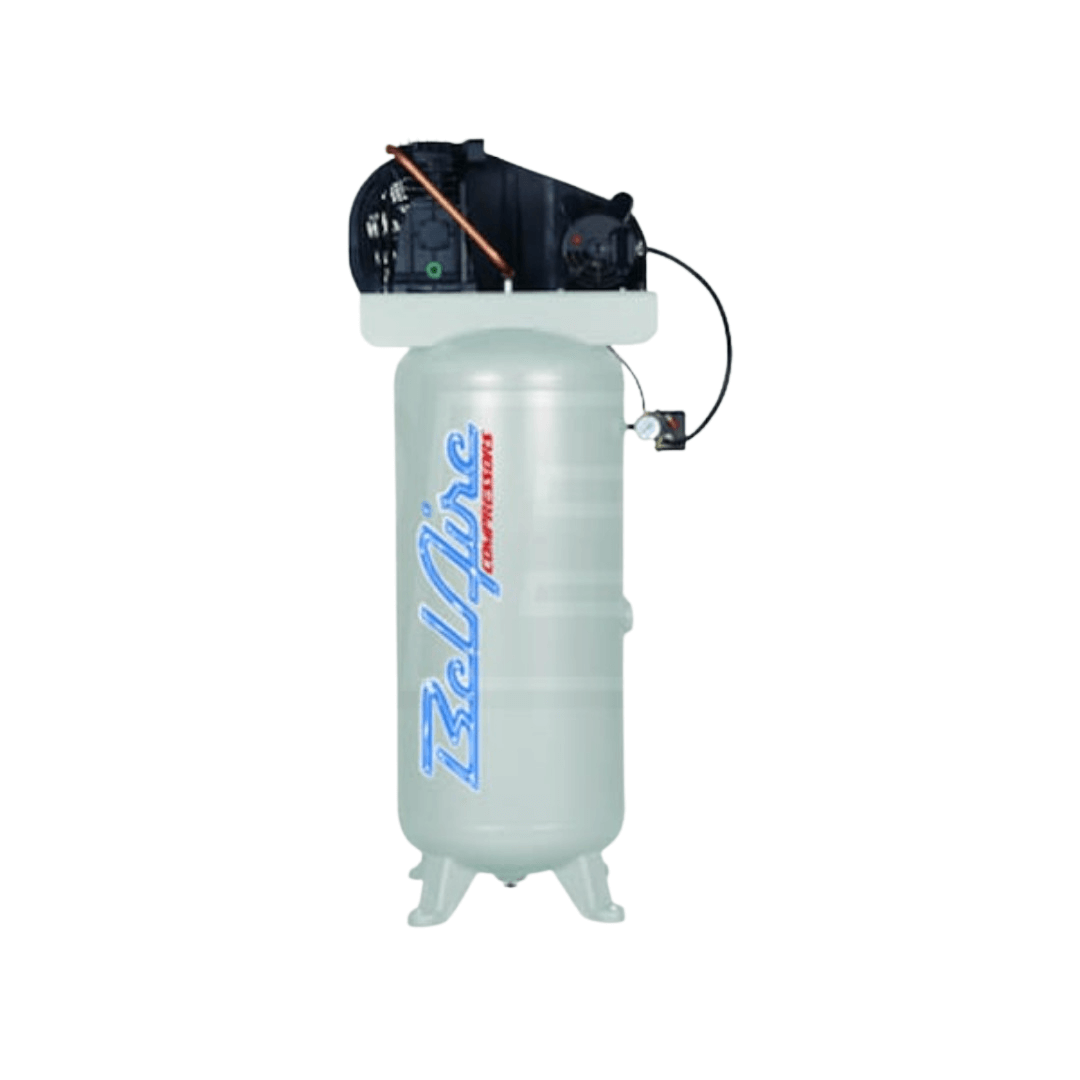

BelAire 2061V 2-HP 60-Gallon Dual-Voltage Single-Stage Air Compressor (120/240 1-Phase)
The BelAire 2061V is a reliable and versatile stationary air compressor, perfect for light commercial and DIY use. It features a 2 HP motor with dual voltage capability (120/240 Volt AC), providing flexibility for different power setups. This single-stage compressor delivers 8.3 CFM at 40 PSI and 7.1 CFM at 100 PSI, with a maximum pressure of 135 PSI. The solid cast iron pump, combined with splash lubrication and belt drive, ensures durability and smooth operation.
Key Features:
- Motor: 2 HP, dual voltage (120/240 Volt AC), single-phase
- CFM Delivery: 8.3 at 40 PSI, 7.1 at 100 PSI
- Max PSI: 135 PSI
- Tank Capacity: 60 gallons (vertical orientation)
- Pump Type: Single-stage, oil-lubricated, belt drive
The BelAire 2061V offers a dependable solution for various air-powered tools and tasks, ensuring long-lasting performance.
Product Features
- Cast Iron Pump
- More durable and longer life than aluminum pumps
- 2-HP Motor Dual-Voltage Motor (115/230 Single-Phase)
- Long lasting for maximum performance and reliability
- 60-Gallon Vertical Tank
- Rugged receiver tank to improve consistency of air flow
- Fully Enclosed Belt Guard
- Provides added safety during operation
- Start/Stop pressure switch control
- ASME safety and tank valves
- Tank drain and discharge valve
- Dual Voltage
- If running on 120V needs a 20 amp breaker
- Please consult a qualified electrician for installation
- Plug not included; you will need to choose the plug based on your installation
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 120/240 Volt AC |
| Phase | Single-Phase |
| Magnetic Starter | No |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 2 |
Pump
| CFM | 7.1 |
| CFM Rated @ | 100 PSI |
| CFM @ 40 PSI | 8.3 |
| Pump Material | Solid Cast Iron |
| Max PSI | 135 PSI |
| Oil Sight Glass | No |
| Pump Type | Sinle-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubrication |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 60 Gallons |
| Tank Outlet | 1/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
Filter
| Regulator | No |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 256 Pounds |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Product Length | 30 Inches |
| Product Width | 22 Inches |
| Product Height | 68 Inches |
| Power Type | Electric |
