Product Description

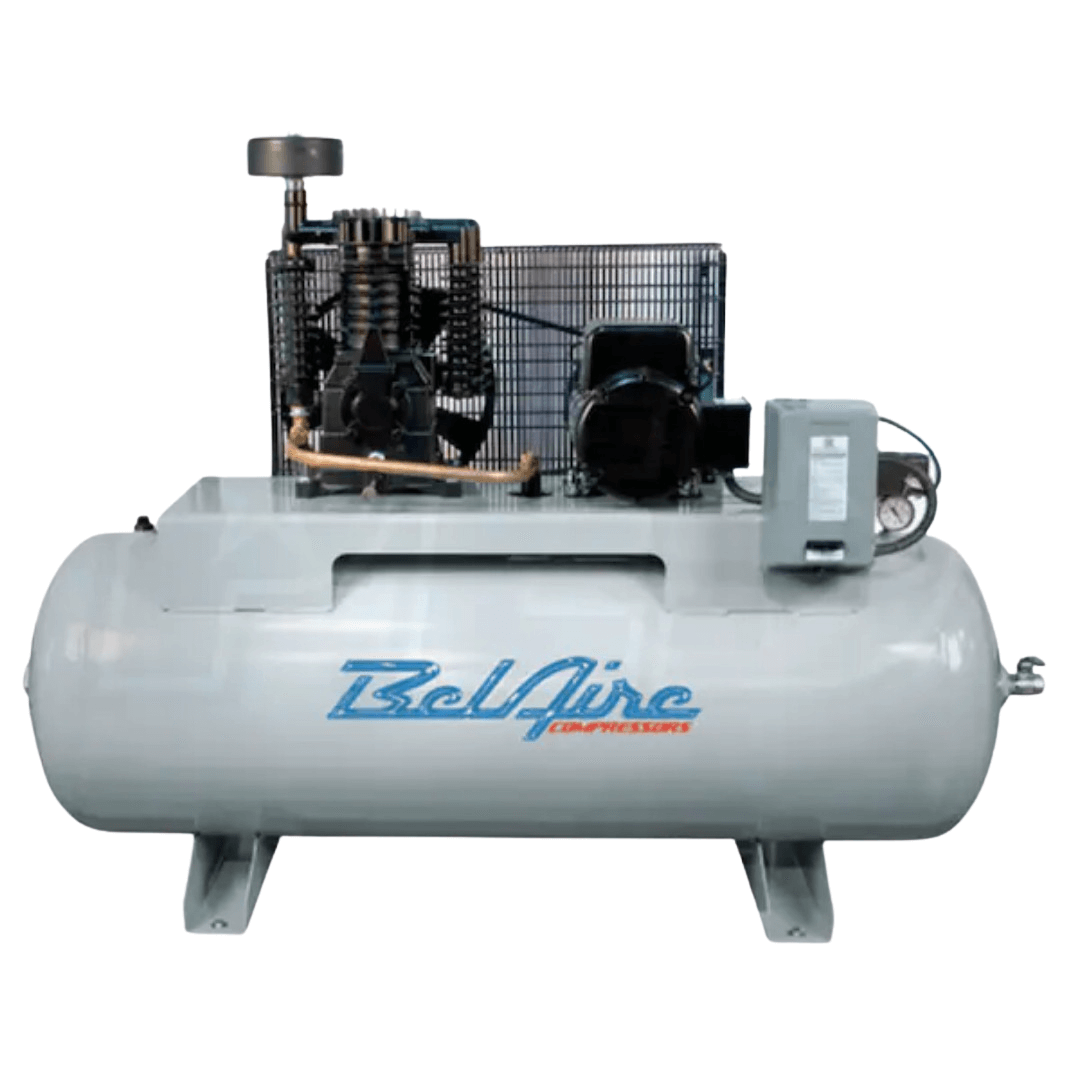

BelAire 318H 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase)
Two-Stage Pump
- Designed for superior quality & extends the life of the pump
Compact Design
- Ideal for work environments where space is a premium
5-HP Single-Phase Motor (208-230V)
- Can be wired for either voltage
80-Gallon ASME Certified Horizontal Air Tank
- 100% factory tested at full pressure
High Flow Belt Guard
- Fully enclosed design provides added safety
Oil Level Sight Glass
- Easily check the oil level at any time
Start-Stop Pressure Switch Control
- Saves time and energy
Stainless Steel Valves
- Extends the life of the compressor
3/4″ Outlet
- 2 Year Full Warranty
- Magnetic starter 0000052006 sold separately
Product Features
- Two-Stage Pump
- Designed for superior quality & extends the life of the pump
- Compact Design
- Ideal for work environments where space is a premium
- 5-HP Single-Phase Motor (208-230V)
- Can be wired for either voltage
- 80-Gallon ASME Certified Horizontal Air Tank
- 100% factory tested at full pressure
- High Flow Belt Guard
- Fully enclosed design provides added safety
- Oil Level Sight Glass
- Easily check the oil level at any time
- Start-Stop Pressure Switch Control
- Saves time and energy
- Stainless Steel Valves
- Extends the life of the compressor
- 3/4″ Outlet
- 2 Year Full Warranty
- Magnetic starter 0000052006 sold separately
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 208-230 Volt AC |
| Phase | Single-Phase |
| Magnetic Starter | No |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | 40 Amp Breaker |
Engine
| HP | 5 |
Pump
| CFM | 18.5 |
| CFM Rated @ | 100 PSI |
| Pump Material | Aluminum w/ Cast Iron Sleeve |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubrication |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 491 Pounds |
| Certification | ASME |
| Consumer Warranty | 2 Year |
| Product Length | 71 Inches |
| Product Width | 24 Inches |
| Product Height | 49 Inches |
| Power Type | Electric |
Downloads
Brochure
Manual
Warranty
�
