Product Description

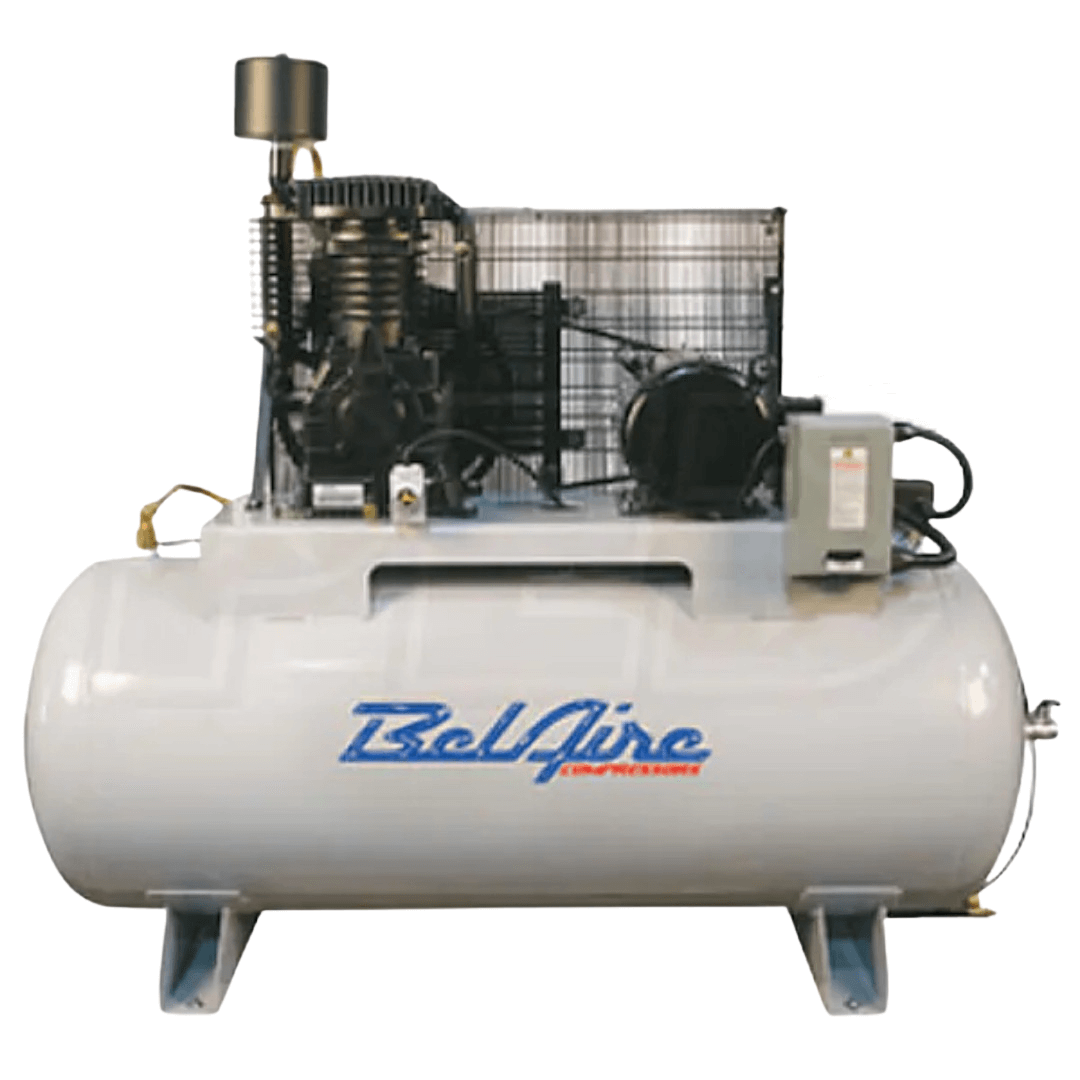

BelAire 318HL 7.5-HP 80-Gallon Two Stage Air Compressor (208-230V 1-Phase)
Solid Cast Iron Cylinder Sleeve 2 Stage Pump
- Delivers 22.3 CFM at 100 PSI
- Rugged components provide long-lasting dependability
Start / Stop Pressure Switch Controls
- Save time & energy
ASME Tank & Safety Valve
- 80 gallon air reserve for big jobs or multiple users
- 3/4″ air outlet; 175 PSI maximum pressure
2 Year Bumper To Bumper Factory Warranty
- No additional purchase necessary
Fully Enclosed High-Flow Belt Guard
- Protects the belt & the operator
Manual Air Tank Drain
- Makes tank simple to maintain
208 Volt Or 230 Volt Single Phase Power
- Easily wires into either your 208V-1 or 230V-1 system
- CPXHT25 dryer recommended (not included)
Product Features
- Solid Cast Iron Cylinder Sleeve 2 Stage Pump
- Delivers 22.3 CFM at 100 PSI
- Rugged components provide long-lasting dependability
- Start / Stop Pressure Switch Controls
- Save time & energy
- ASME Tank & Safety Valve
- 80 gallon air reserve for big jobs or multiple users
- 3/4″ air outlet; 175 PSI maximum pressure
- 2 Year Bumper To Bumper Factory Warranty
- No additional purchase necessary
- Fully Enclosed High-Flow Belt Guard
- Protects the belt & the operator
- Manual Air Tank Drain
- Makes tank simple to maintain
- 208 Volt Or 230 Volt Single Phase Power
- Easily wires into either your 208V-1 or 230V-1 system
- CPXHT25 dryer recommended (not included)
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 208-230 Volt AC |
| Phase | Single-Phase |
| Magnetic Starter | Yes |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | 60 Amp Breaker |
Engine
| HP | 7.5 |
Pump
| CFM | 22.3 |
| CFM Rated @ | 100 PSI |
| Pump Material | Aluminum w/ Cast Iron Sleeve |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubrication |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 538 Pounds |
| Certification | ASME |
| Consumer Warranty | 2 Year |
| Commercial Warranty | 2 Year |
| Product Length | 71 Inches |
| Product Width | 24 Inches |
| Product Height | 49 Inches |
| Power Type | Electric |
