Product Description

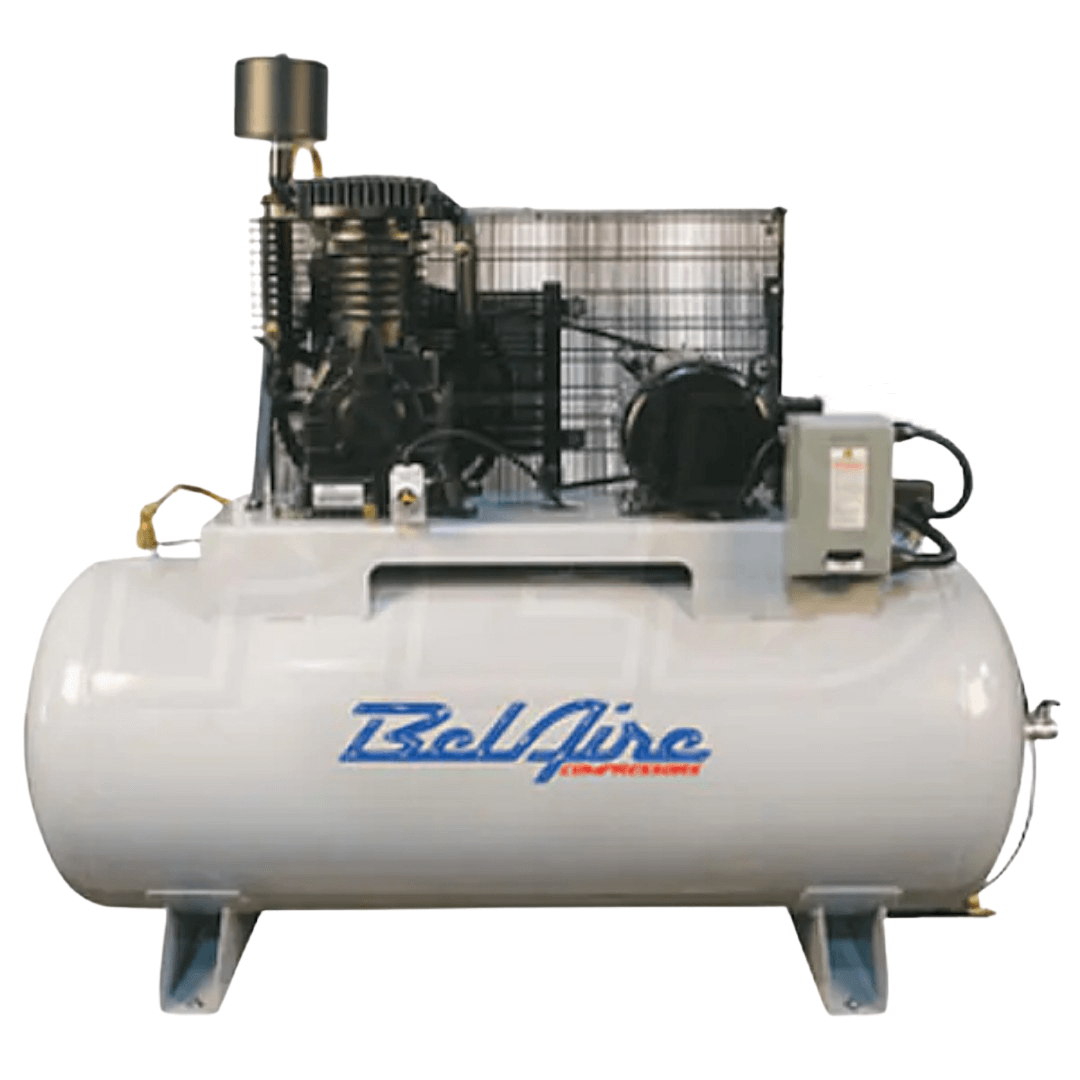

BelAire 338HE4 Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
Solid Cast Iron Cylinder 2 Stage Pump
- Delivers 18.5 CFM at 100 PSI
- Rugged components provide long-lasting dependability
Start / Stop Pressure Switch Controls
- Save time & energy
ASME Tank & Safety Valve
- 80 gallon air reserve for big jobs or multiple users
- 3/4″ air outlet; 175 PSI maximum pressure
2 Year Bumper To Bumper Factory Warranty
- No additional purchase necessary
Fully Enclosed High-Flow Belt Guard
- Protects the belt & the operator
Elite Series Automatic Tank Drain
- Makes tank maintenance effortless
460 Volt Three Phase Power
- Easily wires into your 460V-3 system
Product Features
- Solid Cast Iron Cylinder 2 Stage Pump
- Delivers 18.5 CFM at 100 PSI
- Rugged components provide long-lasting dependability
- Start / Stop Pressure Switch Controls
- Save time & energy
- ASME Tank & Safety Valve
- 80 gallon air reserve for big jobs or multiple users
- 3/4″ air outlet; 175 PSI maximum pressure
- 2 Year Bumper To Bumper Factory Warranty
- No additional purchase necessary
- Fully Enclosed High-Flow Belt Guard
- Protects the belt & the operator
- Elite Series Automatic Tank Drain
- Makes tank maintenance effortless
- 460 Volt Three Phase Power
- Easily wires into your 460V-3 system
- CPXHT25 dryer recommended (not included)
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 460 Volt AC |
| Phase | Three-Phase |
| Magnetic Starter | Yes |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | 15 Amp Breaker |
Engine
| HP | 5 |
Pump
| CFM | 18.5 |
| CFM Rated @ | 100 PSI |
| Pump Material | Aluminum w/ Cast Iron Sleeve |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubrication |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 481 Pounds |
| Certification | ASME |
| Consumer Warranty | 2 Year |
| Commercial Warranty | 2 Year |
| Product Length | 71 Inches |
| Product Width | 24 Inches |
| Product Height | 49 Inches |
| Power Type | Electric |
