Product Description

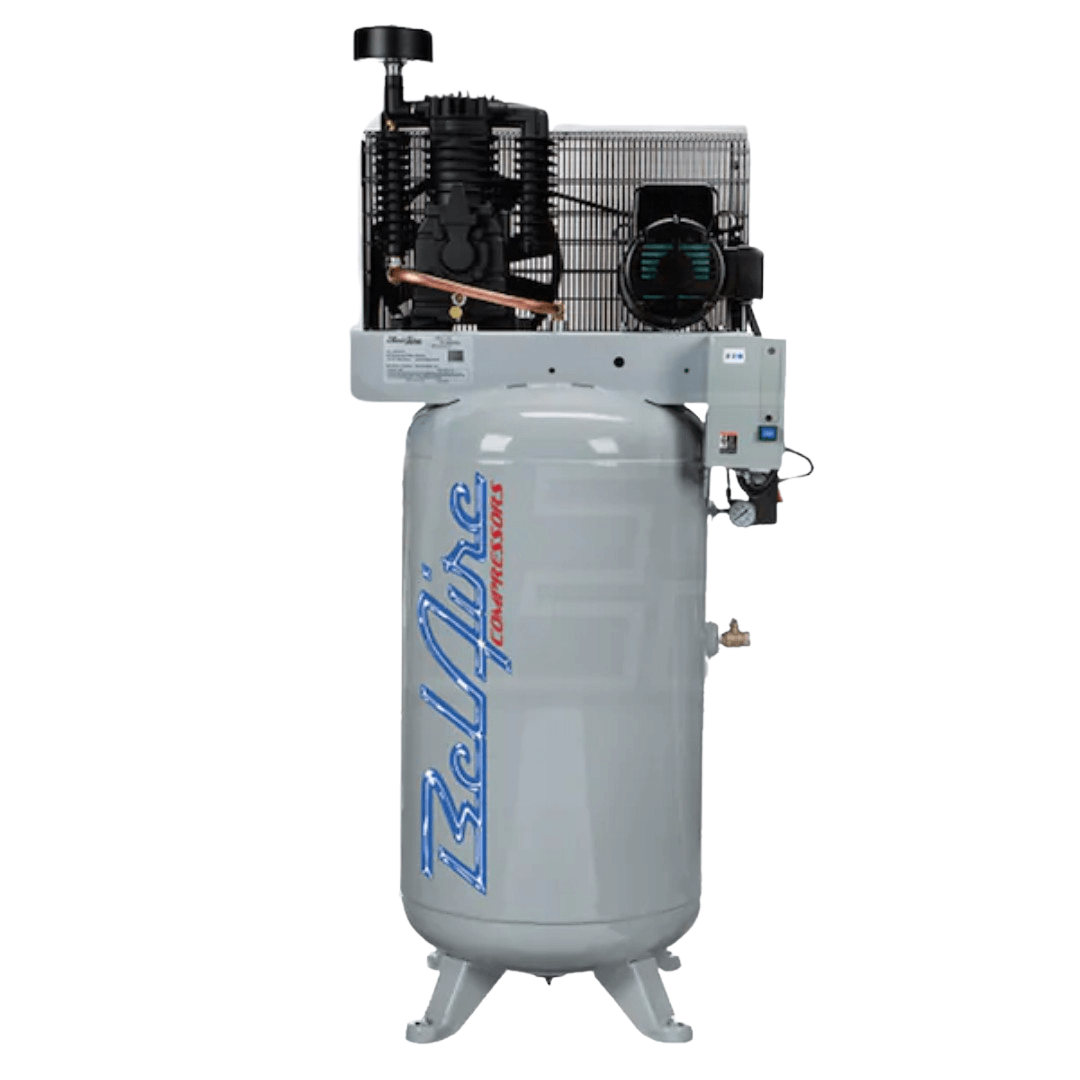

BelAire 338VLE Elite Series 7.5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase)
Two-Stage Hybrid Pump
- Designed for superior quality & extends the life of the pump
Compact Design
- Ideal for work environments where space is a premium
7.5-HP Three-Phase Motor (208-230V) w/ Magnetic Starter Included
- Saves $$$, No need to purchase additional starter
80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
High Flow Belt Guard
- Fully enclosed design provides added safety
Oil Level Sight Glass
- Easily check the oil level at any time
Start-Stop Pressure Switch Control & Stainless Steel Valves
- Saves time and energy and extends the life of the compressor
Elite Series Automatic Tank Drain (Not Electronic)
- Pressurized auto draining makes tank maintenance effortless
Triple-Pass Pump Mounted Aftercooler
- Keeps your pump running cooler and longer
3/4″ Air Outlet
- 2 year full Factory Warranty
Product Features
- Two-Stage Hybrid Pump
- Designed for superior quality & extends the life of the pump
- Compact Design
- Ideal for work environments where space is a premium
- 7.5-HP Three-Phase Motor (208-230V) w/ Magnetic Starter Included
- Saves $$$, No need to purchase additional starter
- 80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
- High Flow Belt Guard
- Fully enclosed design provides added safety
- Oil Level Sight Glass
- Easily check the oil level at any time
- Start-Stop Pressure Switch Control & Stainless Steel Valves
- Saves time and energy and extends the life of the compressor
- Elite Series Automatic Tank Drain (Not Electronic)
- Pressurized auto draining makes tank maintenance effortless
- Triple-Pass Pump Mounted Aftercooler
- Keeps your pump running cooler and longer
- 3/4″ Air Outlet
- 2 year full Factory Warranty
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 208-230 Volt AC |
| Phase | Three-Phase |
| Magnetic Starter | Yes |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | 40 Amp Breaker |
Engine
| HP | 7.5 |
Pump
| CFM | 22.3 |
| CFM Rated @ | 100 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubrication |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Tank Orientation | Vertical |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 548 Pounds |
| Certification | ASME |
| Consumer Warranty | 2 Year |
| Product Length | 39 Inches |
| Product Width | 24 Inches |
| Product Height | 77 Inches |
| Power Type | Electric |
