Description
Product Description
BelAire 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Precision Engineered In A Rugged Package
- Built for service professionals to handle the toughest situations
13 HP Honda Engine
- Easy starting, proven reliability
2 Stage, Cast Iron Cylinder Pump
- Produces 25.3 CFM at 100 PSI
12 Volt Electric Start & Recoil Start
- Wire into your ignition system or start it yourself
- Control panel is easy to operate
Easy To Read Pressure Gauge
- Located specifically for truck mounting
Fully Enclosed Belt Guard
- Protects the belt & the operator

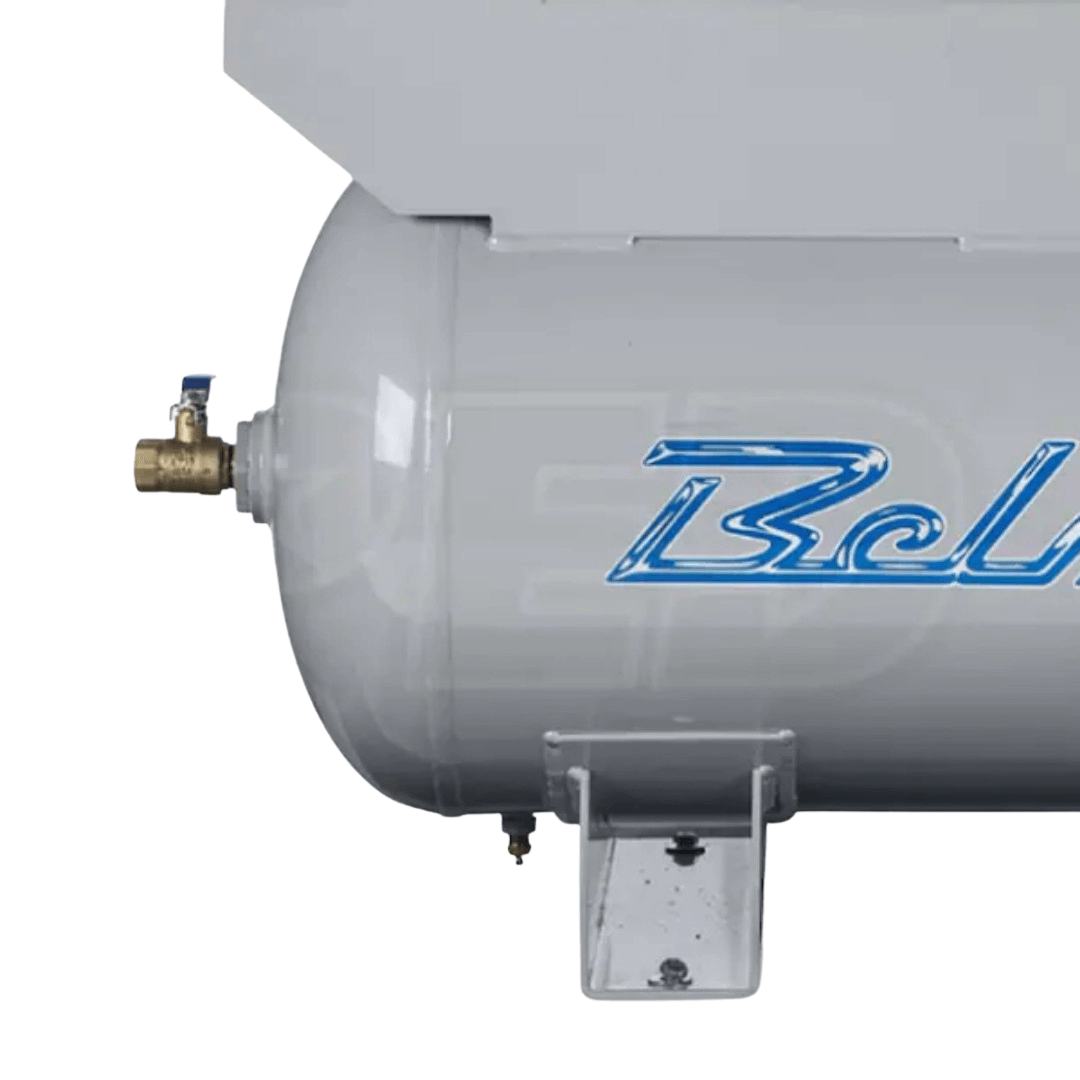

ASME 30 Gallon Tank & Safety Valve
- 3/4″ air outlet; 175 PSI maximum pressure
EZ Pull Tank Drain
- Makes tank maintenance simple & convenient
2 Year Full Factory Warranty
- Protects your investment
- No additional purchase necessary
Battery & Cables Not Includes; Must Be Purchased Separately
Product Features
- Precision Engineered In A Rugged Package
- Built for service professionals to handle the toughest situations
- 13 HP Honda Engine
- Easy starting, proven reliability
- 2 Stage, Cast Iron Cylinder Pump
- Produces 25.3 CFM at 100 PSI
- 12 Volt Electric Start & Recoil Start
- Wire into your ignition system or start it yourself
- Control panel is easy to operate
- Easy To Read Pressure Gauge
- Located specifically for truck mounting
- Fully Enclosed Belt Guard
- Protects the belt & the operator
- ASME 30 Gallon Tank & Safety Valve
- 3/4″ air outlet; 175 PSI maximum pressure
- EZ Pull Tank Drain
- Makes tank maintenance simple & convenient
- 2 Year Full Factory Warranty
- Protects your investment
- No additional purchase necessary
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Engine
| HP | 13 |
| Auto Idle | Yes |
| Engine Brand | Honda GX |
| Starting System | 12-Volt Key Start w/ Recoil |
| Engine Low Oil Shut-off | Yes |
Pump
| CFM | 25.3 |
| CFM Rated @ | 100 PSI |
| Pump Material | Aluminum w/ Cast Iron Sleeve |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubrication |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 30 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
| Air Filter | Yes |
Overview
| Weight | 378 Pounds |
| Certification | ASME |
| Consumer Warranty | 2 Year |
| Commercial Warranty | 2 Year |
| Product Length | 45 Inches |
| Product Width | 19 Inches |
| Product Height | 45 Inches |
| Power Type | Gas |
