Description
Product Description

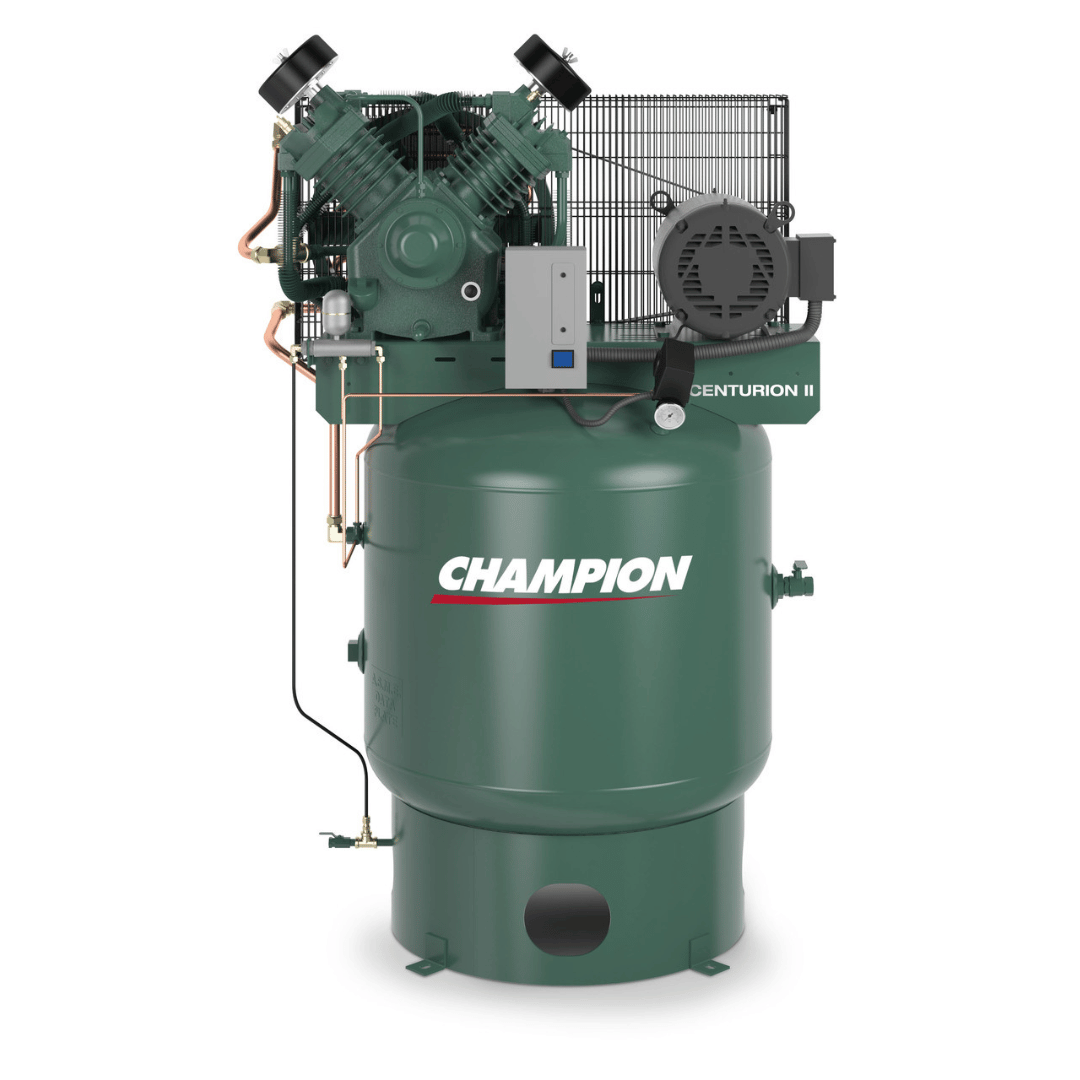

Champion VRV7-8 7.5 HP 3 Ph, RPM 1800, Vertical 80 Gallon Tank Air Compressor
With Champion, you not only get value, you also get the confidence that comes with owning a solid, reliable compressor. The RV-Series exemplifies quality, reliability, long life and tremendous value. Champion provides the total package – a low cost solution with a broad range of options – saving money and providing peace of mind.
Product Features
- Mounted NEMA 1 Starter
- Controls | Tank mounted Simplex is start/stop pressure switch control
- ASME coded receiver (EXCEPT Base Mount Models)
- 1800 RPM Motor
- Intake Filter/Silencer
- Enclosed Belt Guard
- Loadless Starting
- California Code Compliant Receiver
Product Specifications
| Product Model | VRV7-8 |
|---|---|
| Configurator | RV2-15A |
| Unit Configuration | Simplex |
| Tank Configuration | Vertical |
| Pump Model | RV30 |
| Motor RPM | 1800 |
| Pump RPM @ 175 PSI | 570 |
| Tank Size (Gallons) | 80 |
| ACFM @ 125 PSIG | 28.7 |
| ACFM @ 175 PSIG | 25.6 |
| Est Ship Weight (Lbs) | 710 |
| Voltage | 208 / 230 / 460 / 575 – 3PH |
| Starter – NEMA 1 | Standard |
Pick Up and Delivery
Champion Air Compressors
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
�
