Description
Product Description

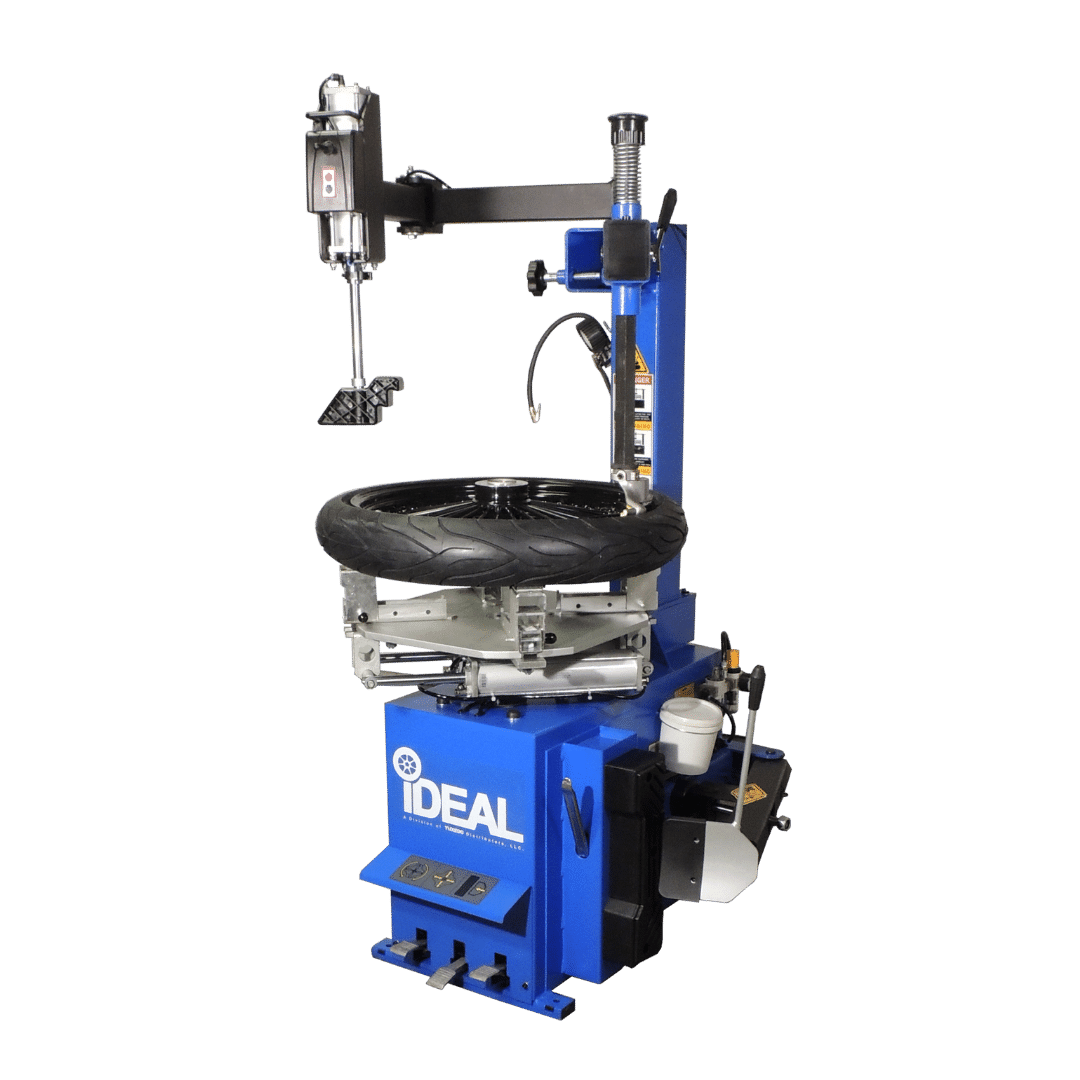

iDEAL TC-400M-B-PL230-K Power Sport Tire Changer & Assist Arm
Product Features
- TC-400M-B-IDEAL with assist arm
- 6” TO 24” Outside wheel clamping range
- Swing arm design

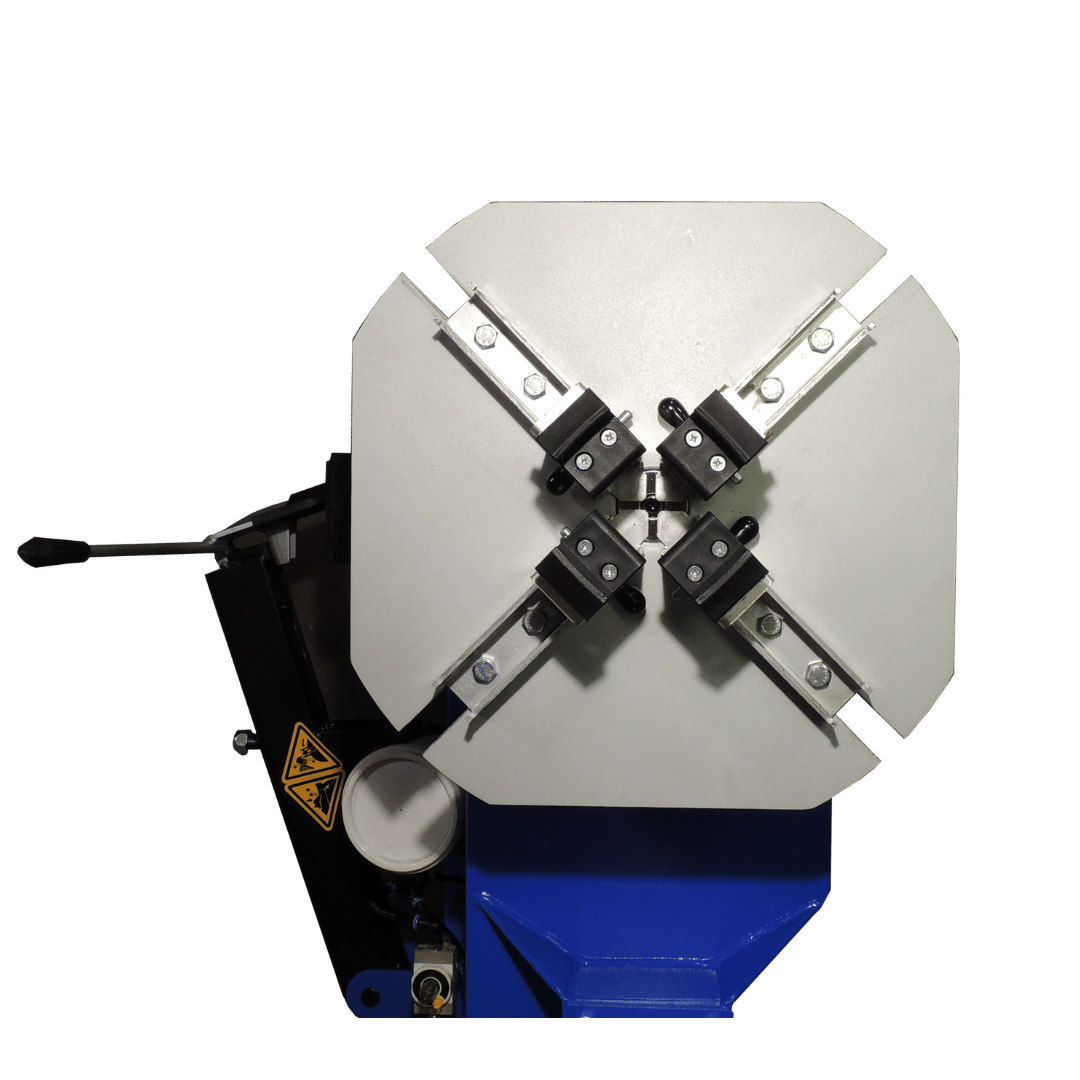

- Four adjustable clamps for full clamping range
- Powerful clamping with Double acting pneumatic cylinders
- Plastic clamps protects wheels from scratching
- Powerful bead breaker
- Electric table rotation
- Easy to use hand held inflation gun
- Regulator, oiler and water trap included
Product Specifications
| Tire Changer Model | TC-400M-B-PL230-K |
| Max Wheel Diameter | 37” |
| Max Wheel Width | 10″ |
| Outside – Rim Clamp Range | 6” – 24” |
| Power Supply | 110V – 15 Amp – 1PH |
| Bead Breaker Force | 5,500 lbs |
| Working Pressure | 125 psi |
| Ship Weight | 530 lbs |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California – Orlando, Florida – Norcross, Georgia – Elwood, Indiana – St. Cloud, Minnesota – Reidsville, NC – Pottsville, Pennsylvania – Alvarado, Texas – West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
�
