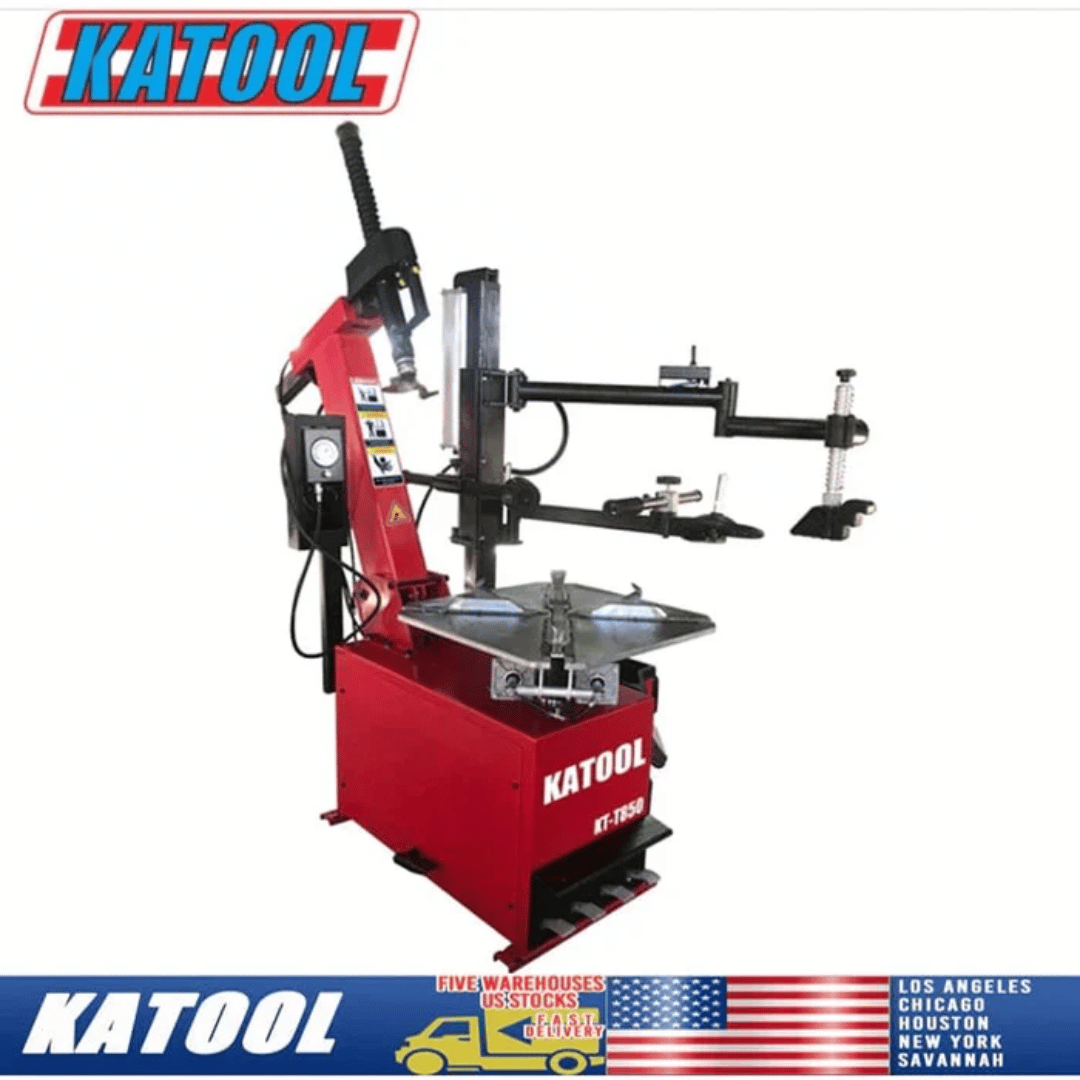

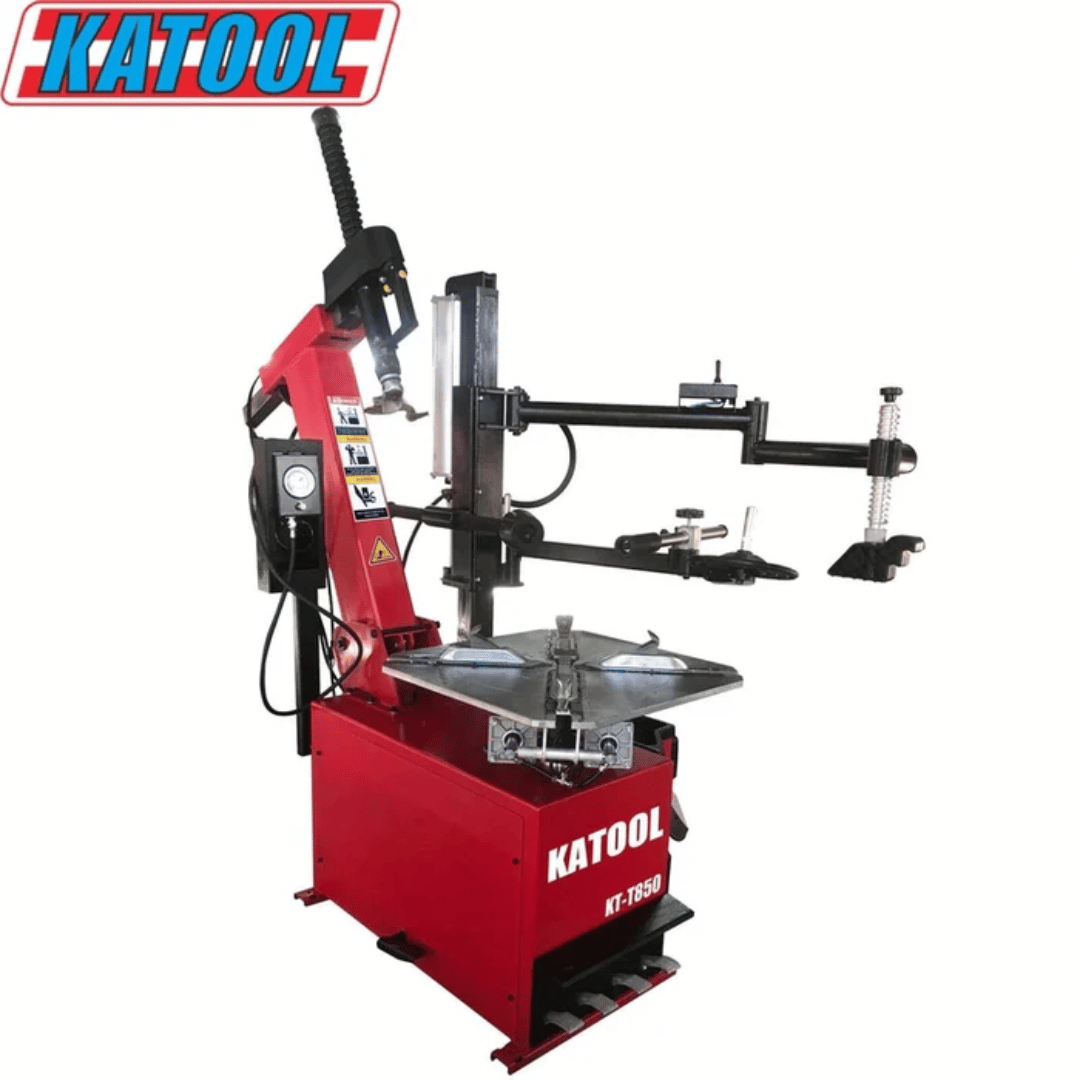

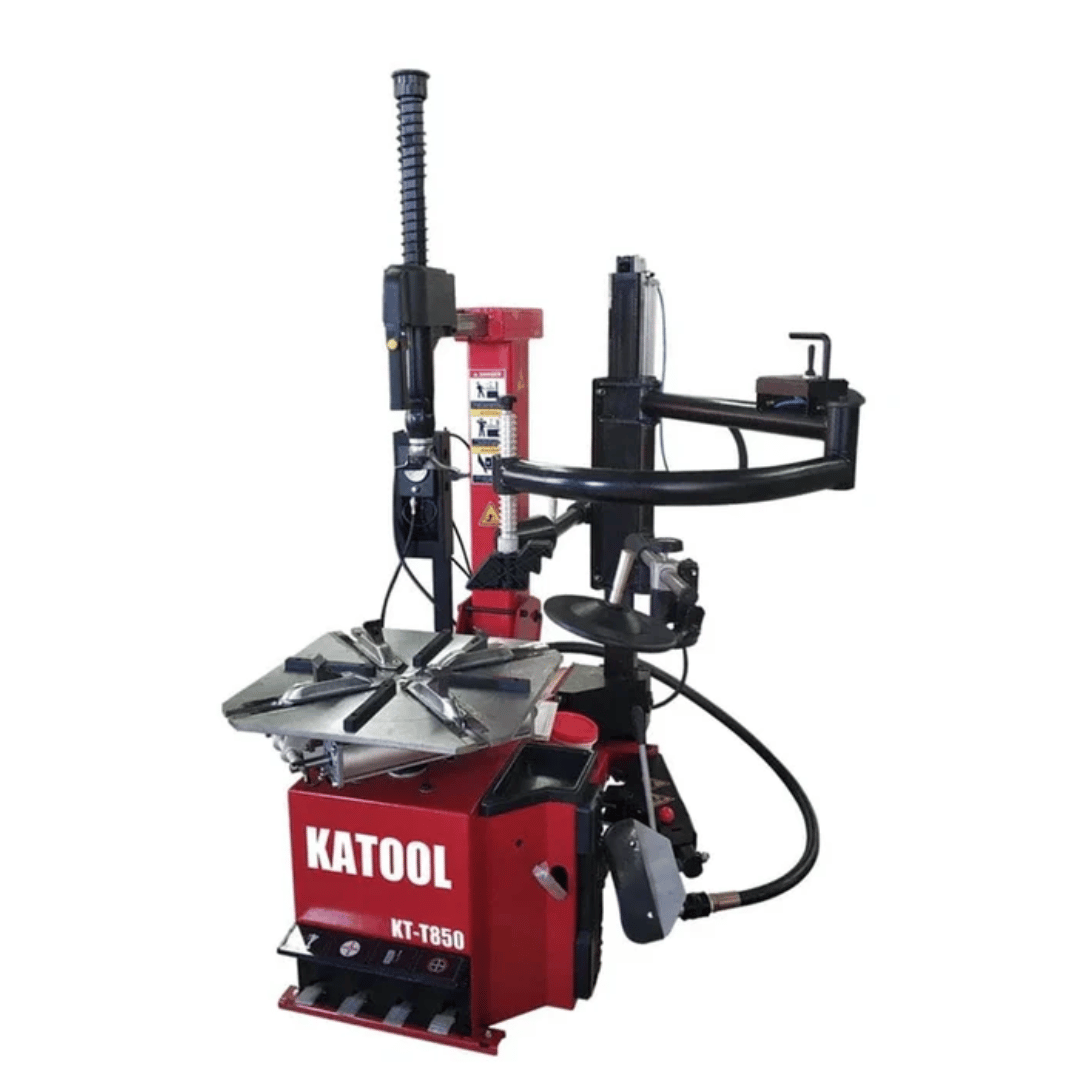

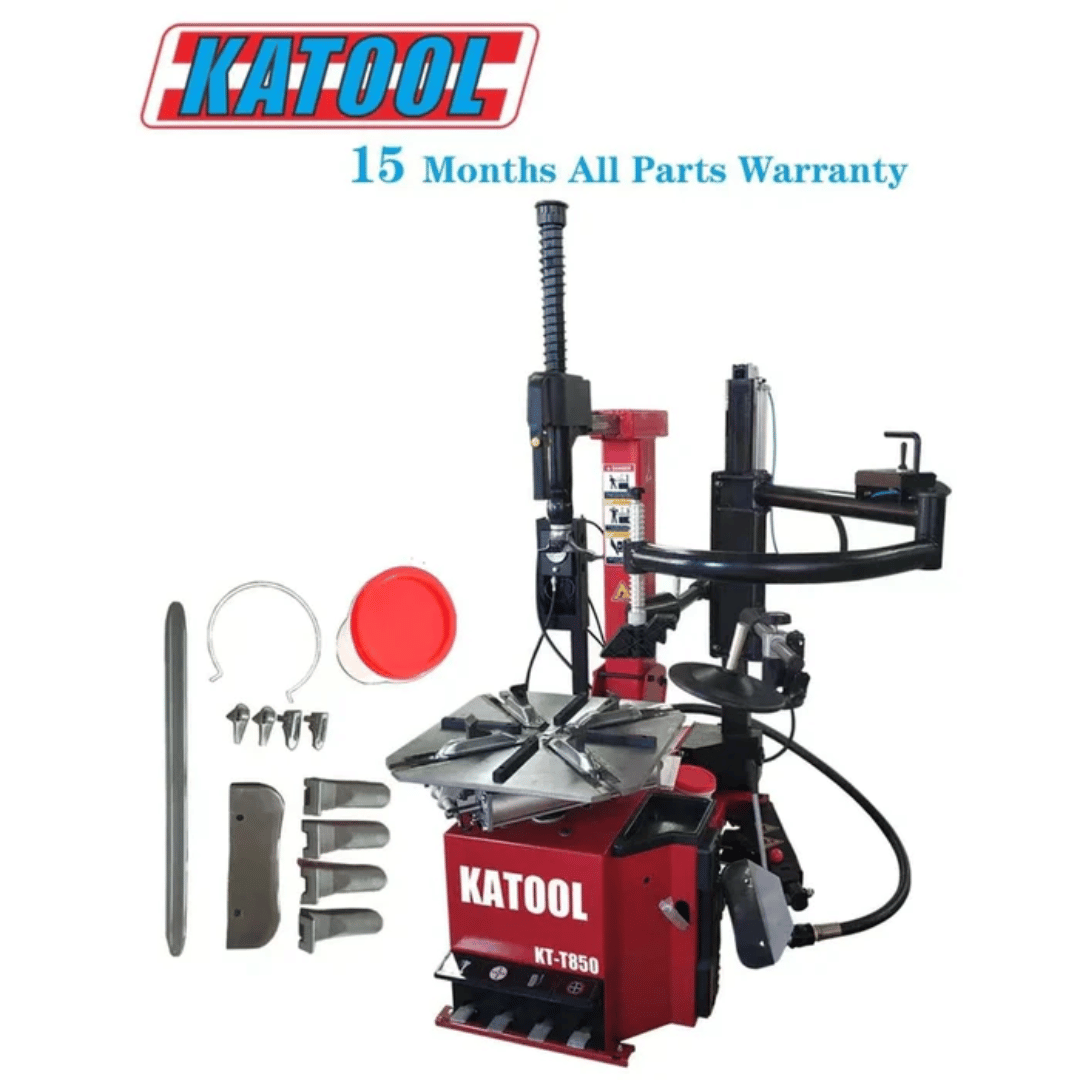

Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine
The Katool KT-T835 Wheel Clamp Tire Changer is the tire-changing maestro! Crafted with a sturdy alloy steel jaw and a stainless mounting head for maximum toughness. Its pedal-controlled air gauge, spade cover, and user-friendly pedal system ensure a smooth tire-changing experience. Equipped with a top-level motor and quality filter for durability and efficiency. Tailored for North America, it boasts a robust 110V motor, double side assist arm, and a stainless bead breaker cylinder. All housed in a closed body for ultimate part protection.
Product Features
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
- The high-quality spade cover effectively prevents the rim from being damaged
- Pull type pedal control system, easy for tire changing and maintenance
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life
- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
- For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency

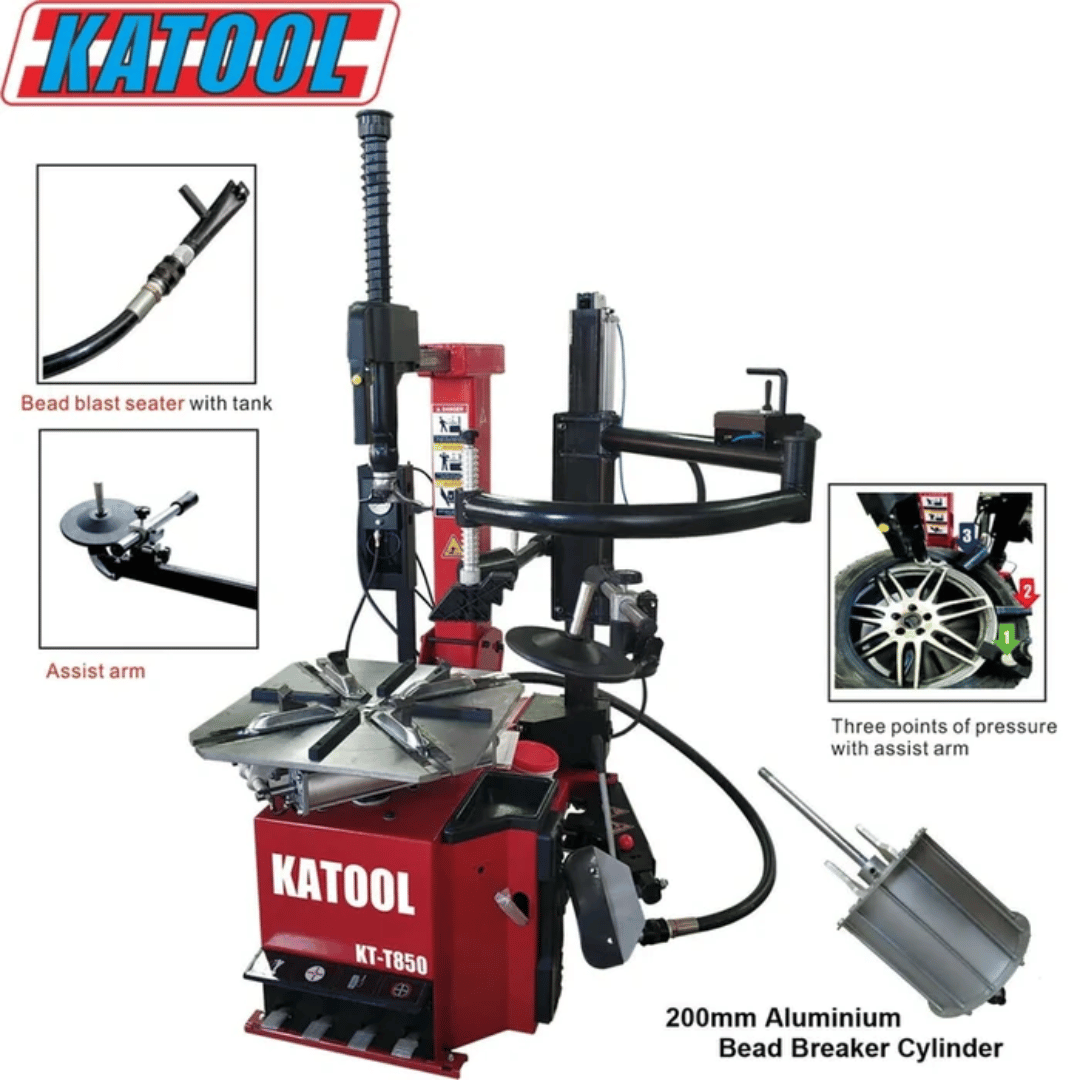

- Equipped with assist arms

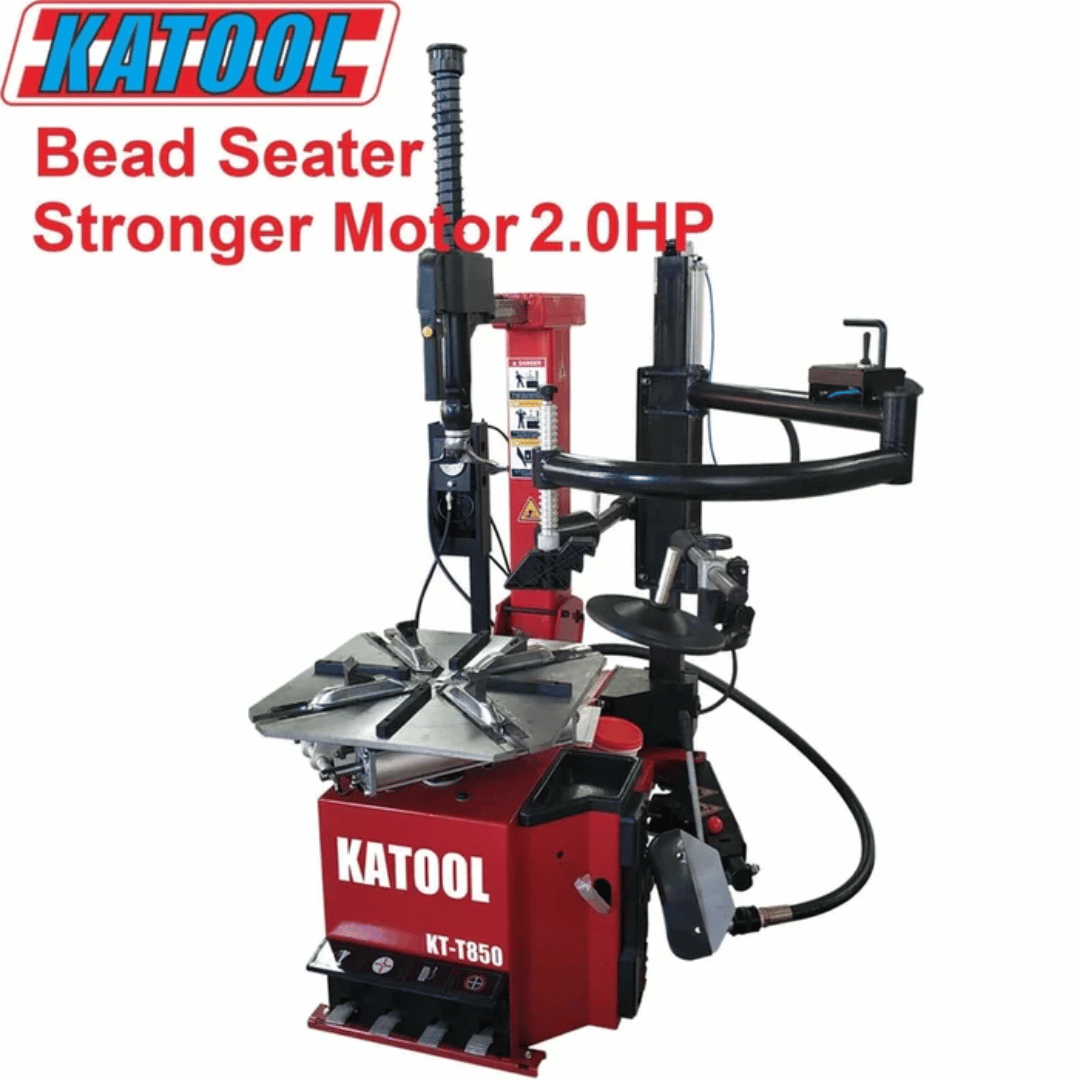

- Bead blast seater
- 200mm aluminum bead breaker cylinder
Product Specifications
| Max Wheel Diameter: | 47″/1200mm |
| Max Wheel Width: | 15″/380mm |
| Outside Clamp: | 14″-26″ |
| Inside Clamp: | 16″-28″ |
| Power Supply: | 110V 1PH |
| Motor Power: | 2.0HP/1.5KW |
| Rotation Speed: | 6.8r/min |
| Air Pressure: | 0.8-1.0Mpa(116-145psi) |
| Net weight: | 340KG / 750lbs |
