Description
Product Description

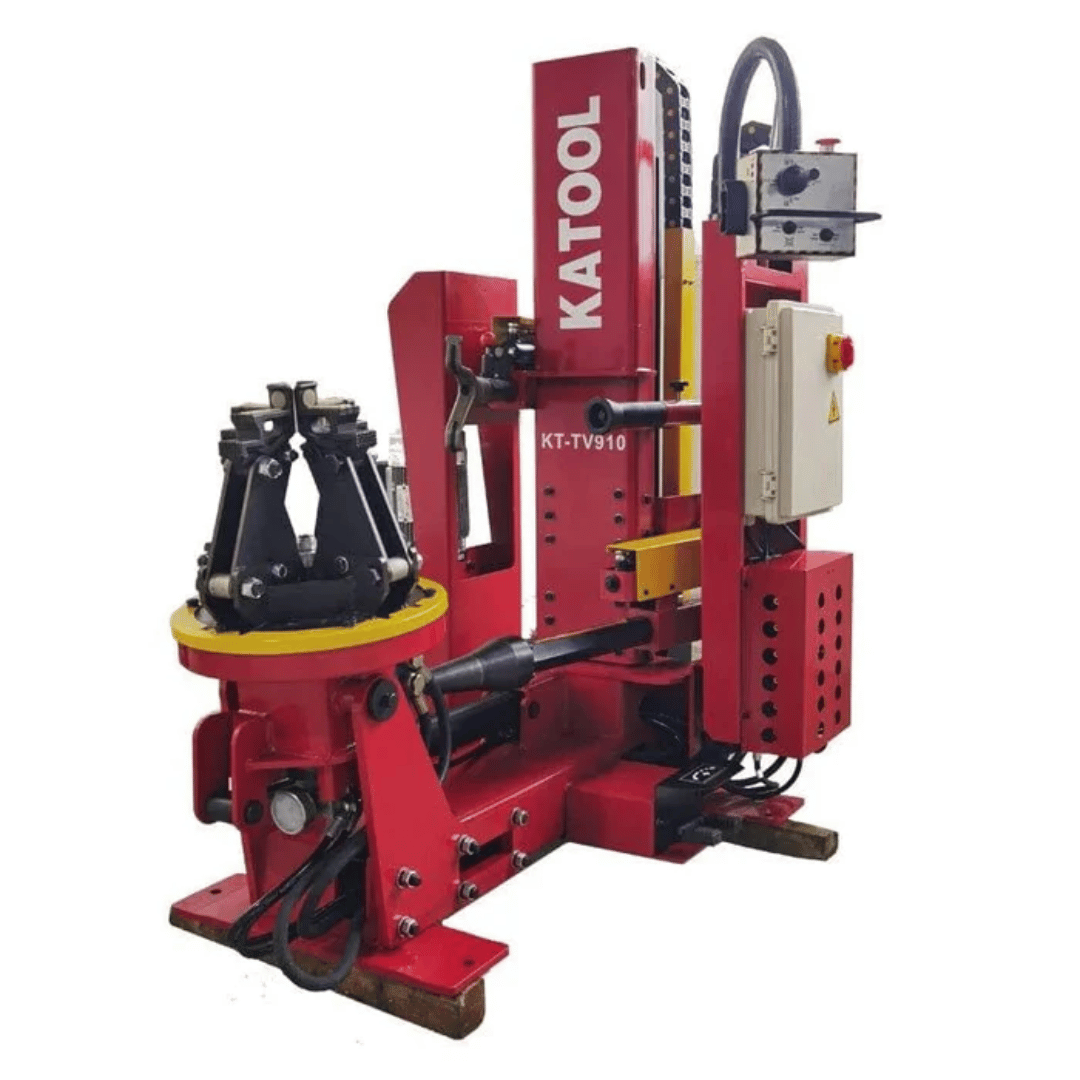

Katool KT-TV910 Hydraulic Truck Tire Changer
The Katool KT-TV910 Hydraulic Truck Tire Changer is a heavy-duty electro-hydraulic solution crafted for trucks, buses, tractors, and earth-moving vehicles. With an expansive clamping capacity accommodating wheels from 14 to 42 inches in diameter, it offers unparalleled service flexibility. The multifunctional control system guarantees safe operation from any position, while the powerful and precise beak and disk ensure robust bead handling, even on delicate rims. Ergonomically designed foot pedals and conveniently placed helper controls enhance user experience, all backed by low-voltage electric components for complete safety assurance.
Product Features
- Heavy-duty electro-hydraulic tire changer for Trucks, Busses, tractors, and earth-moving vehicle tires
- Large clamping capacity to externally clamp wheels up to 42 inches or as small as 14 inches in diameter to maximize service flexibility
- Multifunctional control, allows the user to operate in any position safely
- Powerful, precise, and quick: a beak and disk- it ensures the bead on wheels is particularly strong, even on the most delicate rims
- Ergonomically positioned foot pedals and helper controls located at the point of use minimize training and opportunities for error
- Low voltage electric components ensure user complete safety
Product Specifications
| Outer Rim | 14” – 42” |
| Max Wheel Diameter | 63” / 1600mm |
| Max Wheel Width | 31” / 780mm |
| Working Pressure | ?130 bar |
| Power Supply | 220V 1PH/60HZ |
| Hydraulic Motor | 3.0 KW (***4.0 HP Motor***) |
| Max Flow of Oil for Hydraulic Motor | 315 |
| Max Tire Weight | 3306lbs / 1500KG |
| Net Weight | 1256lbs / 570KG |
| Shipping Weight | 1388lbs / 630KG |
| Shipping Dimension | 51” x 43” x 72” / 1300mm x 1100mm x 1830mm) |
| Noise Level | < 70 DB(A) |
