Product Description

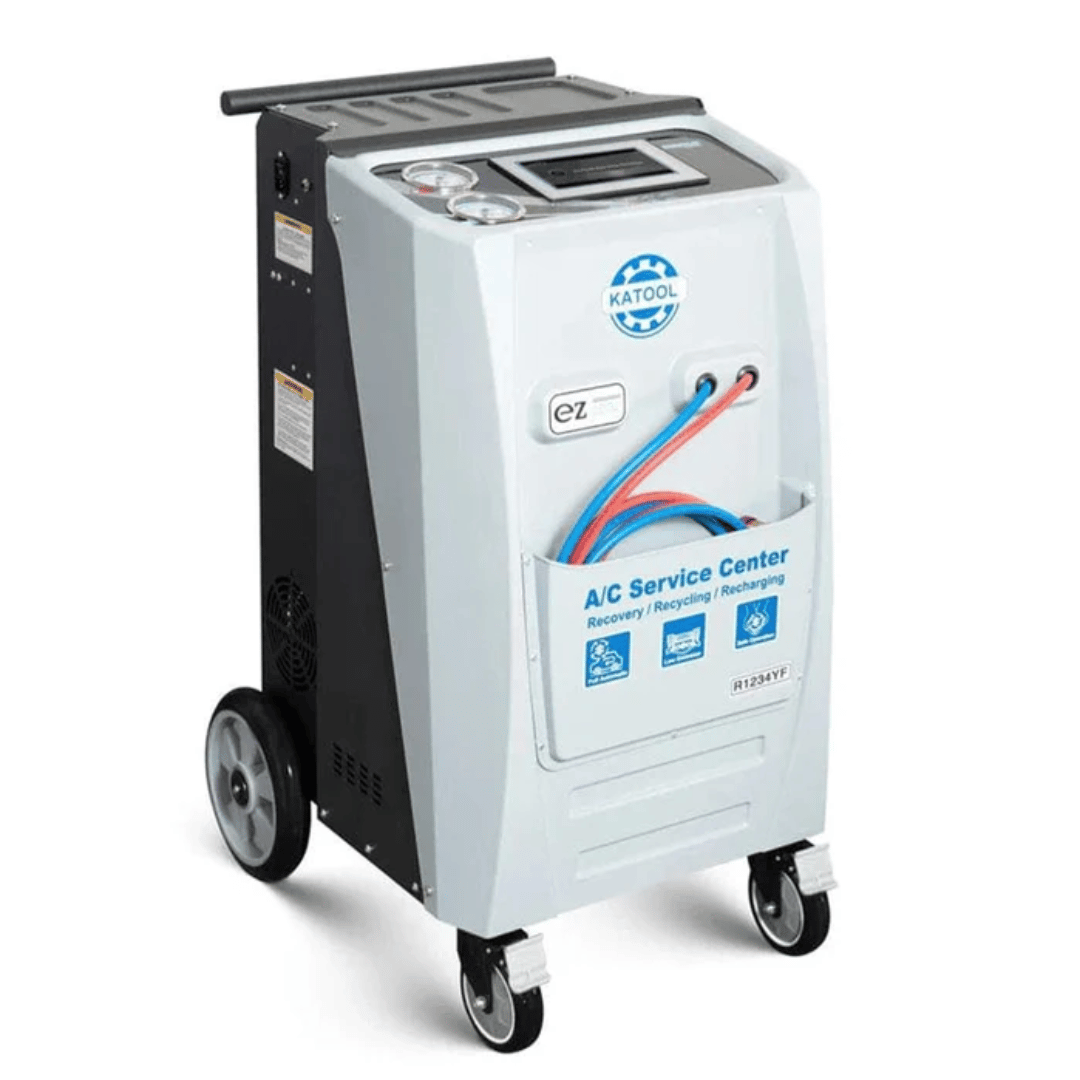

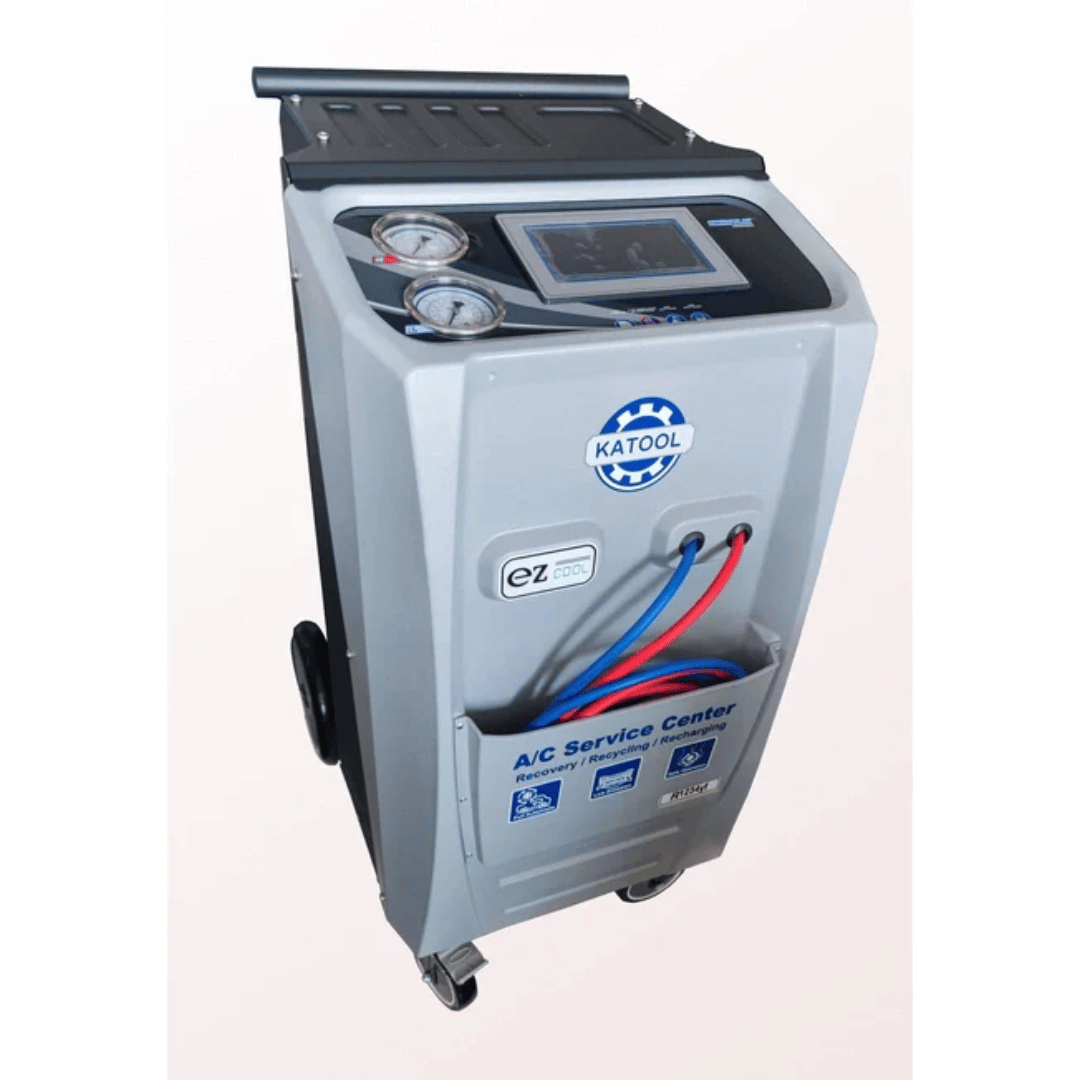

Katool R-1234YF Fully Automatic Recovery, Recycle & Recharge DUAL AC2100 Machine
The Katool R-1234YF Fully Automatic Recovery, Recycle & Recharge DUAL AC2100 Machine is your ultimate solution for efficient refrigerant handling in automotive HVAC systems. This high-performance machine guarantees a minimum 95% recovery rate in under 30 minutes, minimizing downtime. With versatile compatibility across domestic, foreign, Electric, and Hybrid vehicles, it provides comprehensive support for various automotive models. Experience precise charge performance with 0.5 oz (15 g) accuracy, supported by advanced loadcell technology. The user-friendly 7 touch HQ display ensures seamless navigation, complemented by features like a built-in printer, optional heating belt, SD database support, vacuum testing, and a robust fan and condenser system.
Product Features
- Quick Refrigerant Handling: This high-performance machine guarantees minimal downtime, achieving a remarkable 95% recovery rate in under 30 minutes.
- Versatile Compatibility: Service a broad range of vehicles, including electric and hybrid models, offering comprehensive support for various automotive HVAC systems.
- Precision and Ease: Experience precise charging with an accuracy of 0.5 oz (15 g), thanks to advanced loadcell technology for gas and oil measurements.

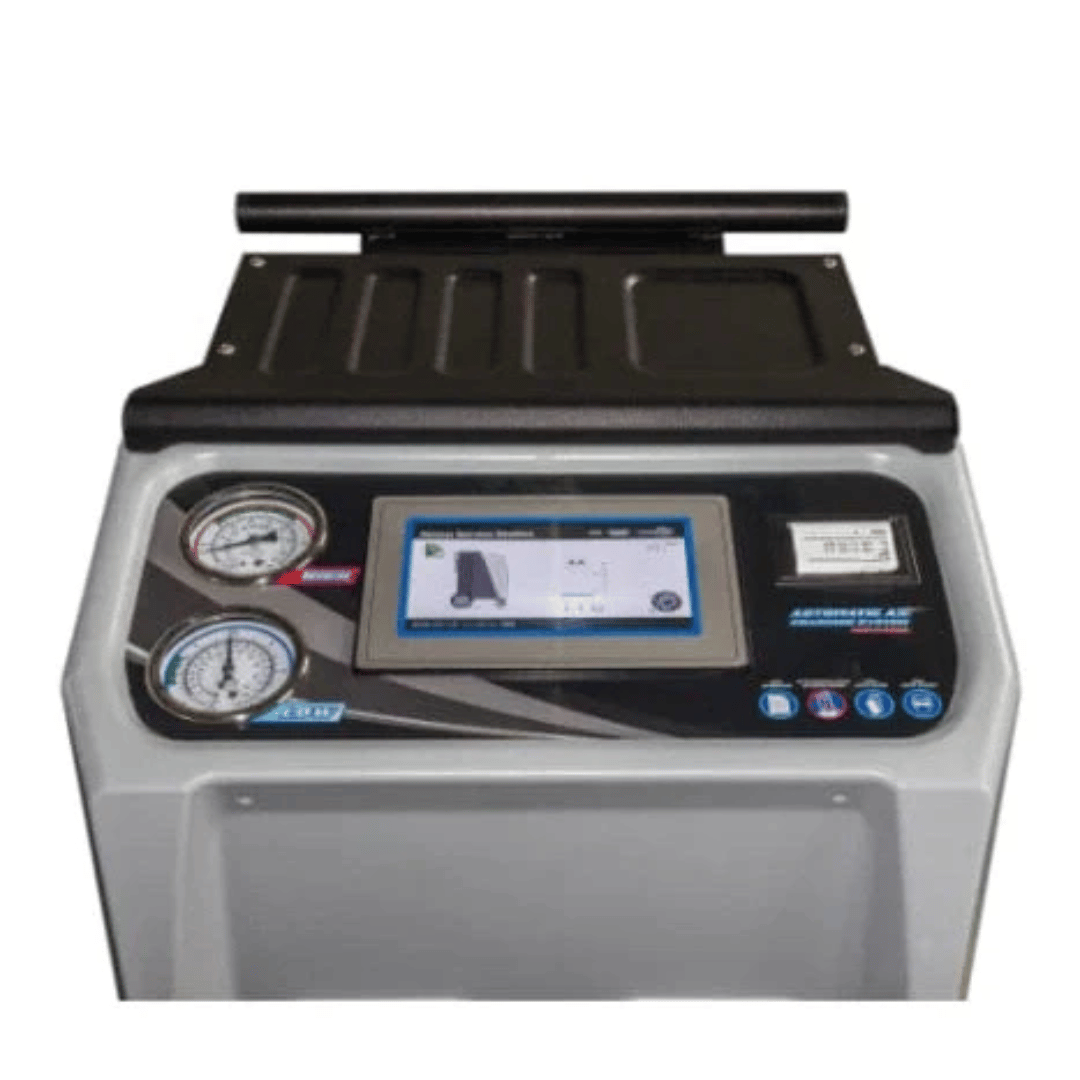

- User-Friendly Touchscreen: Navigate operations effortlessly with a 7 touch HQ display, ensuring an intuitive and user-friendly process.
- Comprehensive Features: Enjoy additional functionalities such as a built-in printer, optional heating belt, SD database support, vacuum testing, and a robust fan and condenser system, ensuring a thorough and efficient service experience.
Product Specifications
| Applicable Refrigerant Type | R1234YF |
| Voltage | 110V AC, 60 Hz |
| Recovery Performance(70-75F) | Min.95% in less than 30min |
| Charge Performance(70-75F) | 0.5 oz (15 g) |
| Operate Temperature Range | 41-122F (5-50C) |
| Max Pressure | 18 bar |
| Filter-Drier Capacity | 175 lbs (80kg),spin-on type |
| Gas Loadcell Accuracy | 0.04oz/66lbs(1g/30kg) |
| Oil Loadcell Accuracy | 0.04oz/66lbs(1g/30kg) |
| Vacuum Transducer Accuracy | 1 mBar/1000mBar |
| Recovering Speed | 39.7 lbs/h (18kg/h) |
| Charge Speed | 2.2 lbs/min(1kg/min) |

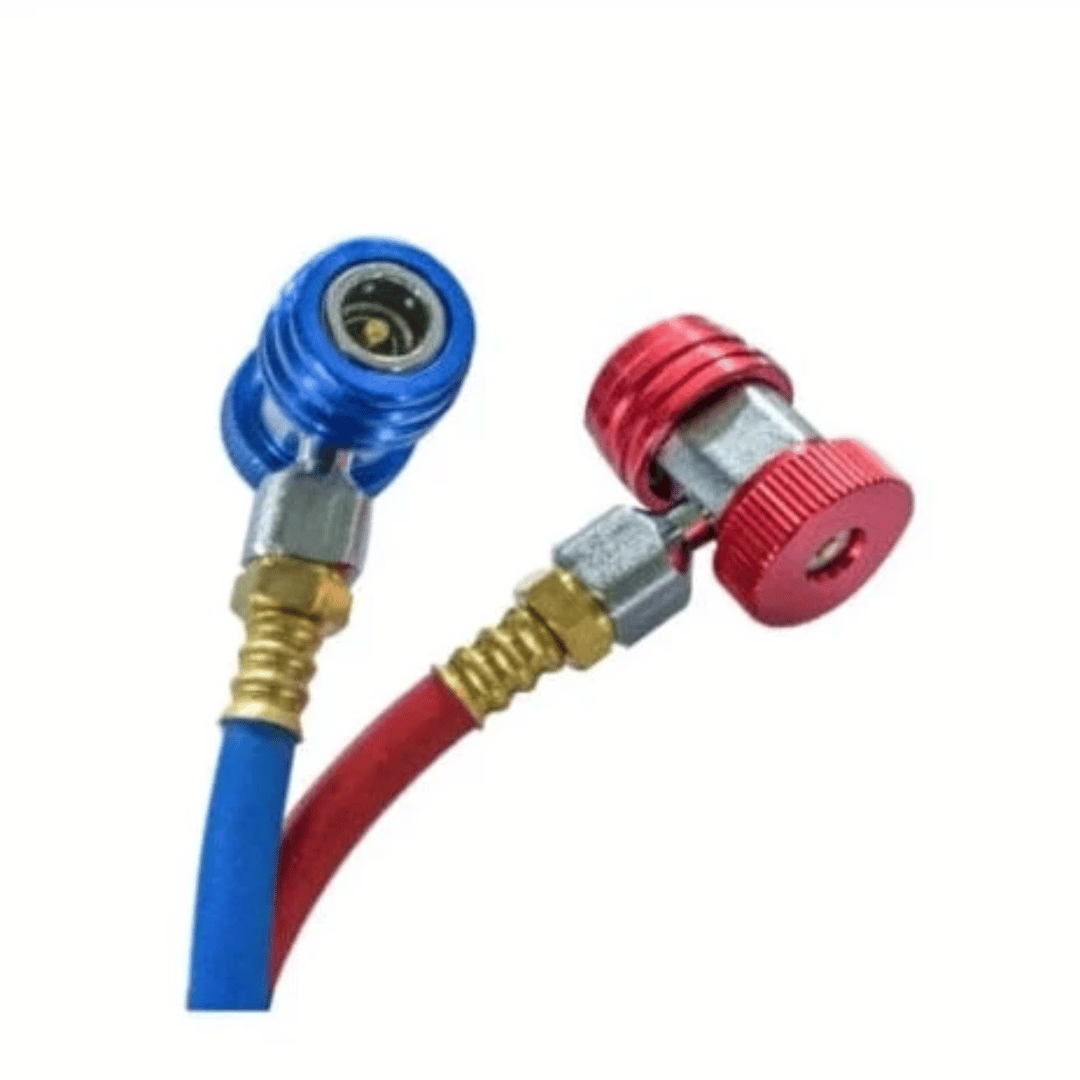

| Hose Length | 9.8(3m)SAE J2788 |
| Compressor | 1/3hp(246W).themal protected,oiled,hermetically sealed |
| Vacuum Pump | 3.6 CFM(120L/min),dual stage |
| Display | 7touch HQ |
| Tank | 0.5 cubic feet(14.3L) |

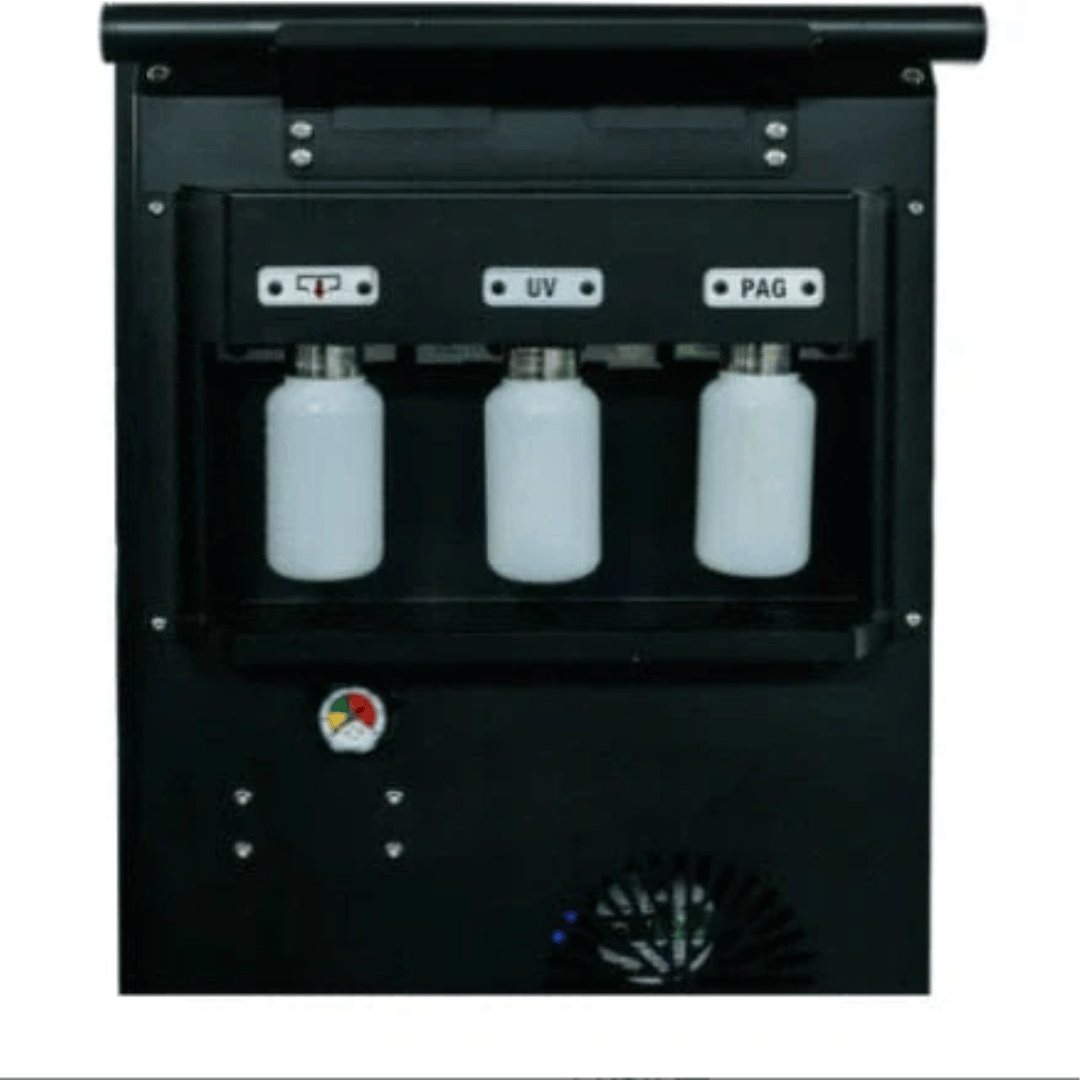

| Oil Bottle | 15 cubic inch(250mL) |
Additional Information
| Printer | YES |
| Heating Belt | optional |
| SD Database | YES |
| Vacuum Test | YES |
| Fan&Condenser | YES |
| Packing Size | 22x 28×41(550x700x1050mm) |
| Gross Weight | 240lb(110kg) |
