Description
Product Description

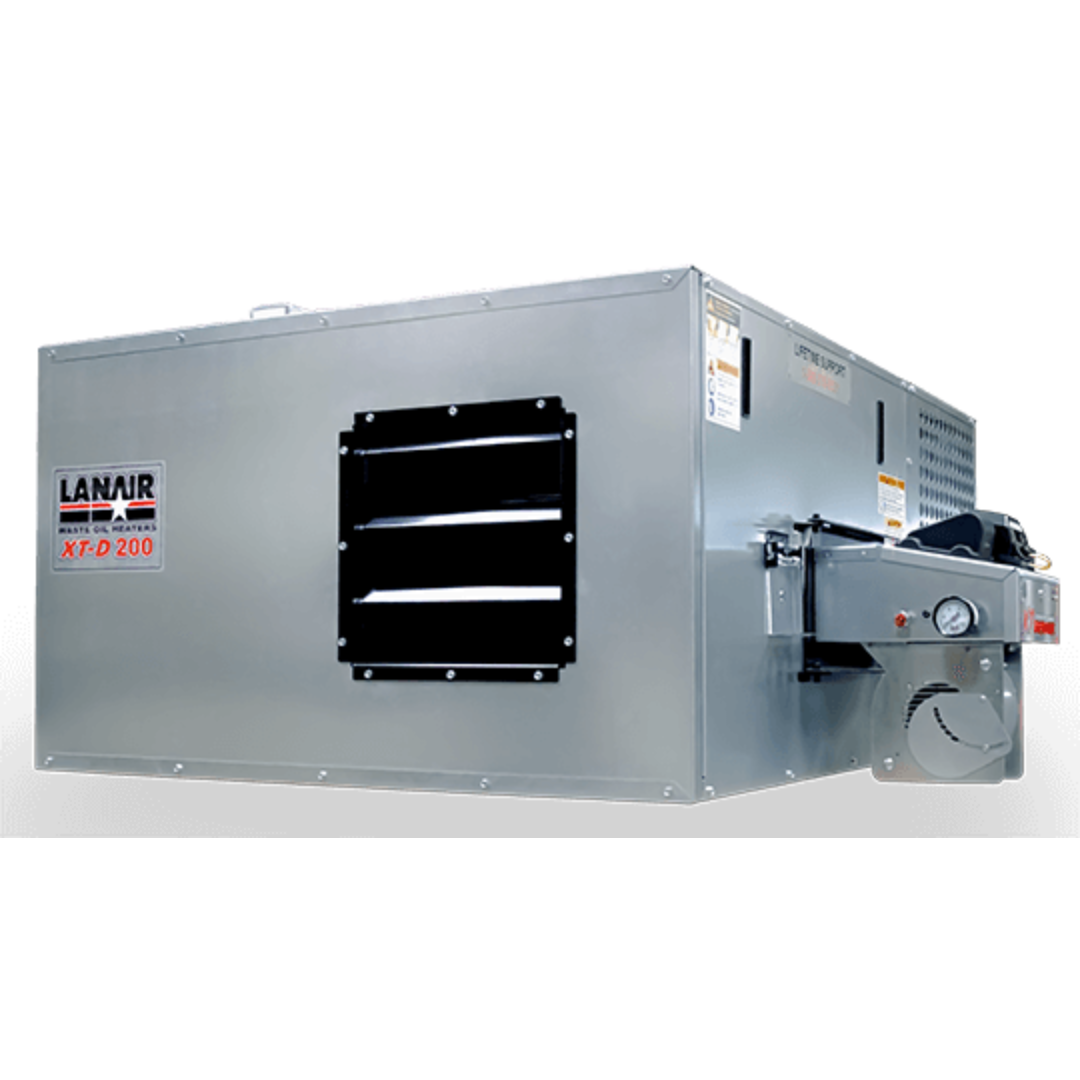

LANAIR XTD200 Waste Oil Heater Value Package 1

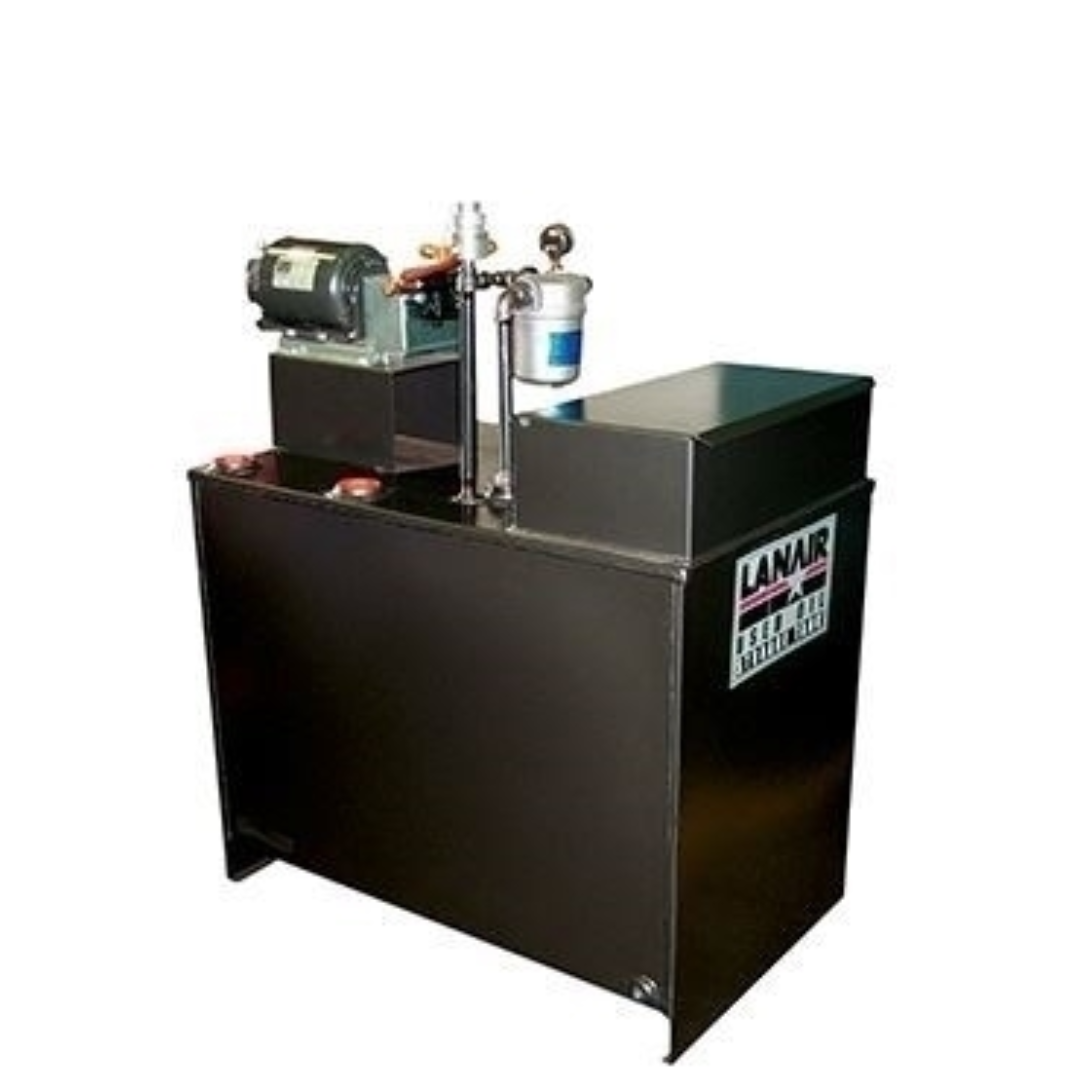

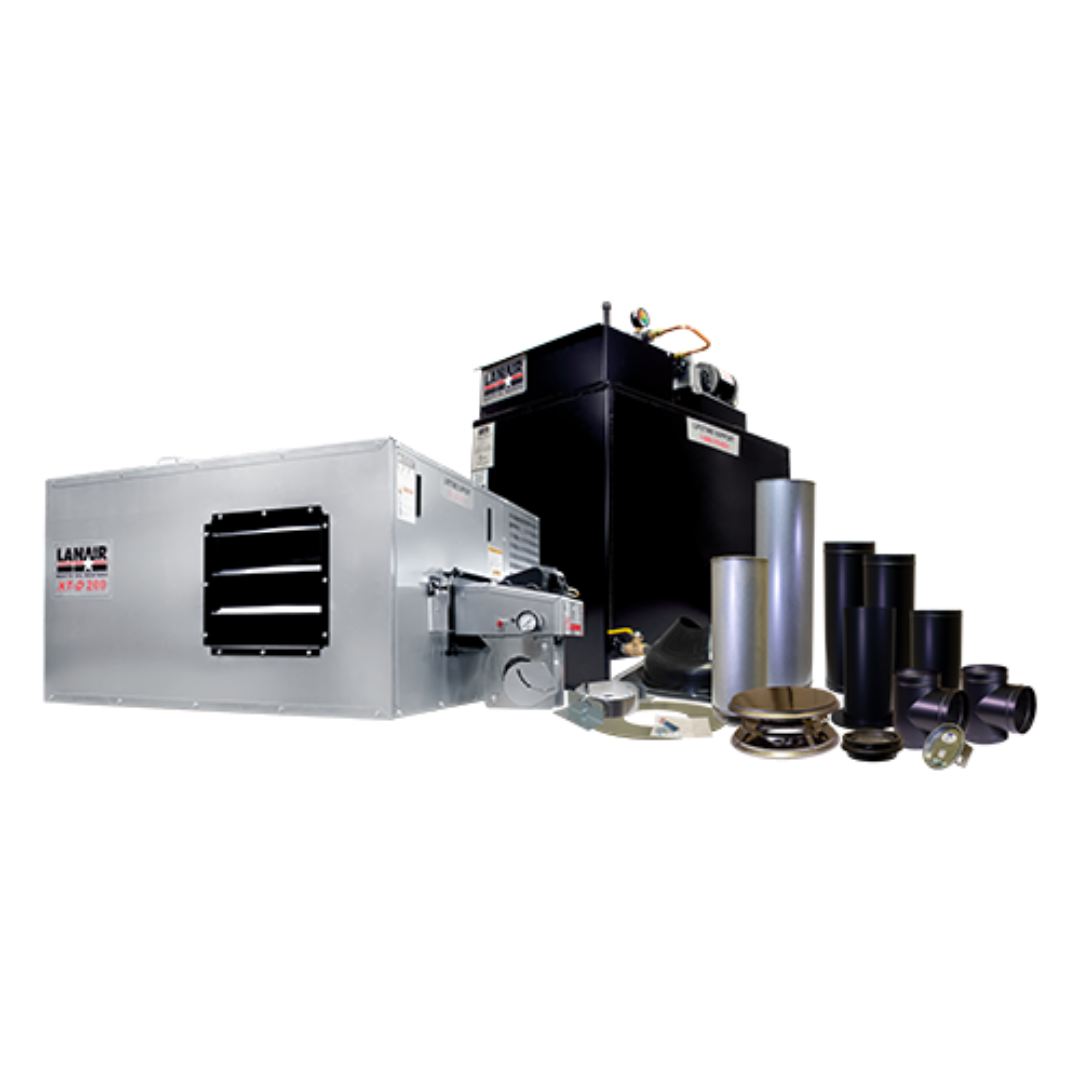

Heater with 80 gallon tank and 6″ roof kit

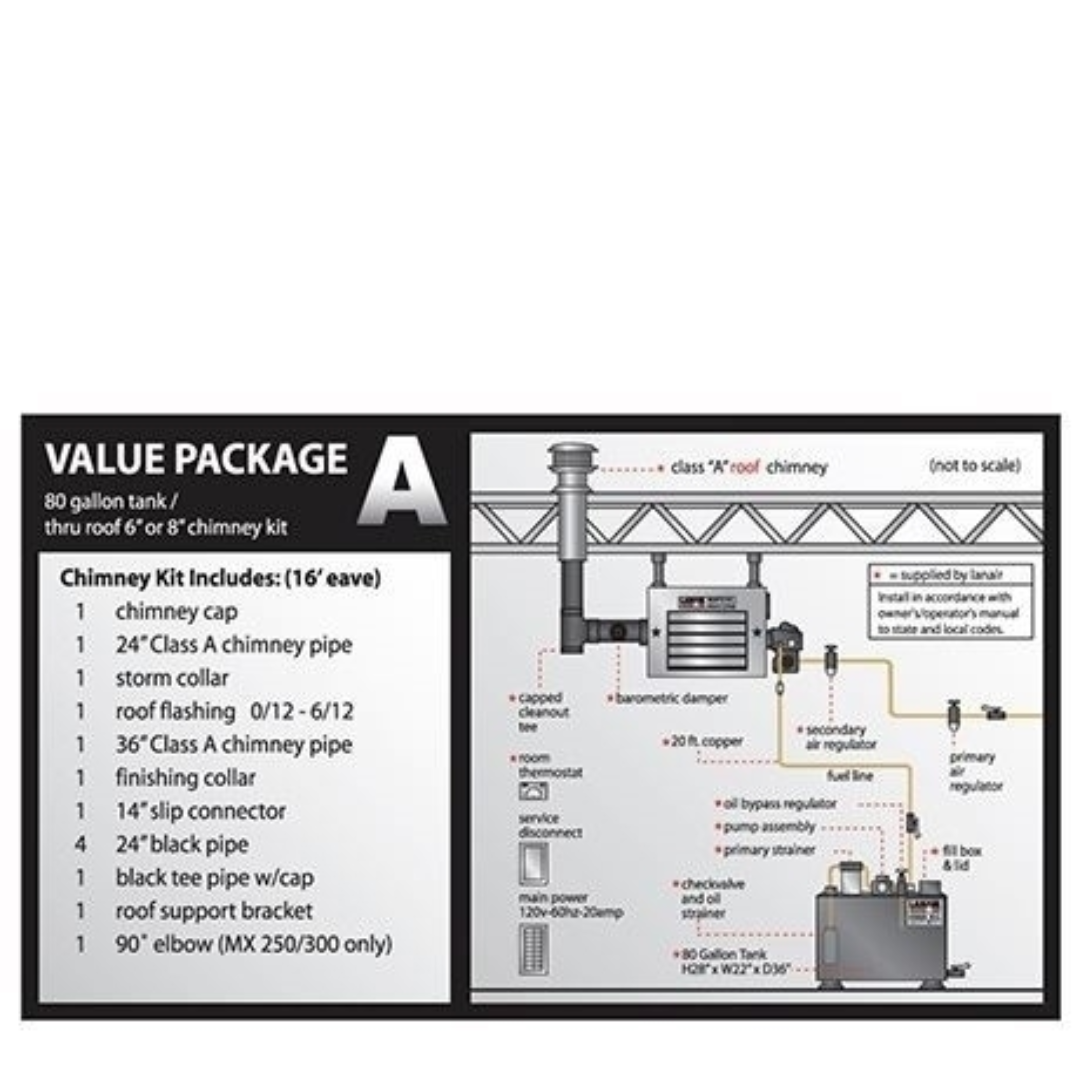

Chimney Kit Includes (16′ eave): 1 chimney cap, 1 (24″) Class A chimney pipe, 1 storm collar, 1 roof flashing 0/12-6/12, 1 (36″) Class A chimney pipe, 1 finishing collar, 1 (14″) slip connector, 4 (24″) black pipe, 1 black tee pipe w/cap, 1 roof support bracket, 1 (90°) elbow. Please allow 5-7 business days for processing.
The XT-D 200 Waste Oil Heater now burns 100% used synthetic oil and comes standard with an east access hinged chamber door for easy clean out. It also features a large clean0out side-access panel to the collector box. Some of the new improvements made to the XT-D models are: easy to remove burner, a noncontinuous spark thransformer, an hour meter, and a prime sqitch. All of these features make it easy for those who compate…buy Lanair!
Product Specifications
| Heat Range (BTUH) | 200,000 |
| Fuel Input (GPH) | 1.44 |
| Fuel Type | Waste oil (used crankcase oil up to 50 wt), used synthetic oil, used #1 and #2 fuel oil, used C.C. synthetic ATF #1 and #2, used automatic transmission fluid |
| Fuel Type | Used crankcase oil up to 50 wt (conventional or synthetic), used automatic transmission fluid, #1 and #2 fuel oil (diesel) |
| Heating Area (sq. ft.) | 5,000 |
| Power Supply (AC) | 120 V-60Hz 20 Amps |
| Cabinet Dimensions (H x W x D) | 24″ x 40.5″ x 56″ |
| Hanging Weight (lbs.) | 523 |
| Chimney Pipe | 6″ Class A |
| Compressed Air | 2 CFM – 12-15 PSI |
| Combustion Chamber | 12 Gauge CRS |
| Ductable Option | Yes |
| Chimney Location | Top and Left Side |
