Description
Product Description

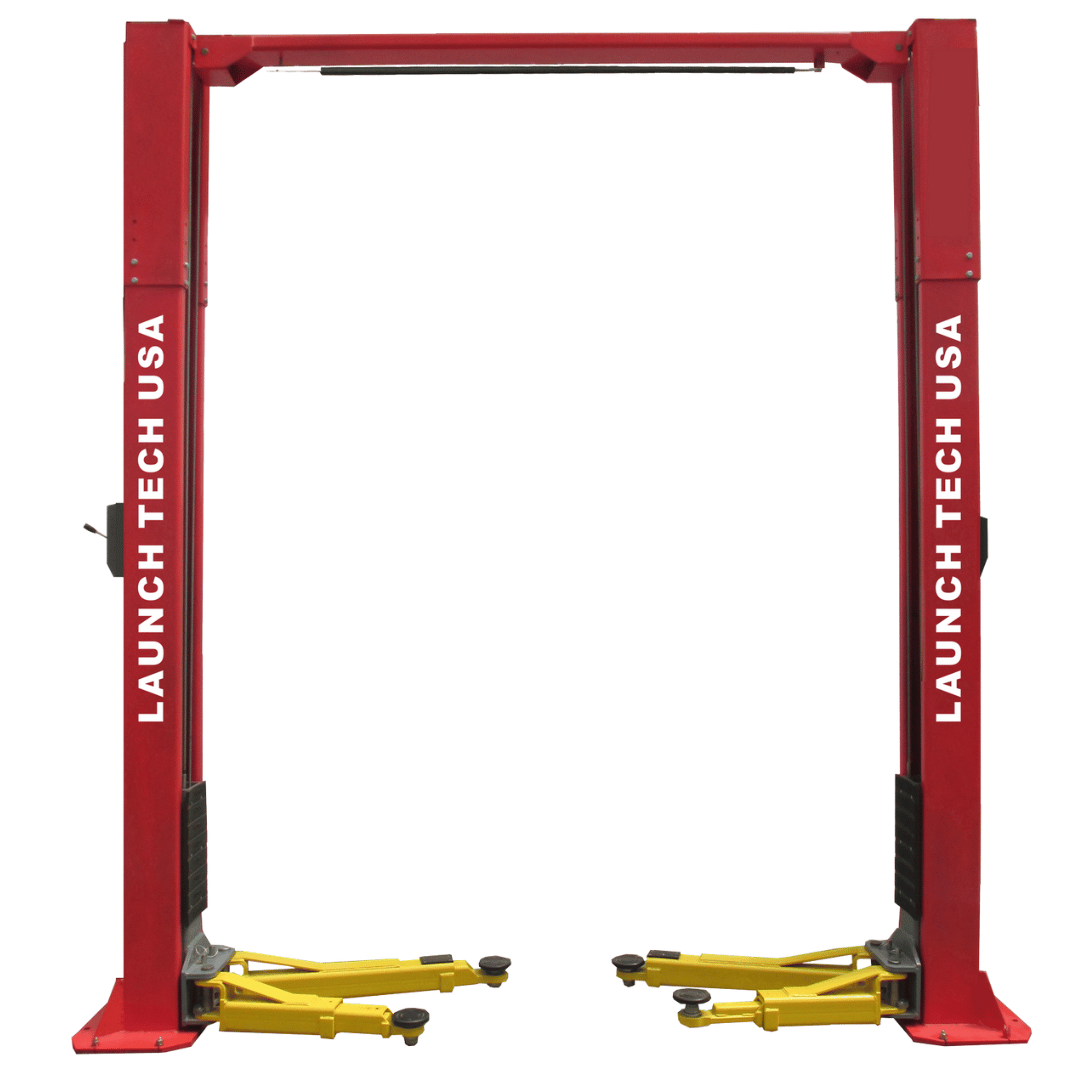

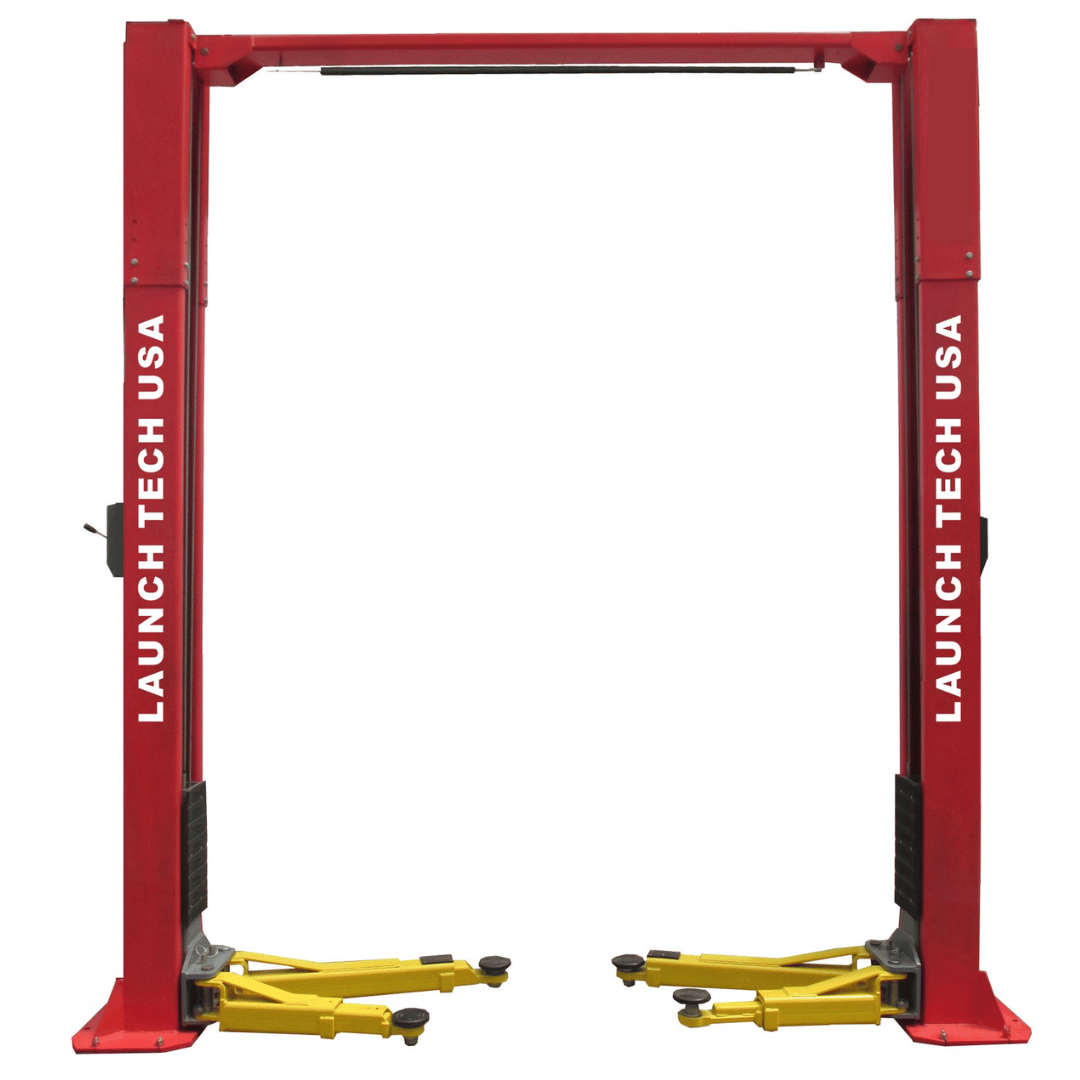

LAUNCH TECH USA, TWO POST CLEAR FLOOR
Product Features
- ALI certified
- 11,000 lbs Capacity
- Direct Drive cylinders
- Rubber Door Guards
- Outer Hose Guards
- Single Point Lock Release
- Heavy Duty Arm Restraint System
- Double Telescoping Screw Pads
- Adjustable Column Height
- Standard Asymmetric Columns
- Stackable Pad Extensions
- 3 Stage Front Arms

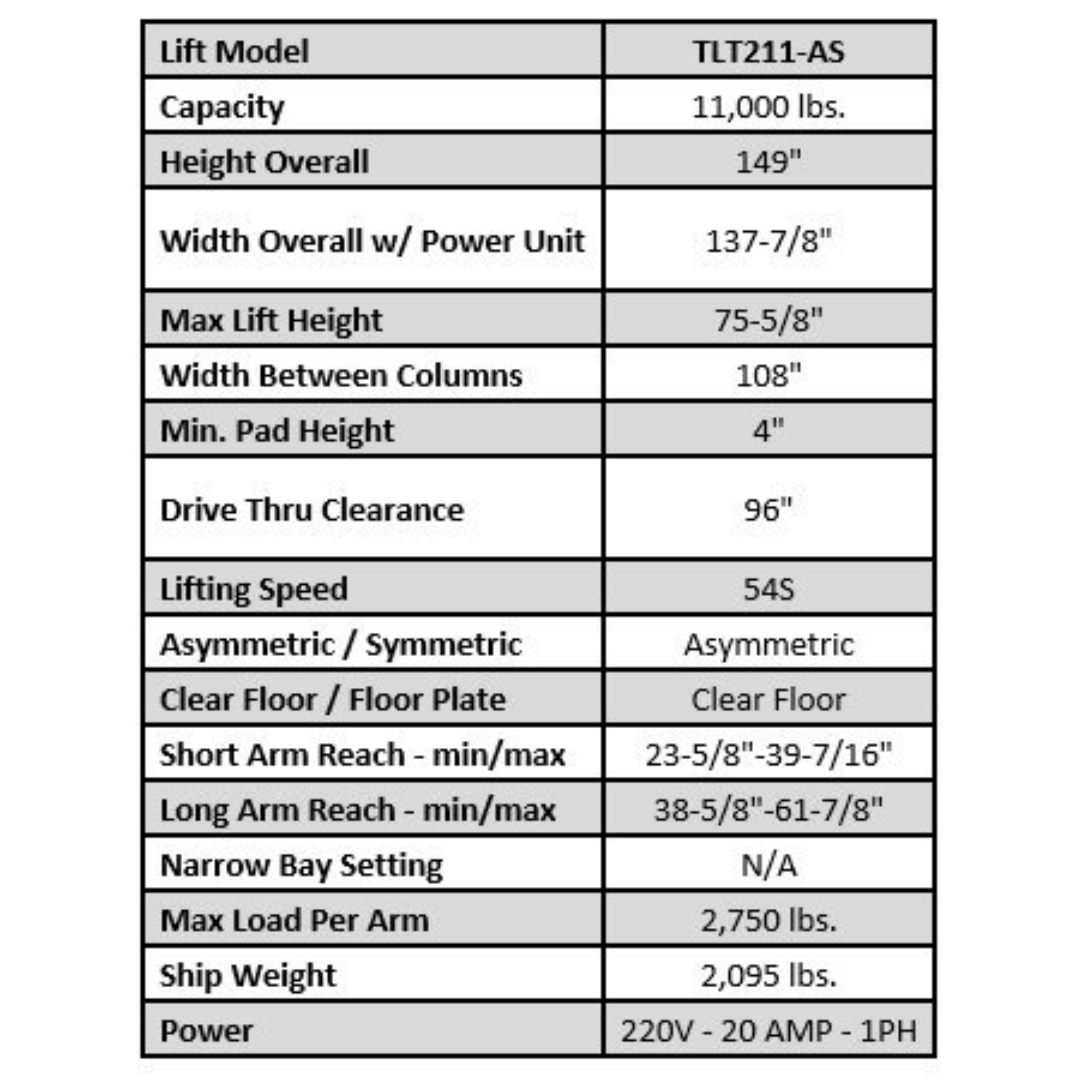

Product Specifications
| Lift Model | TLT211-AS |
|---|---|
| Capacity | 11,000 lbs |
| Height Overall | 149″ |
| Width Overall w/ Power Unit | 137-7/8″ |
| Max Lift Height | 75-5/8″ |
| Width Between Columns | 108″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 96″ |
| Lifting Speed | 54S |
| Asymmetric / Symmetric | Asymmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 23-5/8″ – 39-7/16″ |
| Long Arm Reach – min/max | 38-5/8″ – 61-7/8″ |
| Max Load Per Arm | 2,750 lbs |
| Ship Weight | 2,095 lbs |
| Power | 220V – 20 Amp – 1PH |
�
Pick Up and Delivery
Our Pick Up locations for Tuxedo are located in Temecula, California – Orlando, Florida – Norcross, Georgia – Marshalltown, Iowa – Elwood, Indiana – St. Cloud, Minnesota – Reidsville, NC – Pottsville, Pennsylvania – Alvarado, Texas – West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
�
Downloads
Brochure
Manual
Warranty
�
