Product Description

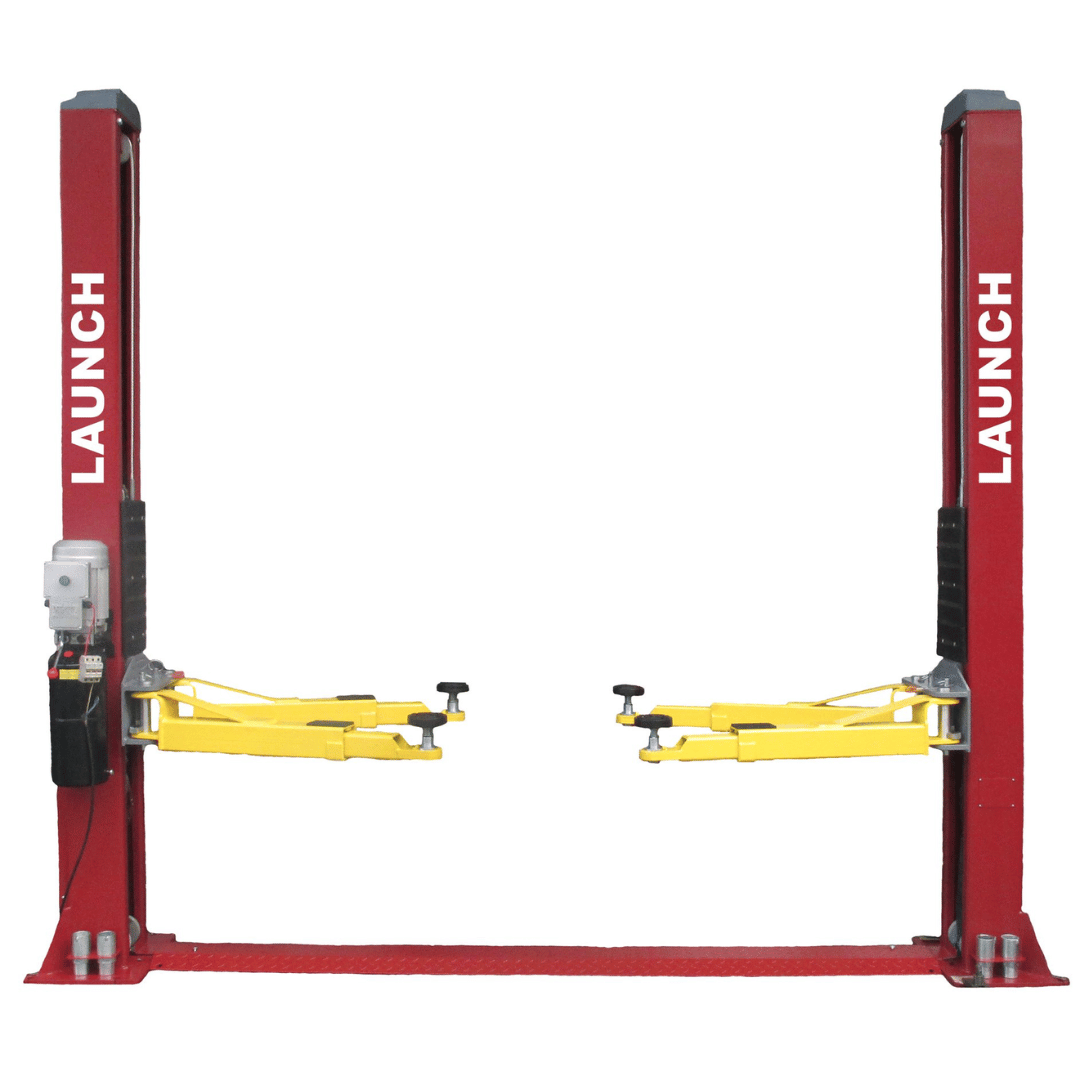

LAUNCH – TLT240SB-R LAUNCH, Two Post Floor Plate

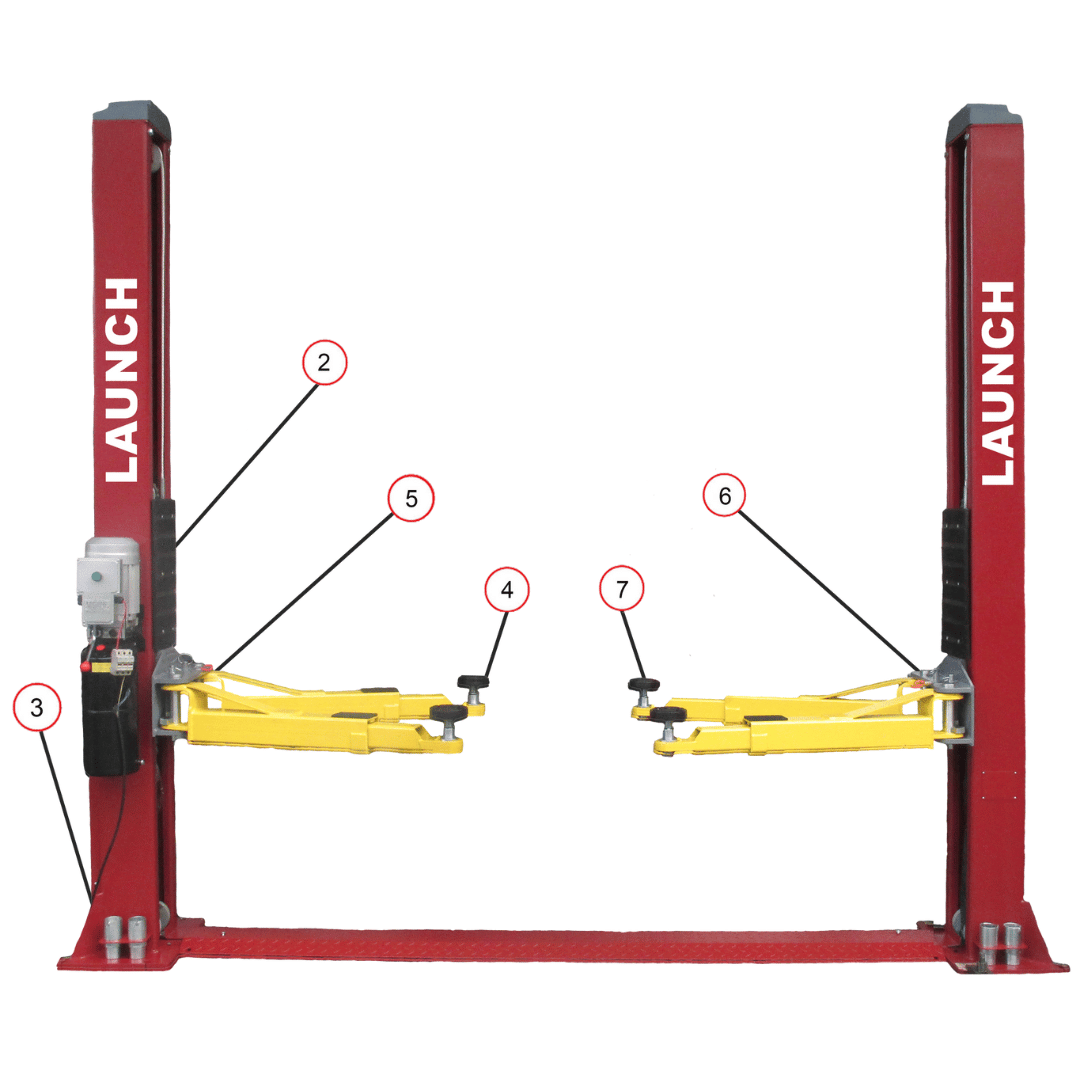

Product Features
- 9,000 lbs Capacity

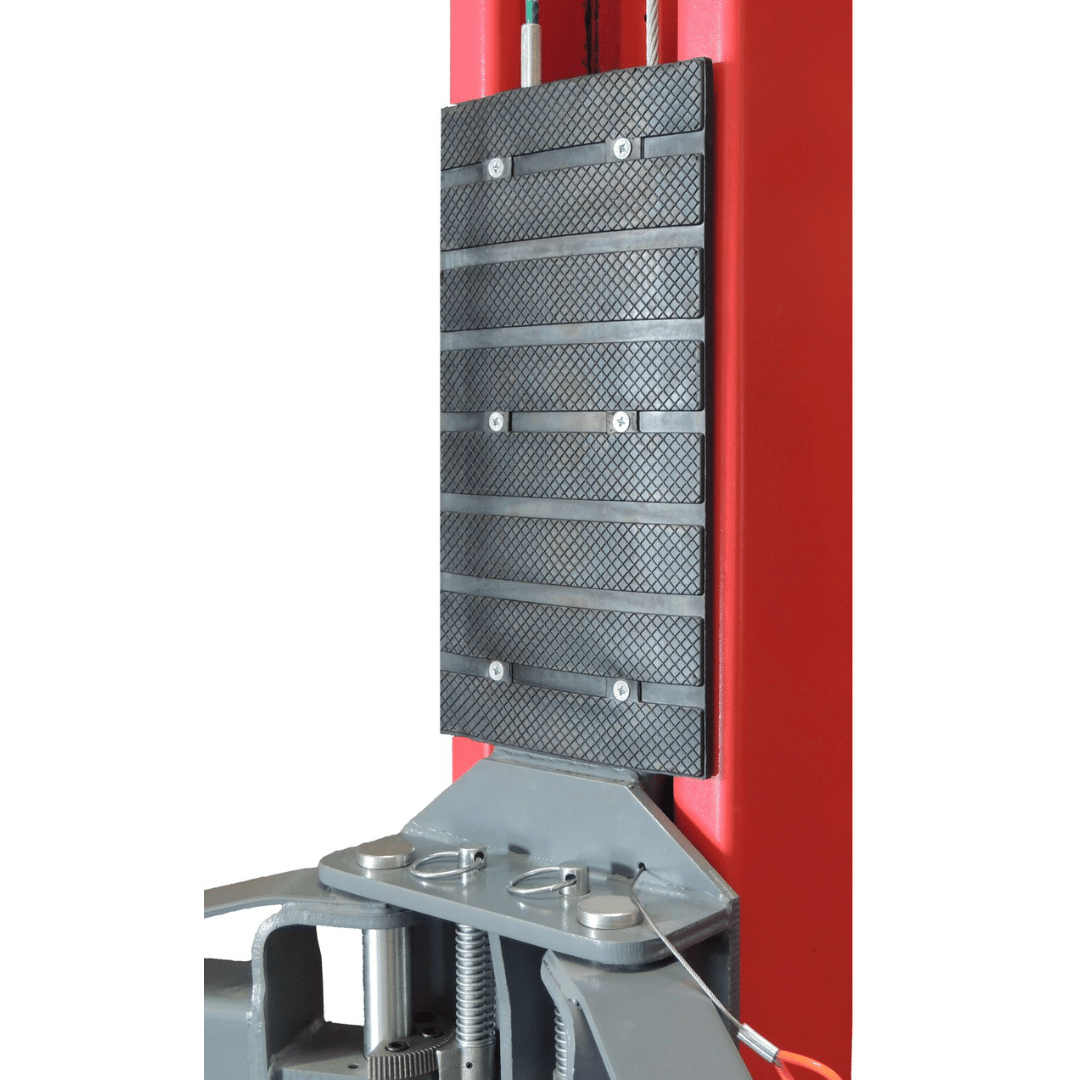

- Rubber Door Guards
- Chain Drive

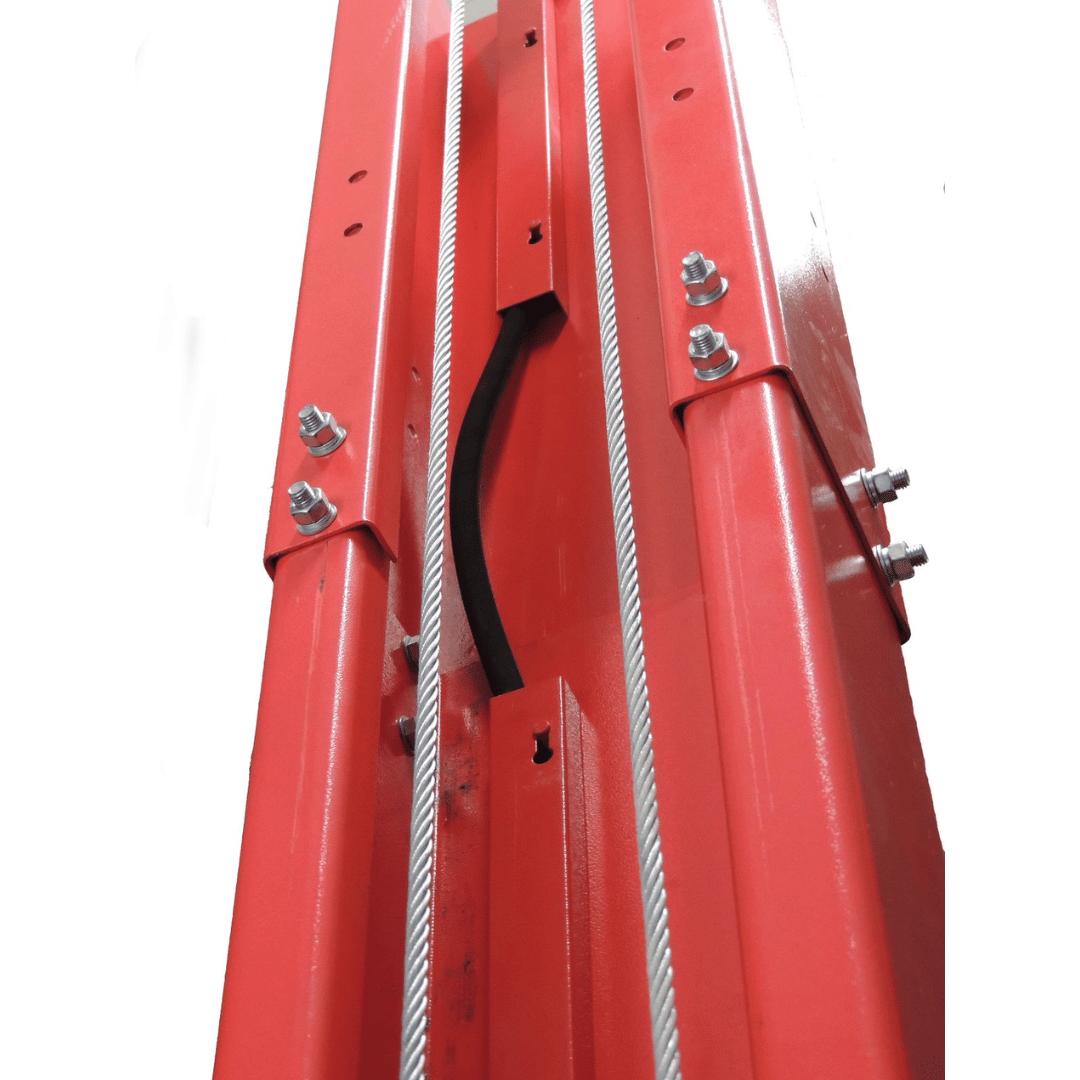

- Hose Guards
- Dual Point Lock Release

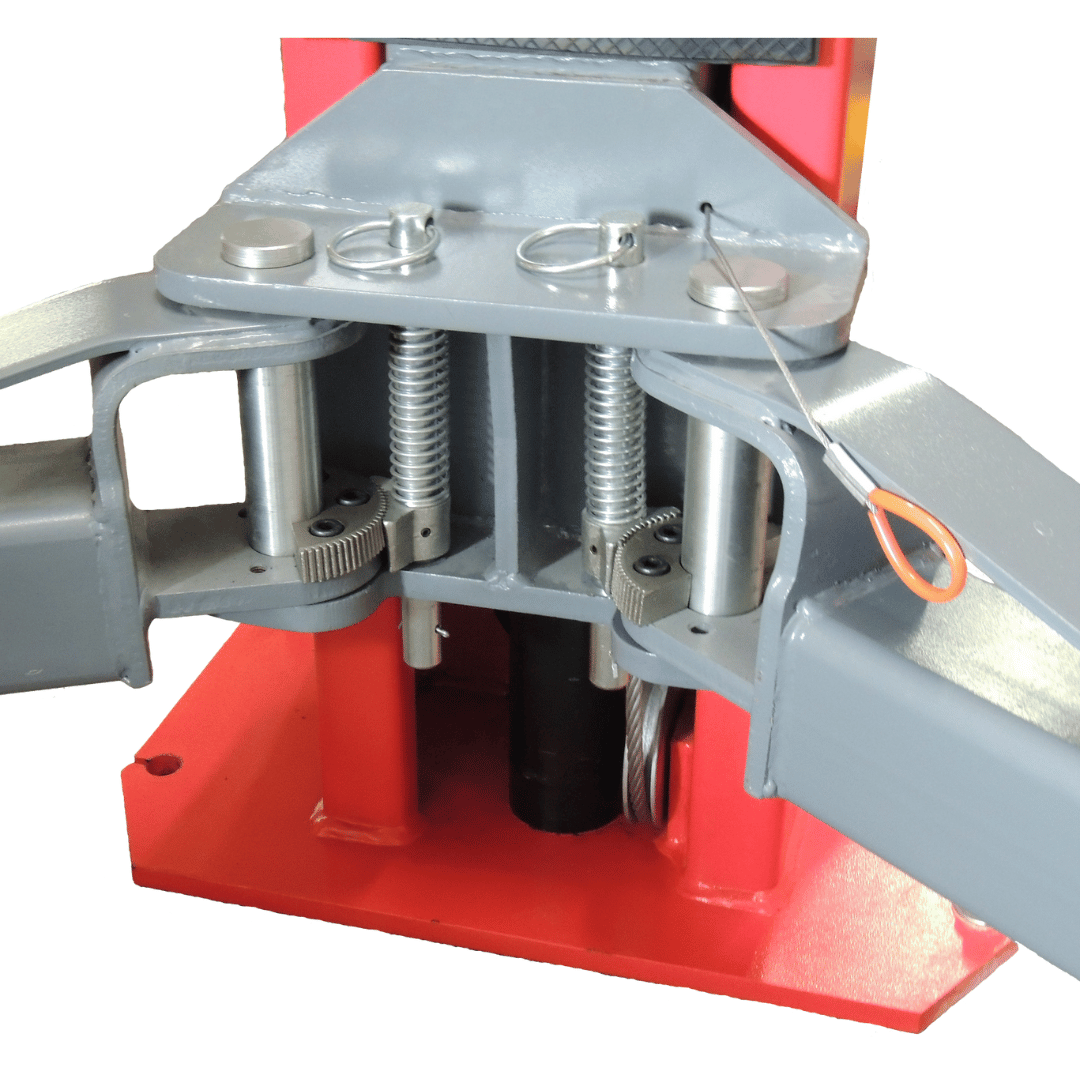

- Heavy Duty Arm Restraint System

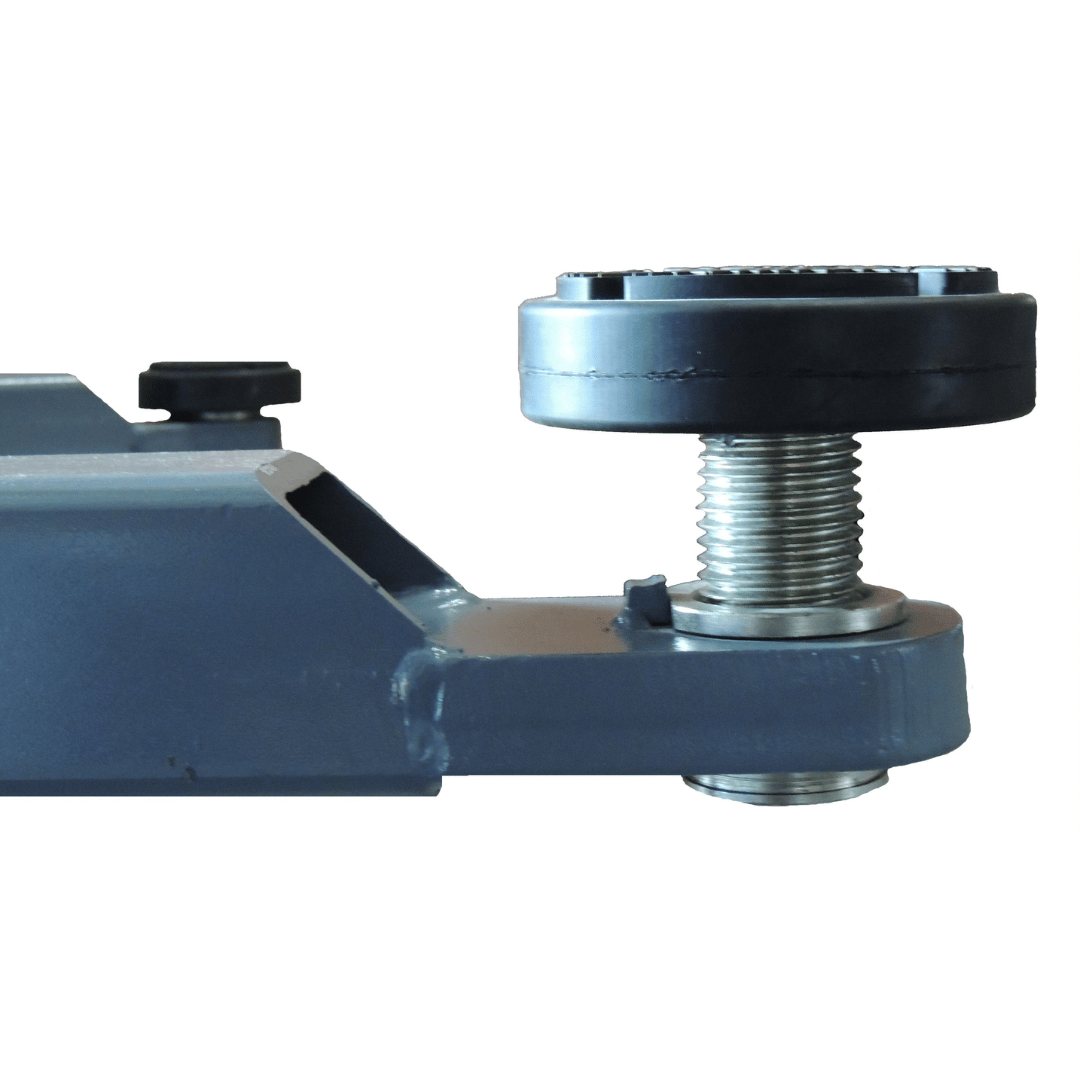

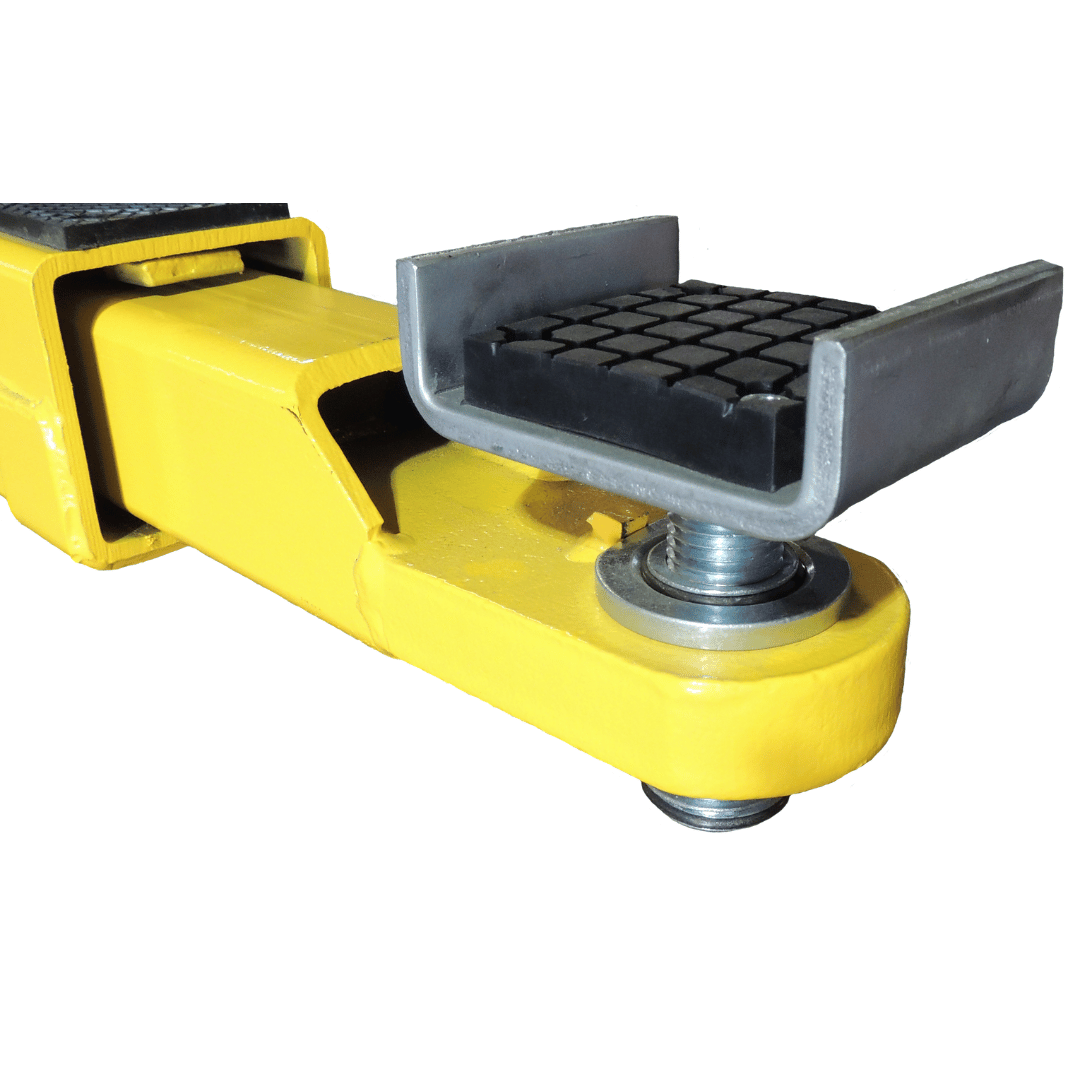

- Double Telescoping Screw Pads
- Stackable Pad Extensions

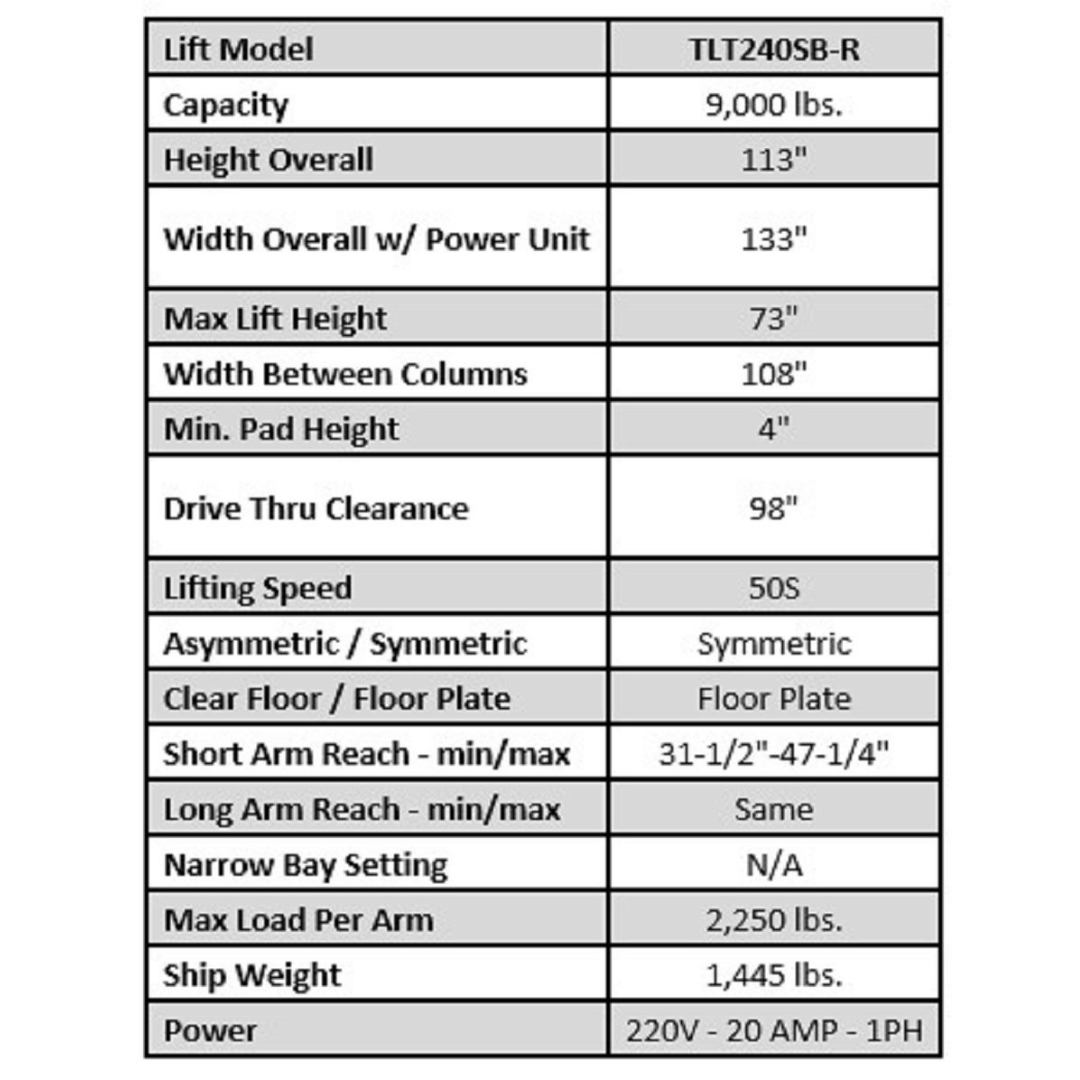

Product Specifications
| Lift Model | TLT240SB-R |
|---|---|
| Capacity | 9,000 lbs |
| Height Overall | 113″ |
| Width Overall w/ Power Unit | 133″ |
| Max Lift Height | 73″ |
| Width Between Columns | 108″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 98″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Short Arm Reach – min/max | 31-1/2″-47-1/4″ |
| Long Arm Reach – min/max | 31-1/2″-47-1/4″ |
| Max Load Per Arm | 2,250 lbs |
| Ship Weight | 1,445 lbs |
| Power | 208-230V-60Hz.-1 PH |
�
Pick Up and Delivery
Our Pick Up locations for Tuxedo are located in Temecula, California – Orlando, Florida – Norcross, Georgia – Marshalltown, Iowa – Elwood, Indiana – St. Cloud, Minnesota – Reidsville, NC – Pottsville, Pennsylvania – Alvarado, Texas – West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
�
