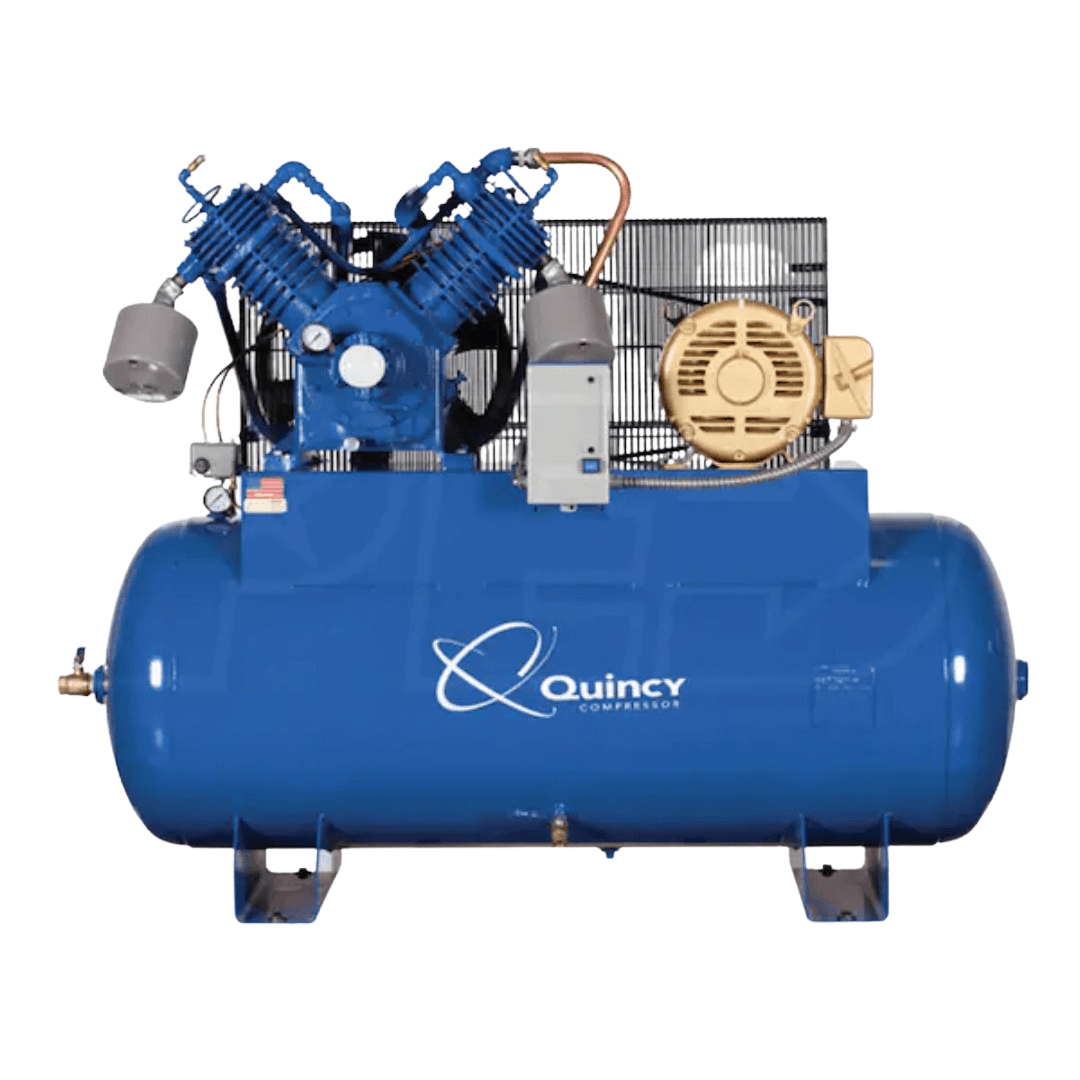

Quincy 3153D12HCB46M QP MAX 15-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (460V 3-Phase)

Quincy 3153D12HCB46M QP MAX 15-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (460V 3-Phase)

Fully Pressure Lubricated QP Pro Max Package 2-Stage Compressor

Pump life up to 60,000+ hours

1750 RPM industrial motor will continuously run your business

Electronic automatic tank drain keeps condensation to a minimum

Mounted air-cooled aftercooler extends pump life

Magnetic Starter provides thermal overload protection for the motor

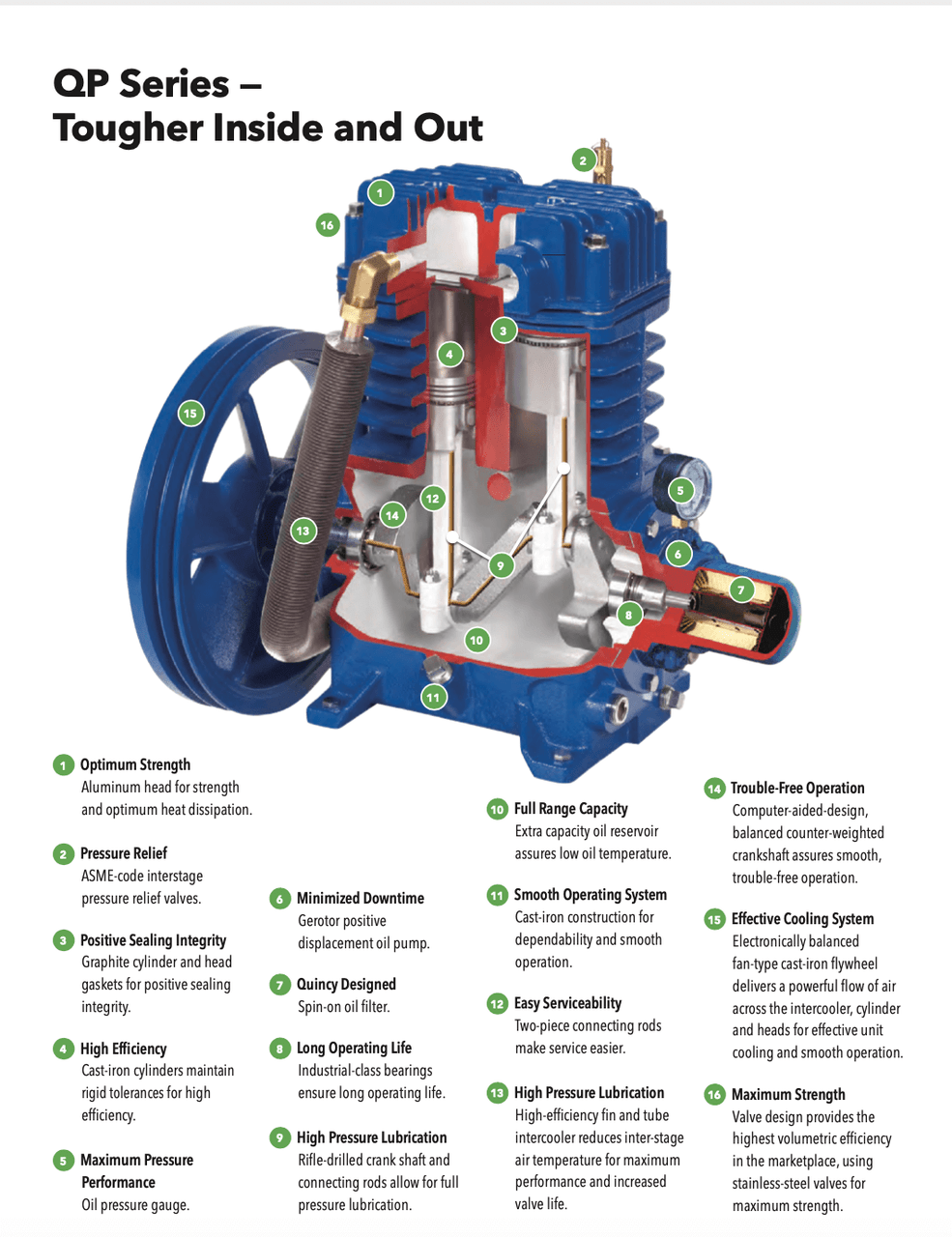

Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads

Graphite cylinder & head gaskets for positive sealing integrity

Continuous 100% duty cycle operation

Spin-On Oil filter

Lengthens compressor life & improves reliability

Low oil pressure switch shutdown for protection

Gerator Positive Displacement Oil Pump

Provides pressure lube to crankshaft, bearings, & rods

Pressurized oil results in less wear on components

Stainless Steel Reed Valves With Valve Bumpers

Maximum strength & volumetric efficiency

Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler

Maintains rigid tolerances for high efficiency

Reduces interstage temperature for max performance & durability

1-Year Factory Warranty – Extends To 3-Year “No Bull” Warranty

Must Include purchase of EWK-8 or EWK-8PLUS Maintenance Kit at time of purchase

Unit must be registered at www.quincycompressor.com

Download the Warranty page under the Manual tab for details

Extended warranty includes on-site and labor service
