Product Description

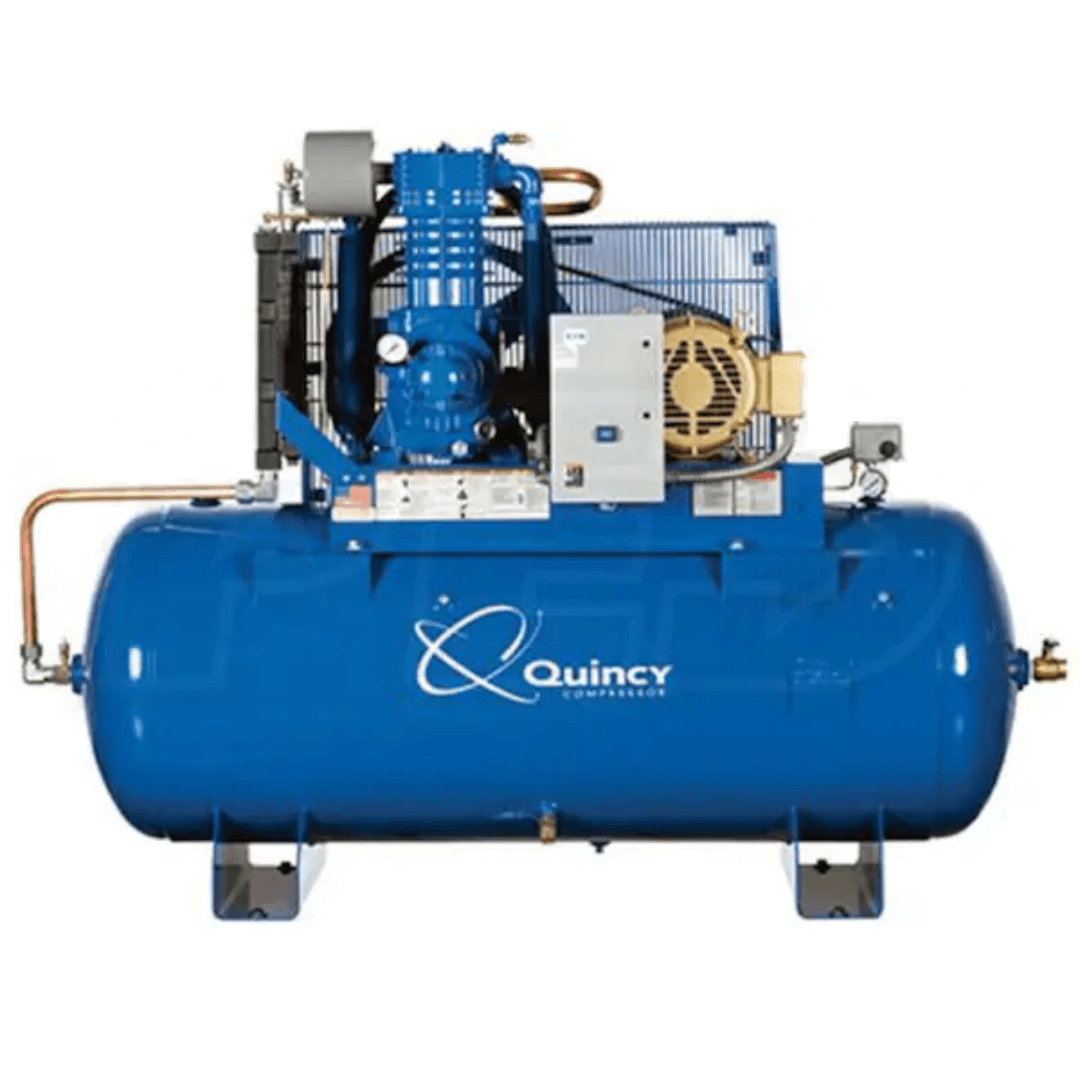

Quincy 3153DS12HCA46 QP Pro 15-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (460V 3-Phase)

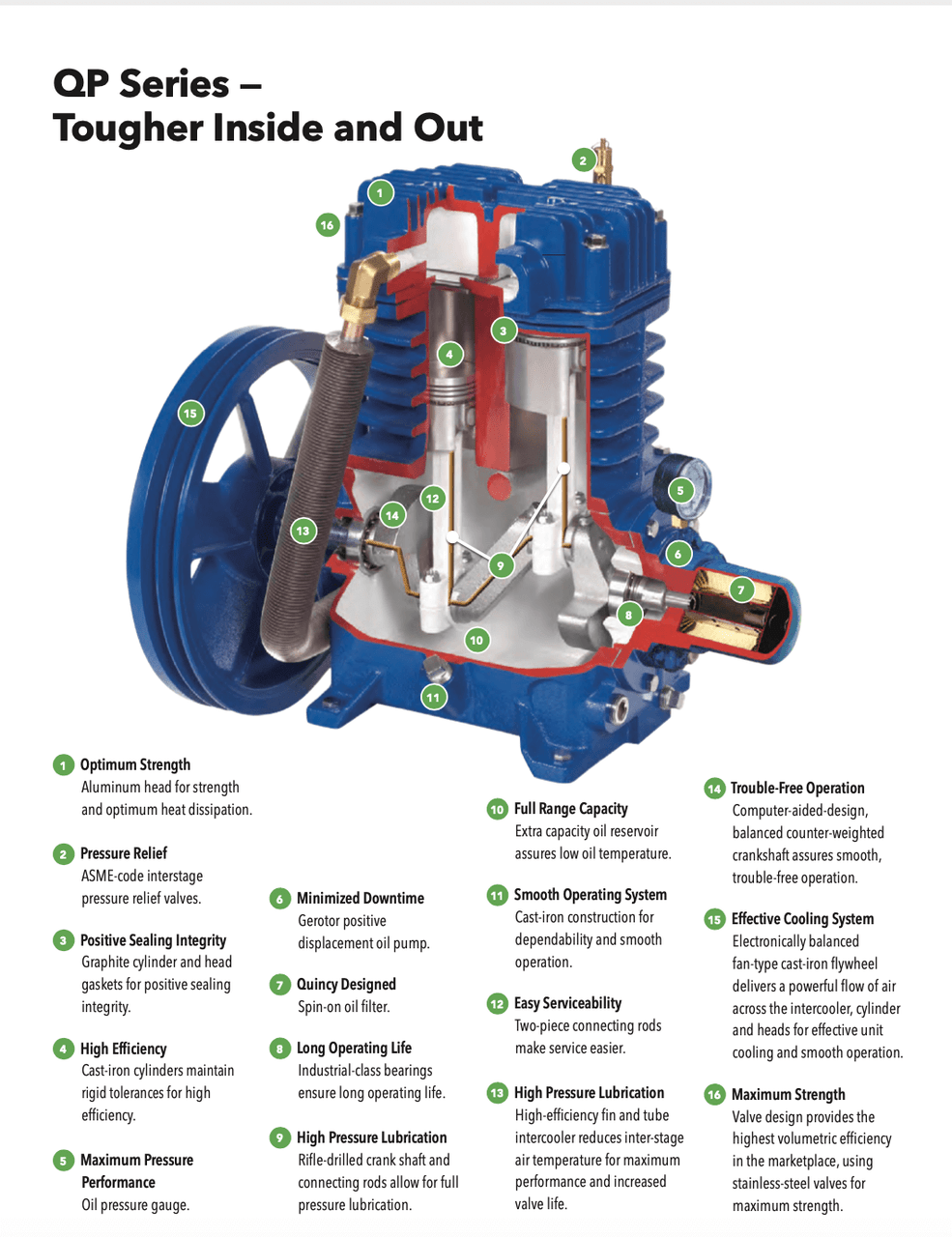

Fully Pressure Lubricated 2-Stage Compressor
Allows smooth, continuous operation
Pressurized oil means less wear on critical components
Gerotor Positive Displacement Oil Pump
Provides pressure lube to crankshaft, bearings, & rods
Up to 15% longer life than splash-lubricated units
Spin-On Oil filter
Lengthens compressor life & improves reliability
Stainless Steel Reed Valves With Valve Bumpers
Maximum strength & volumetric efficiency
Graphite Cylinder & Head Gaskets
Provide positive sealing integrity
Electronically Balanced Fan-Type Cast Iron Flywheel
Delivers powerful cooling to intercooler, cylinder, & heads
Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
Maintains rigid tolerances for high efficiency
Reduces interstage temperature for max performance & durability
One Year Factory Warranty
Extends with Quincy registration & kit listed under Specs tab
Built To Order: takes up to 10 business days to ship from Quincy
Product Features
- Fully Pressure Lubricated 2-Stage Compressor
- Gerotor Positive Displacement Oil Pump
- Spin-On Oil filter
- Stainless Steel Reed Valves With Valve Bumpers
- Graphite Cylinder & Head Gaskets
- Electronically Balanced Fan-Type Cast Iron Flywheel
- Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
- One Year Factory Warranty
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 460 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 21 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 15 |
Pump
| CFM | 35 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Full Pressure Lubrication |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 120 Gallons |
| Tank Outlet | 1 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Air Dryer | No |
Overview
| Weight | 995 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 78 Inches |
| Product Width | 28 Inches |
| Product Height | 55 Inches |
| Power Type | Electric |
