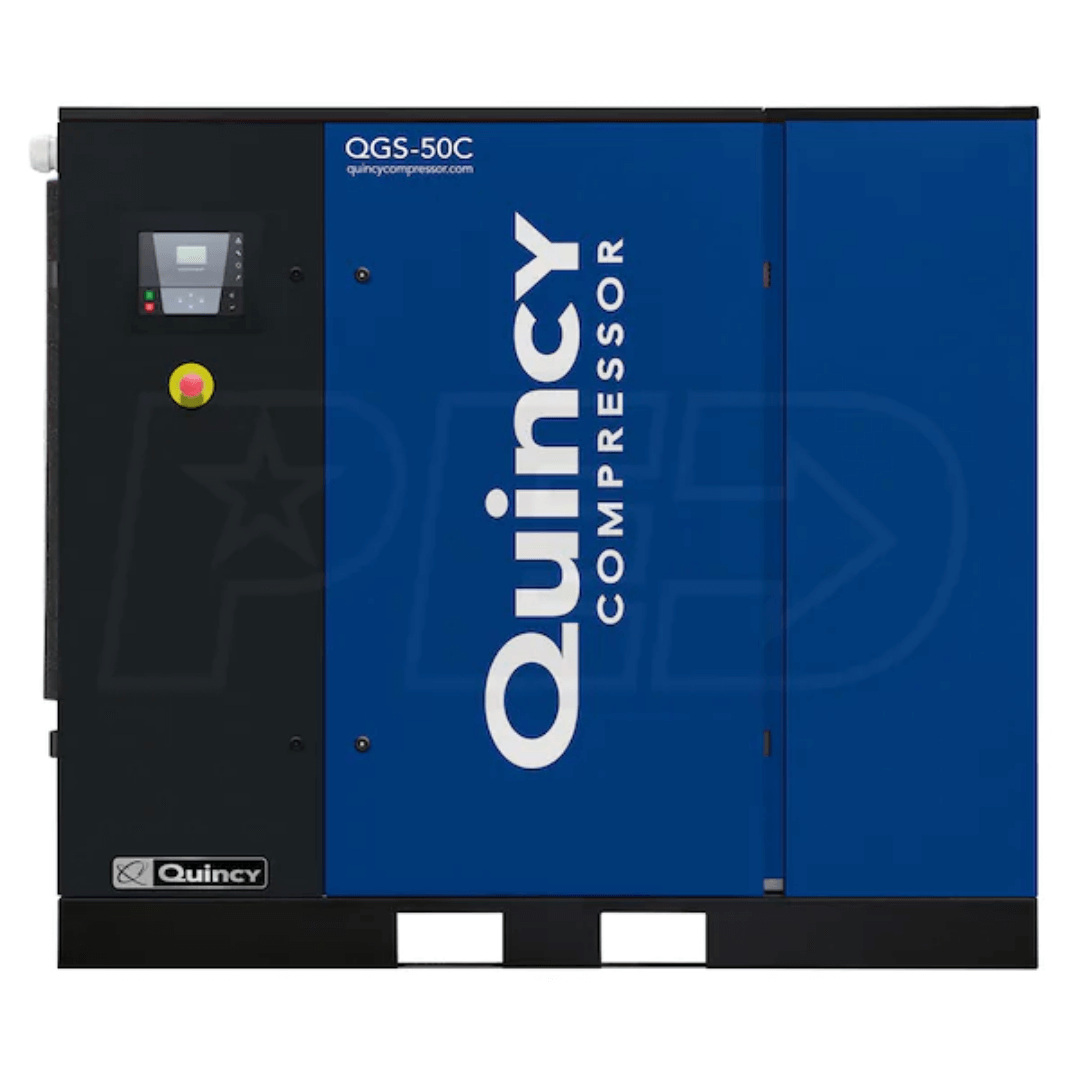

Quincy 4152016908 QGS 50-HP Tankless Rotary Screw Air Compressor w/ Dryer (230/460V 3-Phase)
Quincy QGS Highly Efficient Gear-Driven Rotary Screw Compressor
Reliable gears eliminate belt changes and reduce transmission loss
Rated for 8,000 hours with premium synthetic lubrication; low oil carryover protects component

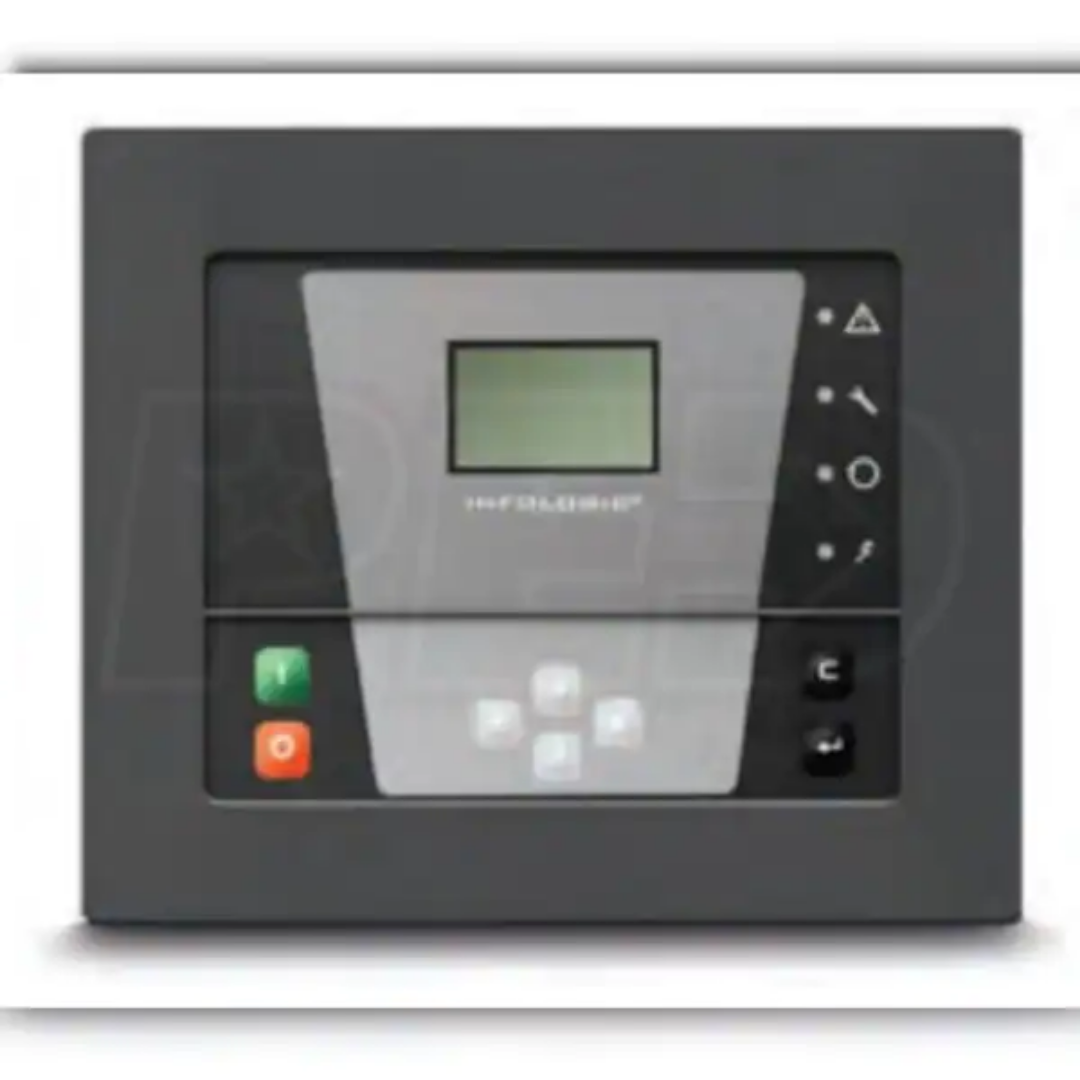

Infologic2 Basic Controller
Network up to six QGS 20 to 30 HP units
Completely programmable auto-restart and remote start/stop
Convenient Display Panel
Includes auto run, general alarm and power-on LED’s
Pressure display, temperature and dewpoint display
Motor start limit; max & min temperature default settings
100% Duty Cycle TEFC Motor
Wye-Delta reduced voltage start for industrial applications
Delivered in 460V-3; includes kit for 230V-3 wiring, must be installed by a licensed electrician
Integrated Refrigerant Air Dryer
Reduces corrosion and provides clean, dry air for your system
Quiet Operation
Full sound enclosure for extra low noise levels
Rotary screw technology provides a quiet solution and greatly reduces vibration
Increased Maintenance Simplicity
Fast and easy out of box installation
Hinged doors and detachable panels for quick access
Constant view fluid monitoring and spin-on fluid filter simplifies maintenance
Extended 3 Year Factory Warranty Available
Must register with Quincy & use Quincy Maintenance Kits
True Blue 5-Year Warranty with Quincy Authorized Start Up
Covers airend, motor, separator reservoir, cooler/heat exchanger
This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
Product Features
- Quincy QGS Highly Efficient Gear-Driven Rotary Screw Compressor
- Infologic2 Basic Controller
- Convenient Display Panel
- 100% Duty Cycle TEFC Motor
- Integrated Refrigerant Air Dryer
- Quiet Operation
- Increased Maintenance Simplicity
- Extended 3 Year Factory Warranty Available
- True Blue 5-Year Warranty with Quincy Authorized Start Up
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 230/460 Volt AC |
| Phase | Three Phase |
| dBA | 69 |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 50 |
| Engine Low Oil Shut-off | Yes |
Pump
| CFM | 203.2 |
| CFM Rated @ | 125 PSI |
| Max PSI | 125 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Rotary |
| After Cooler | Yes |
| Pump Drive | Gear Drive |
| Oil Type | Oil Lubricated |
| Pump Low Oil Shut-off | Yes |
| Duty Cycle | 100% |
Tank
| Tank Size | 0 Gallons |
| Tank Included | No |
| Electronic Drain Valve | No |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | Yes |
| Air Filter | Yes |
Overview
| Weight | 1437 Pounds |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 71.3 Inches |
| Product Width | 32.7 Inches |
| Product Height | 61.3 Inches |
| Power Type | Electric |
