Description
Product Description

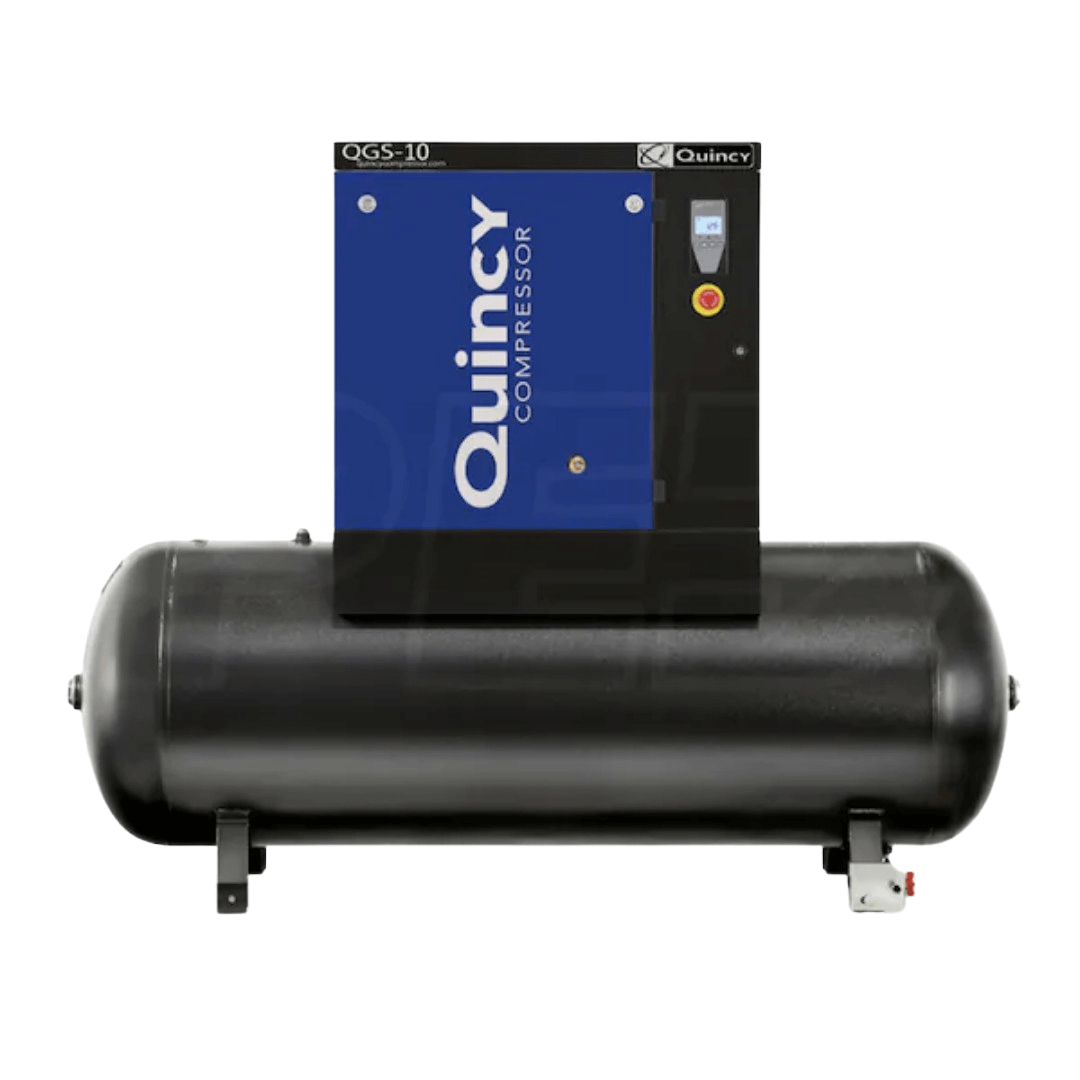

Quincy 4152021972 QGS 10-HP 120-Gallon Rotary Screw Air Compressor (208-230/460V 3-Phase)
Superior Compressed Air Turn-Key Performance
Oil injected twin screw pump provides reliable, quiet power
Compact, Modern Turn-Key Design
Small footprint allows for installation flexibility
Continuous 100% Duty Cycle
Runs your application efficiently 24/7
Standard Quiet Enclosure
Runs without the vibration & noise of piston compressors
Ideal for most applications; 38.8 CFM at 125 PSI
Premium Synthetic Lubrication
Rated for 8,000 hours; low oil carryover protects tools
Auto-Dual Operation
Customize timed shut down settings for your operation
Long Life V-Belt Drive
Less maintenance, reliable operation
TEFC Electric Motor
3-phase unit is capable of running on 208/230-460 voltage; must be wired on-site by licensed electrician
(IP 55 wash down) Minimum operating temperature 36°F
Extended 3 Year Factory Warranty Available
Must register with Quincy & use Quincy Maintenance Kits
True Blue 5-Year Warranty with Quincy Authorized Start Up
Covers airend, motor, separator reservoir, cooler/heat exchanger
Product Features
- Superior Compressed Air Turn-Key Performance
- Integrated Refrigerated Air Dryer
- Continuous 100% Duty Cycle
- Standard Quiet Enclosure
- Premium Synthetic Lubrication
- Auto-Dual Operation
- Long Life V-Belt Drive
- TEFC Electric Motor
- Extended 3 Year Factory Warranty Available
- True Blue 5-Year Warranty with Quincy Authorized Start Up
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 208-230/460 Volt AC |
| Phase | Three Phase |
| dBA | 65 |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 10 |
| Engine Low Oil Shut-off | Yes |
Pump
| CFM | 38.8 |
| CFM Rated @ | 125 PSI |
| Max PSI | 125 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Rotary |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Pump Low Oil Shut-off | Yes |
| Duty Cycle | 100% |
Tank
| Tank Size | 120 Gallons |
| Tank Included | Yes |
| Tank Outlet | 1/2 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Air Dryer | No |
| Air Filter | Yes |
Overview
| Weight | 775 Pounds |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 76 Inches |
| Product Width | 25 Inches |
| Product Height | 58 Inches |
| Power Type | Electric |
