Product Description

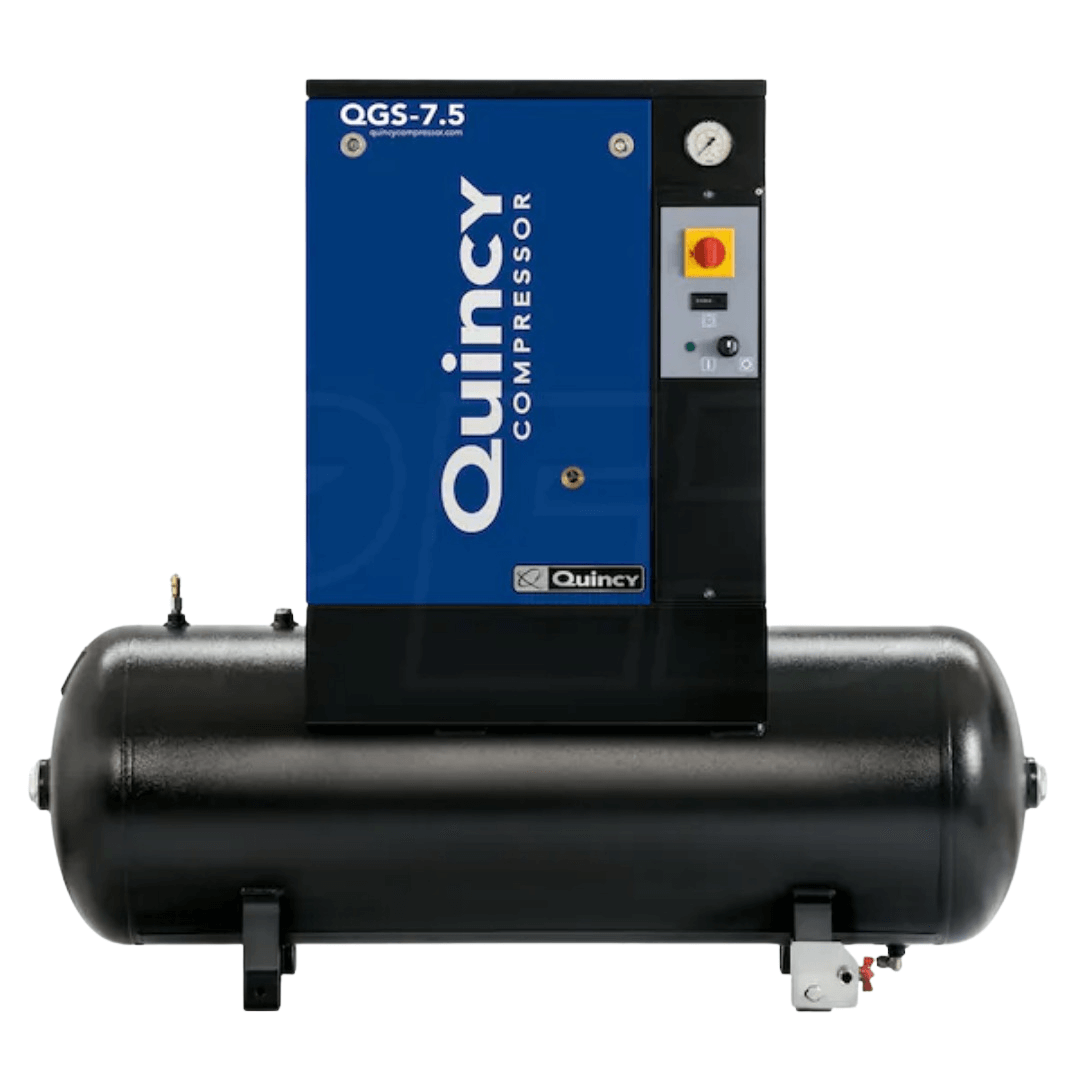

Quincy QGS 7.5 HP-1 7.5 HP 230 Volt Single Phase, 60 Gallon Horizontal Rotary Screw Air Compressor
Superior Compressed Air Performance
- Oil injected twin screw pump provides reliable, quiet power
Compact, Modern Turn-Key Design
- Small footprint allows for installation flexibility
Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
Standard Quiet Enclosure
- Runs without the vibration & noise of piston compressors
- Ideal for most applications; 20.4 CFM at 150 PSI
- 64 dBA for reduced sound fatigue in work area installations
Premium Synthetic Lubrication
- Rated for 8,000 hours; low oil carryover protects tools
Start/Stop Operation
- UL and cUL control panel compliant; 36°F minimum temperature
Long Life V-Belt Drive
- Less maintenance, reliable operation
TEFC Electric Motor
- 1-phase unit runs on 230V power (IP 55 wash down)
Extended 3 Year Factory Warranty Available
- Must register with Quincy & use Quincy Maintenance Kits
True Blue 5-Year Warranty with Quincy Authorized Start Up
- Covers airend, motor, separator reservoir, cooler/heat exchanger
Product Features
- Superior Compressed Air Performance
- Oil injected twin screw pump provides reliable, quiet power
- Compact, Modern Turn-Key Design
- Small footprint allows for installation flexibility
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Standard Quiet Enclosure
- Runs without the vibration & noise of piston compressors
- Ideal for most applications; 20.4 CFM at 150 PSI
- 64 dBA for reduced sound fatigue in work area installations
- Premium Synthetic Lubrication
- Rated for 8,000 hours; low oil carryover protects tools
- Start/Stop Operation
- UL and cUL control panel compliant; 36°F minimum temperature
- Long Life V-Belt Drive
- Less maintenance, reliable operation
- TEFC Electric Motor
- 1-phase unit runs on 230V power (IP 55 wash down)
- Extended 3 Year Factory Warranty Available
- Must register with Quincy & use Quincy Maintenance Kits
- True Blue 5-Year Warranty with Quincy Authorized Start Up
- Covers airend, motor, separator reservoir, cooler/heat exchanger
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 230 Volt AC |
| Phase | Single-Phase |
| dBA | 64 |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 7.5 |
| Engine Low Oil Shut-off | Yes |
Pump
| CFM | 20.4 |
| CFM Rated @ | 150 PSI |
| Max PSI | 150 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Rotary |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Pump Low Oil Shut-off | Yes |
| Duty Cycle | 100% |
Tank
| Tank Size | 60 Gallons |
| Tank Included | Yes |
| Tank Outlet | 1/2 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 465 Pounds |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 56 Inches |
| Product Width | 23 Inches |
| Product Height | 51 Inches |
| Power Type | Electric |
