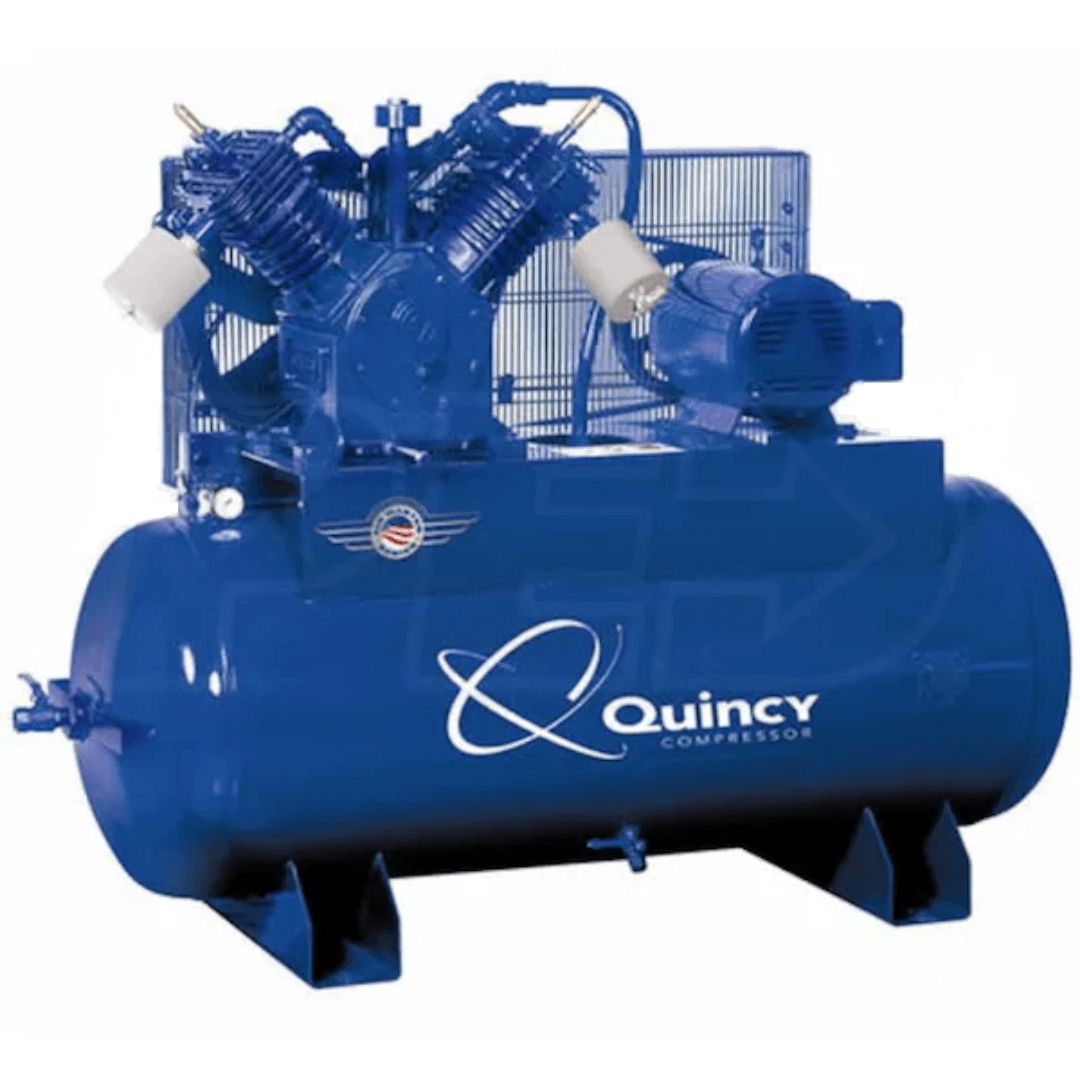

Quincy 4153DS12HCA46 QT Pro 15-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase)

$4,668.33

SKU: 2020014506 Categories: , ,

Description

blank

Product Description

Quincy 4153DS12HCA46 QT Pro 15-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase)

Industrial Duty Baldor Electric Motor

Runs cooler and more efficiently to last longer

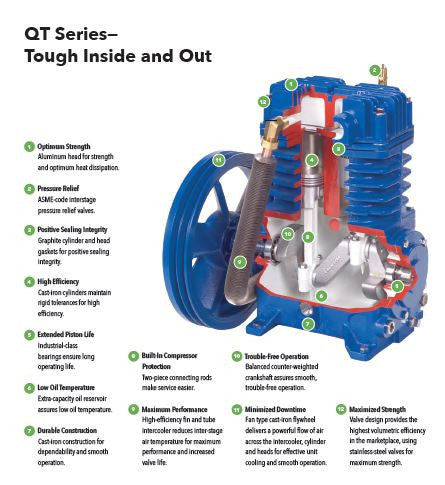

Cast Iron 4 Cylinder Pump

Best in the industry rated over 50,000 hour pump life

3 year warranty on pump if Quincy maintenance kit is used

Industrial Duty Magnetic Starter

Wired and mounted at the factory

Less Than 5 PPM Oil Blow By

Protects your tools and projects

Strong Enough For Tough Jobs

145 to 175 working PSI; 51 CFM at 175 PSI

1″ ball valve outlet

120 gallon ASME rated tank

1-Year Factory Warranty – Extends To 3-Year “No Bull” Warranty

Must Include purchase of EWK-5 Maintenance Kit at time of purchase

Unit must be registered at www.quincycompressor.com

Download the Warranty page under the Manual tab for details

Extended warranty includes on-site and labor service

blank

Product Features

  • Industrial Duty Baldor Electric Motor
  • Cast Iron 4 Cylinder Pump
  • Industrial Duty Magnetic Starter
  • Less Than 5 PPM Oil Blow By
  • Strong Enough For Tough Jobs
  • 1-Year Factory Warranty – Extends To 3-Year “No Bull” Warranty

blank

Product Specifications

General Information

Product Category Air Compressor – Stationary

Motor

Voltage 460 Volt AC
Phase Three Phase
Magnetic Starter Yes
Amp Draw 21
Recommended Breaker Consult Certified Electrician

Engine

HP 15

Pump

CFM 51
CFM Rated @ 175 PSI
Pump Material Cast Iron w/ Aluminum Head
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler No
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubricated
Pump Low Oil Shut-off No

Tank

Tank Size 120 Gallons
Tank Outlet 1 Inch
Electronic Drain Valve No
Tank Orientation Horizontal

Accessories

Air Dryer No

Overview

Weight 995 Pounds
Certification ASME. UL, CSA
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 78 Inches
Product Width 28 Inches
Product Height 55 Inches
Power Type Electric

blank

Downloads

blank

Brochure

blank

Manual

blank

Warranty

blank
