Description
Product Description

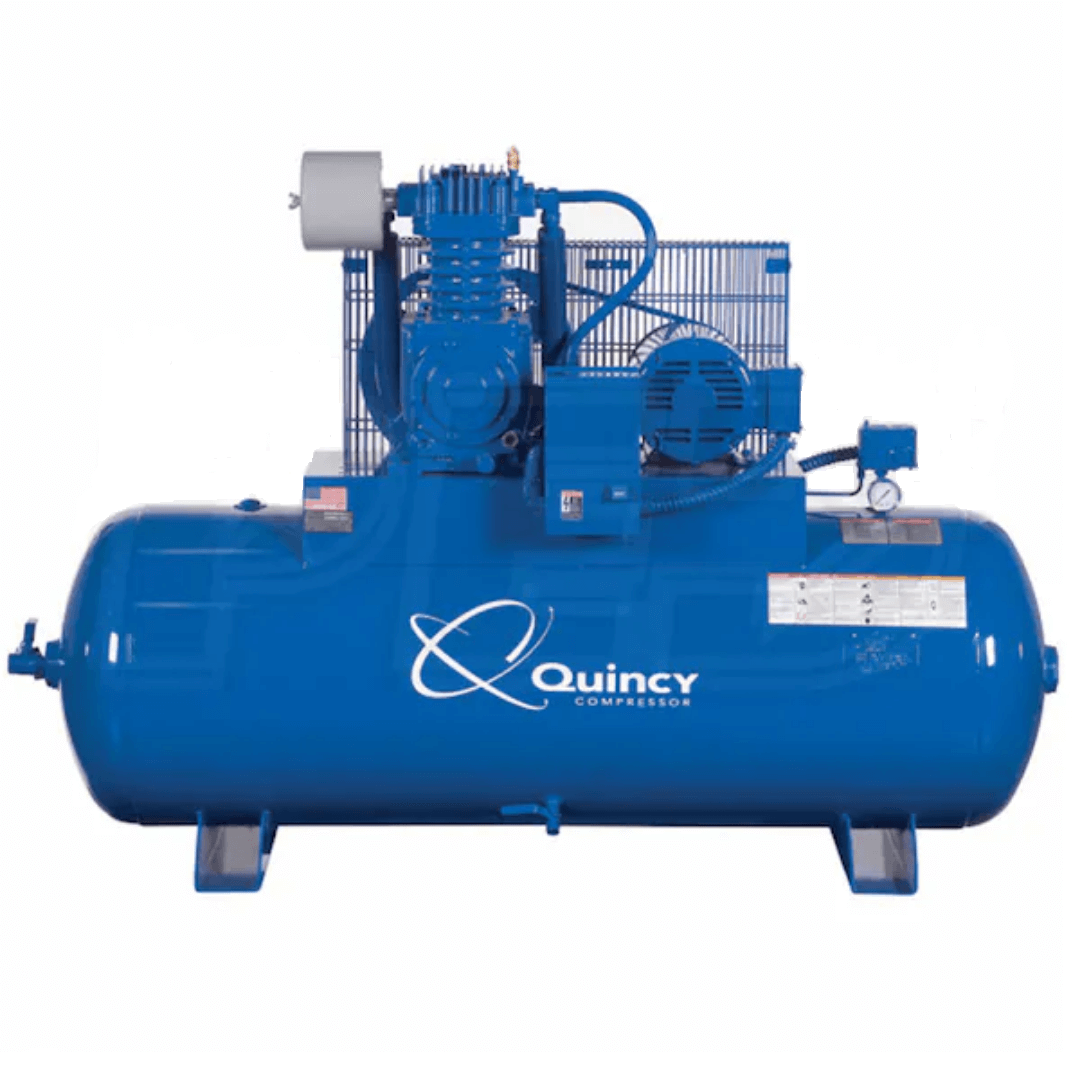

Quincy 451CS80HCB QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

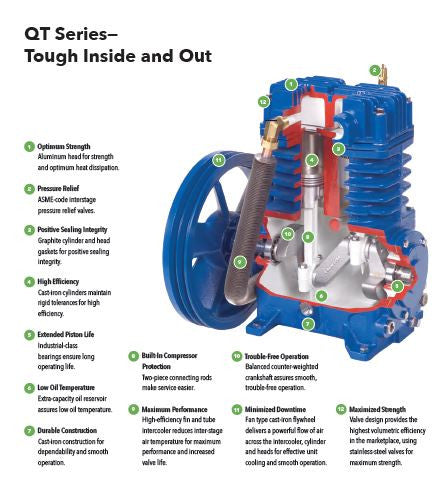

Heavy Duty QT-5 Industrial Pump
50,000 hours or more pump life
Splash lubricated, cast-iron 2-cylinder pump for dependability
Extra capacity oil reserve
ODP Slow-Speed Motor
942 RPM industrial motor to continuously run your business
High-Efficiency Finned Intercooler
Reduces air temperature for maximum performance
2-Piece Connection Rods
Fewer moving parts increase reliability
ASME Coded 80 Gallon Tank
Pressure relief valve, discharge & receiver tank for your safety
1-Year Factory Warranty – Extends To 3-Year “No Bull” Warranty
Must Include purchase of EWK-3 Maintenance Kit at time of purchase
Unit must be registered at www.quincycompressor.com
Download the Warranty page under the Manual tab for details
Extended warranty includes on-site and labor service
Product Features
- Heavy Duty QT-5 Industrial Pump
- ODP Slow-Speed Motor
- High-Efficiency Finned Tube Intercooler
- 2-Piece Connection Rods
- ASME Coded 80 Gallon Tank
- 1-Year Factory Warranty – Extends To 3-Year “No Bull” Warranty
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 230 Volt AC |
| Phase | Single Phase |
| Magnetic Starter | Yes |
| Amp Draw | 28 |
| Recommended Breaker | 60 Amp Breaker |
Engine
| HP | 5 |
Pump
| CFM | 17.2 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Air Dryer | No |
Overview
| Weight | 660 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 70 Inches |
| Product Width | 23 Inches |
| Product Height | 47 Inches |
| Power Type | Electric |
