Product Description
Quincy D307Y30HCD QP 10-HP 30-Gallon Pressure Lubricated Two-Stage Truck Mount Air Compressor w/ Electric Start Yanmar Diesel Engine
Splash Lubricated 2-Stage Compressor
Cast-iron where it’s needed for strength and durability
Delivers more air (CFM) per brake horsepower while consuming less energy

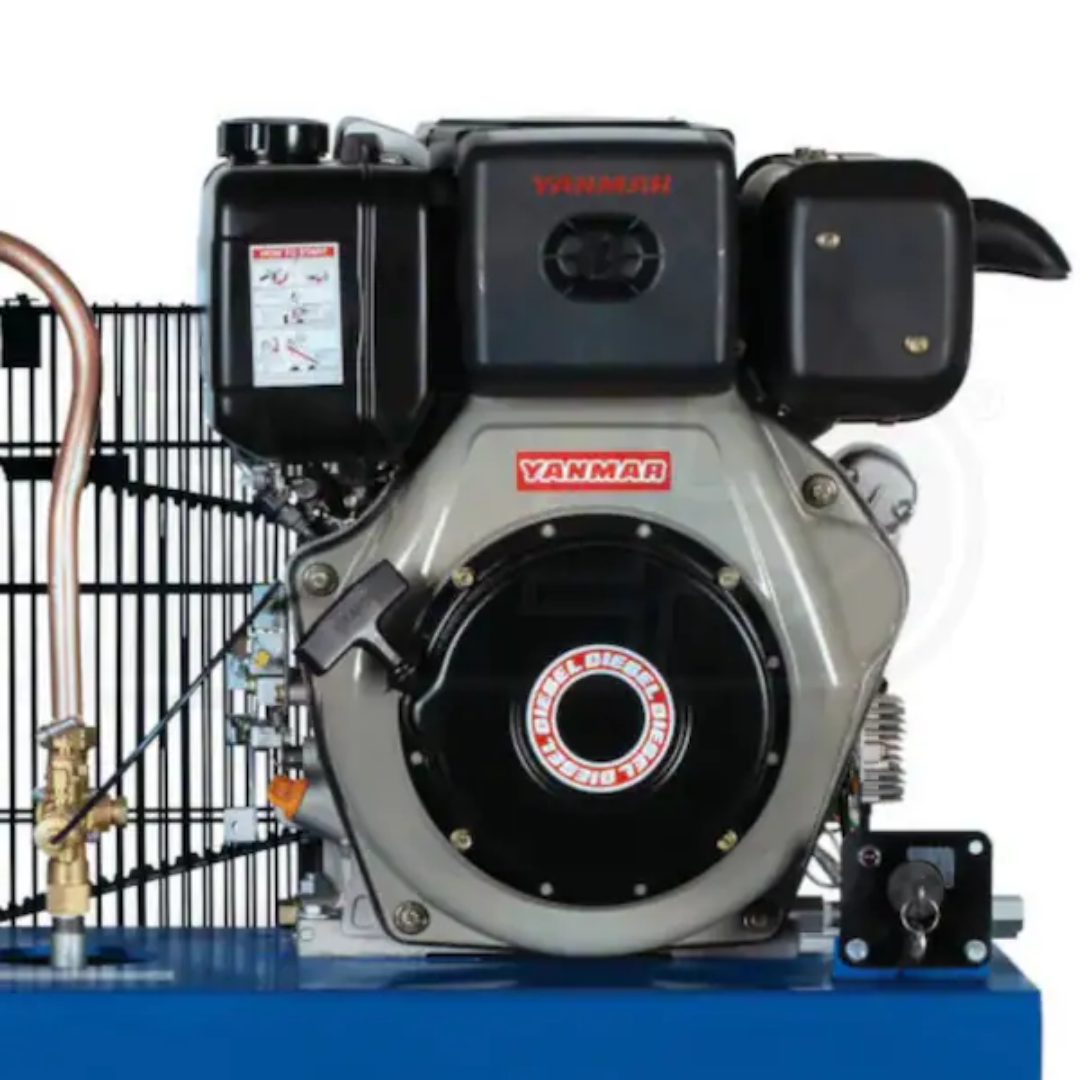

Powerful 10-HP Yanmar Diesel Engine With Electric Start
Direct injection technology and maximum combustion efficiency
Perfect for service truck applications (battery & cable not included)

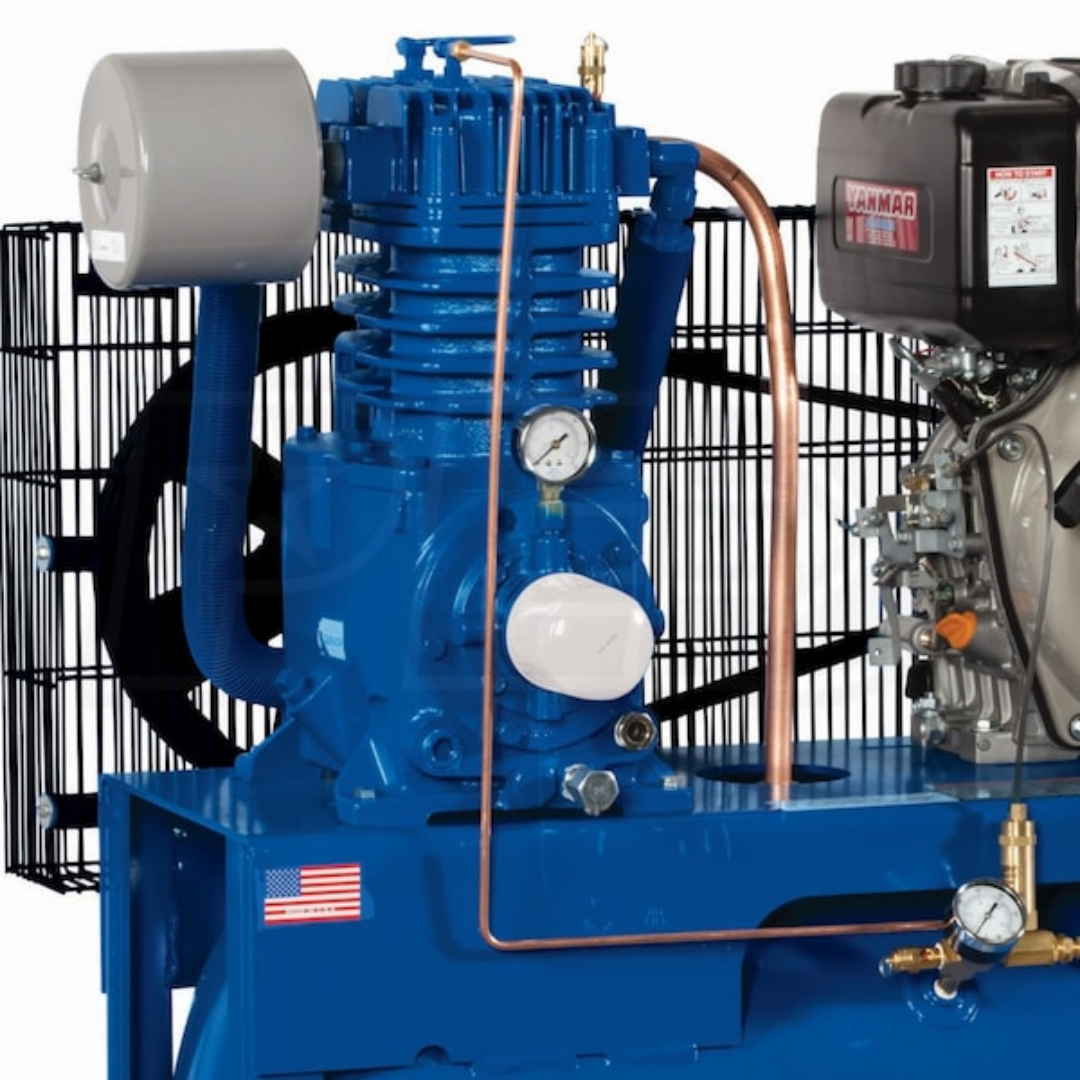

High-Performance Cast Iron QT-7.5 Belt Drive Pump
Industry-leading 50,000+ hour pump life
Aluminum head for strength and optimum heat dissipation
Graphite cylinder and head gasket provide positive sealing integrity
High-Efficiency Fin & Tube Intercooler
Maintains rigid tolerances for high efficiency
Reduces interstage temperature for max performance and durability
Fan-Type Cast Iron Flywheel
Delivers powerful cooling to intercooler, cylinder and heads
Spin-on filter lengthens the life and improves reliability
Stainless Steel Reed Valves With Valve Bumpers
Maximum strength and volumetric efficiency
Corrosion-resistant with controlled lift for better efficiency
1-Year Factory Warranty – Extends To 3-Year “No Bull” Warranty
Must Include purchase of EWK-3 Maintenance Kit at time of purchase
Unit must be registered at www.quincycompressor.com
Product Features
- Splash Lubricated 2-Stage Compressor
- Powerful 10-HP Yanmar Diesel Engine With Electric Start
- High-Performance Cast Iron QT-7.5 Belt Drive Pump
- High-Efficiency Fin & Tube Intercooler
- Fan-Type Cast Iron Flywheel
- Stainless Steel Reed Valves With Valve Bumpers
- 1-Year Factory Warranty – Extends To 3-Year “No Bull” Warranty
Product Specifications
General Information
| Product Category | Air Compressor – Portable |
Engine
| HP | 10 |
| Auto Idle | No |
| Engine Brand | Yanmar |
| Starting System | 12-Volt Key Start w/ Recoil |
| Engine Low Oil Shut-off | No |
Pump
| CFM | 22.0 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Duty Cycle | 100% |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 30 Gallons |
| Tank Outlet | 1/2 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
| Air Filter | Yes |
Overview
| Weight | 550 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 42 Inches |
| Product Width | 21 Inches |
| Product Height | 40 Inches |
| Power Type | Diesel |
