Product Description

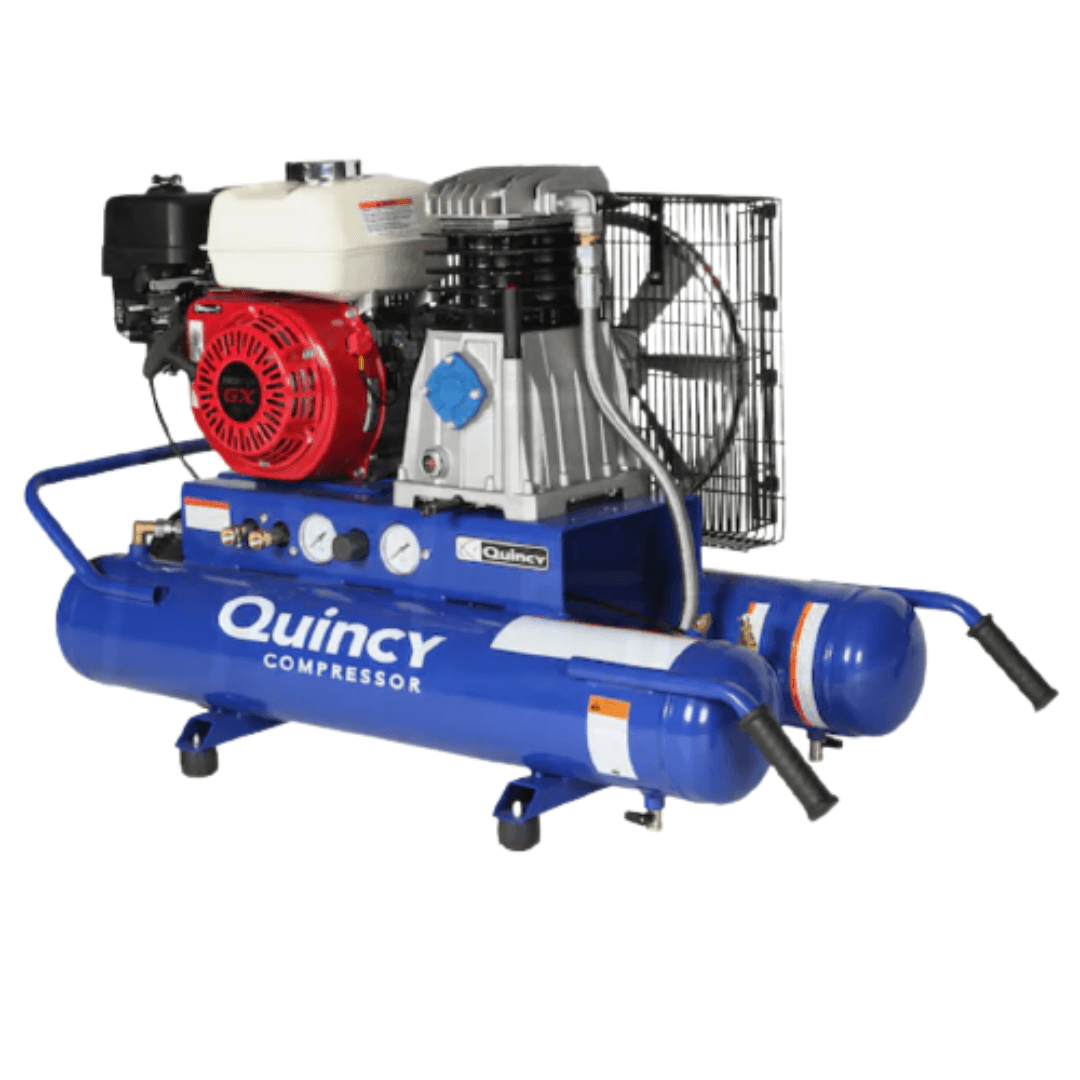

Quincy G15H8WQ 5.5-HP 8-Gallon Wheelbarrow Air Compressor w/ Honda Engine
Long-lasting Contractor Wheelbarrow Compressor
Quincy 8-gallon air compressor engineered for near effortless portability, with superb balance and sturdy handles
Commercial 5.5-HP Honda GX160 Engine
Wheelbarrow air compressor designed for easy starts & high-power output
Oil Alert® monitors oil level, makes maintenance easier
Precision engineered components result in lower vibration
Engine Auto Idle
When there is demand for air pressure, the unloader/throttle control will physically open the engine throttle to increase engine speed, then opposite when air is not needed
Quiet Single Stage Pump
Delivers 9.5 CFM @ 90 PSI; 145 maximum pressure
Cast iron cylinder, crankshaft and valve plate, plus aluminum head for maximum heat dissipation
10,000-Hour Pump Life
Guarantees long lifespan for your investment
Low 1250 RPM for less wear and tear on components
Oil sight gauge to easily maintain proper oil levels
8-Gallon Air Tank w/ ASME Safety Valves
Easy to read large tank pressure gauges for accurate readings

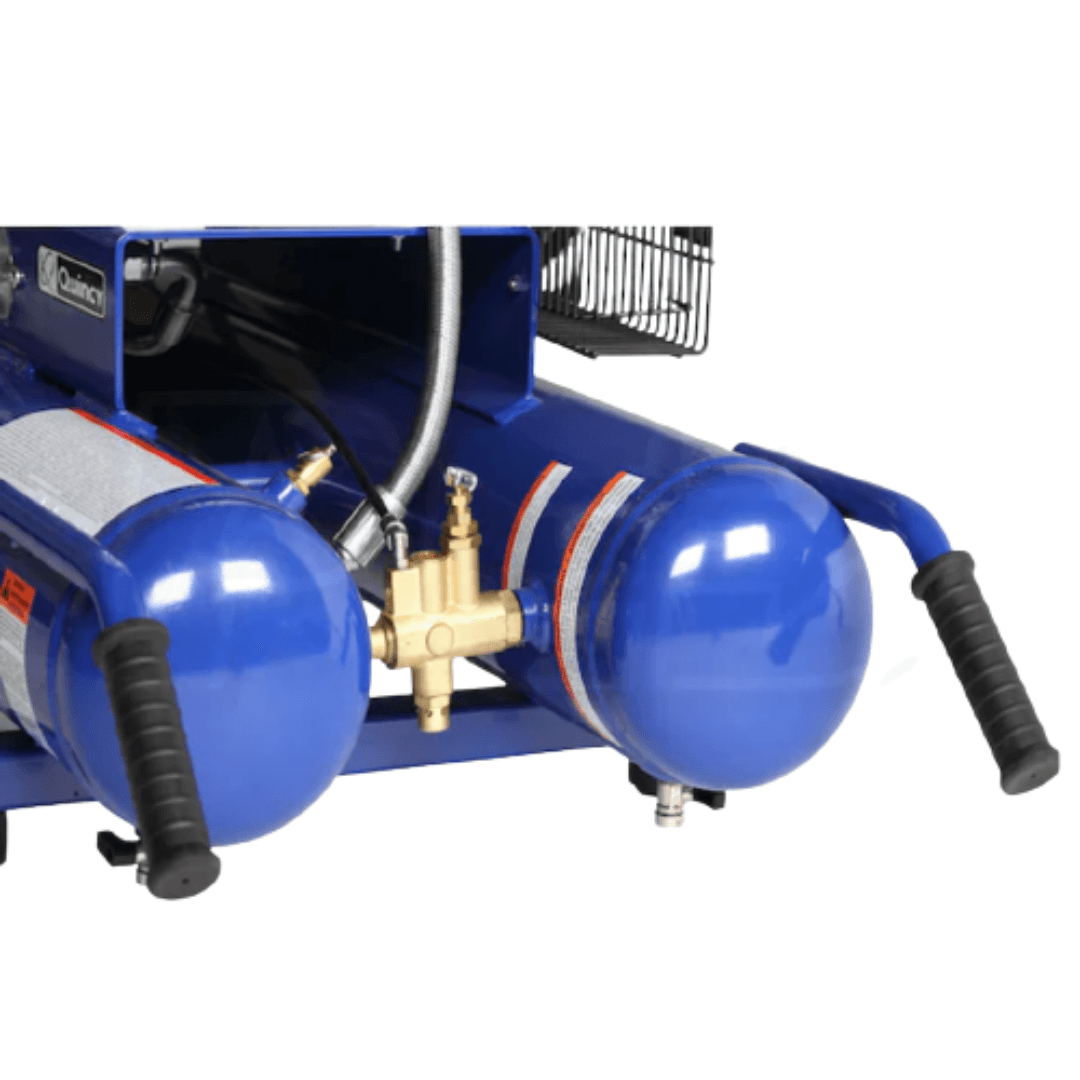

Individual tank drains for quick tank draining to prevent rust

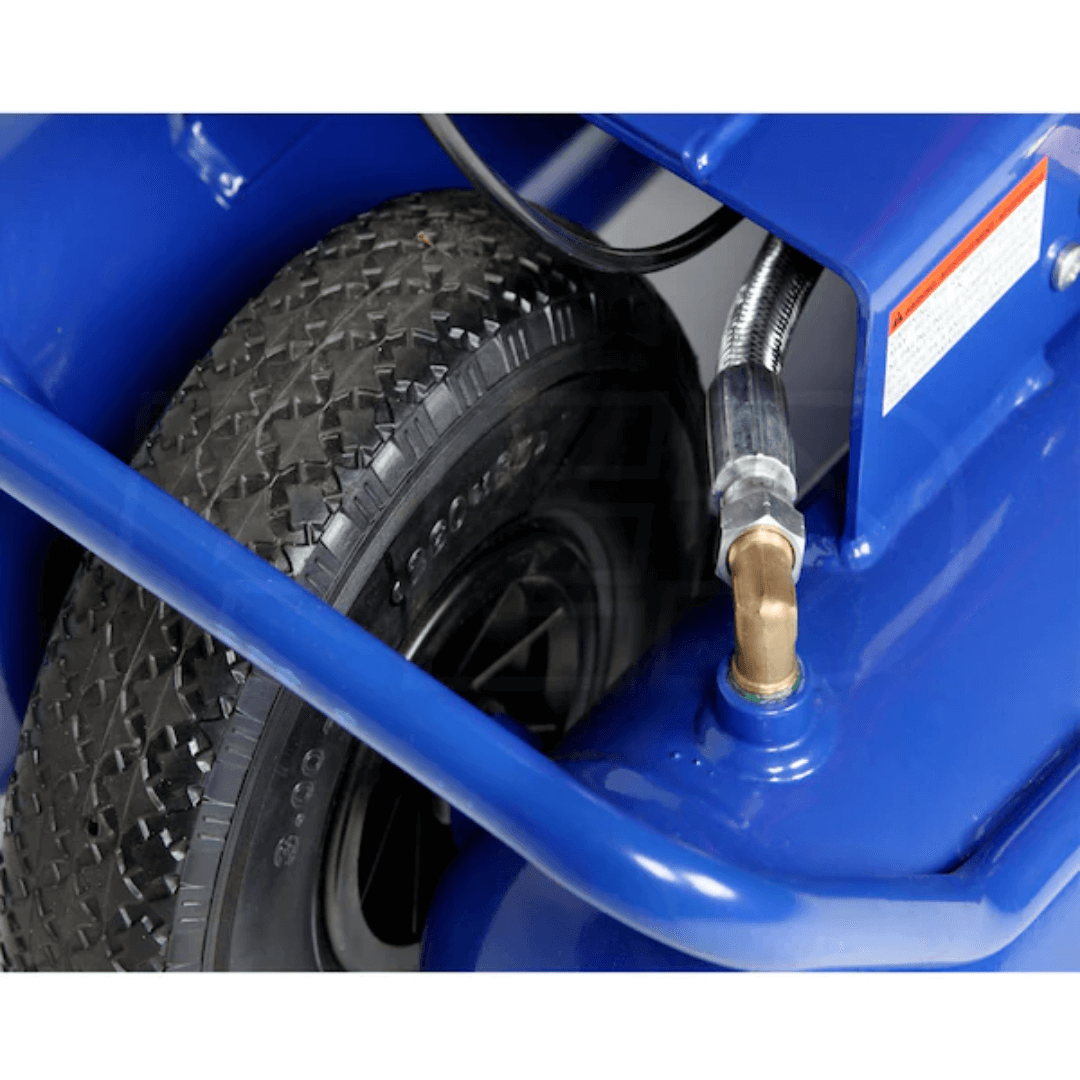

Pneumatic wheel & easy grip handles make transporting effortlessly

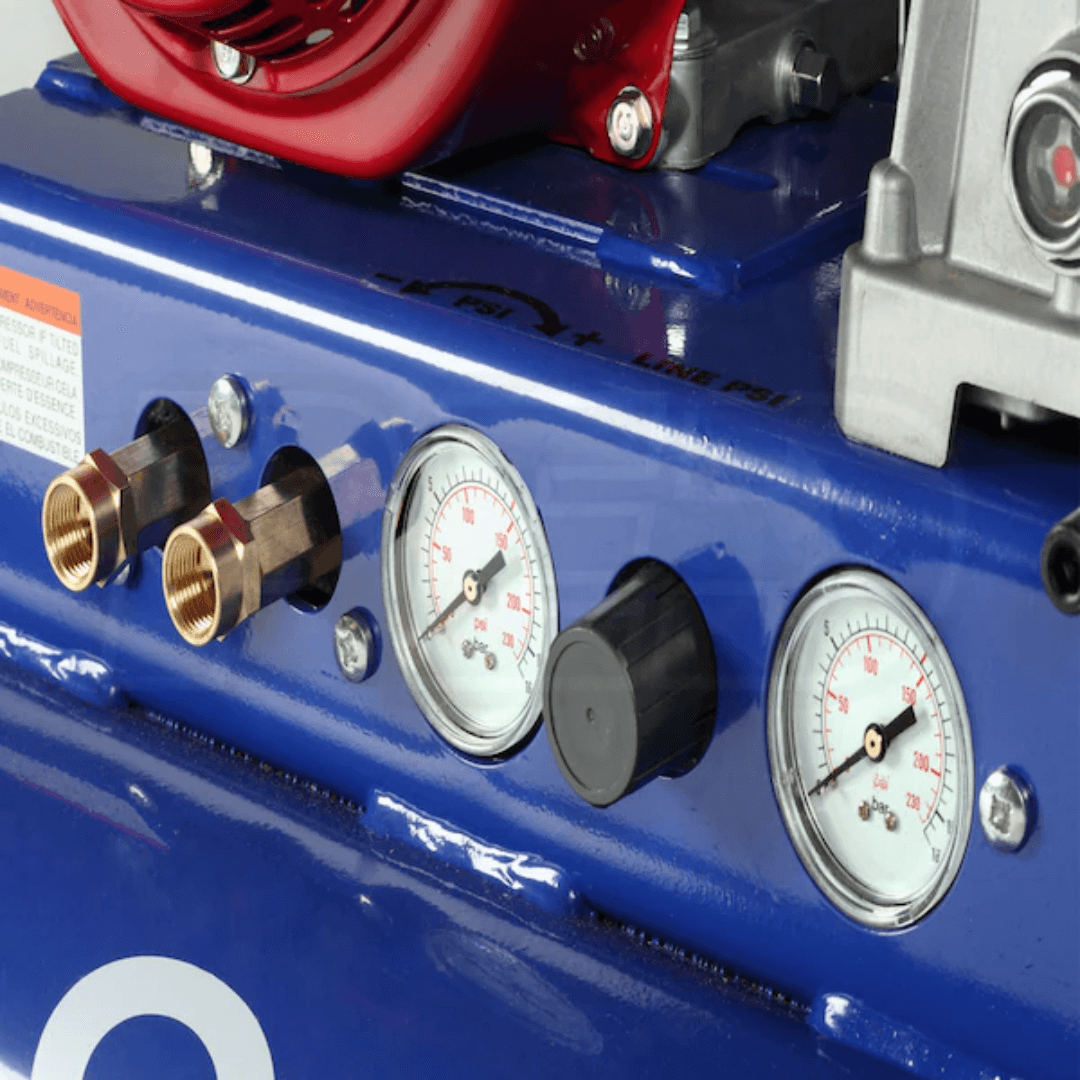

Top-Mounted Control Panel
2 quick connect outlets for multiple tool usage
Regulator allows maximum air flow for peak tool performance
1-Year Standard Limited Warranty
Product Features
- Long-lasting Contractor Wheelbarrow Compressor
- Commercial 5.5-HP Honda GX160 Engine
- Engine Auto Idle
- Quiet Single Stage Pump
- 10,000-Hour Pump Life
- 8-Gallon Air Tank w/ ASME Safety Valves
- Top-Mounted Control Panel
- 1-Year Standard Limited Warranty
Product Specifications
General Information
| Product Category | Air Compressor – Portable |
Engine
| HP | 5.5 |
| Auto Idle | Yes |
| Engine Brand | Honda GX |
| Starting System | Recoil Start |
| Engine Low Oil Shut-off | Yes |
Pump
| CFM | 9.5 |
| CFM Rated @ | 90 PSI |
| CFM @ 40 PSI | 11.1 |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 145 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Single-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Duty Cycle | 50% |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 8 Gallons |
| Tank Outlet | 3/8 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 550 Pounds |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 43 Inches |
| Product Width | 18 Inches |
| Product Height | 27 Inches |
| Power Type | Gas |
Downloads
Brochure
Manual
Warranty
