Product Description

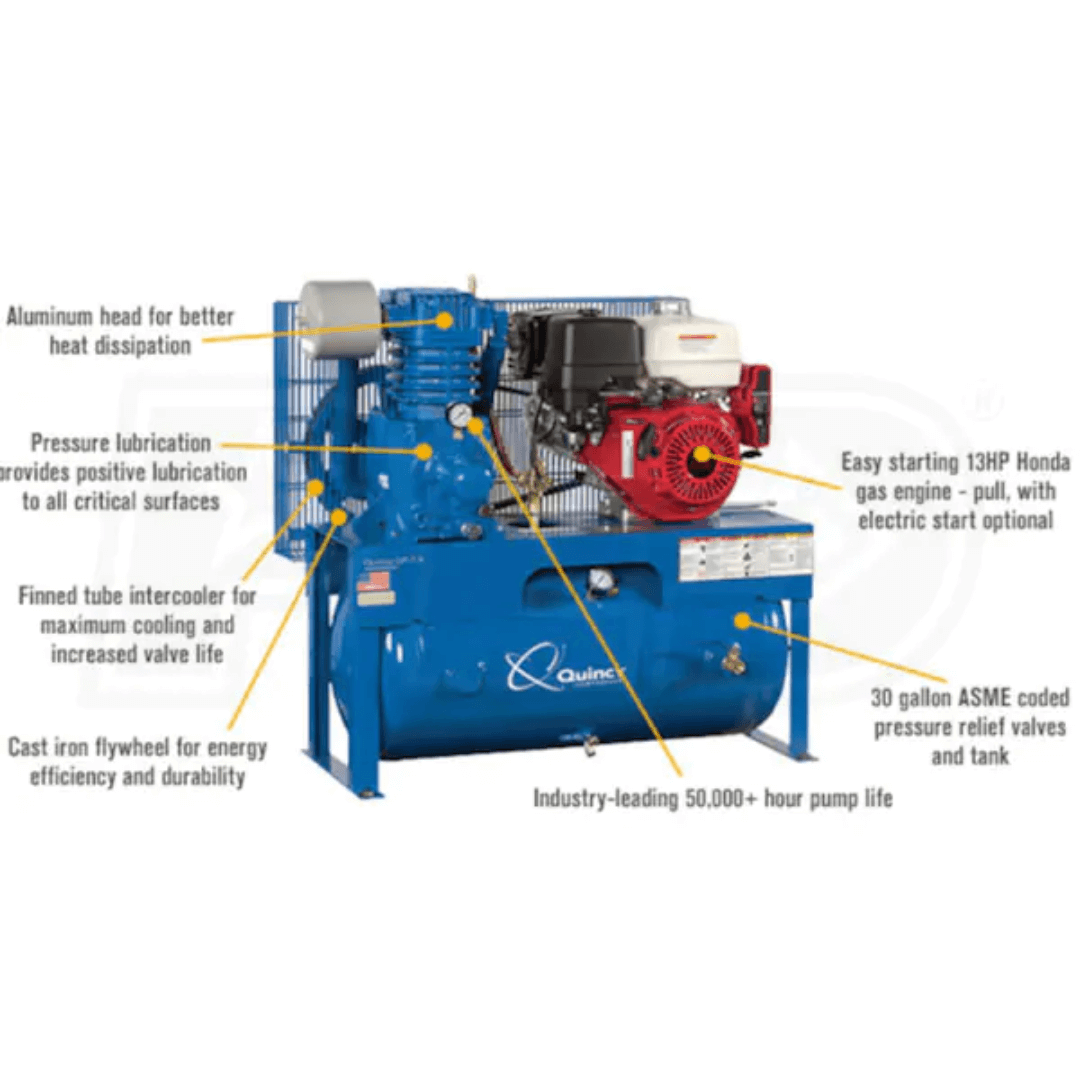

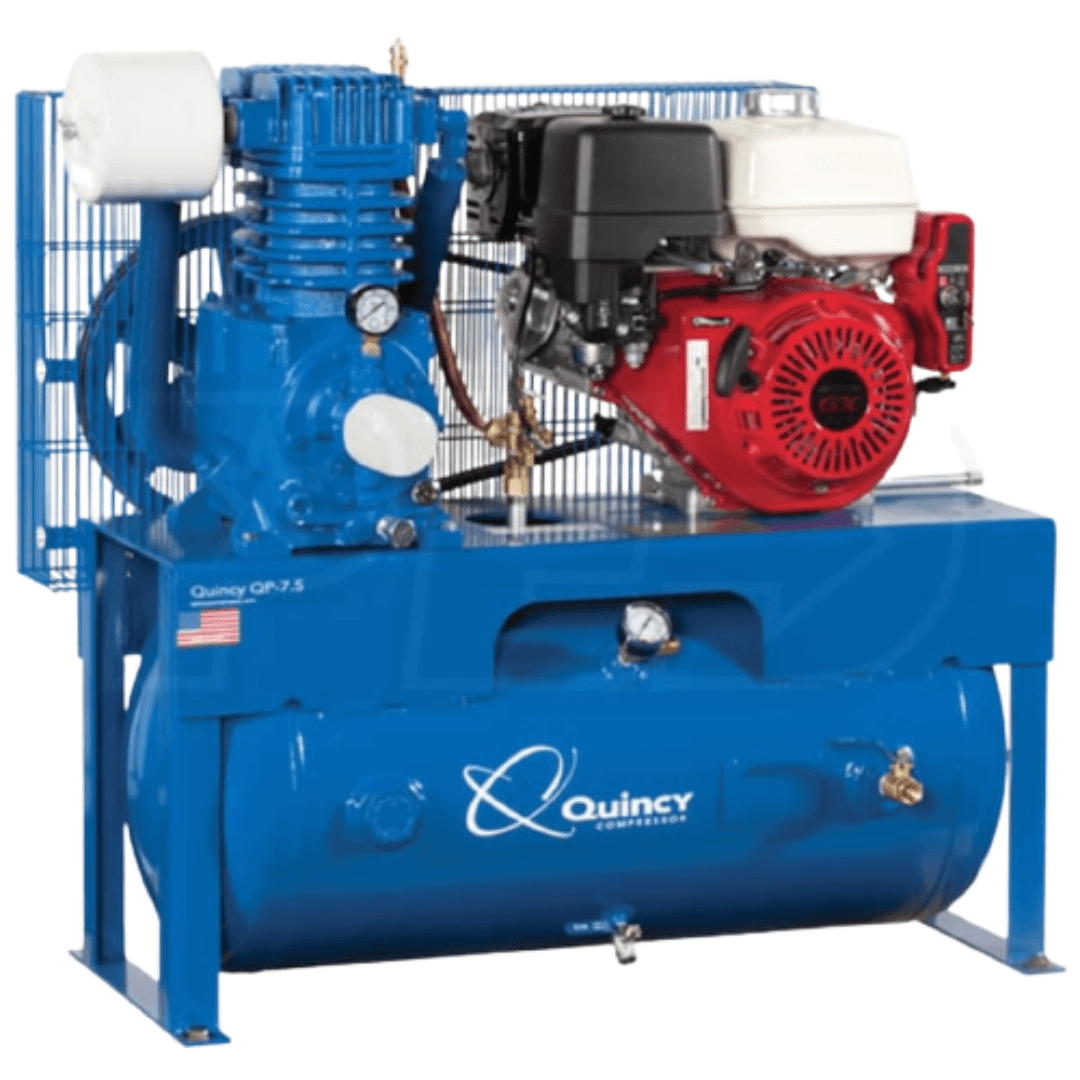

Quincy G313H30HCE QP 13-HP 30-Gallon Pressure Lubricated Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Fully Pressure Lubricated 2-Stage Compressor
Lubricated system allows smooth and continuous operation
Oil flowing to all critical surfaces means less wear on the components

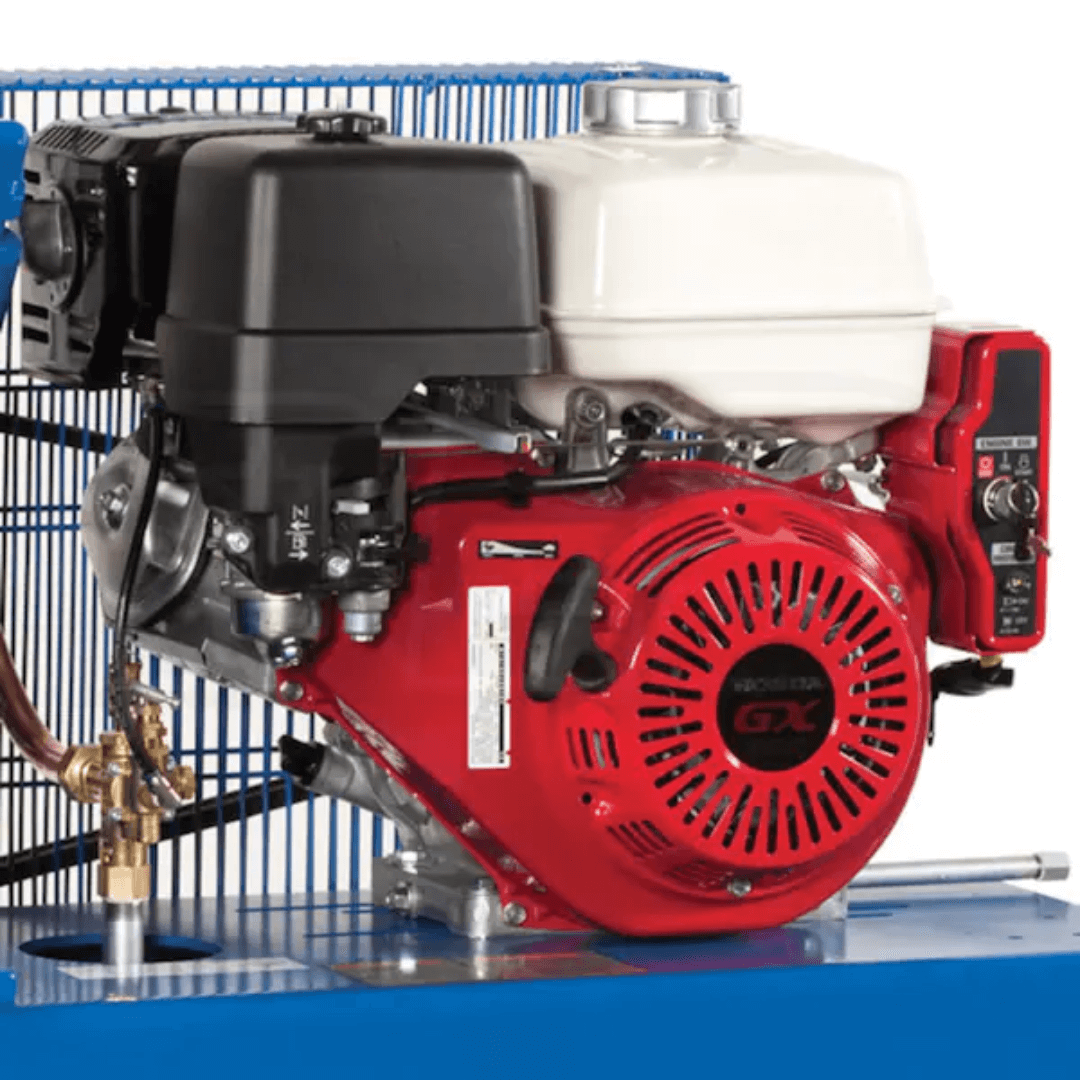

13-HP Honda GX Engine With Electric Start
No pulling a rope to start- just push a button
Perfect for service truck applications (battery & cable not included)
Gerotor Positive Displacement Oil Pump
Provides pressure lube to crankshaft, bearings and rods
Oil flowing to all critical surfaces means less wear on the components

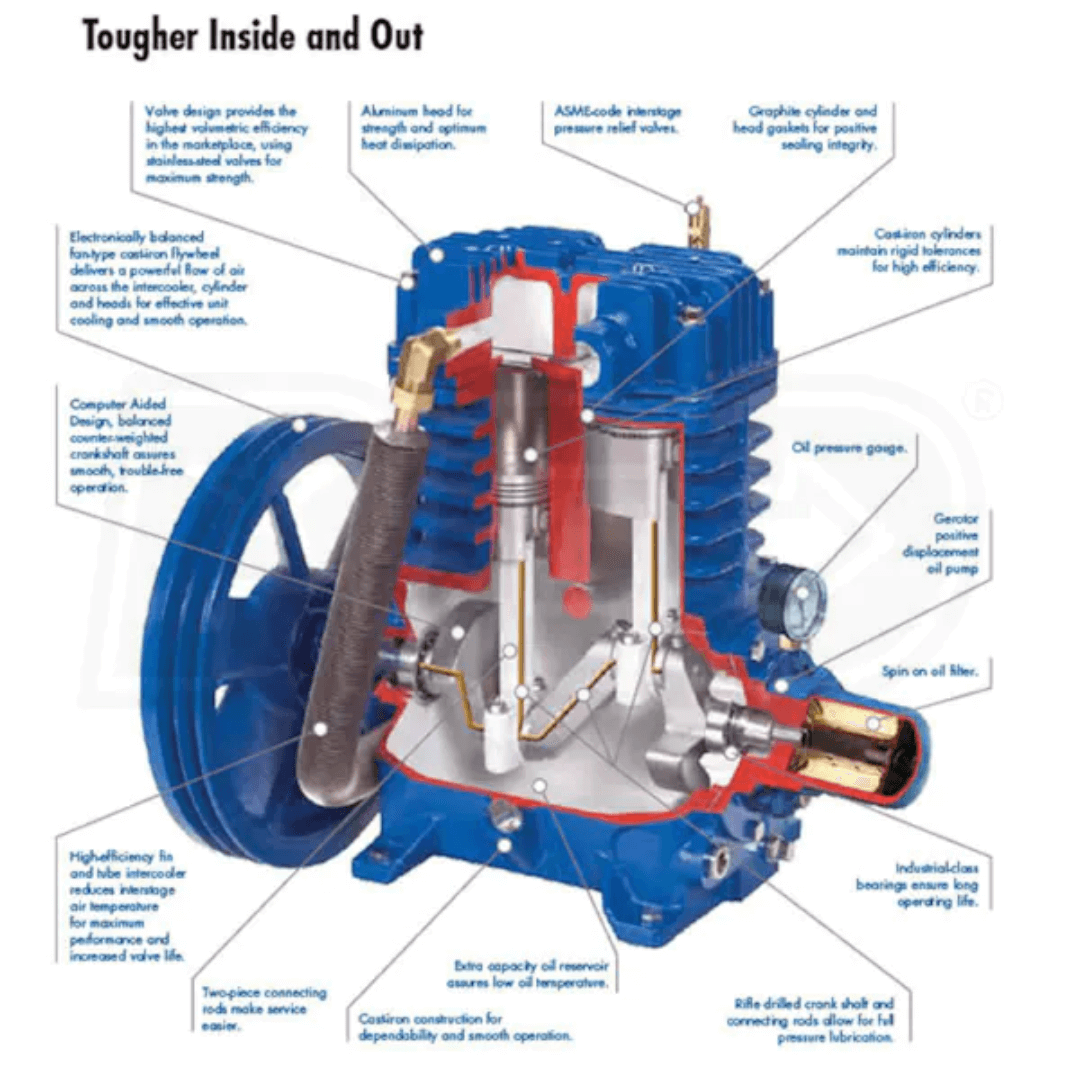

High-Performance Cast Iron QT-7.5 Belt Drive Pump
Industry-leading 50,000+ hour pump life
Aluminum head for strength and optimum heat dissipation
Graphite cylinder and head gasket provide positive sealing integrity
High-Efficiency Fin & Tube Intercooler
Maintains rigid tolerances for high efficiency
Reduces interstage temperature for max performance and durability
Electronically Balanced Fan-Type Cast Iron Flywheel
Delivers powerful cooling to intercooler, cylinder and heads
Spin-on filter lengthens the life and improves reliability
Stainless Steel Reed Valves With Valve Bumpers
Maximum strength and volumetric efficiency
Corrosion-resistant with controlled lift for better efficiency
One Year Factory Warranty
Extends to 3-years with “No Bull” warranty available from Quincy
Must include EWK-3 Maintenance Kit at time of purchase
Must register the unit at www.quincycompressor.com
Product Features
- Fully Pressure Lubricated 2-Stage Compressor
- 13-HP Honda GX Engine With Electric Start
- High-Performance Cast Iron QT-7.5 Belt Drive Pump
- Gerotor Positive Displacement Oil Pump
- High-Efficiency Fin & Tube Intercooler
- Electronically Balanced Fan-Type Cast Iron Flywheel
- Stainless Steel Reed Valves With Valve Bumpers
- One Year Factory Warranty
Product Specifications
General Information
| Product Category | Air Compressor – Portable |
Engine
| HP | 13 |
| Auto Idle | Yes |
| Engine Brand | Honda GX |
| Starting System | 12-Volt Button Start w/ Recoil |
Pump
| CFM | 23.6 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Full Pressure Lubrication |
| Duty Cycle | 100% |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 30 Gallons |
| Tank Outlet | 1/2 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
| Air Filter | Yes |
Overview
| Weight | 515 Pounds |
| Certification | ASME, UL, CSA, |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 42 Inches |
| Product Width | 21 Inches |
| Product Height | 40 Inches |
| Power Type | Gas |
