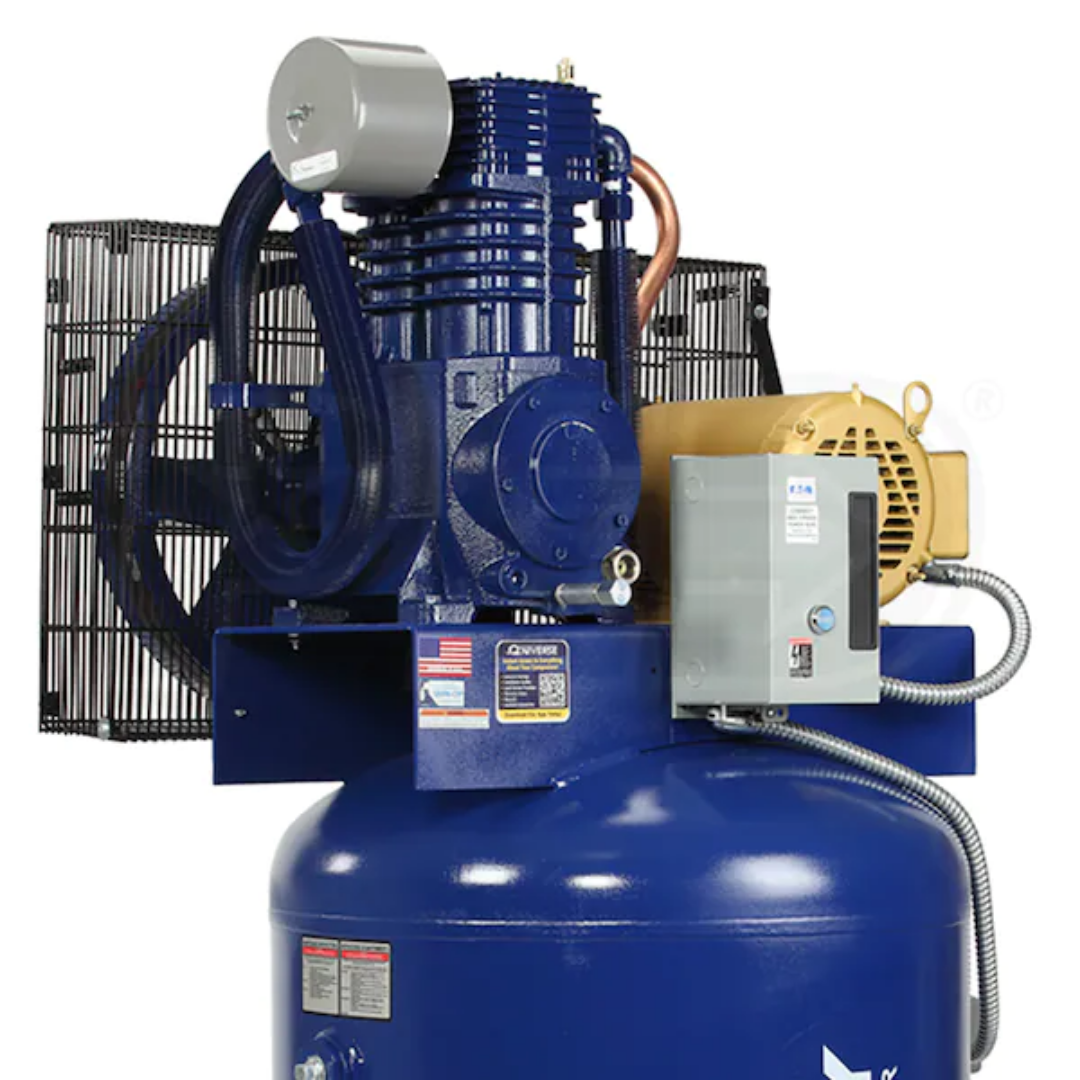

Quincy P2103DS12VCB46 QT Pro 10-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase)
Heavy-Duty Industrial Air Compressor
50,000 or more hour pump life

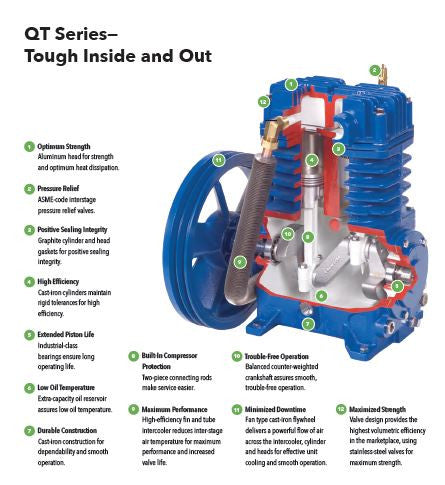

Splash lubricated, cast-iron pump for dependability
1750rpm industrial motor will continuously run your business
Extra capacity oil reserve
High-Efficiency Finned Intercooler
Reduces air temperature for maximum performance
Magnetic Starter
Provides thermal overload protection for the motor
2-Piece Connection Rods
Fewer moving parts increase reliability
ASME Certified Tank
Pressure relief valve, discharge and receiver tank for safety
1-Year Factory Warranty – Extends To 3-Year “No Bull” Warranty
Must Include purchase of EWK-4 Maintenance Kit at time of purchase
Unit must be registered at www.quincycompressor.com
Download the Warranty page under the Manual tab for details
Extended warranty includes on-site and labor service
Product Features
- Heavy-Duty Industrial Air Compressor
- High-Efficiency Finned Intercooler
- Magnetic Starter
- 2-Piece Connection Rods
- ASME Certified Tank
- 1-Year Factory Warranty – Extends To 3-Year “No Bull” Warranty
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 460 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 14 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 10 |
Pump
| CFM | 35 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 120 Gallons |
| Tank Outlet | 1 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
Accessories
| Air Dryer | No |
Overview
| Weight | 1,000 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 40 Inches |
| Product Width | 30 Inches |
| Product Height | 75 Inches |
| Power Type | Electric |
