Product Description

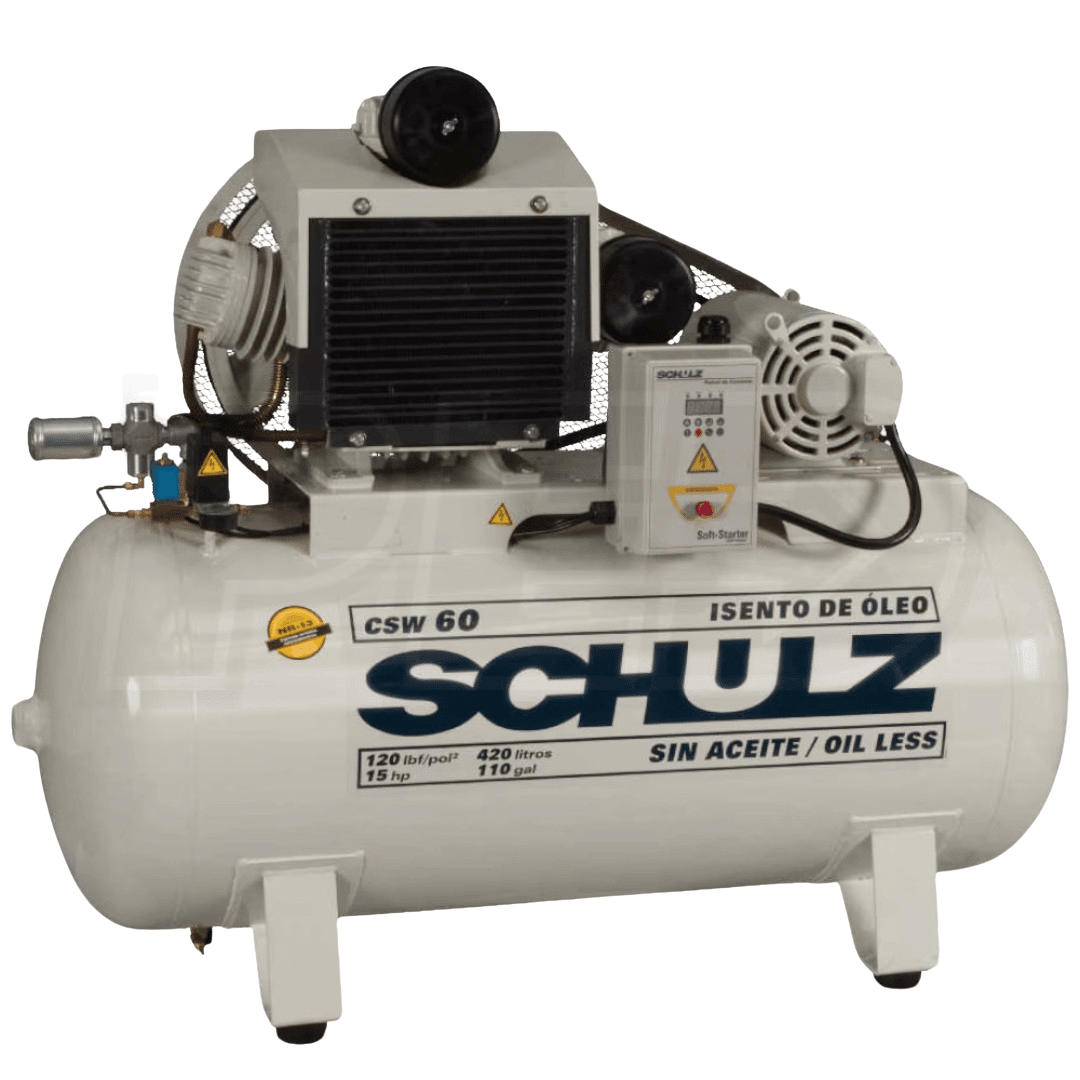

Schulz 15120HW60-3 – Oil Free 15-HP 120-Gallon Two-Stage Air Compressor
Ideal for clinics, offices or critical industrial processes
Oil Free, Belt-Drive, Cast Iron Pump (880 RPM)
60 CFM @ 90 PSI; 120 Max PSI
Runs cooler, lasts longer due to the space between each cylinder
Deeper cylinder fins for additional heat dissipation
Swedish Steel Valves
Quality components contribute to pump efficiency
15-HP Electric Motor (208-230/460V Three-Phase)
Reliably handles commercial duty demands
120-Gallon Horizontal Steel Air Tank
Internal antibacterial powder coating for added protection
ASME Safety valve and tank drain
Built-In Regulator Switch
Make this compressor easy to operate
Intake Air Filter
Helps provide cleaner air to the compressor
Epoxy Coated Construction
Helps prevent pump and tank corrosion
1-Year Limited Warranty
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 208-230/460 Volt AC |
| Phase | 3 Phase |
| dBA | 91 |
| Magnetic Starter | No |
| Amp Draw | 40 |
| Recommended Breaker | 60 Amp Breaker |
Engine
| HP | 15 |
Pump
| CFM | 60 |
| CFM Rated @ | 90 PSI |
| CFM Rated @ 40 | 37.6 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 120 PSI |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Free |
Tank
| Tank Size | 120 Gallons |
| Tank Included | Yes |
| Tank Outlet | 1 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Filter
| Regulator | No |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
| Air Filter | Yes |
Overview
| Weight | 980 Pounds |
| Certification | ASME, UL |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 78 Inches |
| Product Width | 29 Inches |
| Product Height | 51 Inches |
| Power Type | Electric |
| UPC | 7896893448974 |
