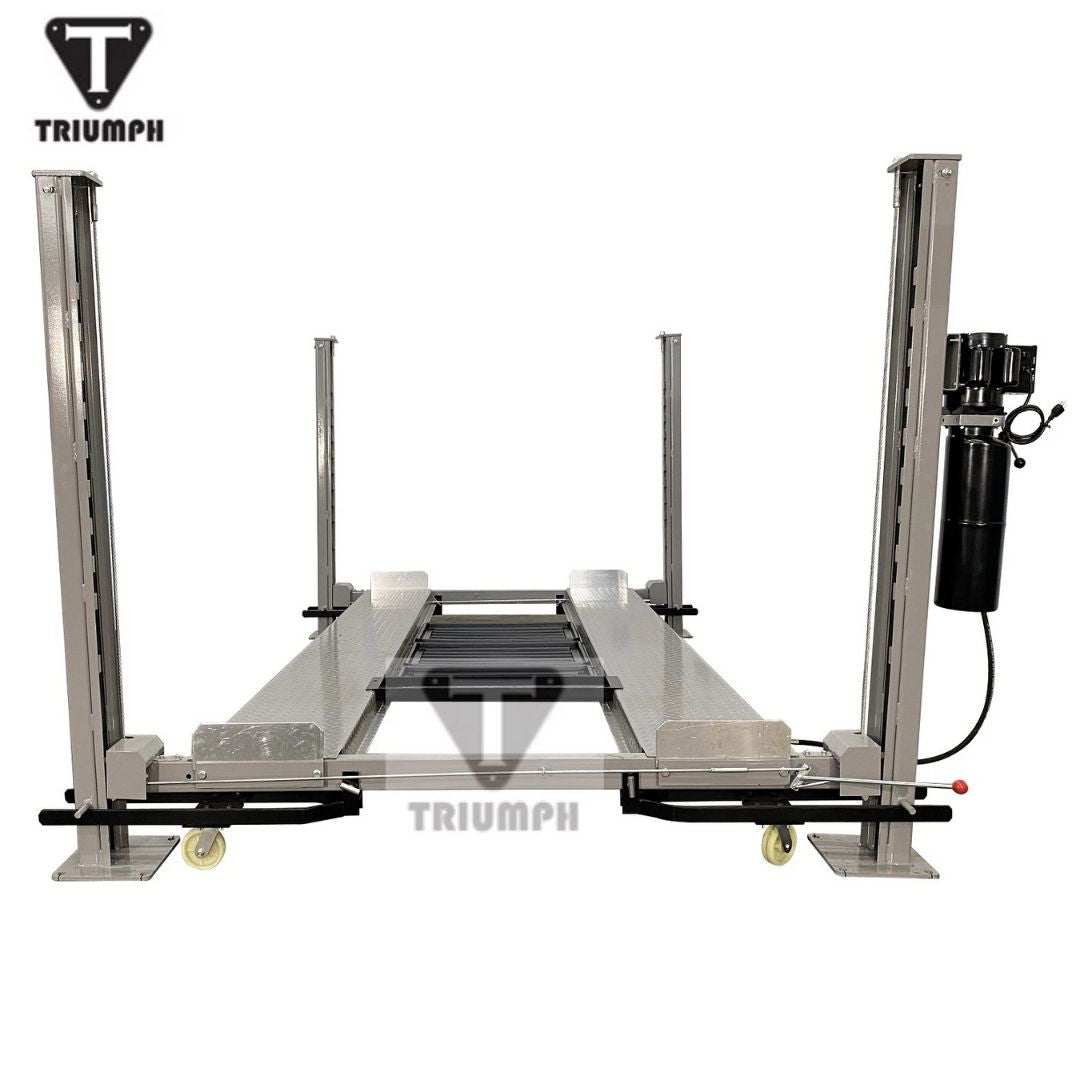

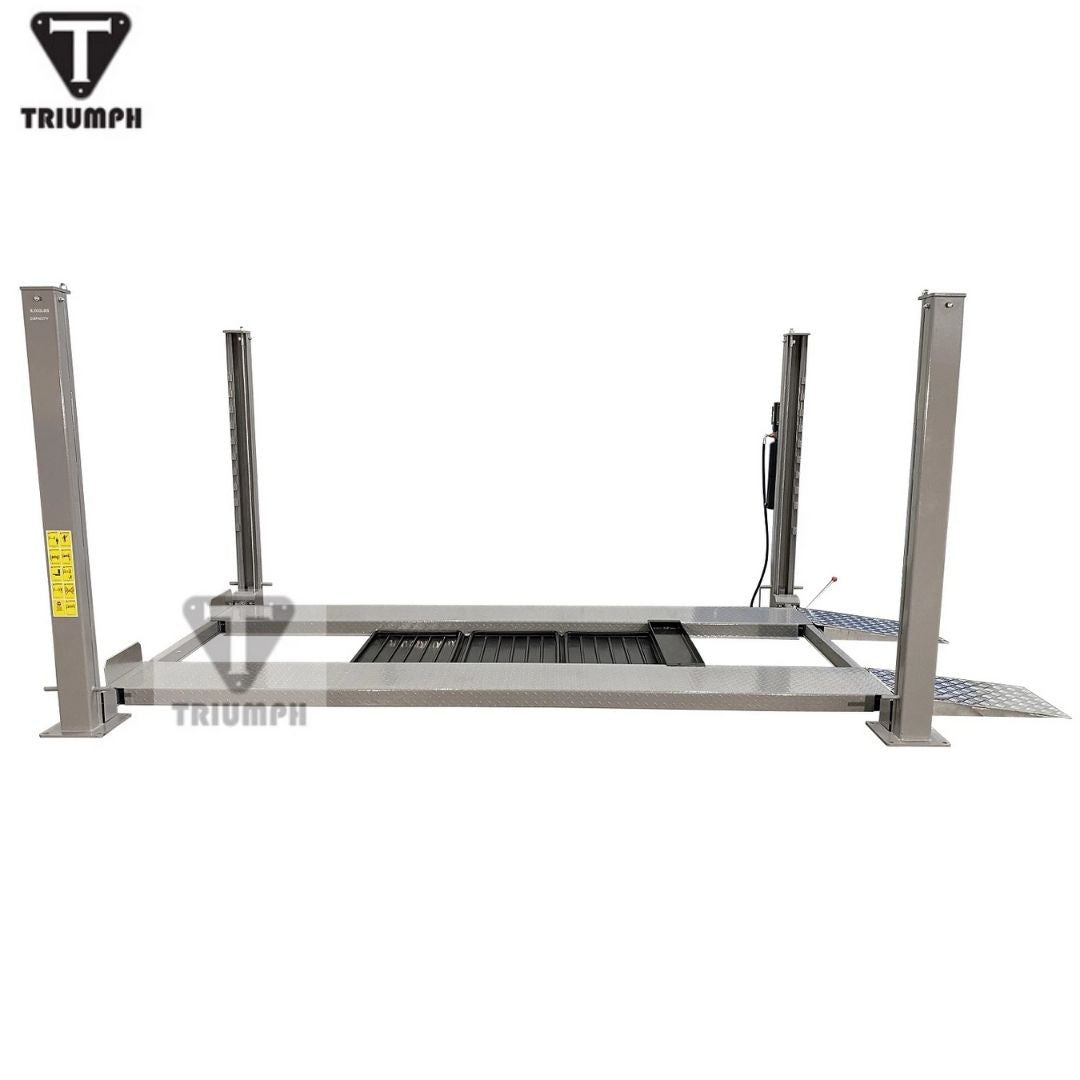

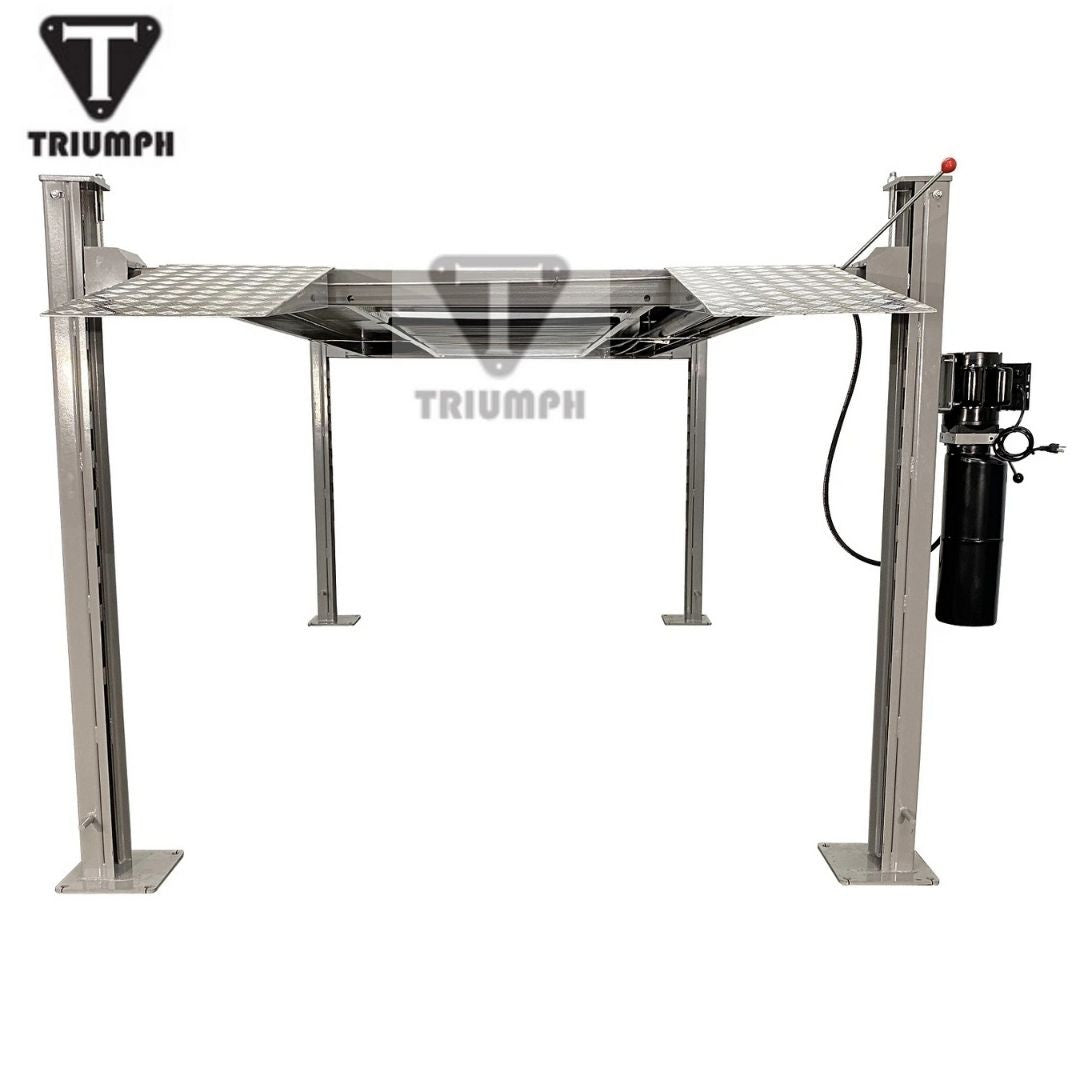

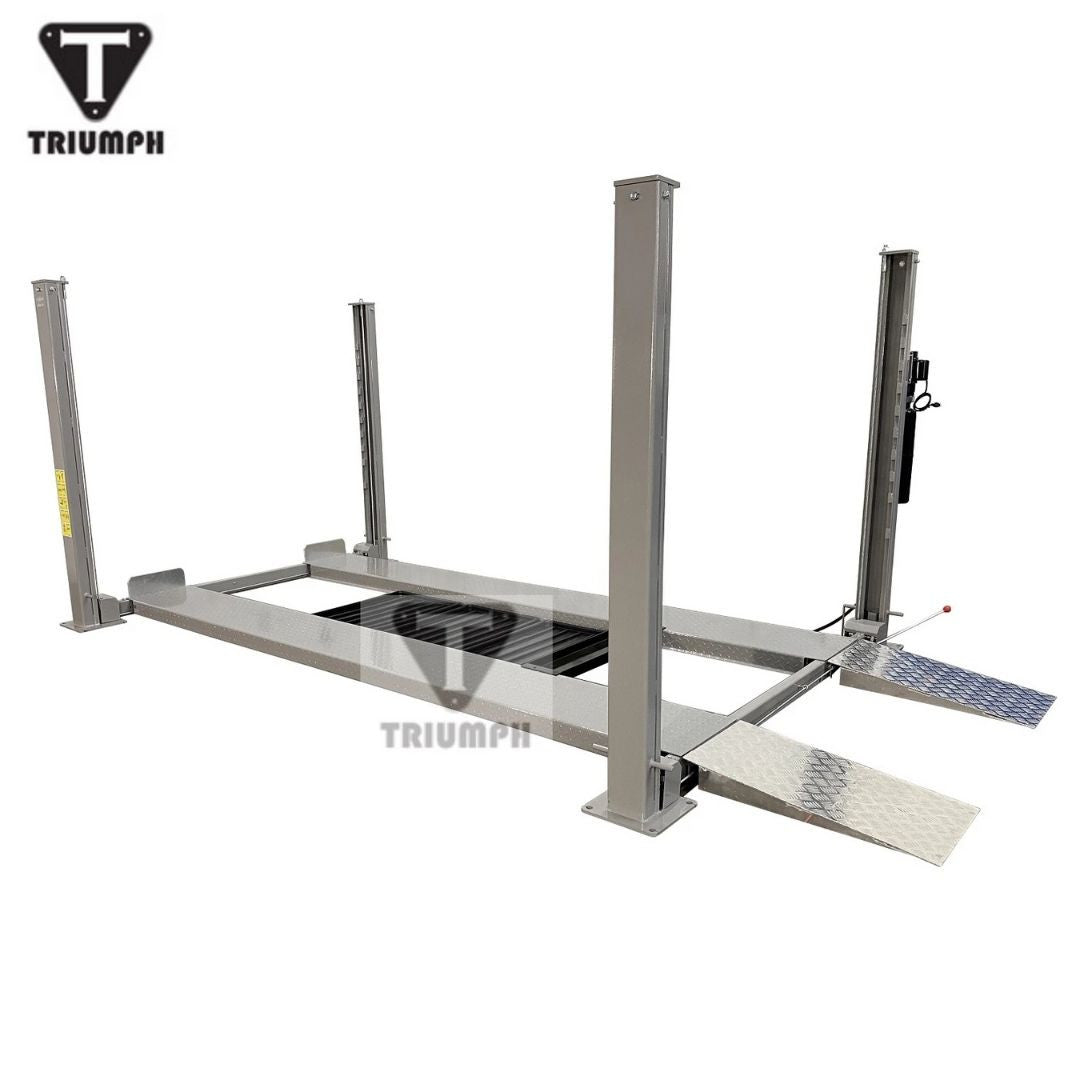

Triumph NSS-8 Four-Post Lift – Maximize Your Garage Space
The Triumph NSS-8 4 Post Car Lift is an embodiment of strength and versatility, designed to enhance the efficiency and safety of vehicle maintenance and repair in both professional and home settings. With its robust 8,000 lbs capacity, this lift can easily accommodate a wide range of vehicles, from sedans and coupes to SUVs and light trucks, making it a versatile choice for any automotive enthusiast or professional.
Constructed with meticulous attention to detail, the NSS-8 boasts an overall height of 84 inches and an overall length of 175 inches without approach ramps, extending to 195 inches with ramps included. This ensures ample space for vehicle placement and servicing. The lift’s overall width of 106 inches, combined with a lift height of 72 inches, provides significant clearance for under-vehicle access, while the runway length of 165 inches securely supports vehicles of various sizes.
Key to the NSS-8’s design is its user-centric features, including 10 locking positions for a range of service heights and a single-point lock release for ease of operation. The lift achieves full elevation in just 40 seconds, minimizing downtime and enhancing workshop throughput. Operating on a standard 110 volts, the NSS-8 is convenient for installation in various settings without the need for specialized power supplies. Its substantial shipping weight of 1,600 lbs attests to its solid construction and durability.

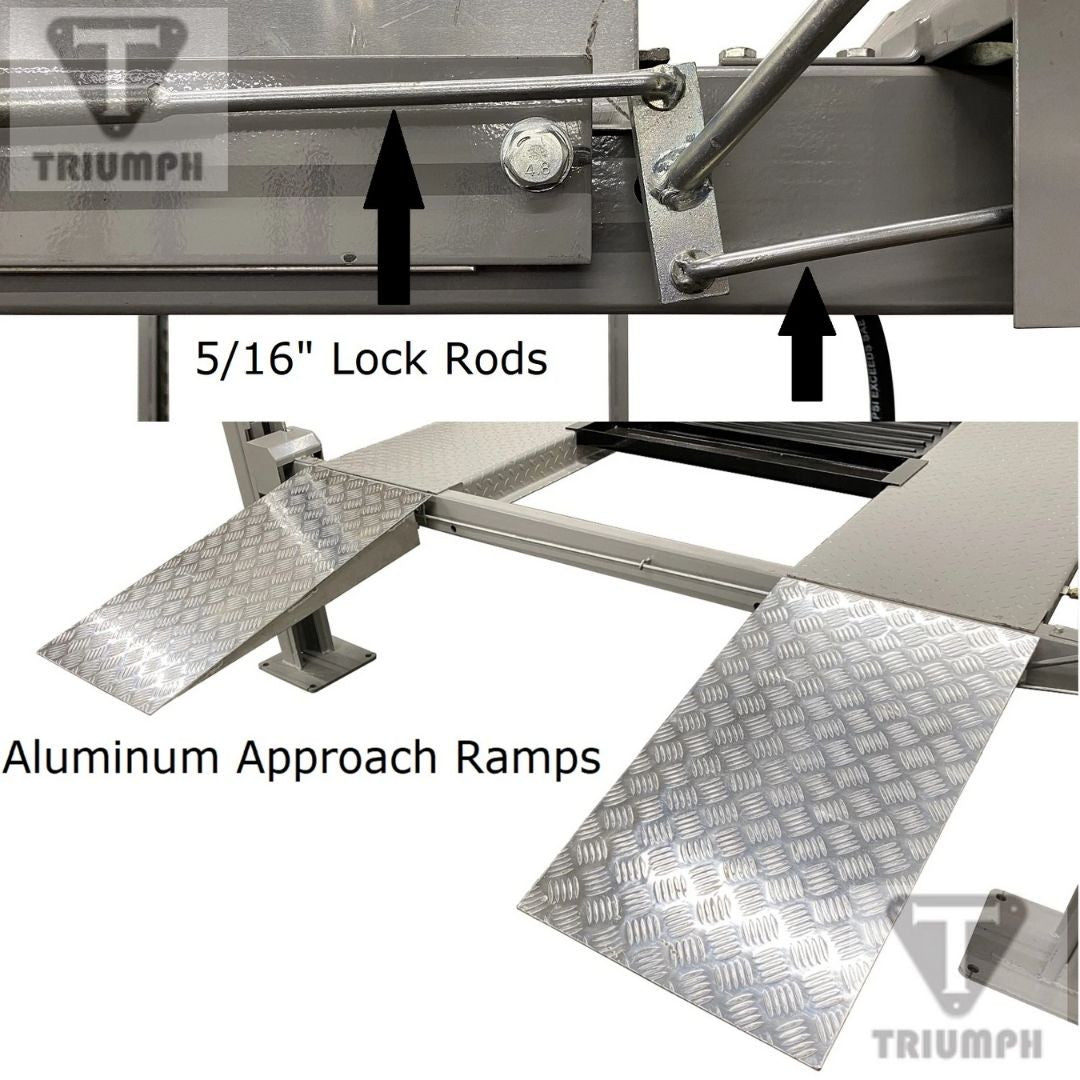

Safety and stability are paramount with the Triumph NSS-8, highlighted by its base plate size of 12″ x 12″ and a lowered height of just 5 inches, facilitating easy vehicle loading and unloading. The inclusion of approach ramps further enhances its versatility, allowing for easy drive-on and drive-off, which is particularly beneficial for vehicles with lower ground clearance.
Available through Mechanic Superstore, the Triumph NSS-8 4 Post Car Lift stands as a reliable, high-performance solution for lifting needs. Whether you’re looking to increase the capacity of your professional workshop or elevate the capabilities of your home garage, the NSS-8 offers the perfect combination of performance, convenience, and safety, solidifying its place as an invaluable tool in the world of automotive maintenance and repair. See also the AMGO PRO-12ASX alignment lift.
Product Features
8,000 LB CAPACITY: Easily accommodates most cars, classic vehicles, and daily drivers.

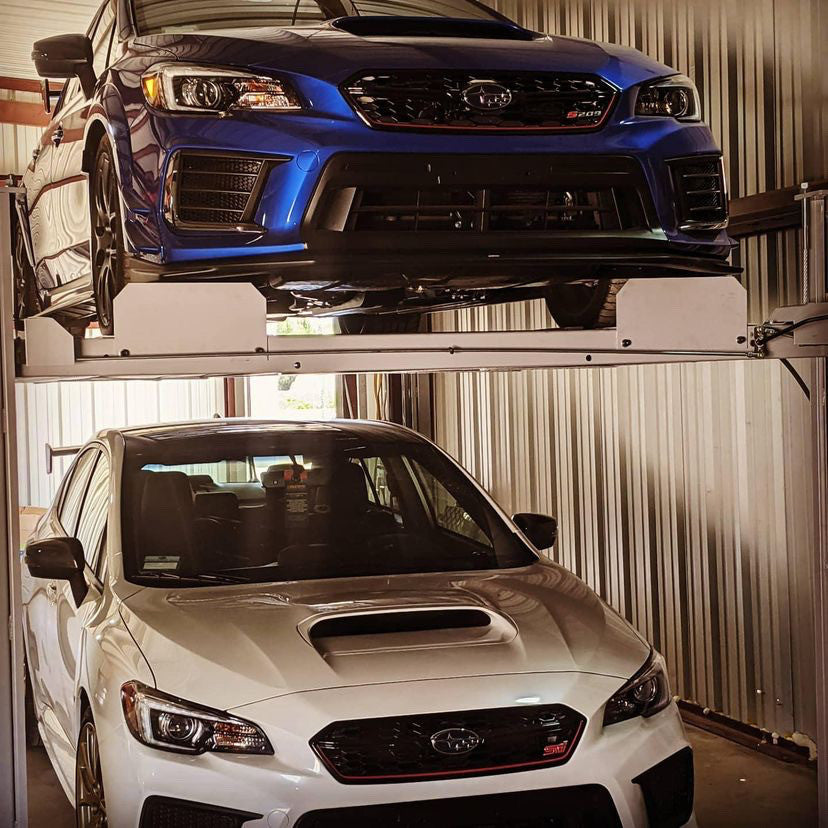

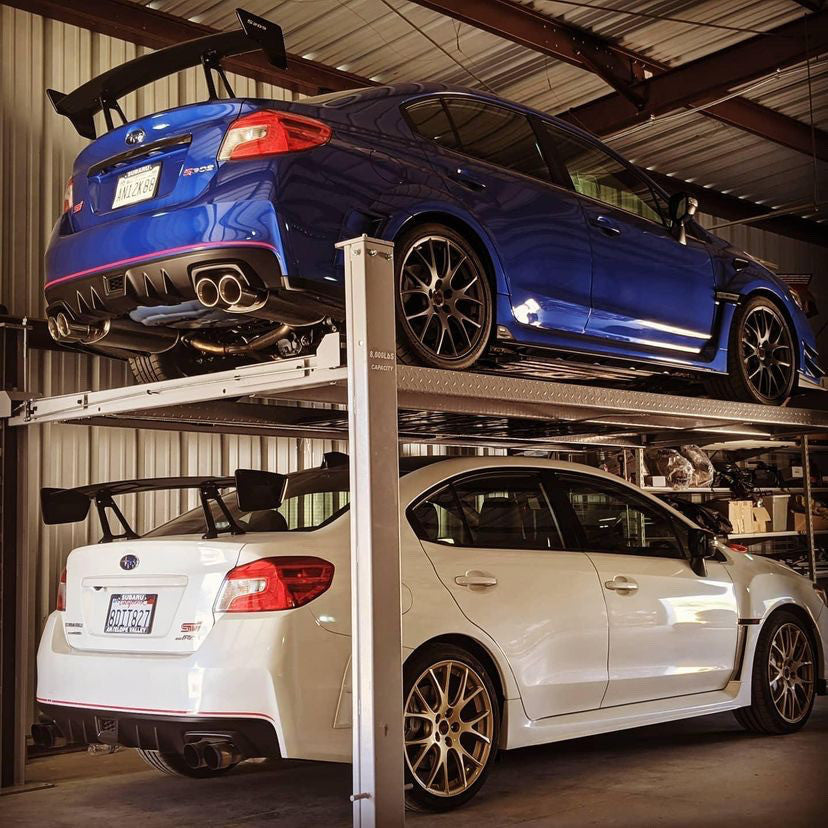

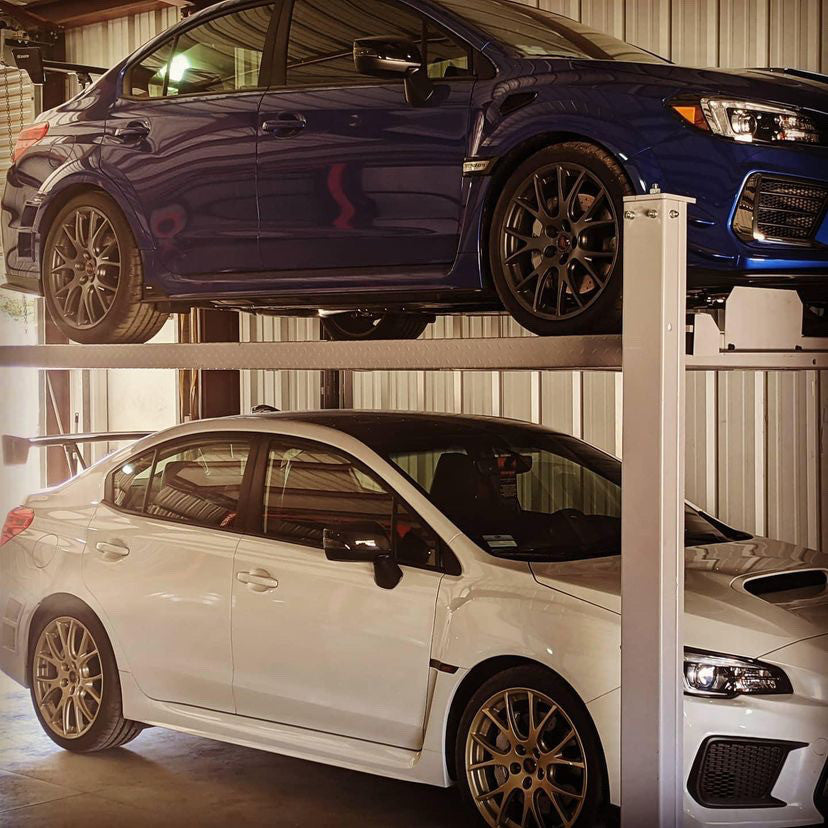

PERFECT FOR STORAGE: Add extra parking space in your garage by storing one vehicle above another.
BUILT TO LAST: Constructed with heavy-duty steel for superior strength and durability.

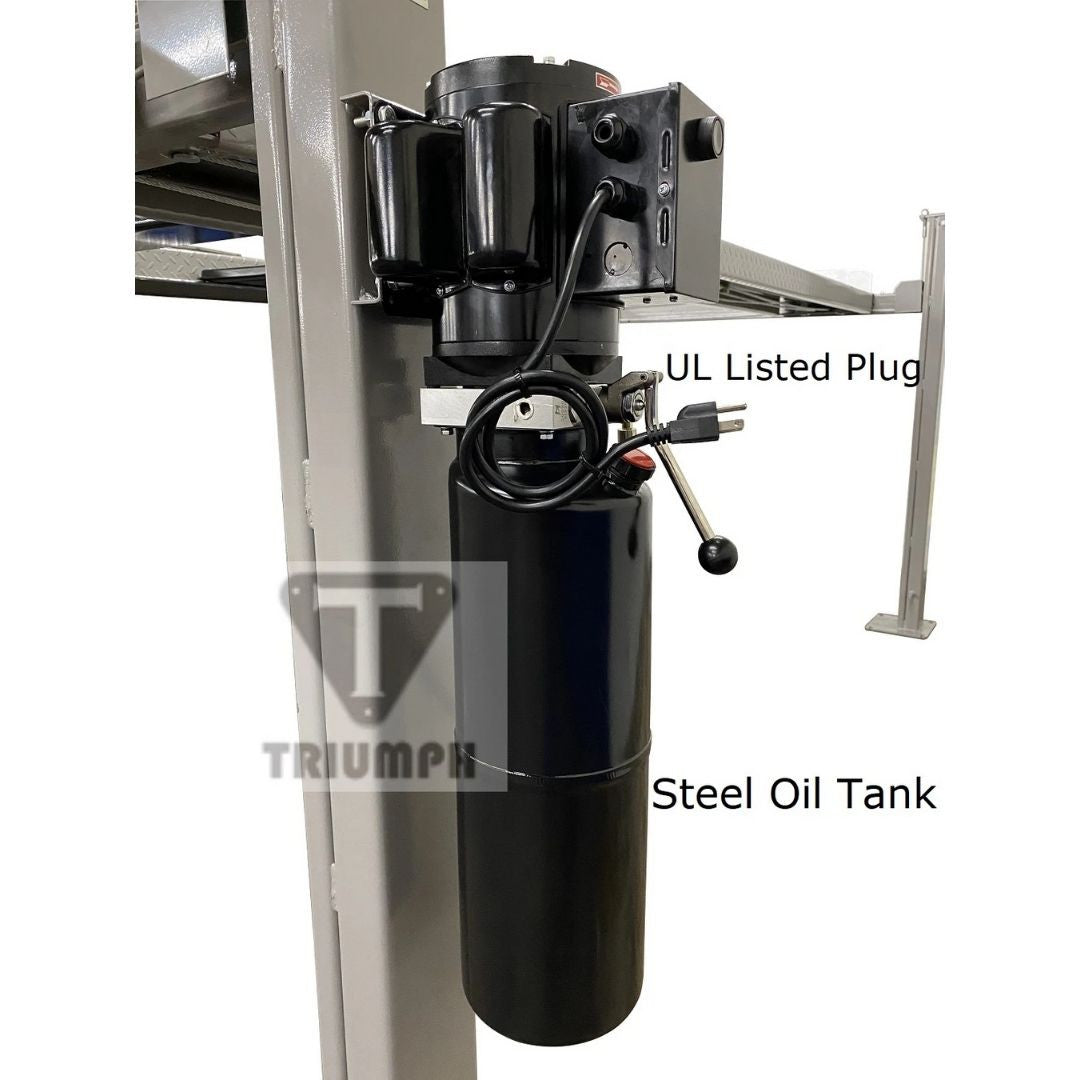

Smooth & Safe Operation: Equipped with a hydraulic system for easy lifting and multiple safety locks for secure positioning.

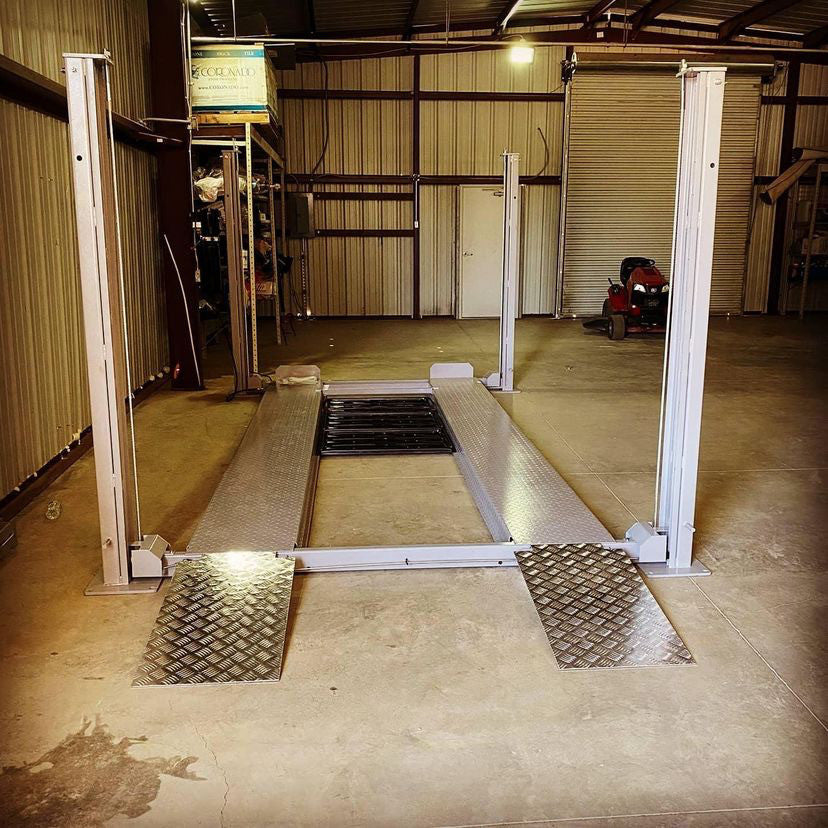

USER-FRIENDLY DESIGN: Drive-on ramps provide hassle-free vehicle access and positioning.

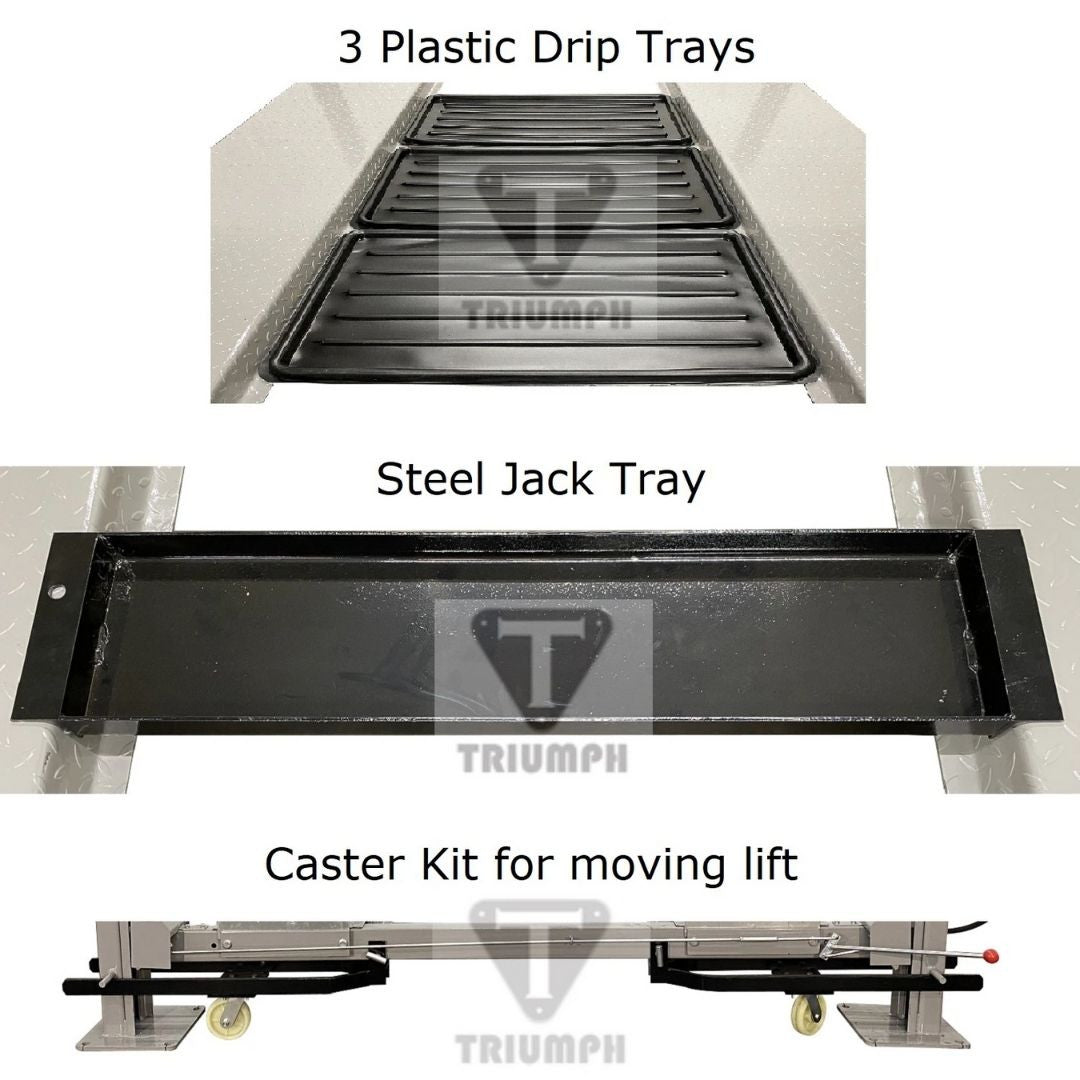

PORTABLE & VERSATILE: Includes caster wheels for easy relocation around your garage or workspace.
Your Space-Saving Solution: The Triumph NSS-8 transforms your garage into a functional, space-efficient environment. Whether you’re looking to safely store your vehicle collection or create room for your next project, this four-post lift offers the stability, ease, and performance you need. It’s the perfect solution to elevate your garage experience.
Product Specifications
| Lift Model | NSS-8 |
|---|---|
| Capacity | 8,000 lbs |
| Overall Height | 84″ |
| Overall Length Without approach ramps | 175″ |
| Overall Length With approach ramps | 195″ |
| Overall Width | 106″ |
| Lift Height | 72″ |
| Height Under Runway | 69″ |
| Runway Length | 165″ |
| Drive Thru Width | 93″ |
| Runway Width | 18″ |
| Between Runways | 37″ |
| Lowered Height | 5″ |
| Locking Positions | 10 |
| Base Plate Size | 12″ x 12″ |
| Lock Release | Single Point |
| Lift Time | 40 Seconds |
| Voltage | 110 Volts |
| Shipping Weight | 1,600 lbs |
Pick Up and Delivery
Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Los Vegas, NV.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
A buddy of mine installs lifts in addition to his full time business. He and a friend picked the lift up at the trucking warehouse and came over to install it. From the moment they were uncrating it to the last test before putting a car on it they were nothing but complimentary and impressed. He even called me the next day saying again how well made and easy it was to install compared to all of the others he had done. He estimates he has done over sixty lifts.
I myself am thoroughly pleased and impressed with the purchase experience and the lift itself.
5⭐️ Highly Recommend.
Thanks
My husband and I are both 71 and feel a great sence of accomplishment. We love the lift and highly recommend the Triumph NSS8 classic lift and mechanics superstore. 😊
Instructions are an issue. Had 3 sets including what came with unit..much conflicting info. Can cause extra time and frustration.
Power unit blows 110/20 amp.. Must have 30 Amp set up and rewire power unit for pigtail.
Better instructions and heads up about power needed.
Tech support at National Auto Tools is
very helpful.
The lift works great. I would recommend this lift !!
Get one if you can
Good for price
50% of the downloaded instructions were accurate.
Once we got it setup, I really like it. Use it almost every day.
The lifts work as expected and are great for storage. They are not fast but that's why they are advertised for storage. The casters made them easy to put in place including swapping the two lifts from side to side after assembly.
I would recommend them to anyone looking for storage but make sure you have connections to fill in the blanks in the paperwork.
Directions not very good had to YouTube it and watch video but fairly simple did it myself in about 5 hrs.Chad was a pretty good salesman answered my questions took around a month to receive it. Would highly recommend these lift. Can't beat the price either
Delivery was less time than promised time
Installation between 3 guys and having some beers and pizza was about 5 hours
It works great, and Highly recommend
Alll very successful
Once ordered it took 2 weeks to arrive at pickup depot. 2 guys to unload off the trailer, no lift needed, just floor jacks, dollies & pvc pipes to roll it as the Egyptians did. I needed help to lift H-beams once assembled & main hydraulic ramp, everything else was assembled by me.
I had some problems: 1)1 of 4 main beams was bent internally, too much to expand w/a floor jack. A used replacement beam was at my house a week later. I wanted new but would’ve had to wait 6-8wks. 2) one of the bump stop brackets nut was offset, they sent a replacement a few days later. 3) when routing the cables, couldn’t get the piston to extend, tried straps & a cable winch. I found a suggestion to use a big sledge hammer for some persuasion & a few big hits & it came right out. 4) instructions are garbage; watch lots of YouTube vids for install tips. 5) Had to change circuit breaker from 20A to 25A. Now only pops if I make the mistake of trying to lift it under load, not on stops, that motor strain will pop the breaker.
I installed a Chamberlain wall mount door opener, removes normal center mount to gain height. Also had high lift rail conversion installed so I could open the door safely w/a car raised.
As everyone always says, I wish I would’ve bought this years ago. This is a great hobby-grade lift, excellent customer service, stop procrastinating & buy one already!
Check out my MR2 at http://www.pktrkt.com/
I assembled by myself except for standing up posts. Having a forklift really helped. Put pump on a 50 gallon drum and hoisted with a tie down strap. Where theres a will theres a way. Instructions ****, but if mechanically inclined easy enough to figure out most stuff. Tech department seems to really know what they are talking about. Two of my cables were mixed up. About an extra hour laying under lift straightening out. At 74 no fun. Tech department helped with mixed up cables and proper way to run first time, and leveling.
Think I’m going to like it. Quality looks great for an inexpensive lift. Can’t find any issues. Time will tell. When in doubt, call tech department.
JR/Houston, TX
For a home DIYer/hobbyist, the price and value is right.
Mechanics Superstore shipped promptly and followed up immediately when there was a minor shipping issue (not the fault of the vendor). Thanks, Luke!
My only regret is that I did not buy this, or something like it, years ago. No more laying on a cold shop floor for me.
I received and assembled my lift a couple of weeks ago with help from my neighbor
Now I had a emergency with my 1970 Challenger-the transmission decided to leak
At 70 years old crawling under it on a creeper was not something I was looking forward to
My new lift made the job so easy it is amazing
I also have a place for another vehicle when one is up high on the lift
Thanks for steering me towards this lift Connor
I did cheat and found a vendor who delivers & sets up lifts, did cost me another $1,000, but I felt it was worth it as they were in and out in about 3 hours, and I didn't have to bribe friends. Granted I have had the lift for only a week, but it is easy to use, real easy to move, and the best price I could find. And I searched for a long time! This will definitely make my life easier. No more crawling under cars and being stiff and sore for a week after.
Assembly took less than 3 hours with good instructions provided.
Will be ordering another shortly.
Thanks for the quick free delivery
These stackers are not prejudice
they will stack any make or model
#Ford#Chevrolet#Mercury#Dodge
#Oldsmobile
We are very happy with our purchase
I always wanted a lift like this didn’t realize how easily it was to build best thing I could’ve ever bought for my garage
ps.jeep is not pulled alway forward on the lift. Had to move lift back a little due to brush guard. Fits perfect.
HIGHLY RECOMMEND!
Conner kept me up to date on when is was shipped and when it was to be delivered
Price was competitive
Will be getting another soon!
Will be purchasing a 2 post very soon
Tom D’Aquila
arrived when they said!
easy to put it together!
I'll add some color to it and be ready!
hoping get two more for my garage!!!
Well made, works perfectly.
Included the caster kit which is not included with a lot of 4 post lifts.
Aluminum approach ramps are nice and light, easy to install and remove.
Arrived about 2 weeks sooner than expected.
Price was great and so was the customer service (Jake) at mechanics super store.
Dont procrastinated, buy it, you wont be disappointed.
