Description
Product Description
FP14K Four Post service lift
Product Features
- 14,000 lbs Capacity
- Chain Driven
- 192” max wheelbase
- Single Point Pneumatic Lock Release
- Powder Coat Finish
�

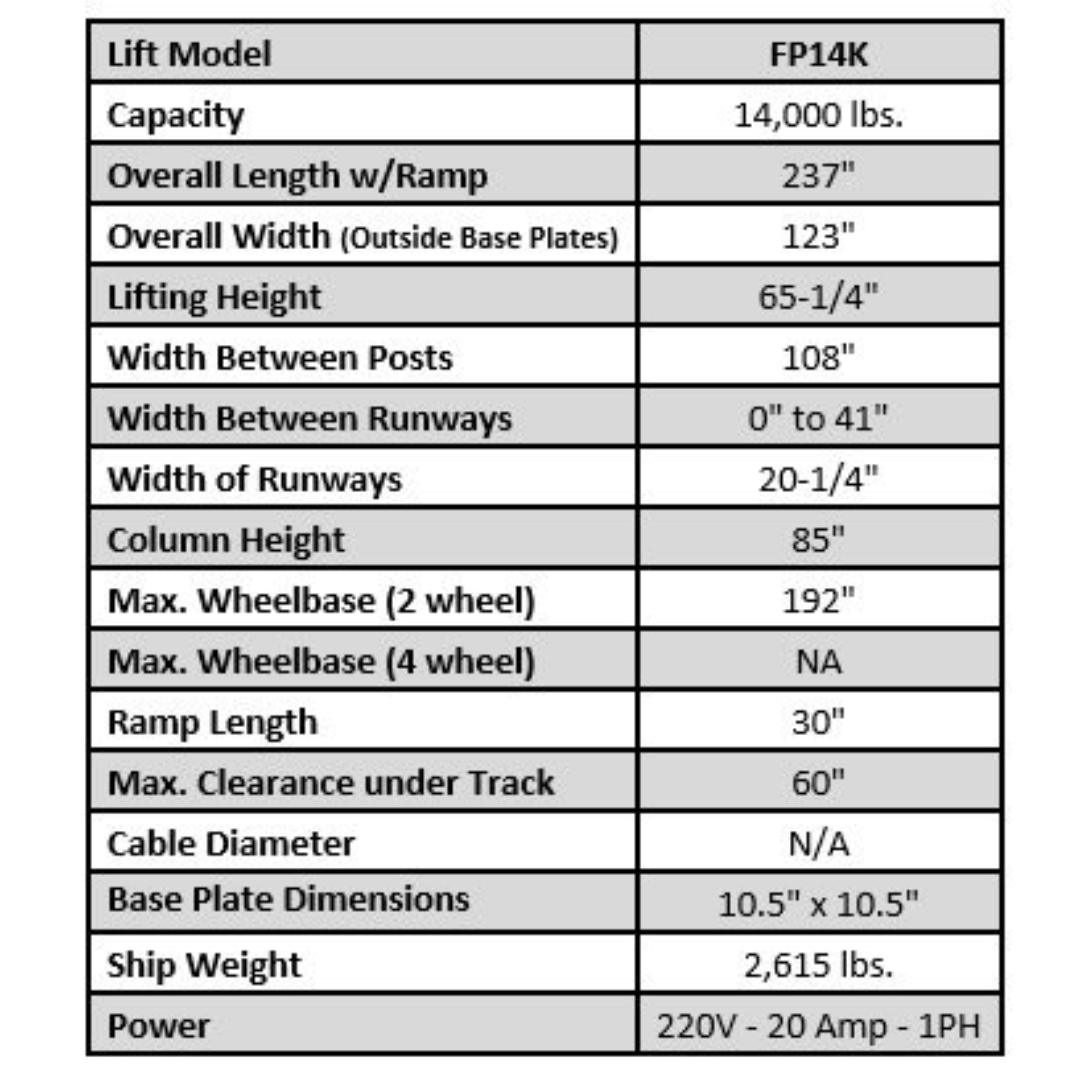

Product Specifications
| Lift Model | FP14K |
|---|---|
| Capacity | 14,000 lbs |
| Overall Length w/Ramp | 237″ |
| Overall Width (Outside Base Plates) | 123″ |
| Lifting Height | 65-1/4″ |
| Width Between Posts | 108″ |
| Length of Runways | 0″ to 41″ |
| Width of Runways | 20-1/4″ |
| Column Height | 85″ |
| Max. Wheel Base (2 wheel) | 192″ |
| Ramp Length | 30″ |
| Max. Clearance under Track | 60″ |
| Base Plate Dimensions | 10.5″ x 10.5″ |
| Ship Weight | 2,615 lbs |
| Power | 220V – 20 Amp – 1PH |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California – Orlando, Florida – Norcross, Georgia – Elwood, Indiana – St. Cloud, Minnesota – Reidsville, NC – Pottsville, Pennsylvania – Alvarado, Texas – West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
�
Downloads
Brochure
Manual
Warranty
�
