Description
Product Description

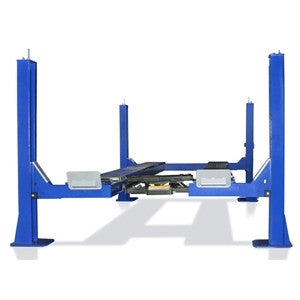

FP14KO-A Four Post ALIGNMENT lift
Product Features
- 14,000 lbs Capacity
- Open Front
- Alignment Capable
- 208” max two wheel Alignment
- Chain Driven
- Single Point Pneumatic Lock Release
- Adjustable Locking Positions
- Slack Cable Safety
- No Overhead Obstructions
- Powder Coat Finish
- Turntables and Jacks Sold Separately

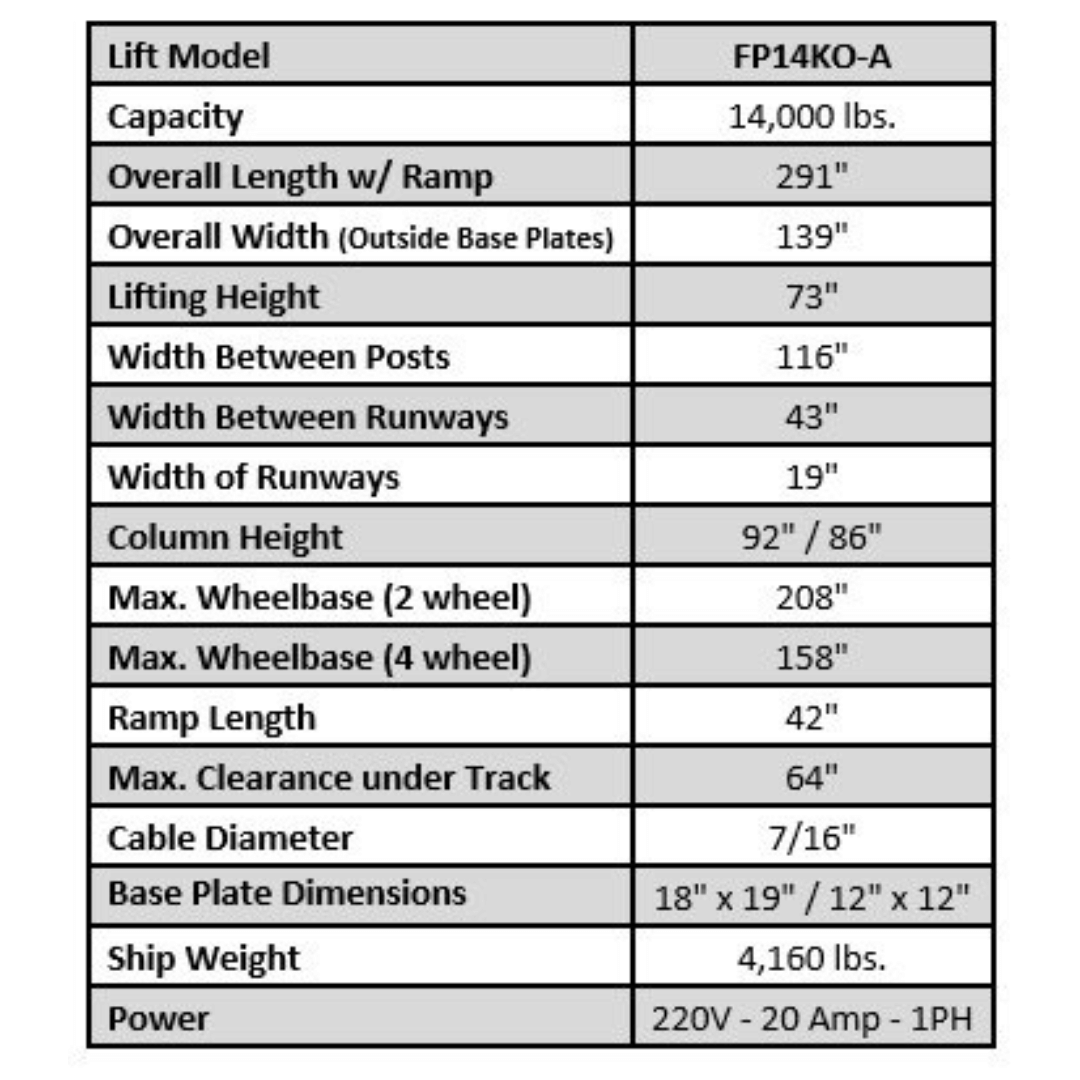

Product Specifications
| Lift Model | FP14KO-A |
|---|---|
| Capacity | 14,000 lbs |
| Overall Length w/Ramp | 291″ |
| Overall Width (Outside Base Plates) | 139″ |
| Lifting Height | 73″ |
| Width Between Posts | 116″ |
| Width of Runways | 19″ |
| Width Between Runways | 43″ |
| Column Height | 92″ / 86″ |
| Max. Wheel Base (2 wheel) | 208″ |
| Max. Wheel Base (4 wheel) | 158″ |
| Ramp Length | 42″ |
| Max. Clearance under Track | 64″ |
| Cable Diameter | 7/16″ |
| Base Plate Dimensions | 18″ x 19″ / 12″ x 12″ |
| Ship Weight | 4,160 lbs |
| Power | 220V – 20 Amp – 1PH |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California – Orlando, Florida – Norcross, Georgia – Elwood, Indiana – St. Cloud, Minnesota – Reidsville, NC – Pottsville, Pennsylvania – Alvarado, Texas – West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
�
