Product Description

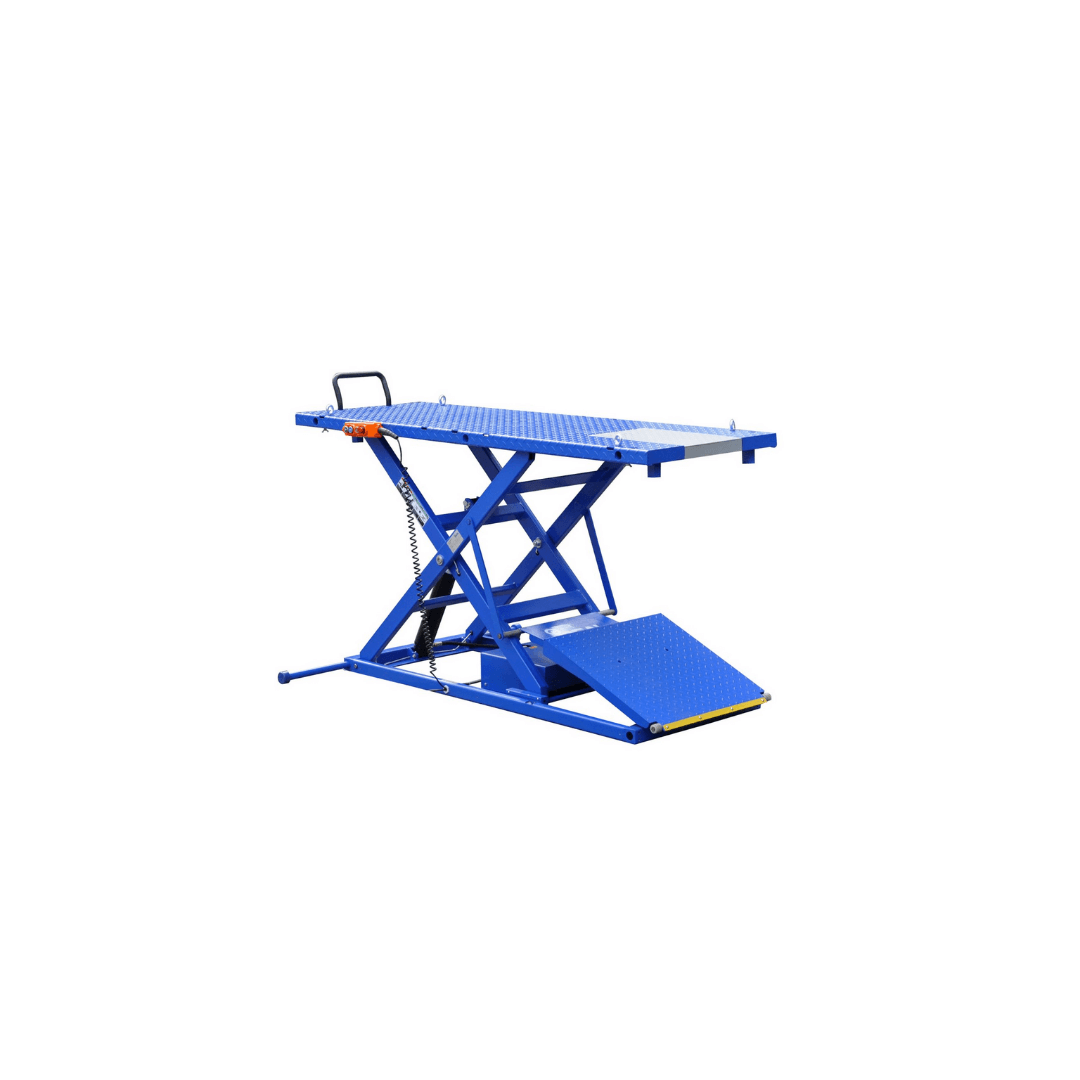

Tuxedo M-2200IEH-XR Elec-Hydra Motorcycle Lift Bench – Integrated Motor & Retractable Ramp
The M-2200IEH-XR Motorcycle lift features our innovative retractable approach ramp system which automatically retracts the approach ramp from the work space while the lift is rising. A spring loaded drop down panel for improved rear wheel service access is integrated into the table. The drop down panel swings out of the way and quickly clips back into place when not in use. We have maintained our hand held pendant for complete operation. No need to put hands or feet in harm’s way when disengaging safety latches. Vise and Chock sold separately.
Product Features
- NEW! Retractable Ramp Design
- NEW! Spring Loaded Drop Down Service Panel
- 110V Integrated Electric/Hydraulic Power Unit
- Hand Held Control Pendant
- Six Locking Positions
- Extended 27.5″ Long Full Width Approach Ramp
- Wheel Stop
- 31.5″ X 88.6″ Table
Product Specifications
| Lift Model | M-2200IEH-XR |
| Capacity | 2,200 lbs |
| Lifting Height | 47.2″ (1200 mm) |
| Min. Height | 7″ (180 mm) |
| Overall Length (Fully Lowered) | 116.5” (2959 mm) |
| Overall Width | 58.5” (1486 mm) |
| Platform Length | 88.6” (2250 mm) |
| Platform Width | 31.5” (800 mm) |
| Lifting & Lowering Time | 30 Seconds |
| Power Supply | 110V, 60Hz, 1 Phase, 18A |
| Gross Weight | 790 lbs |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California – Orlando, Florida – Norcross, Georgia – Elwood, Indiana – St. Cloud, Minnesota – Reidsville, NC – Pottsville, Pennsylvania – Alvarado, Texas – West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
