Description
Product Description

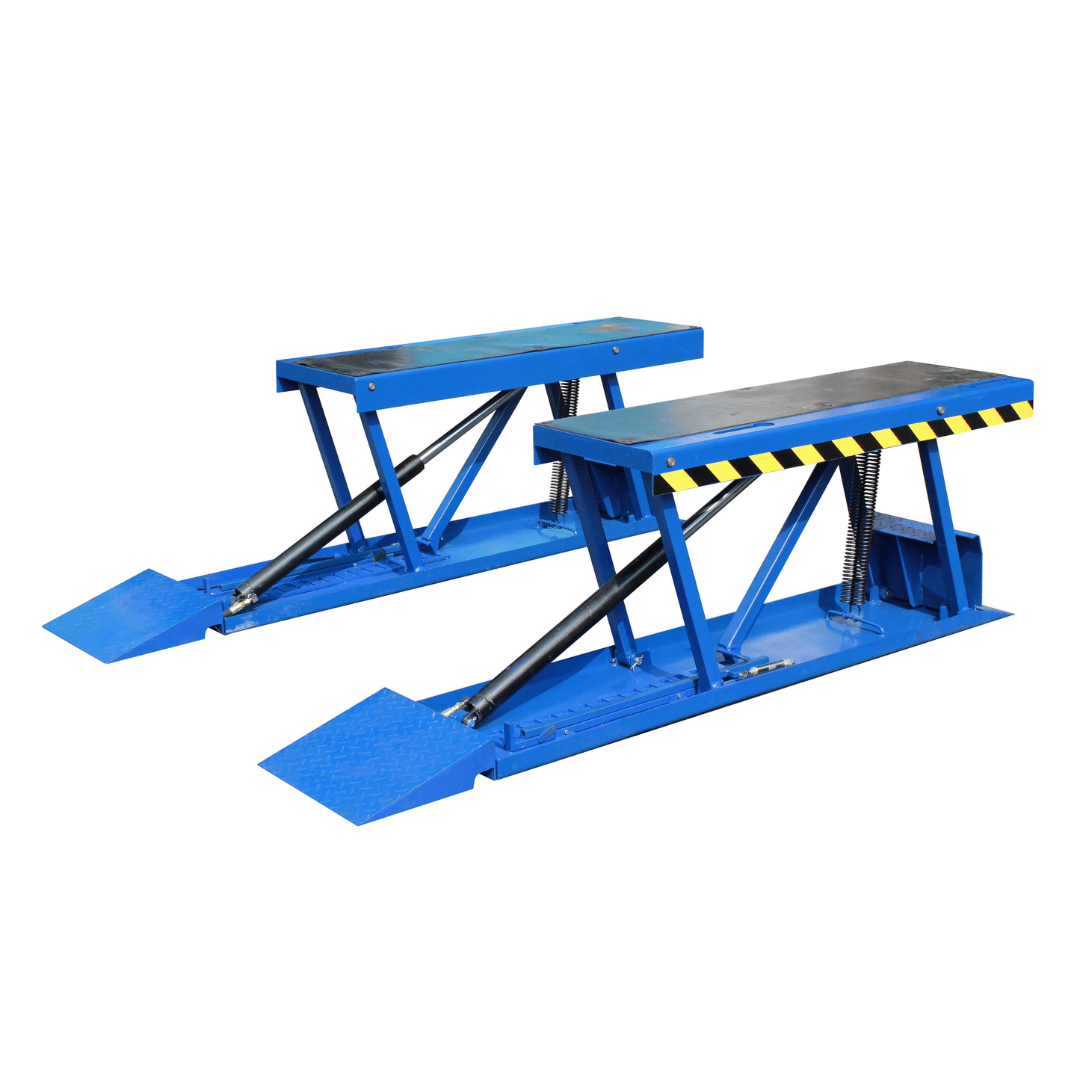

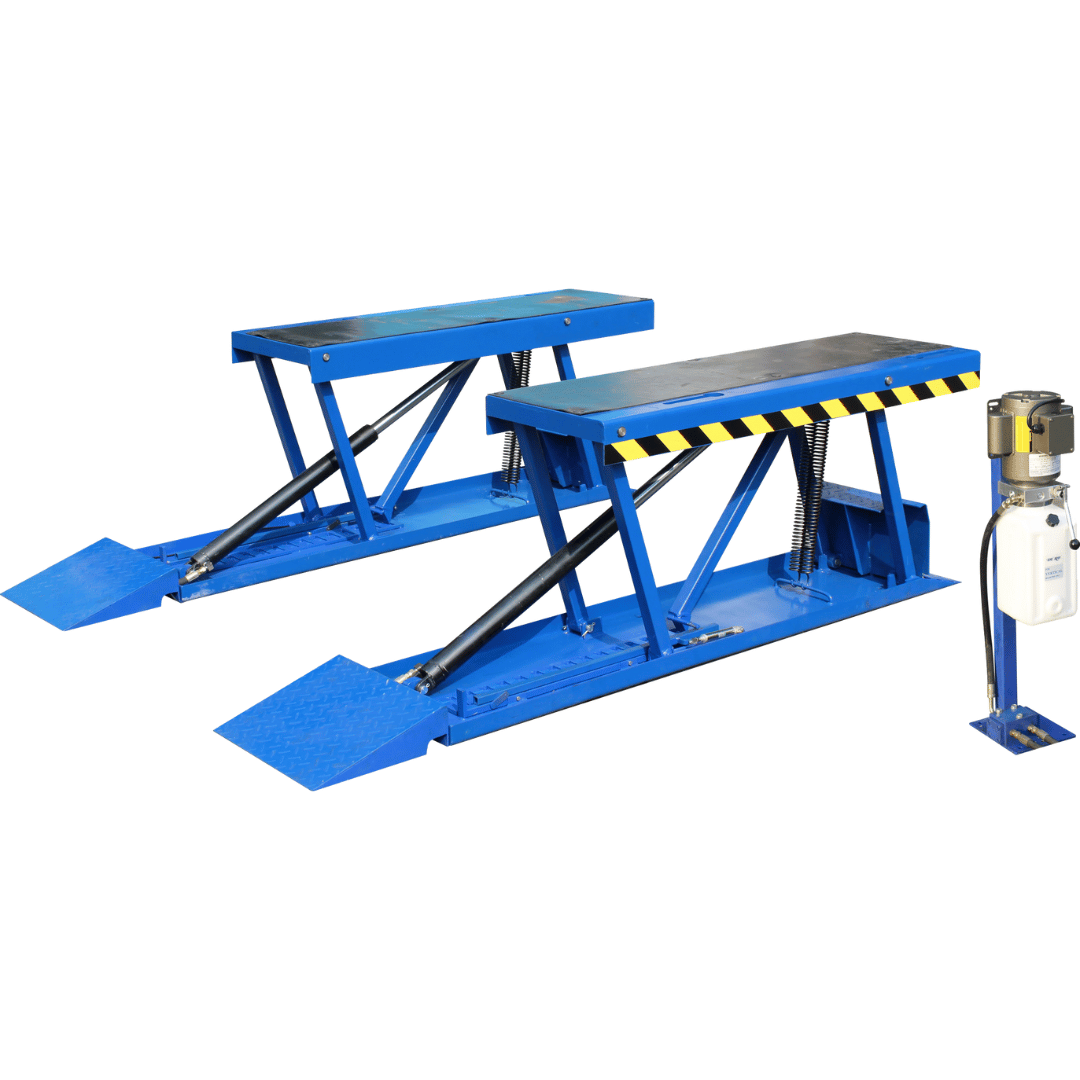

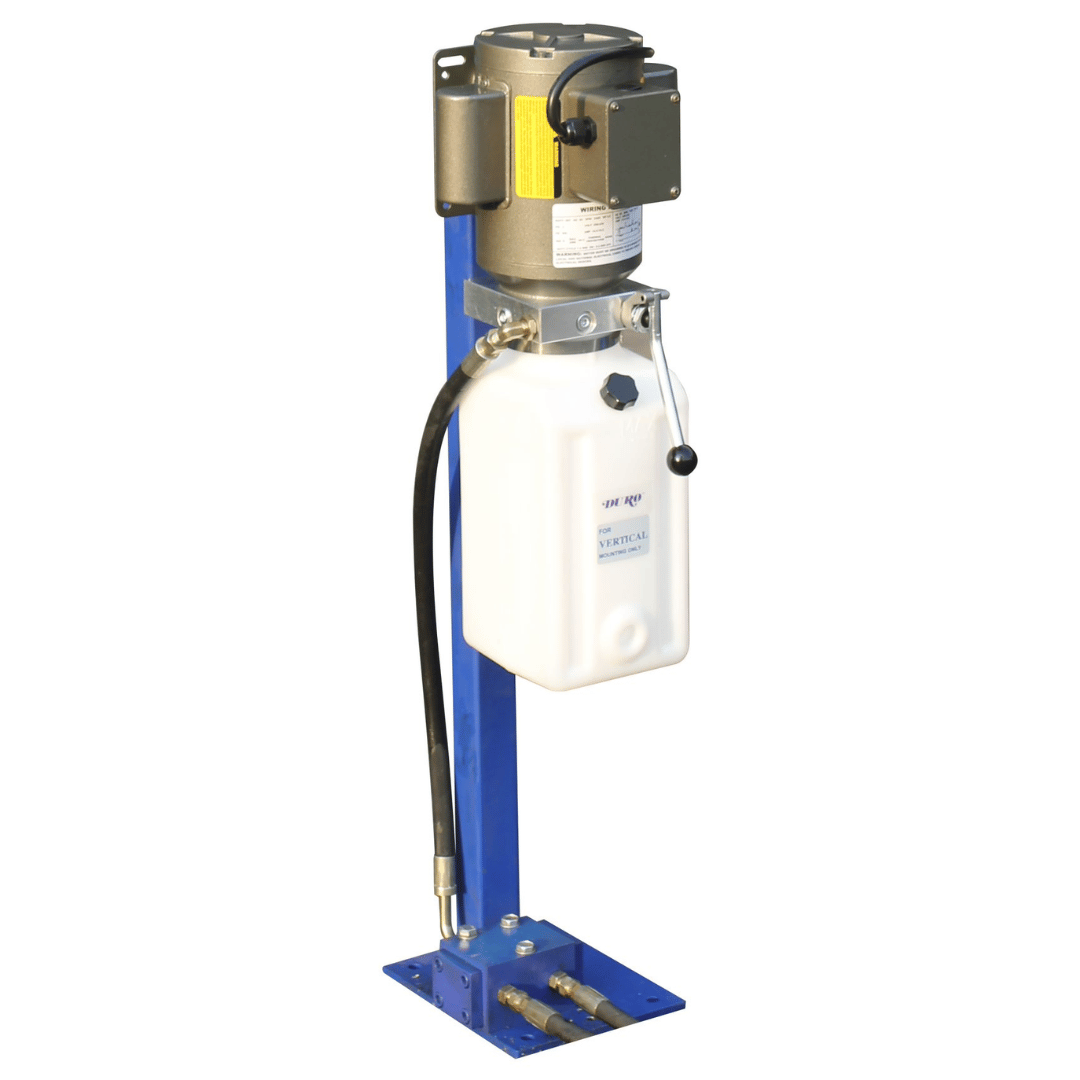

Tuxedo PL6K 6,600 lb Low-Rise Pit Lift – Includes Power Unit and Stand
Product Features
- 6,000 lbs Capacity
- Floor Mounted Design
- Low Driver Over Height
- Single Point Pneumatic Lock Release
- Pit Lift to Extend Quick Lube Services

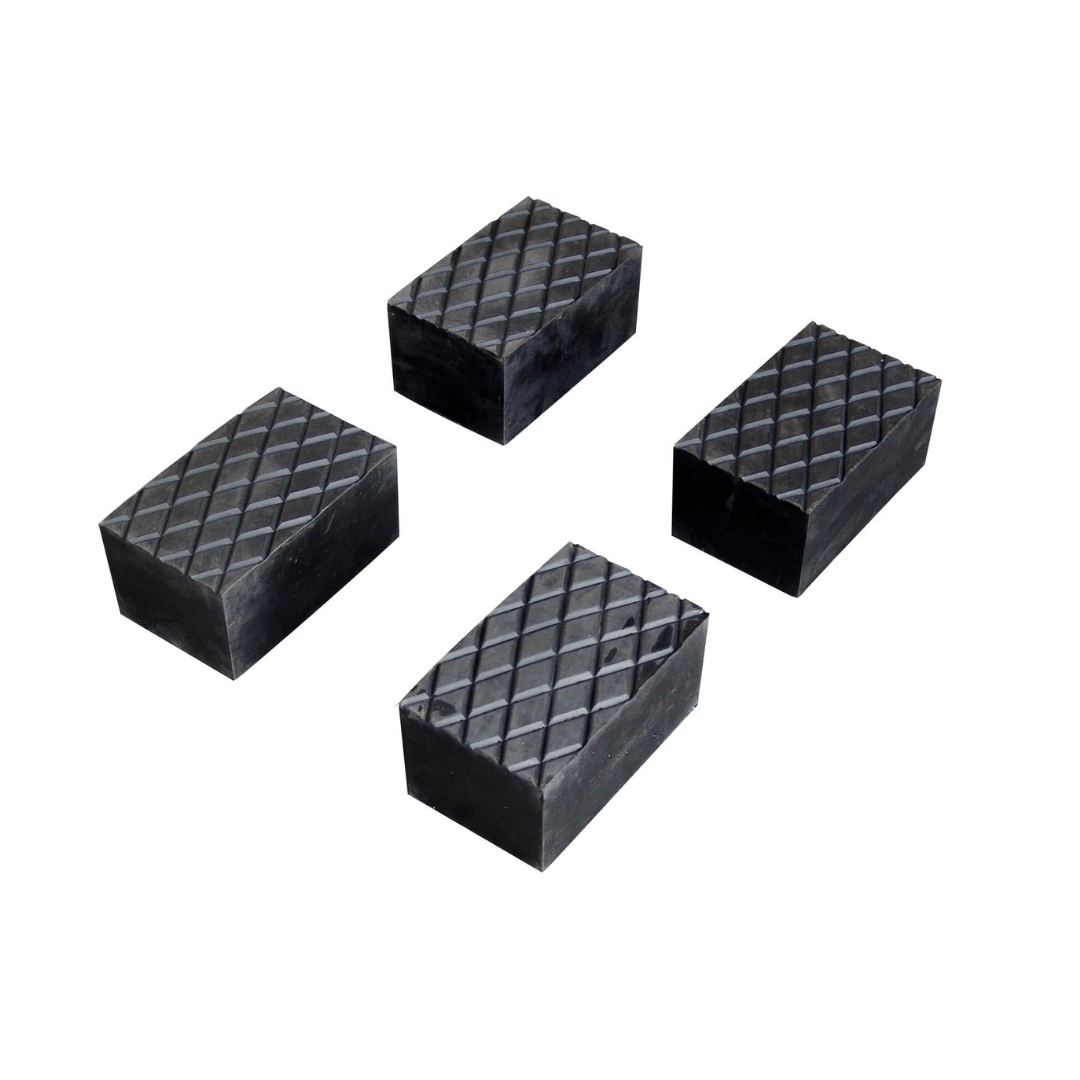

- Rubber Spacer Blocks Included
- Optional PL6K-ARMKIT for Frame Lifting
- Optional PL6K-HEIGHT-ADAPTER Extensions for Frame Lifting

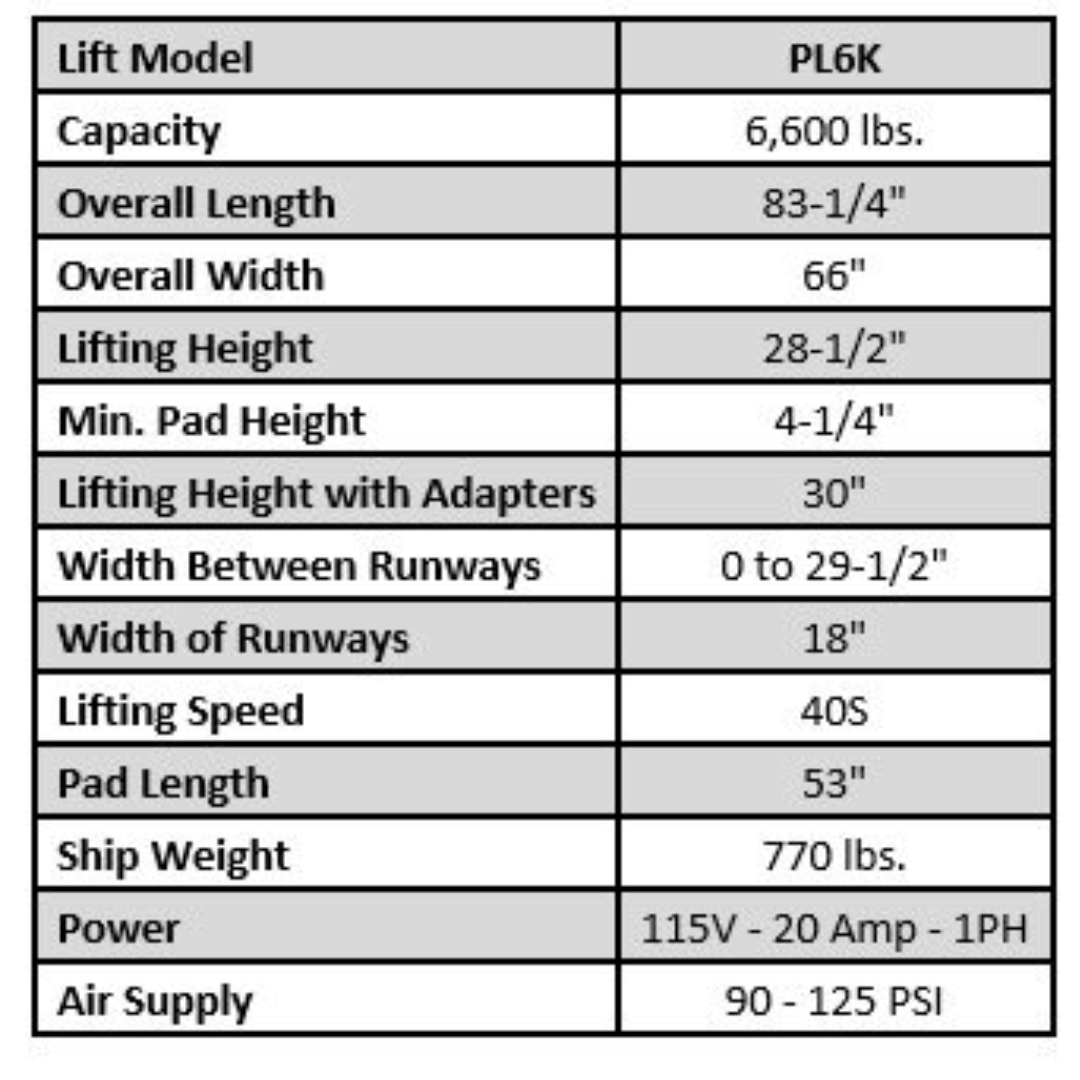

Product Specifications
| Lift Model | PL6K |
| Capacity | 6,600 lbs |
| Overall Length | 83 1/4″ |
| Overall Width | 66″ |
| Lifting Height | 28 1/2″ |
| Min. Pad Height | 4 1/4″ |
| Lifting Height with Adapters | 30″ |
| Width Between Runways | 0 to 29 1/2″ |
| Width of Runways | 18″ |
| Lifting Speed | 40 seconds |
| Pad Length | 53″ |
| Ship Weight | 770 lbs |
| Power | 115V – 15 Amp – 1PH |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California – Orlando, Florida – Norcross, Georgia – Elwood, Indiana – St. Cloud, Minnesota – Reidsville, NC – Pottsville, Pennsylvania – Alvarado, Texas – West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
�
Downloads
Brochure
Manual
Warranty
�
