Description
Product Description

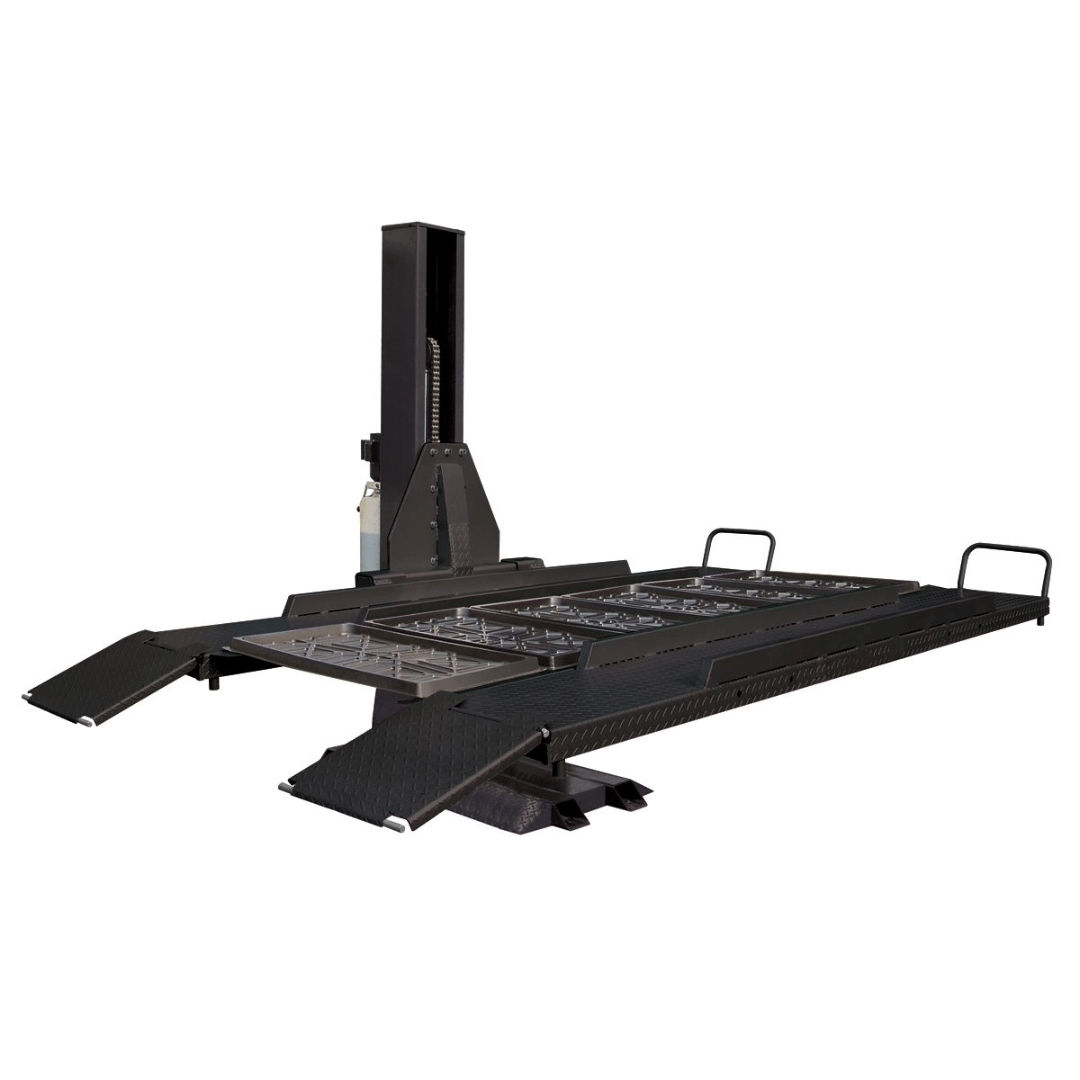

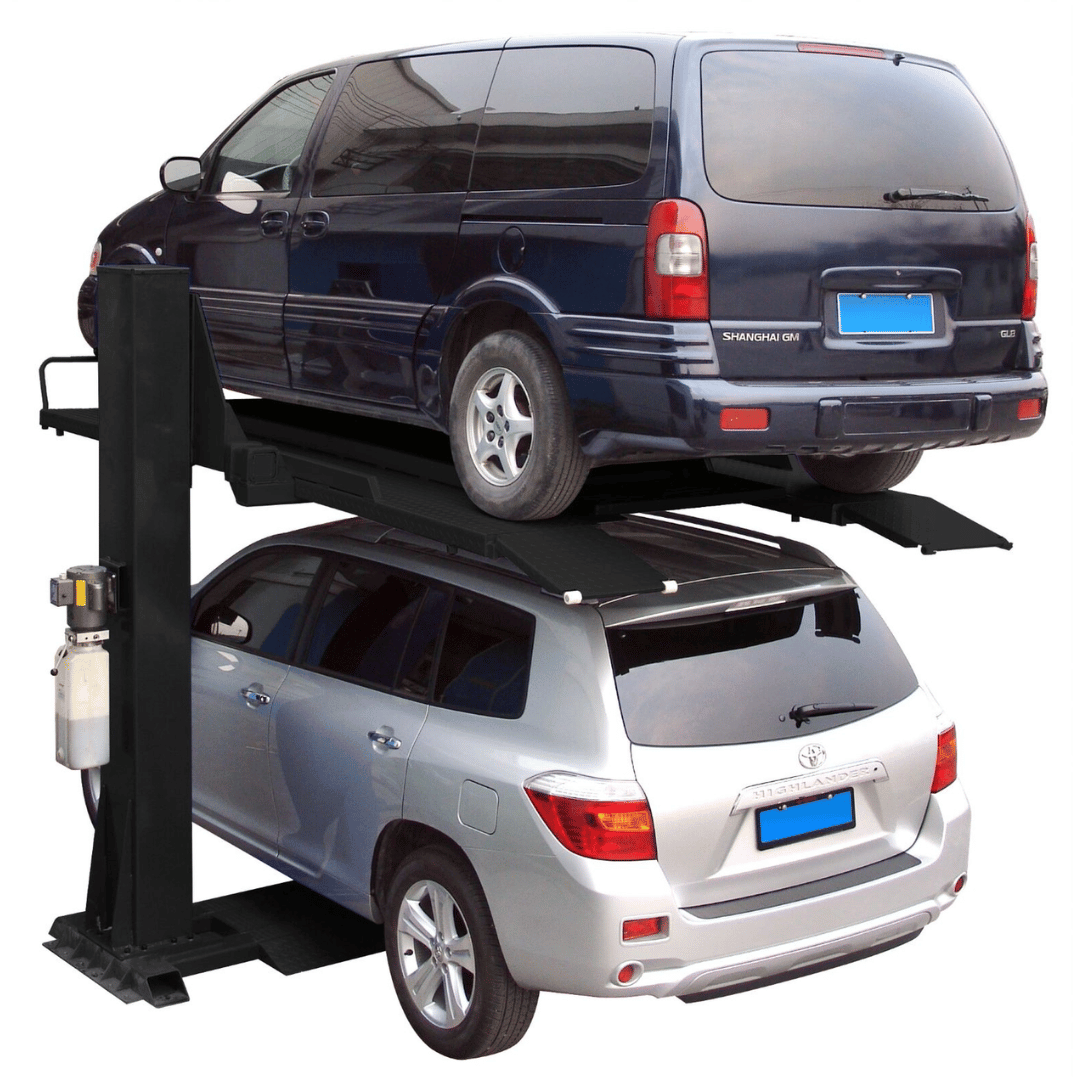

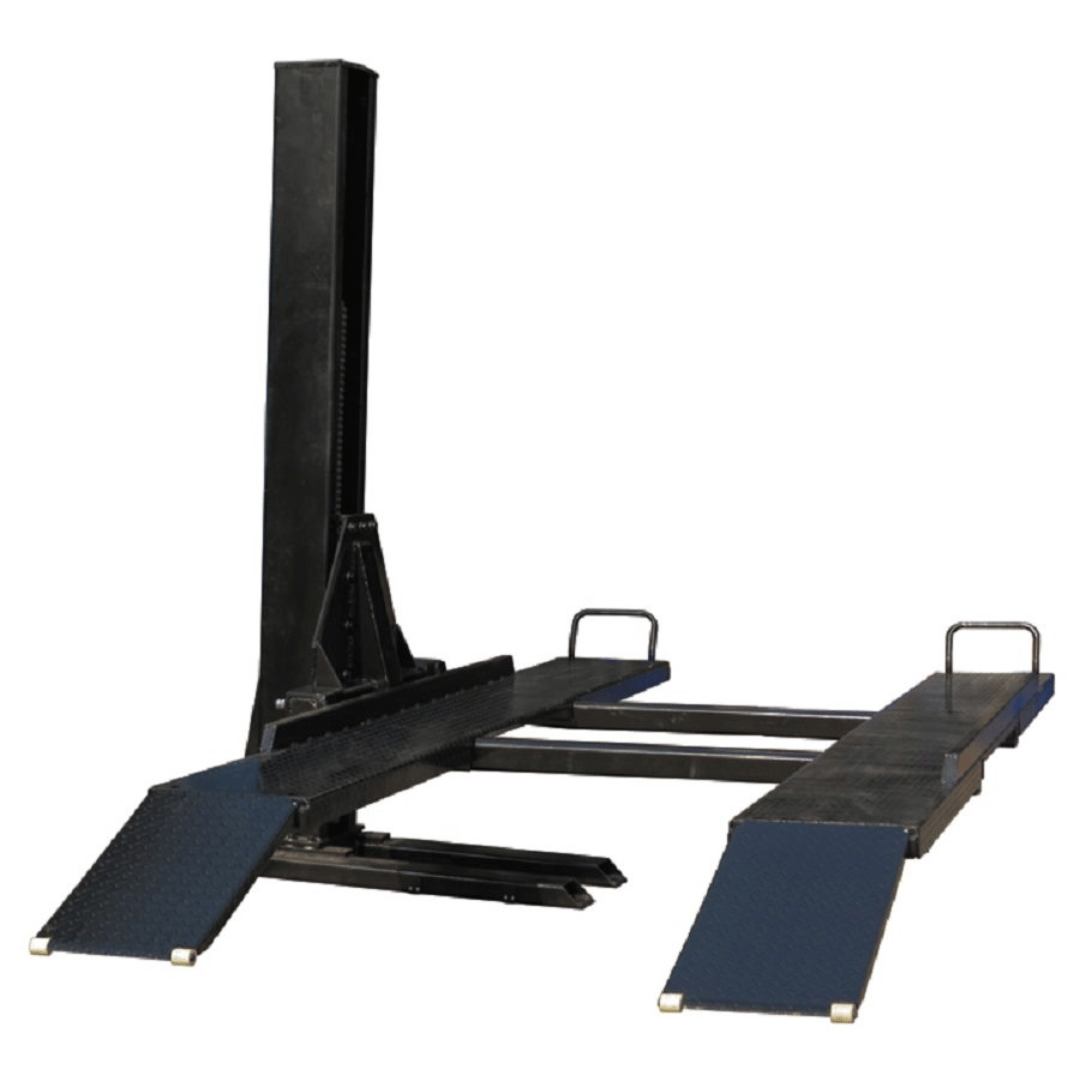

TUXEDO SP-6K-SS 6,000 lb Single Post Storage Lift
Product Features
- 6,000 lbs capacity
- Low Profile approach ramps for vehicles with low ground clearance
- Tuxedo single-post storage lift can be installed to lift from the left or right side.
- Lift can be installed to lift from left or right side
- Minimal footprint allows for multiple installations
- Low post height allows for low
- Commercial grade hydraulic cylinder and heavy-duty leaf chain
- Reliable DURO electric/hydraulic pump

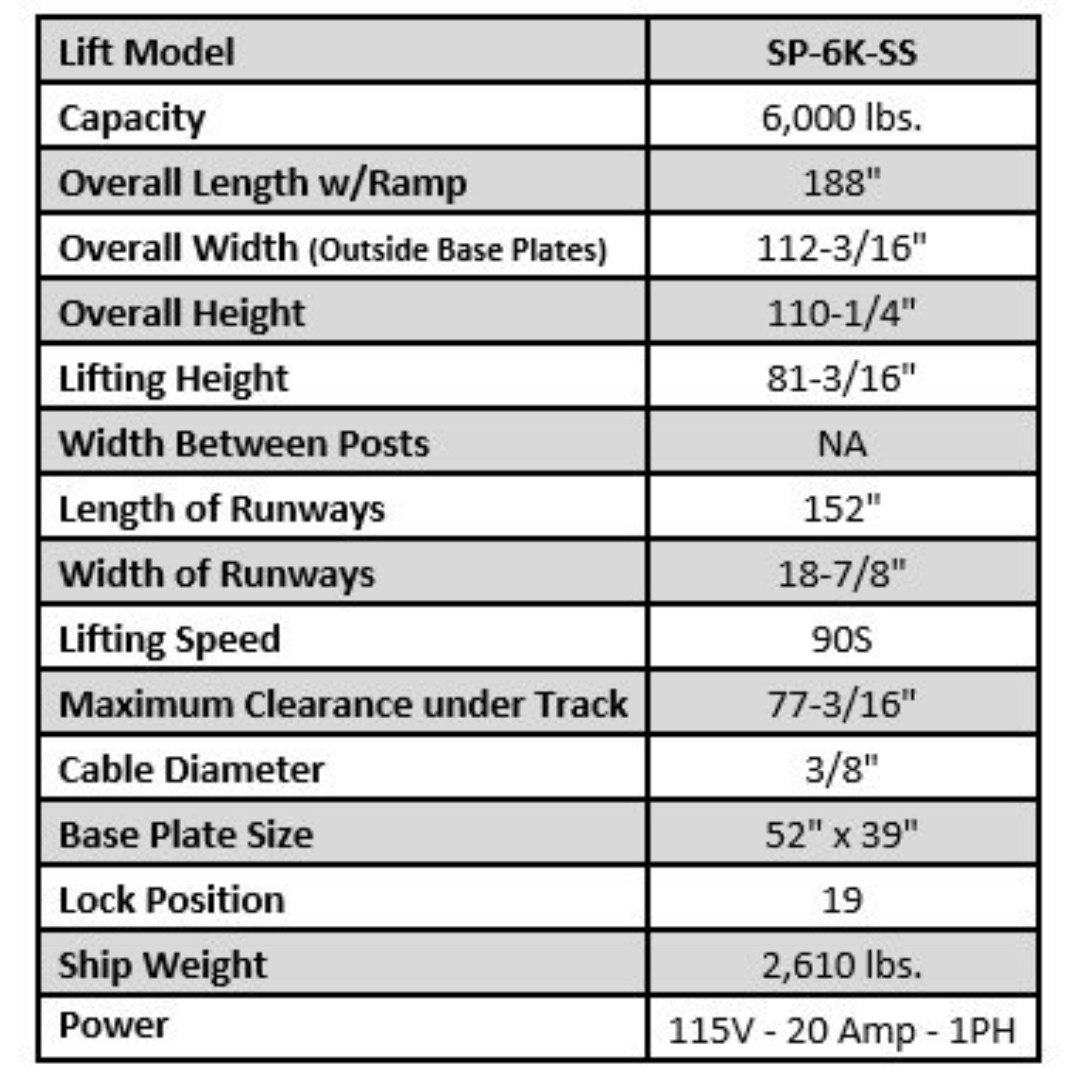

Product Specifications
| Lift Model | SP-6K-SS |
| Capacity | 6,000 lbs |
| Overall Length w/Ramp | 188″ |
| Overall Width (Outside Base Plates) | 112-3/16″ |

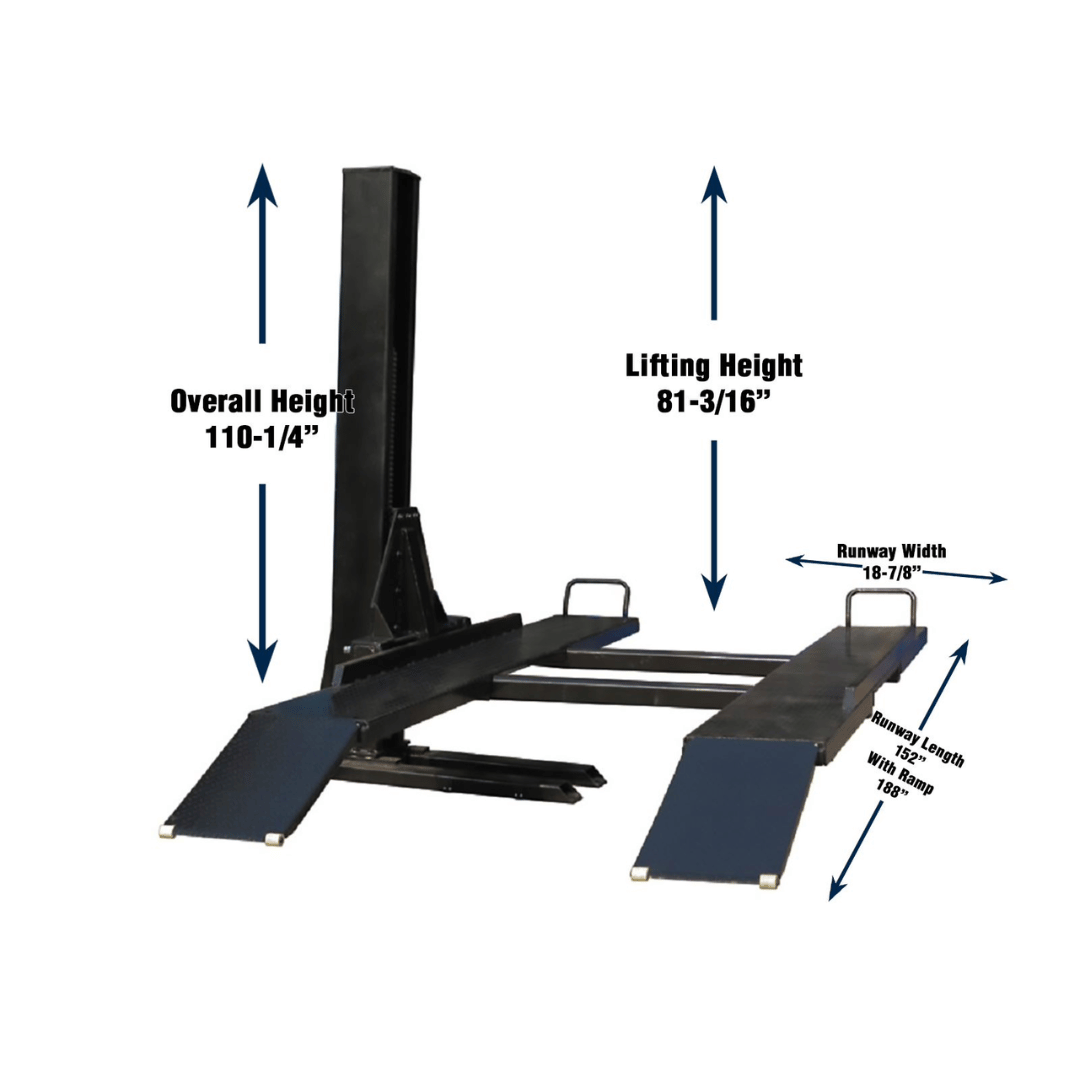

| Overall Height | 110-1/4″ |
| Lifting Height | 81-3/16″ |
| Length of Runways | 152″ |
| Width of Runways | 18-7/8″ |
| Lifting Speed | 90 Seconds |
| Maximum Clearance under Track | 77-3/16″ |
| Cable Diameter | 3/8″ |
| Base Plate Size | 52″ x 39″ |
| Lock Position | 19 |
| Ship Weight | 2,610 lbs |
| Power | 115V – 20 Amp – 1PH |
