Product Description

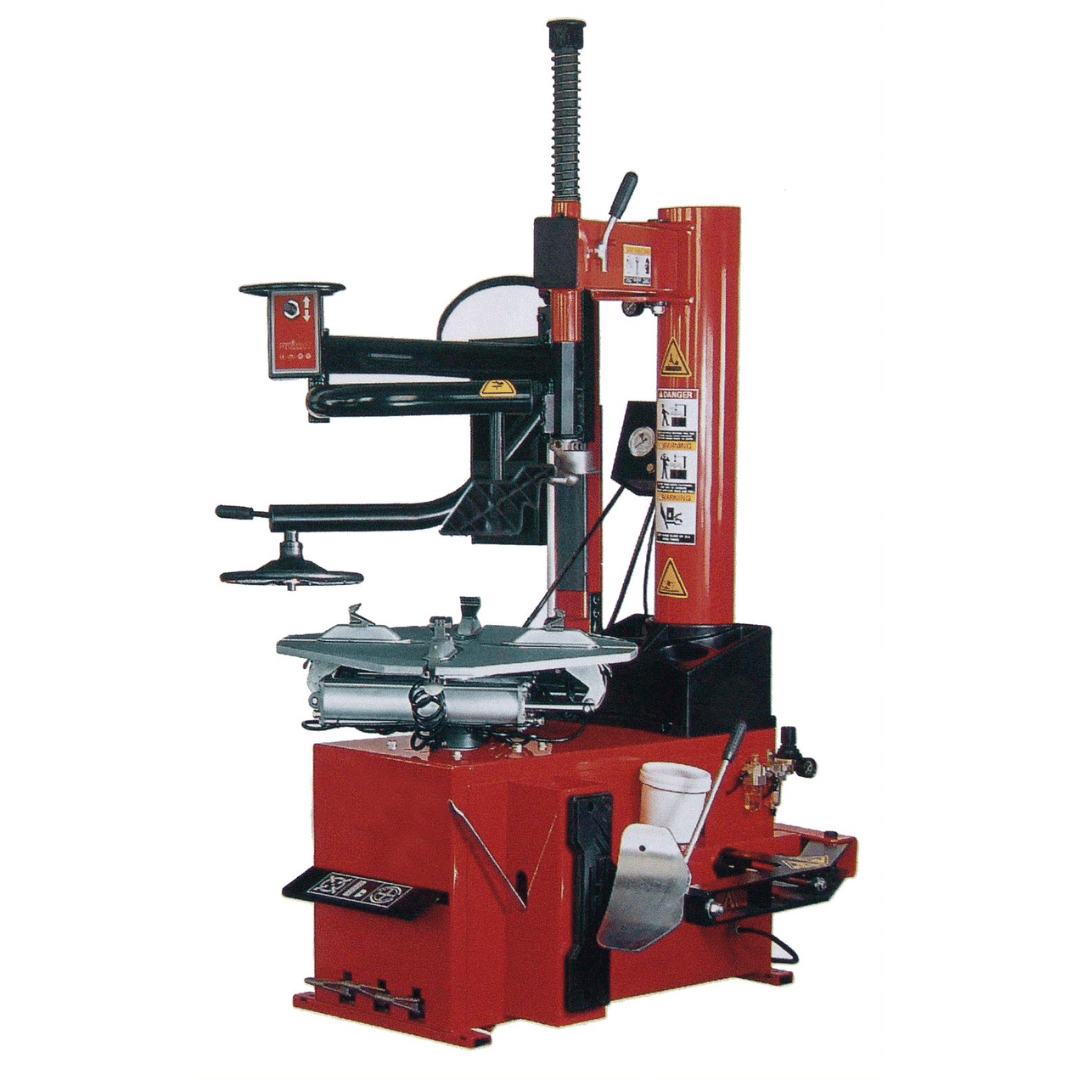

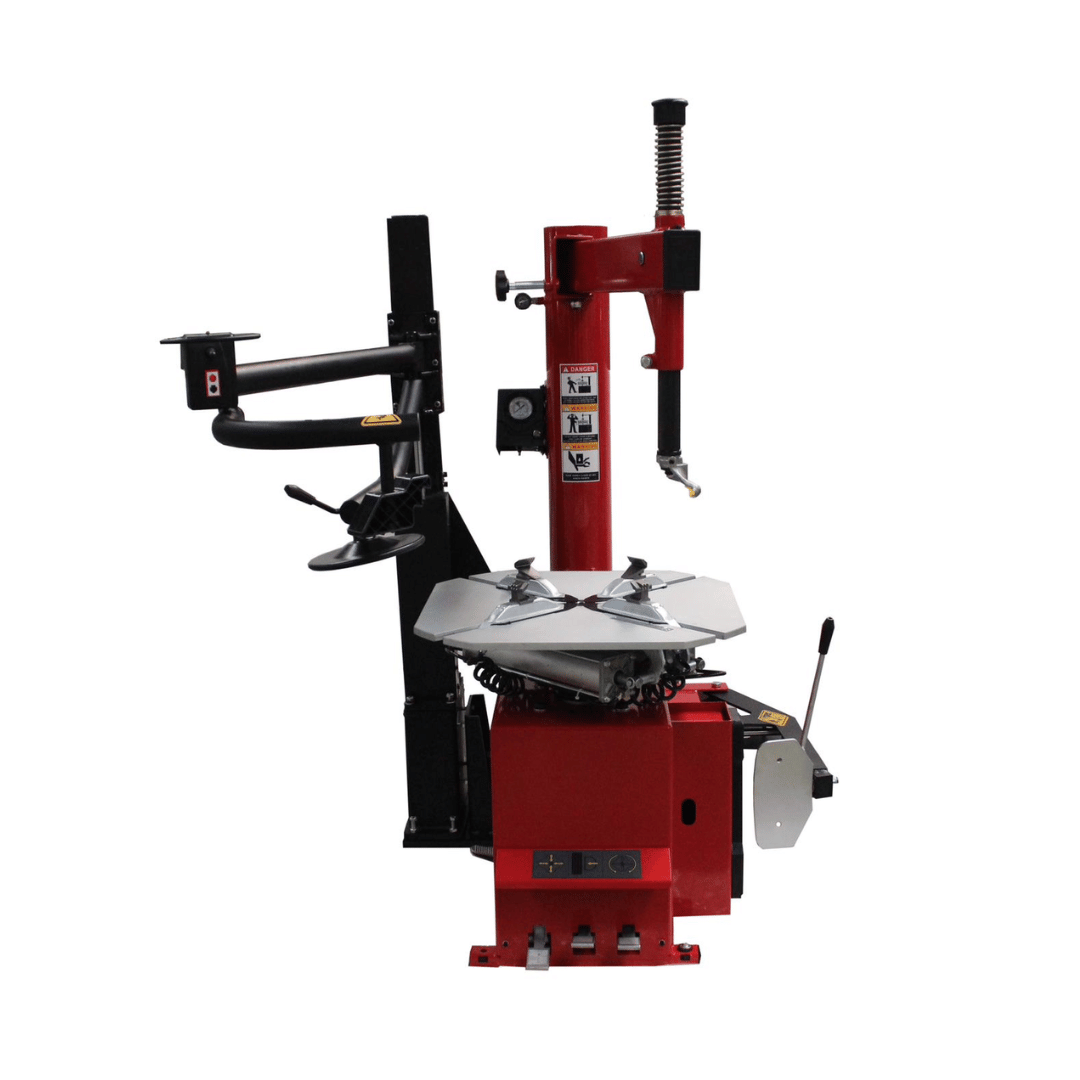

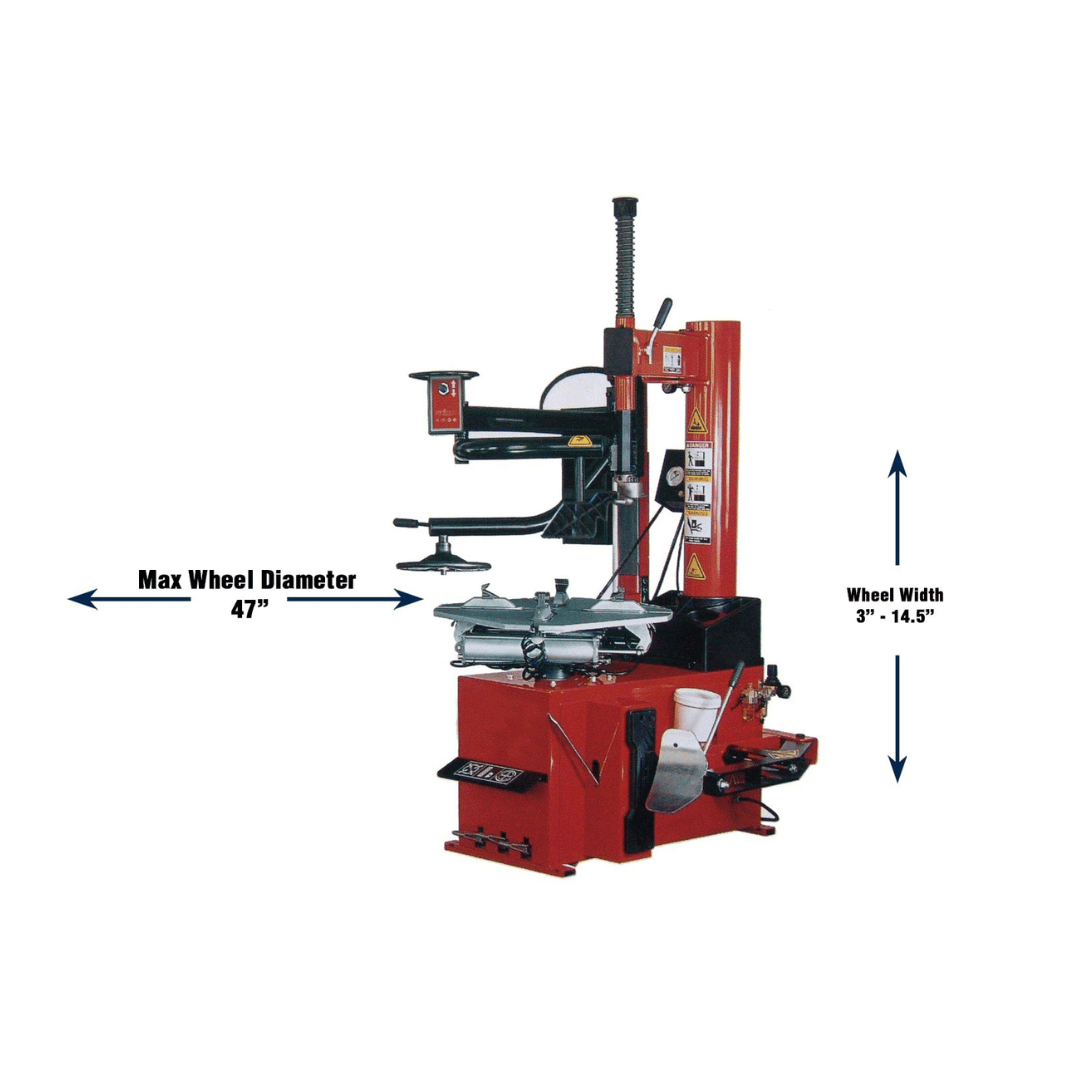

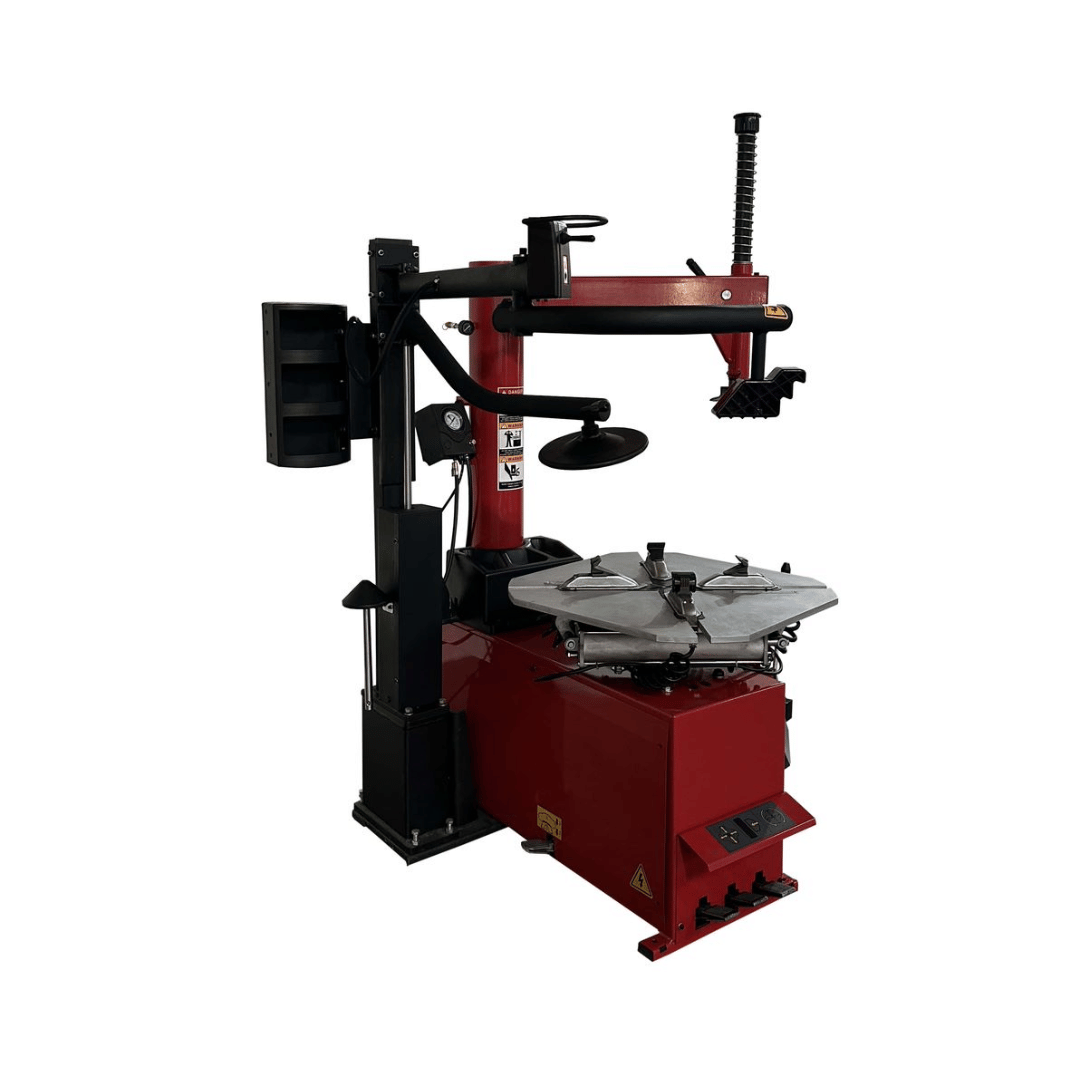

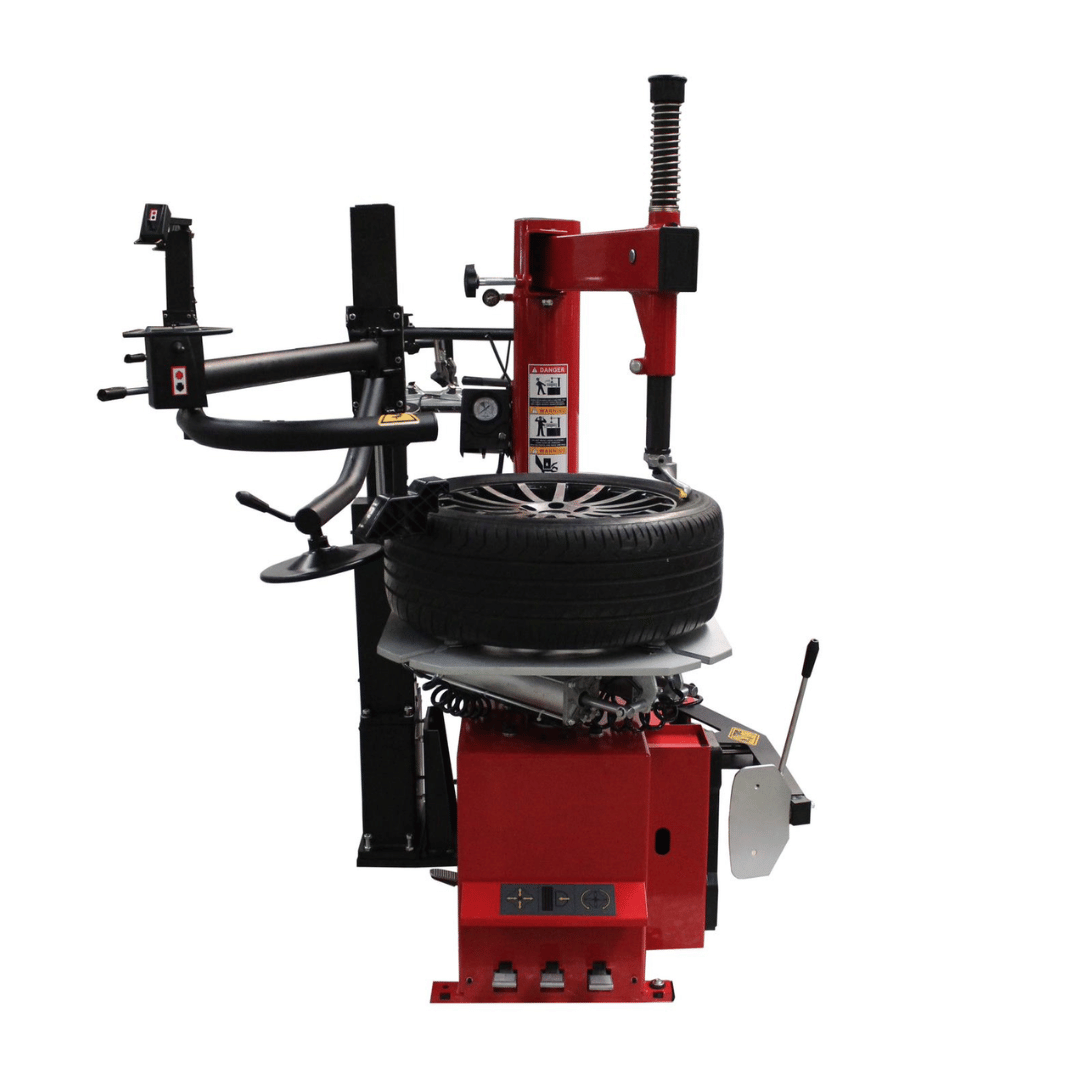

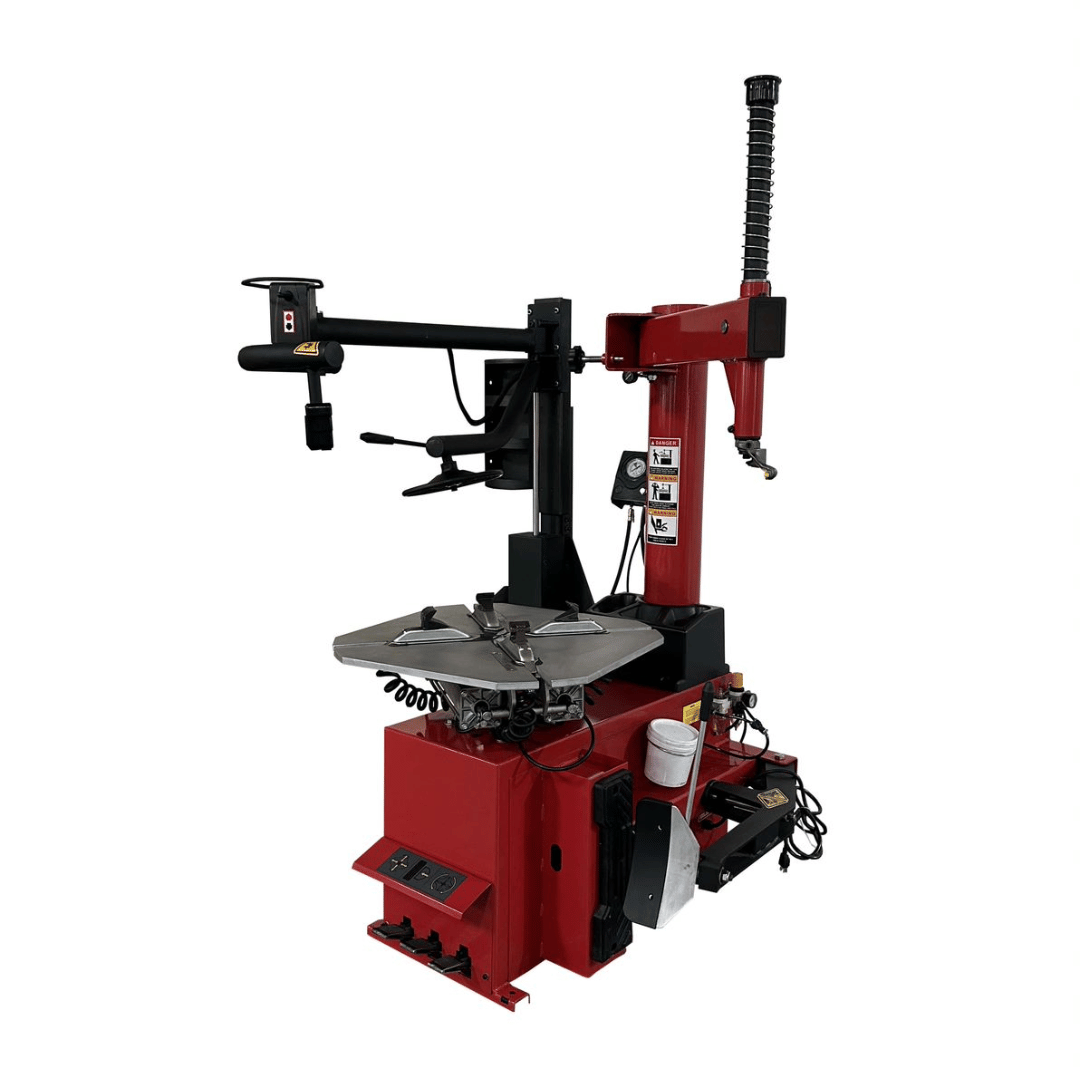

TC-950-WPA Tire Changer
Product Features

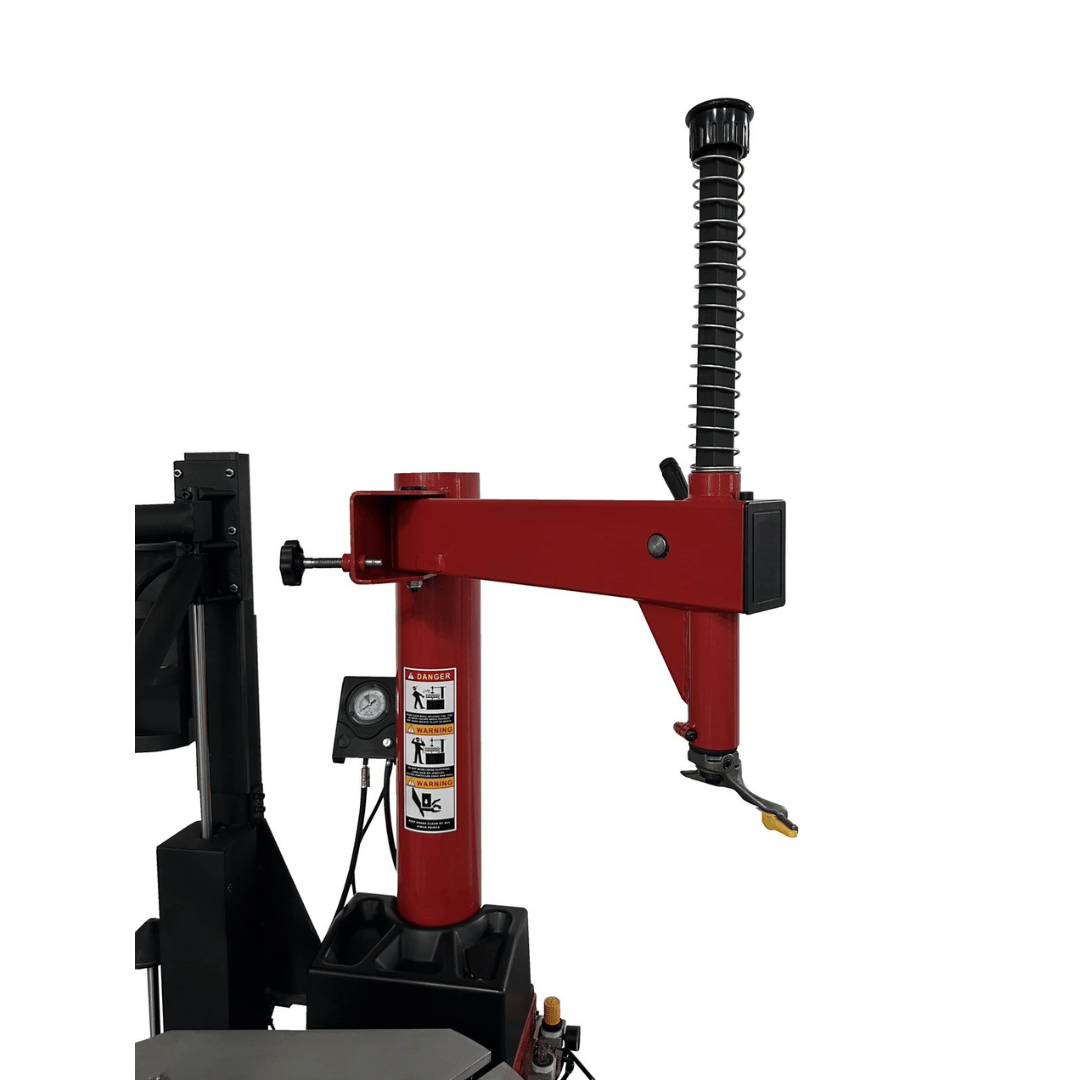

- Swing arm design
- Handles tires to 47” diameter and rim widths to 15”

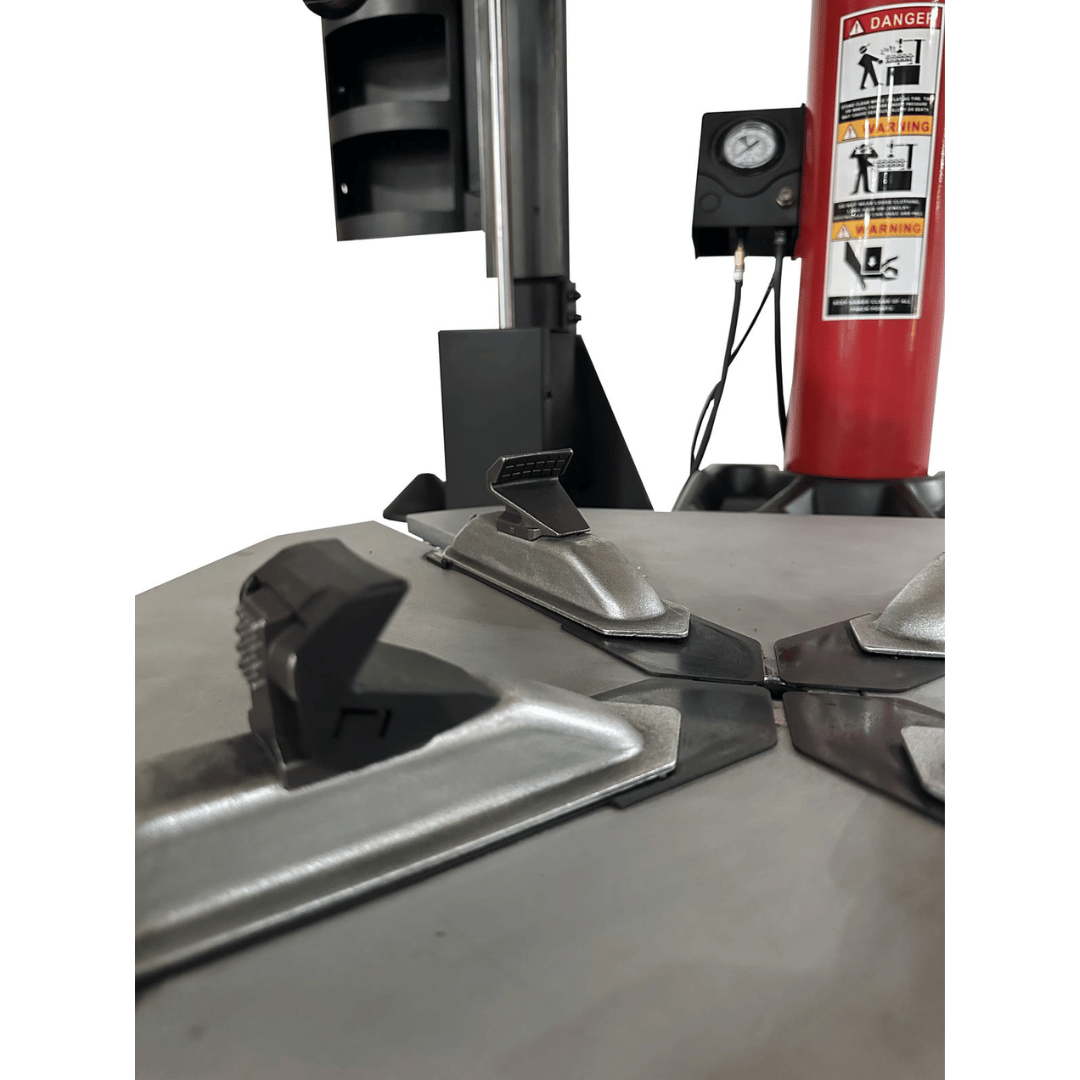

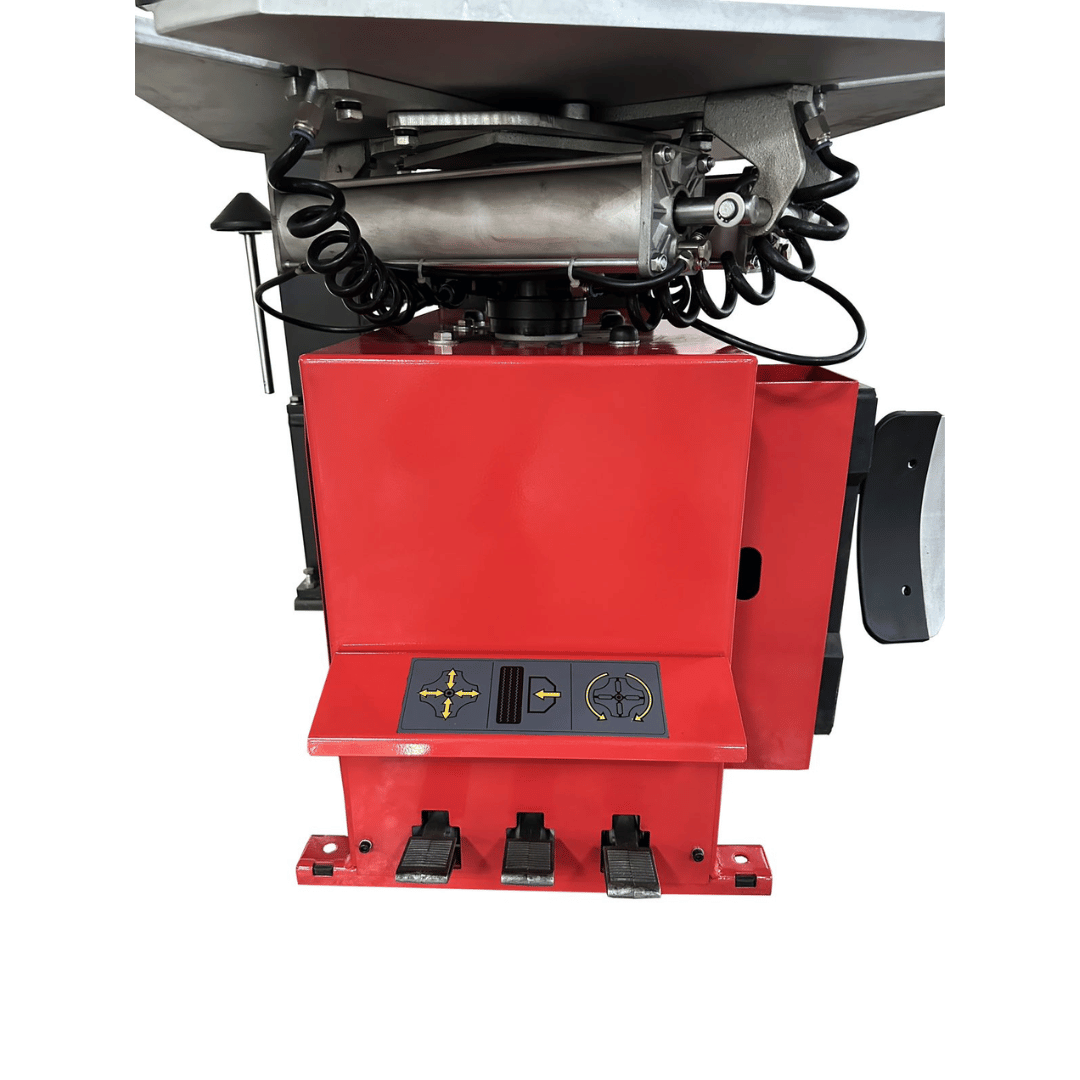

- Four pneumatic clamps and double acting cylinders
- Side mounted bead breaker

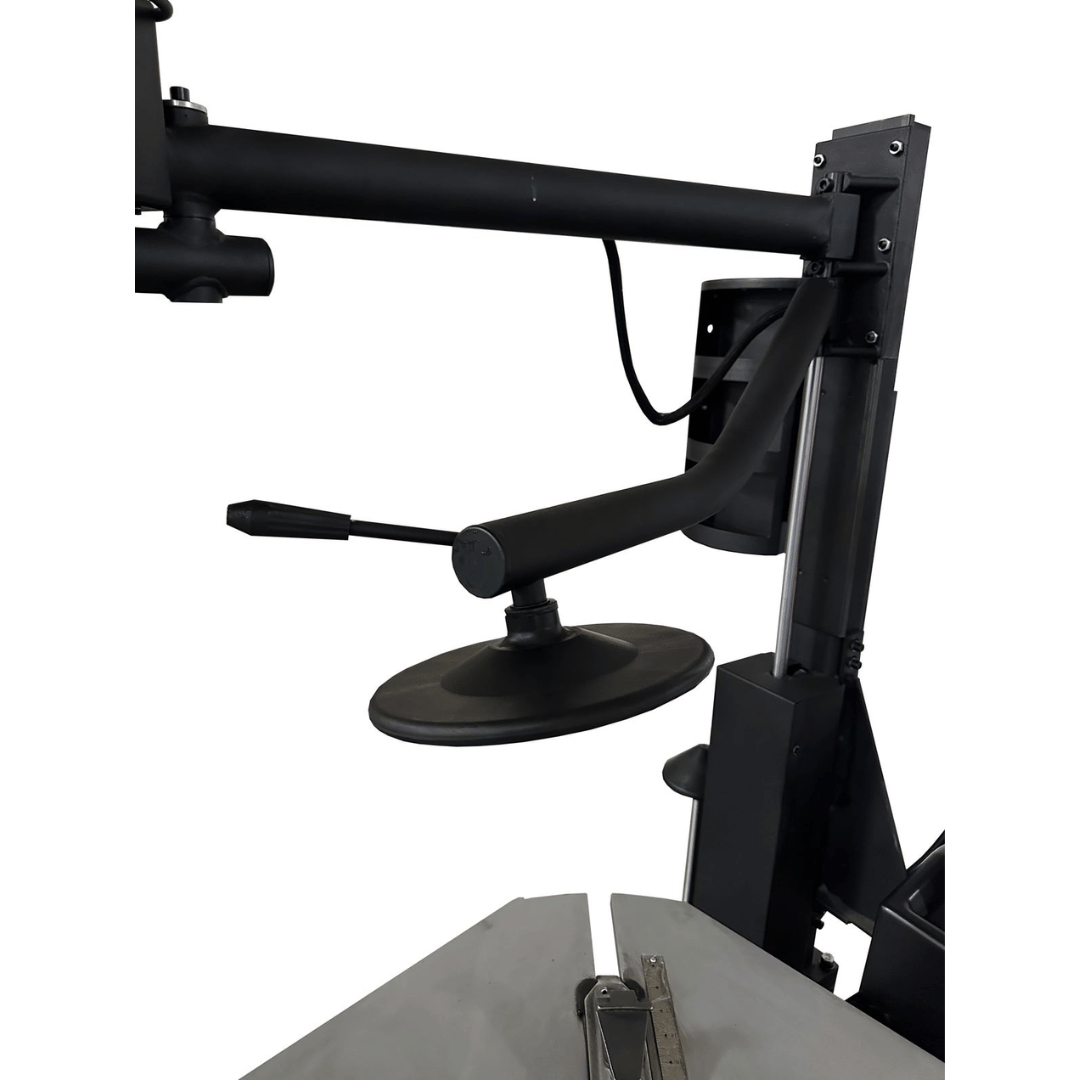

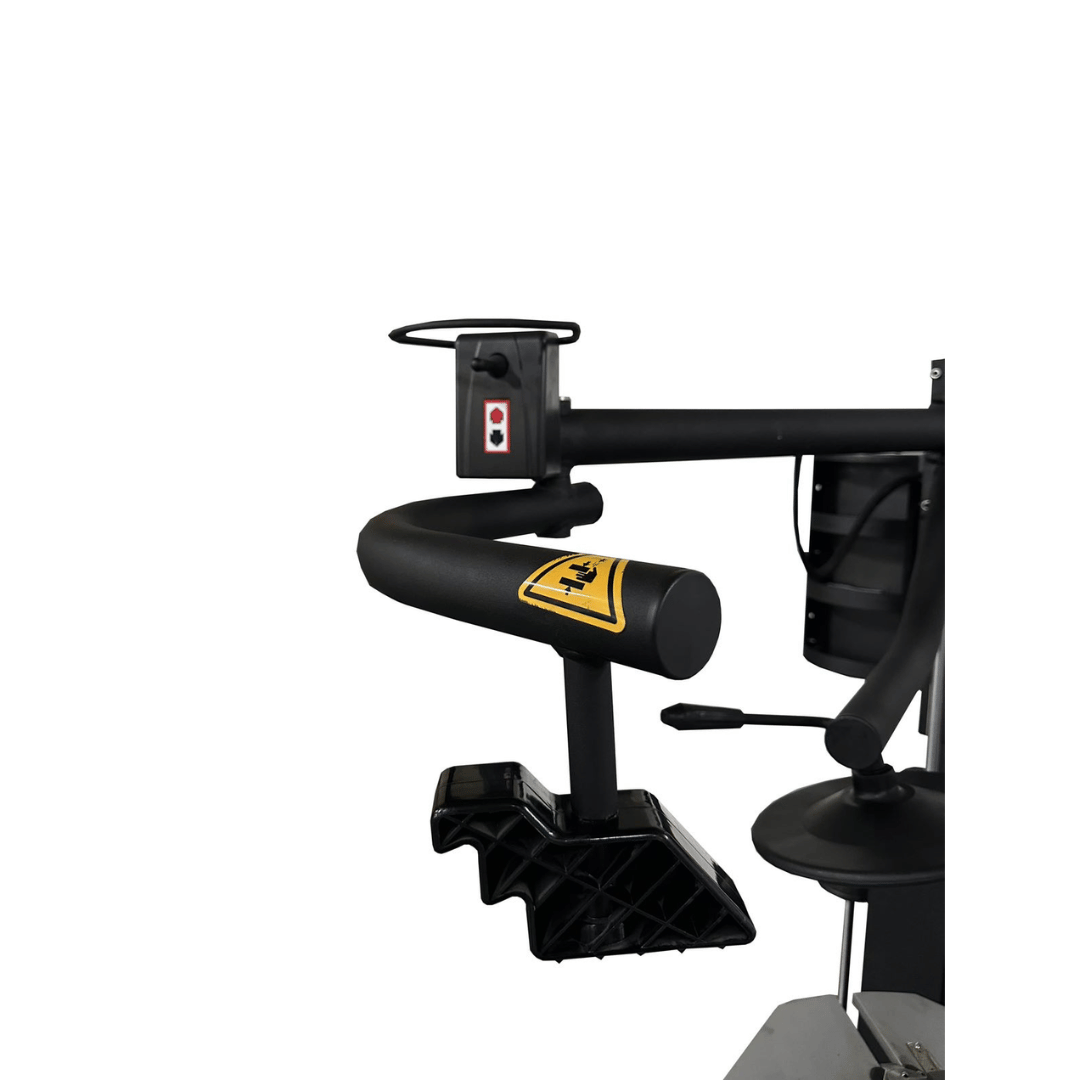

- Press arm for low profile tires
- Bead seating inflation jets in clamping jaws

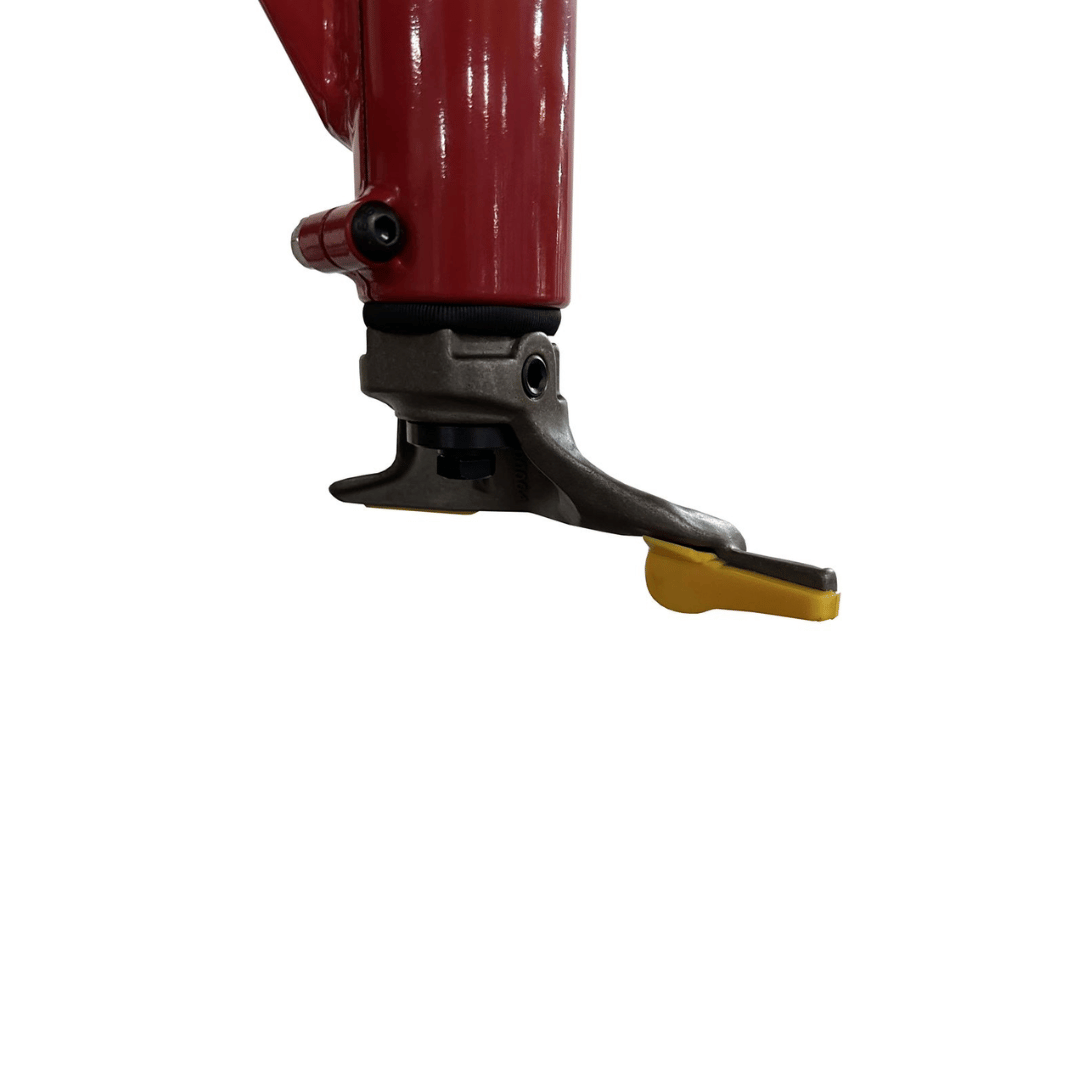

- No scratching. Machine never contacts rim

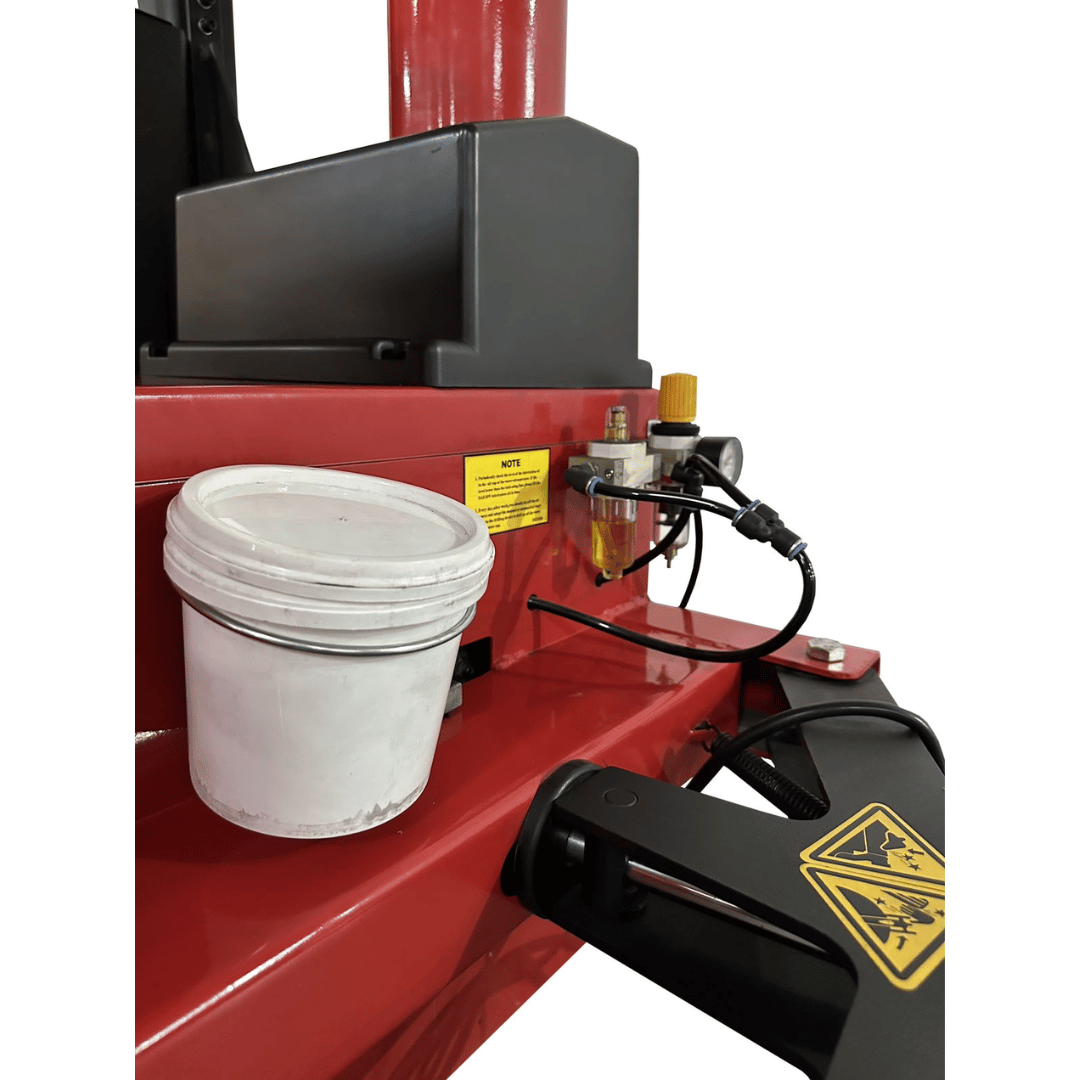

- Pressure regulator, oiler and water separator standard
- Lubricator, separator and air pressure

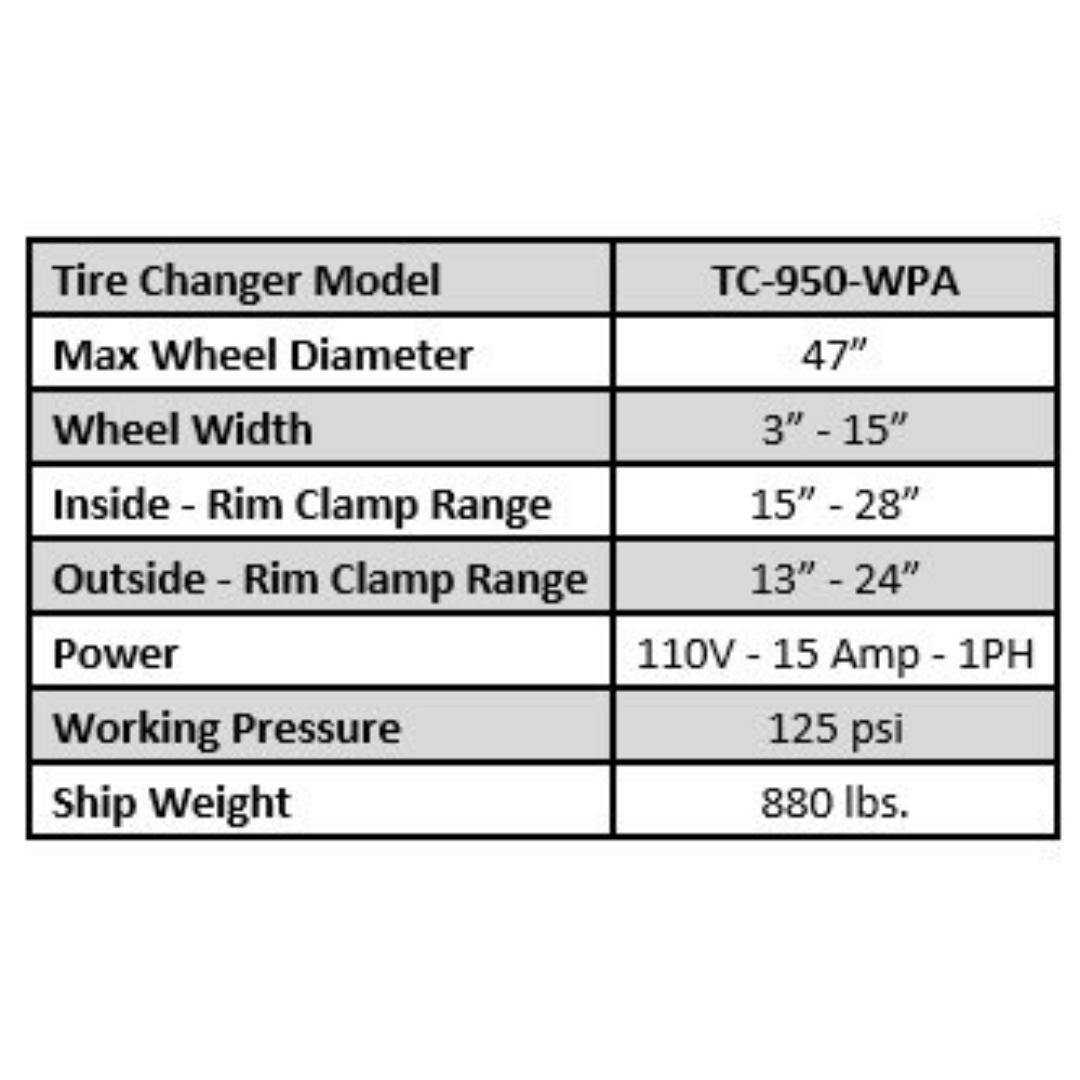

Product Specifications
| Product Model | TC-950-WPA |
| Max Wheel Diameter | 47” (1,194 mm) |
| Wheel Width | 3–15” (76-381 mm) |
| Inside – Rim Clamp Range | 15–28” (381-610 mm) |
| Outside – Rim Clamp Range | 13–24” (330-610 mm) |
| Power | 110V – 15 Amp – 1PH |
| Working Pressure | 125 psi |
| Shipping Weight | 880 lbs |
�
