Description
Product Description

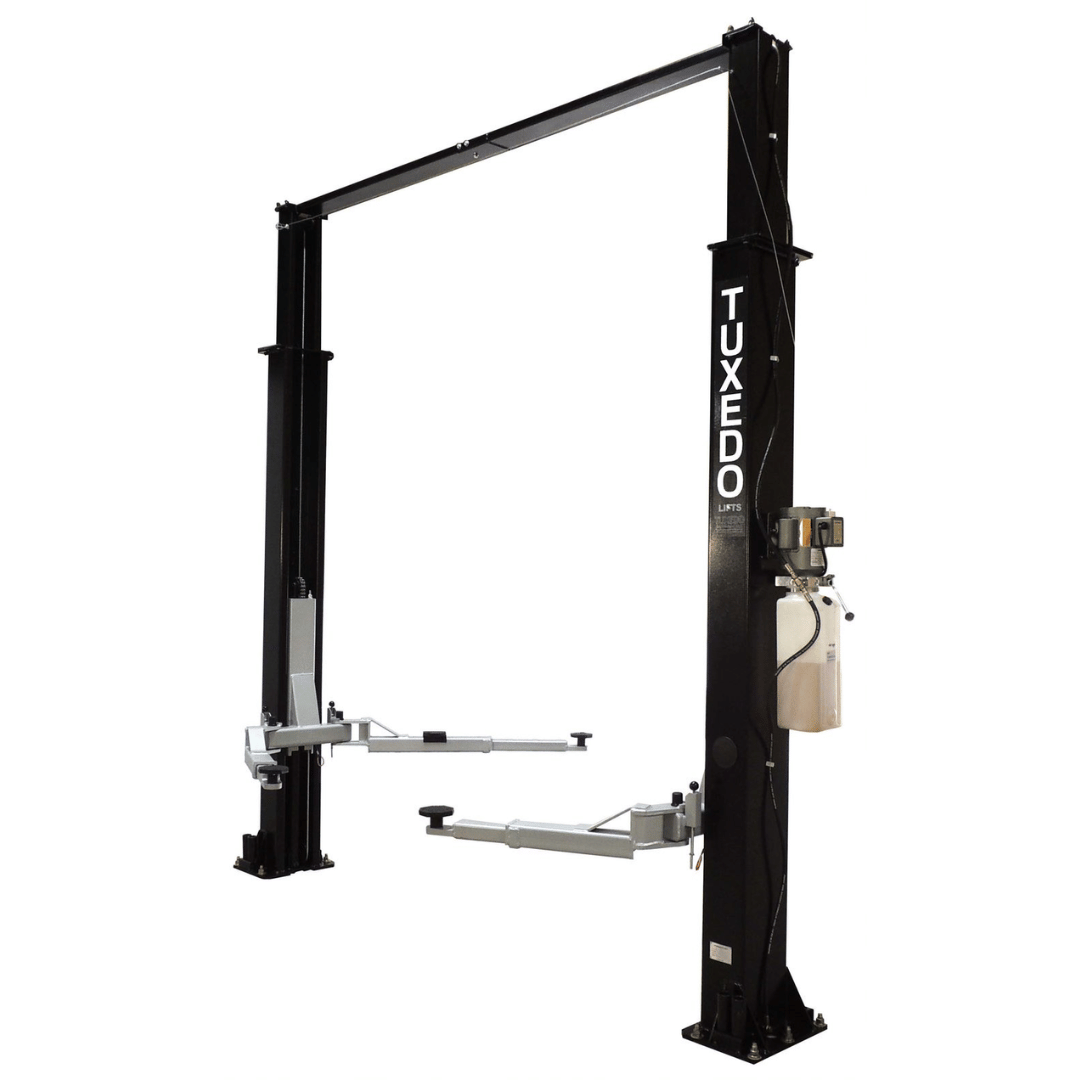

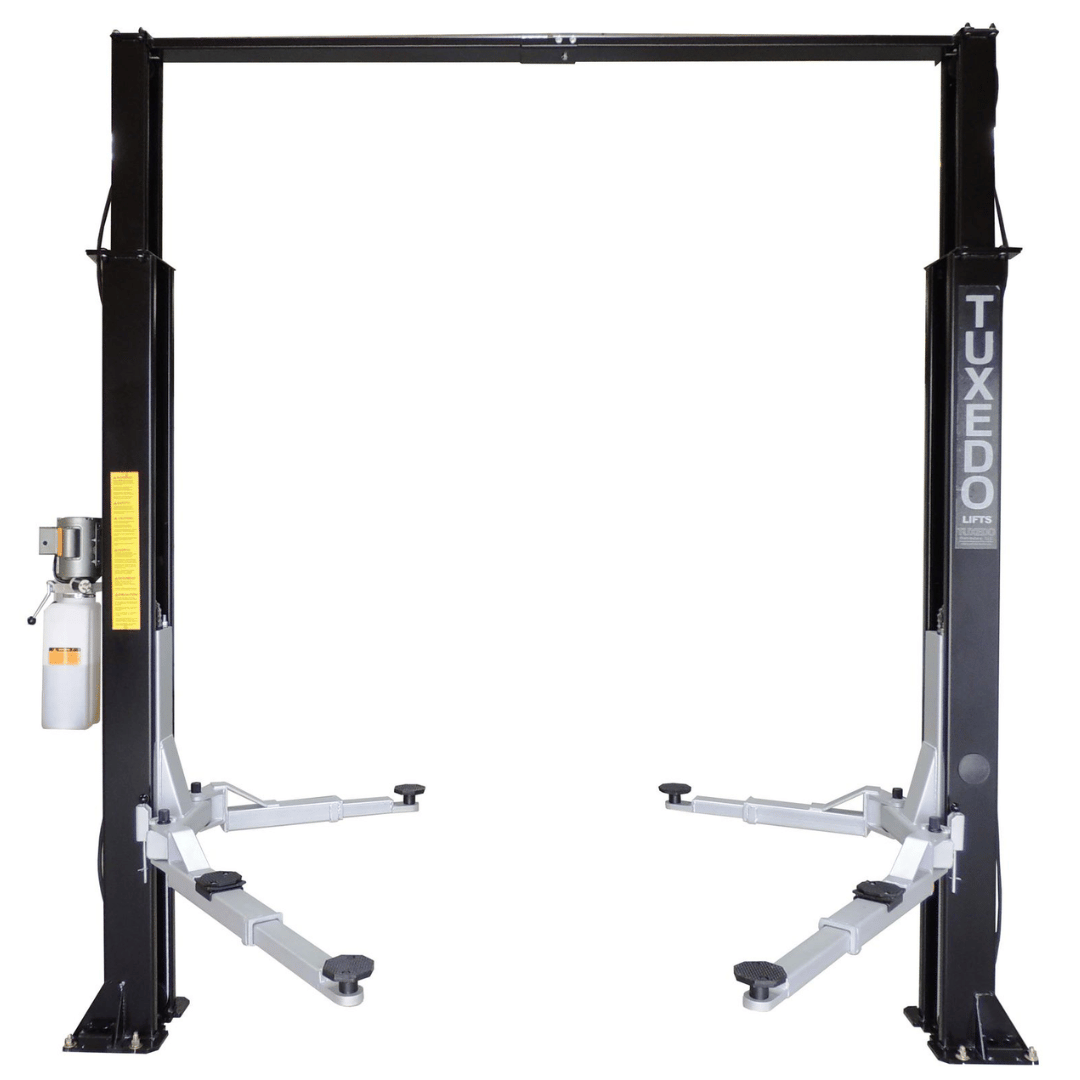

TUXEDO – TP9KAC-TUX Tuxedo, Two Post Clear Floor
Product Features
- 9,000 lbs capacity

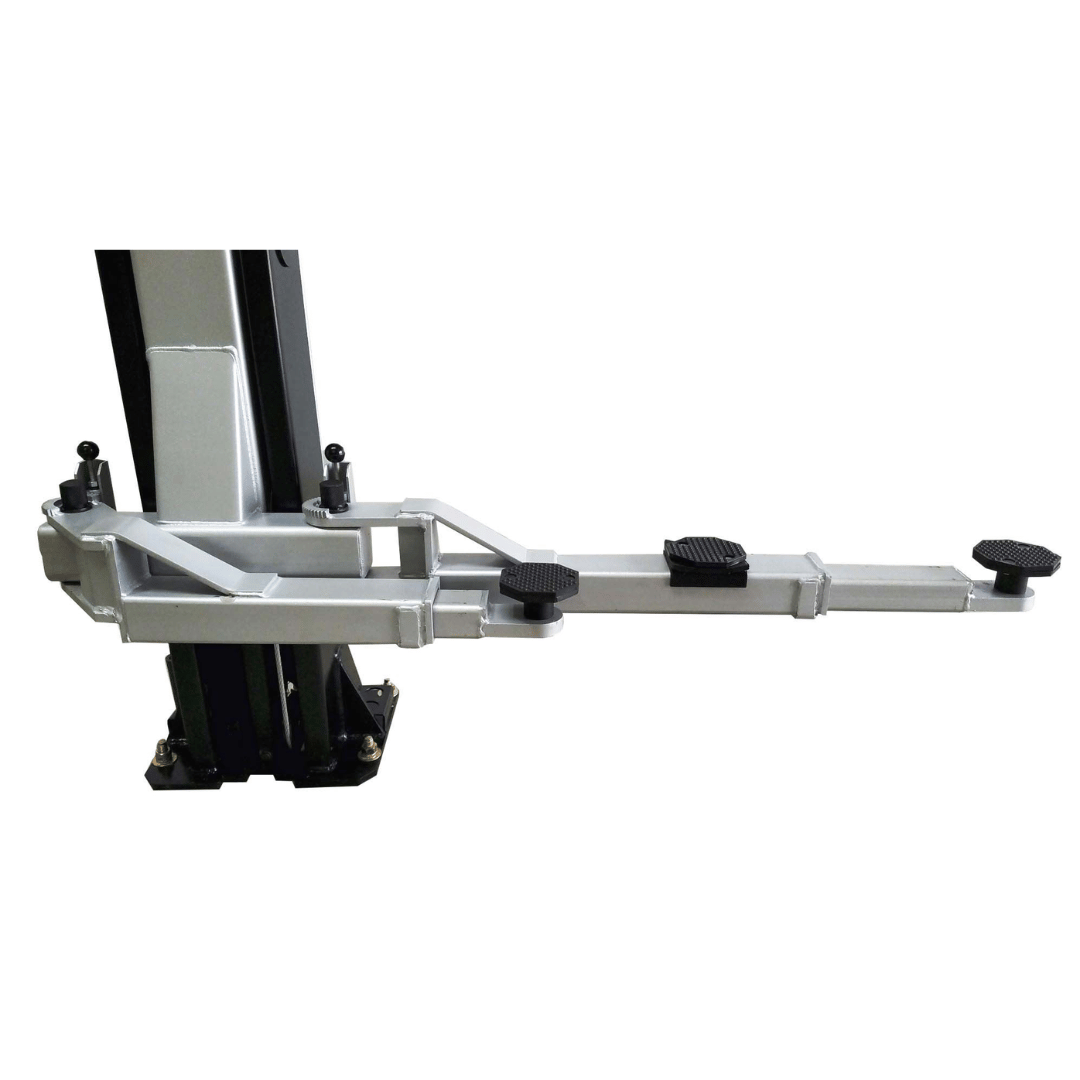

- Asymmetric Arms
- Chain Drive Cylinders

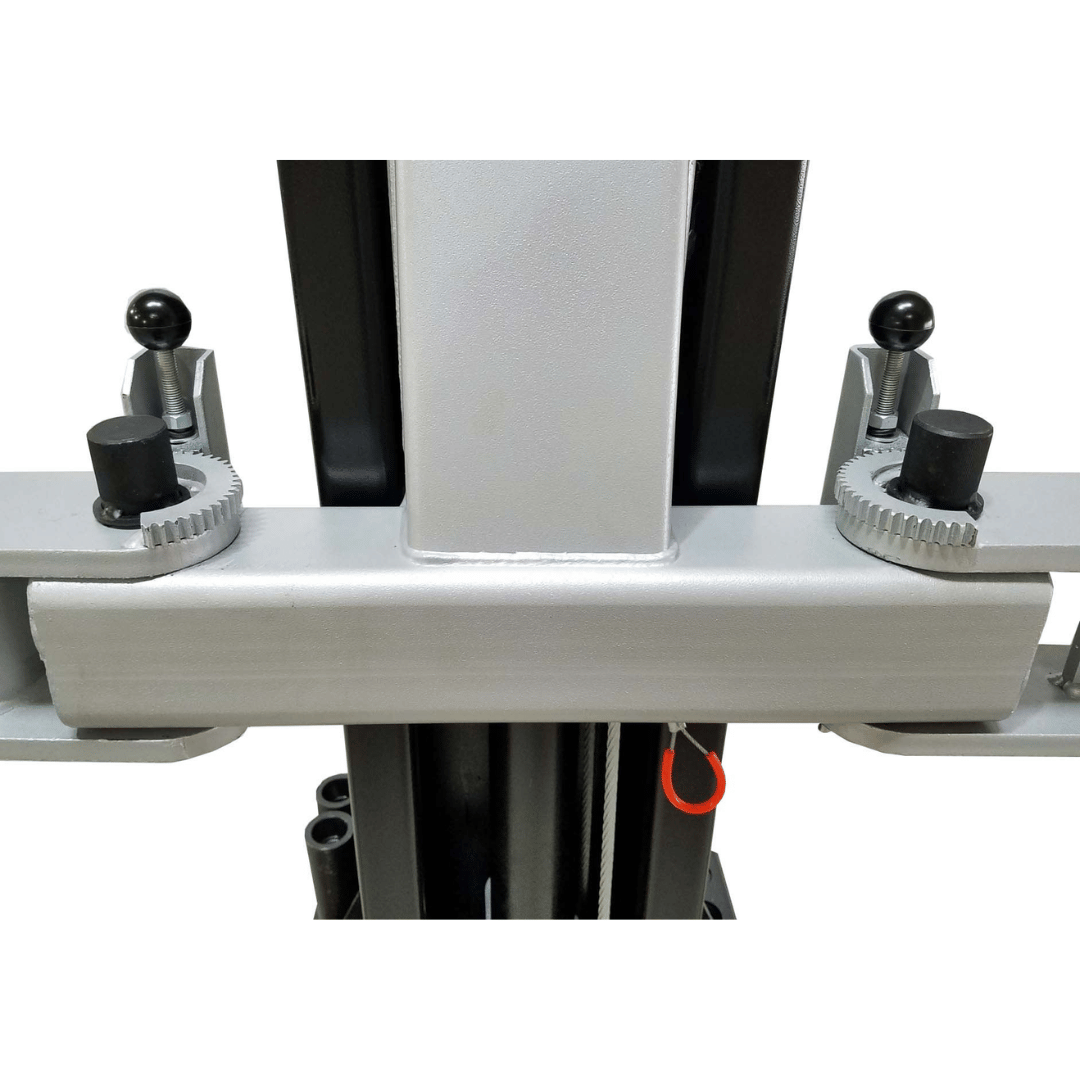

- Dual Point Lock Release
- Auto Arm Restraint System

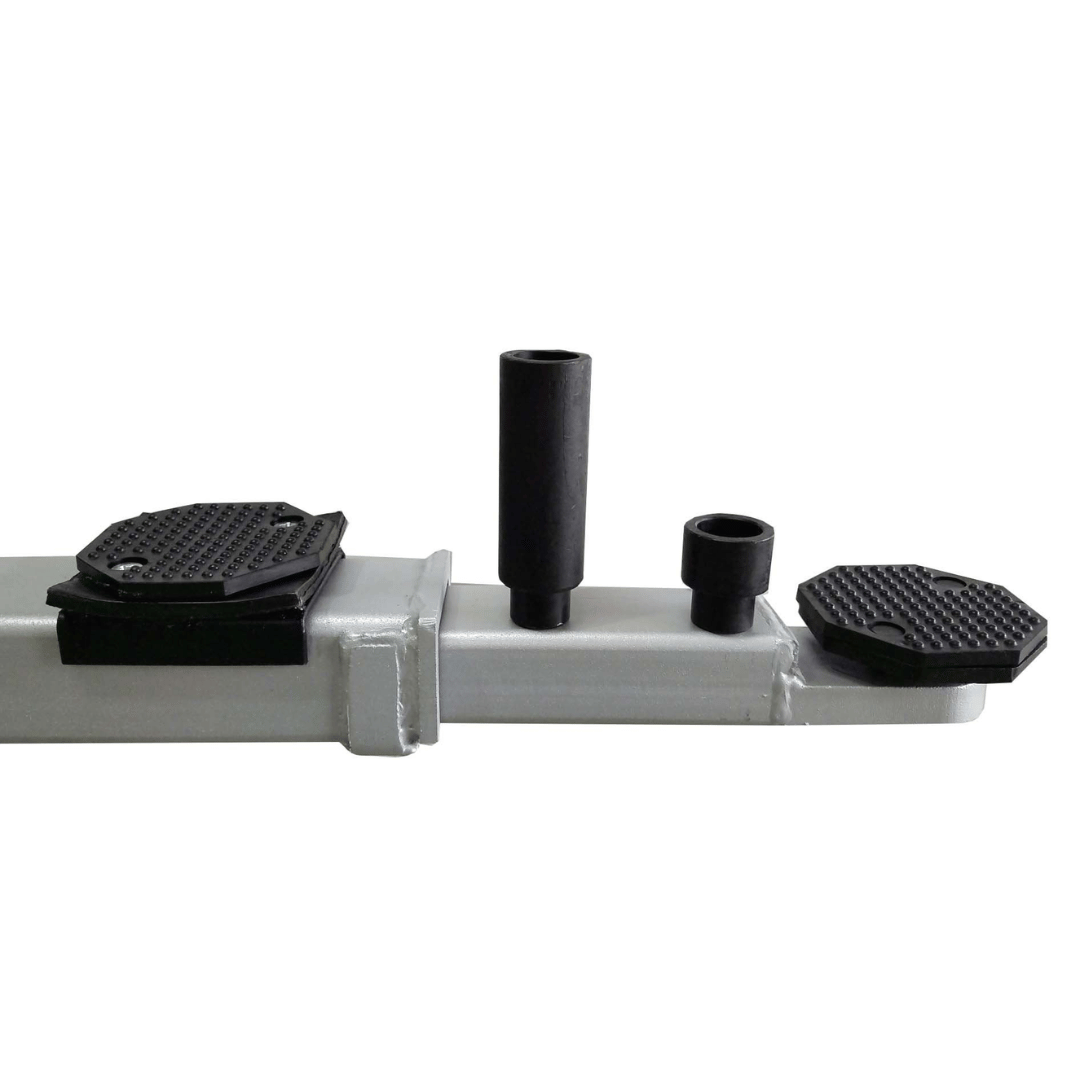

- Low profile drop-in Lift Pads
- SADDLE PAD ADAPTORS (1 Pair)
- Stackable Adapters Included
- Black color standard

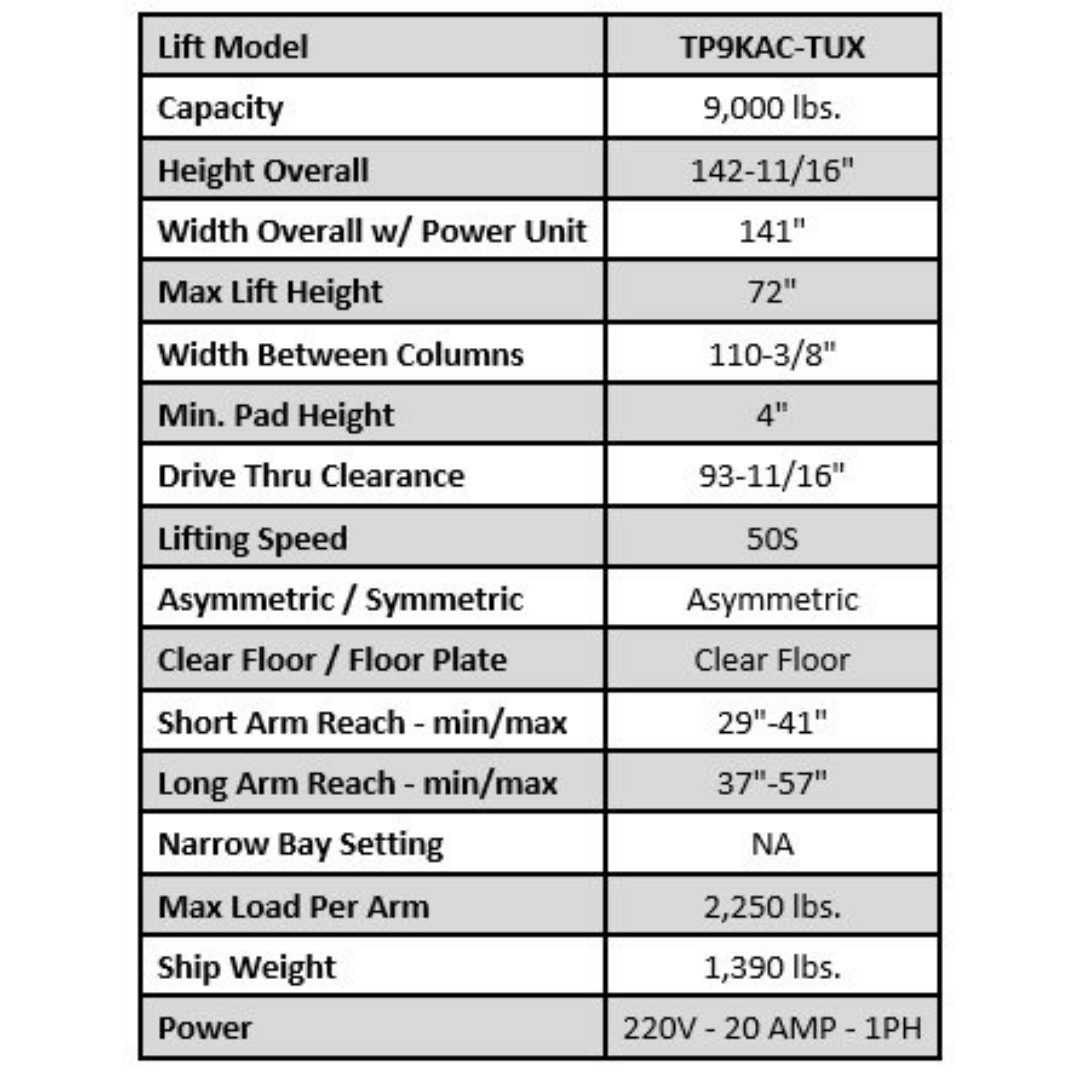

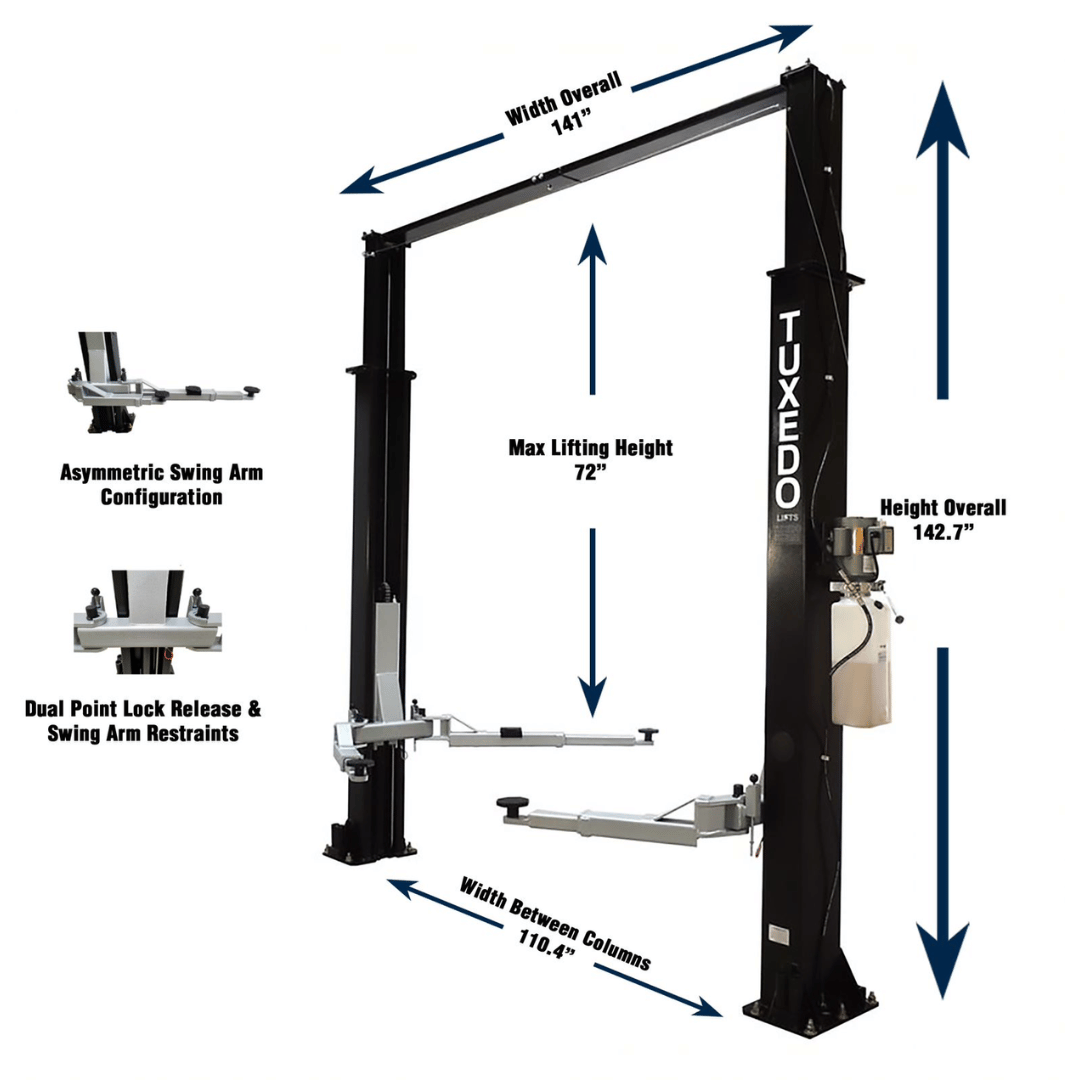

Product Specifications
| Lift Model | TP9KAC-TUX |
|---|---|
| Capacity | 9,000 lbs |
| Height Overall | 142-11/16″ |
| Width Overall w/ Power Unit | 141″ |
| Max Lift Height | 72″ |
| Width Between Columns | 110-3/8″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 93-11/16″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Asymmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 29″-41″ |
| Long Arm Reach – min/max | 37″-57″ |
| Max Load Per Arm | 2,250 lbs |
| Ship Weight | 1,390 lbs |
| Power | 220V – 20 Amp – 1PH |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California – Orlando, Florida – Norcross, Georgia – Elwood, Indiana – St. Cloud, Minnesota – Reidsville, NC – Pottsville, Pennsylvania – Alvarado, Texas – West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
�
