Description
Product Description

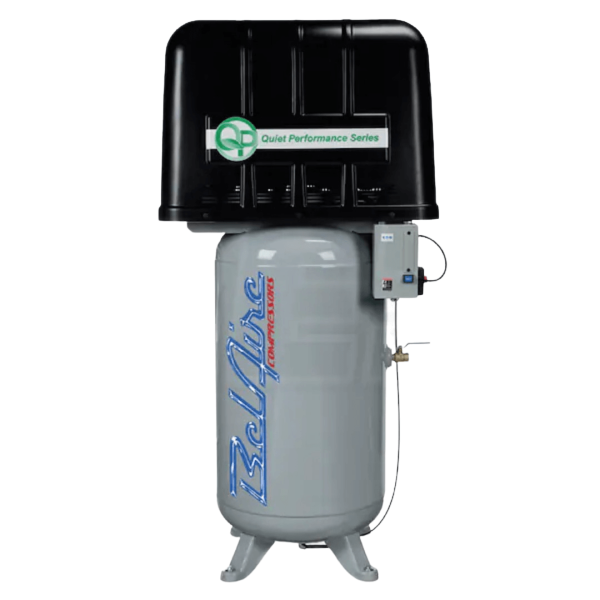

BelAire QP318VE 5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 1-Phase)
Quiet Compressor Air System
- A piston air compressor with the noise level of a rotary screw
Compact Design
- Ideal for work environments where space is a premium
5-HP Single-Phase Motor (208-230V) w/ Magnetic Starter Included
- Saves $$$, No need to purchase additional starter
Low Sound Enclosure
- As low as 66 dbA, designed for a greener workplace
- Less than half the noise of a standard piston compressor
High Strength ABS Enclosure & High Flow Fan
- Keeps the compressor running cooler and quieter
Cast Iron Cylinder
- Designed for superior quality & extends the life of the pump
80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
Added Features
- Low Oil Level Protection & High Temperature Shut Down
- Automatic Pressurized Tank Drain (Not Electronic)
- ASME Safety Valves & Integrated Aftercooler
- Shipped “Wet”, Ready To Use
Product Features
- Quiet Compressor Air System
- A piston air compressor with the noise level of a rotary screw
- Compact Design
- Ideal for work environments where space is a premium
- 5-HP Single-Phase Motor (208-230V) w/ Magnetic Starter Included
- Saves $$$, No need to purchase additional starter
- Low Sound Enclosure
- As low as 66 dbA, designed for a greener workplace
- Less than half the noise of a standard piston compressor
- High Strength ABS Enclosure & High Flow Fan
- Keeps the compressor running cooler and quieter
- Cast Iron Cylinder
- Designed for superior quality & extends the life of the pump
- 80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
- Low Oil Level Protection & High Temperature Shut Down
- Automatic Pressurized Tank Drain (Not Electronic)
- ASME Safety Valves & Integrated Aftercooler
- Shipped “Wet”, Ready To Use
Product Specifications
General Information
| Product Category | Air Compressor – Stationary |
Motor
| Voltage | 208-230 Volt AC |
| Phase | Single-Phase |
| dBA | 66 |
| Magnetic Starter | Yes |
| Amp Draw | 25 |
| Recommended Breaker | 40 Amp Breaker |
Engine
| HP | 5 |
Pump
| CFM | 18.5 |
| CFM Rated @ | 100 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubrication |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 527 Pounds |
| Certification | ASME |
| Consumer Warranty | 2 Year |
| Product Length | 38.2 Inches |
| Product Width | 24.3 Inches |
| Product Height | 80 Inches |
| Power Type | Electric |
