Description
Product Description

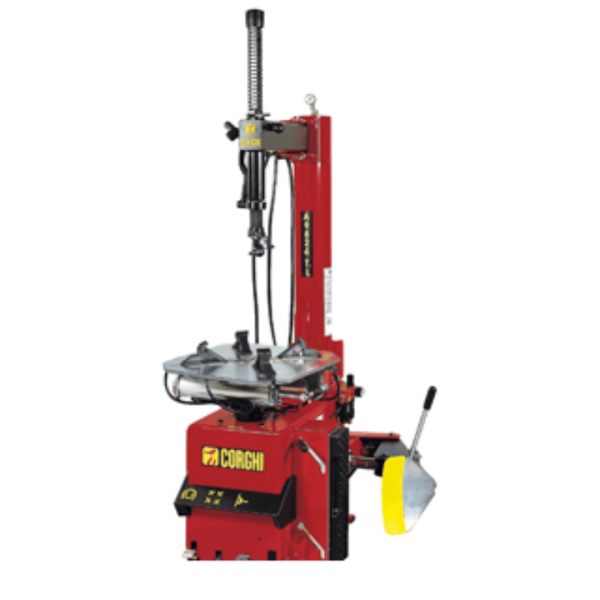

Corghi A9824TI Swing Arm Tire Changer – Air or Elec
Passenger, Light Truck Tire Changer Air or Elec
Superior quality teamed with a sleek design and other unique features allow this machine to achieve speeds up to 50% faster than any other tire changer on the market in its price range. That’s why Corghi was awarded ISO 9001 Quality Certification, industry’s most coveted award. Run-flat certified by all major tire manufacturers.
Product Features
- Available in electric or air motor.
- Electric motor comes standard with 2 speed forward & 1 speed reverse table tops
- Built-in table inflator with jets in the jaws
- Unique mount/demount head does not touch the rim during operation.
- Locking handle locks head away from the rim
- Powerful action bead-breaker blade follows bead to inside rim contour
- Heavy-duty turntable rotates in either direction
- Rebuildable stainless steel cylinders
- Heavy-duty stainless steel turntable
- Safe, fast, profitable and affordable
- Bead-pressing lever
- Upper arm assembly swings out-of-way
- Shipping weight 608 lbs.
Product Specifications
| Max. Tire Diameter | 47″ (1,194 mm) |
| Max Rim Width | 14” (356 mm) |
| Rim Diameter – Internal | 13-26″ (330-660 mm) |
| Rim Diameter – External | 10-24″ (254-610 mm) |
| Rim Diameter w/Adapters – External | 8-28″ (203-711 mm) |
| Table Top Rotation Torque | 737 ft-lb |
| Table Top Rotation Speed | 11 rpm |
| Power Requirements | 110 V / 1PH / 50 Hz |
| Air Requirements | 130 psi |
| Dimensions – Max | 78″ H x 48″ W x 42″ D |
| Weight | 503 lbs. |
